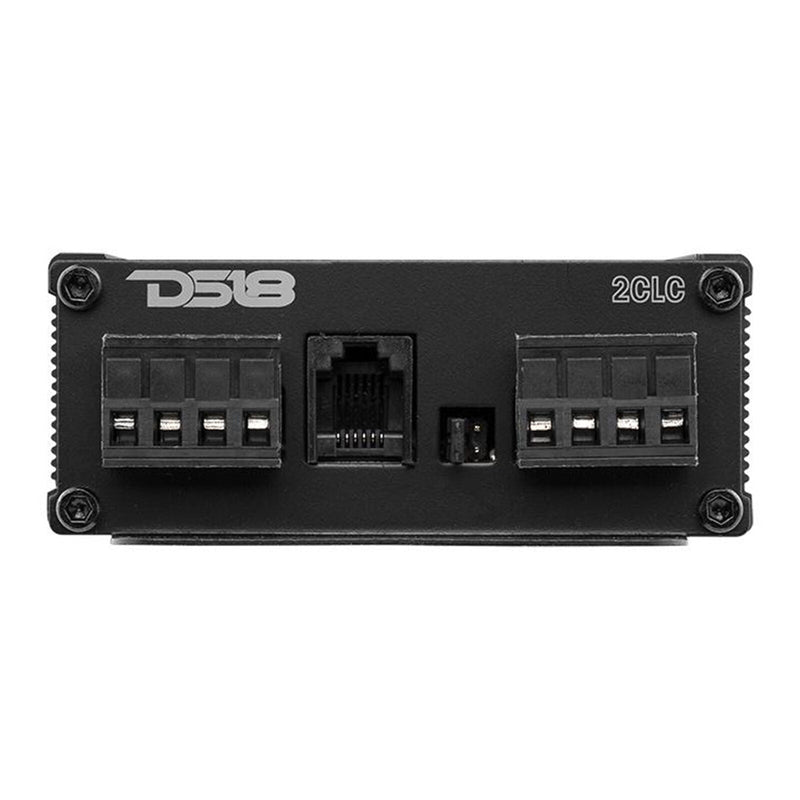

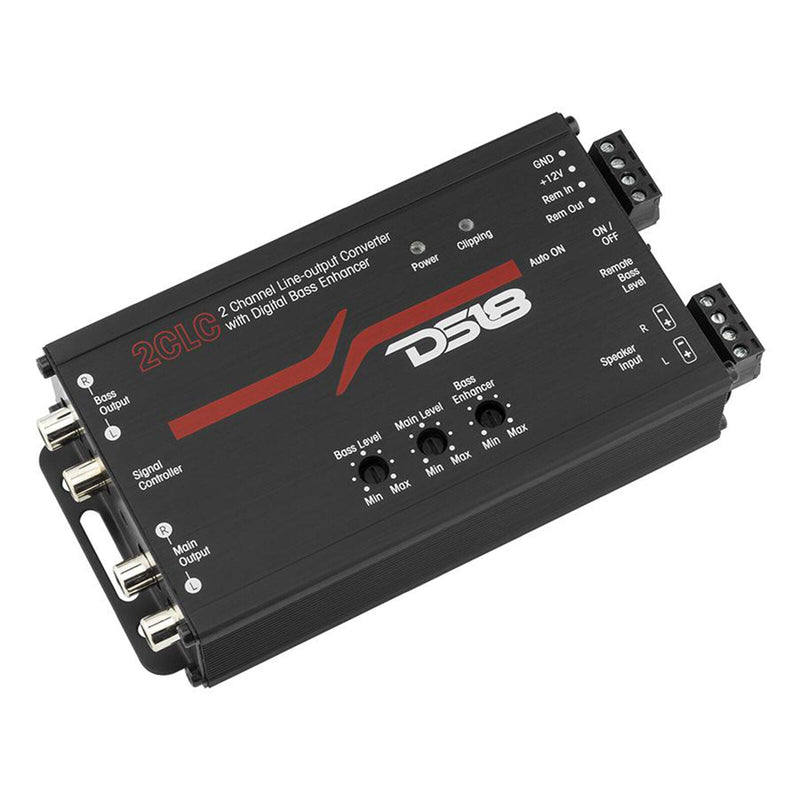

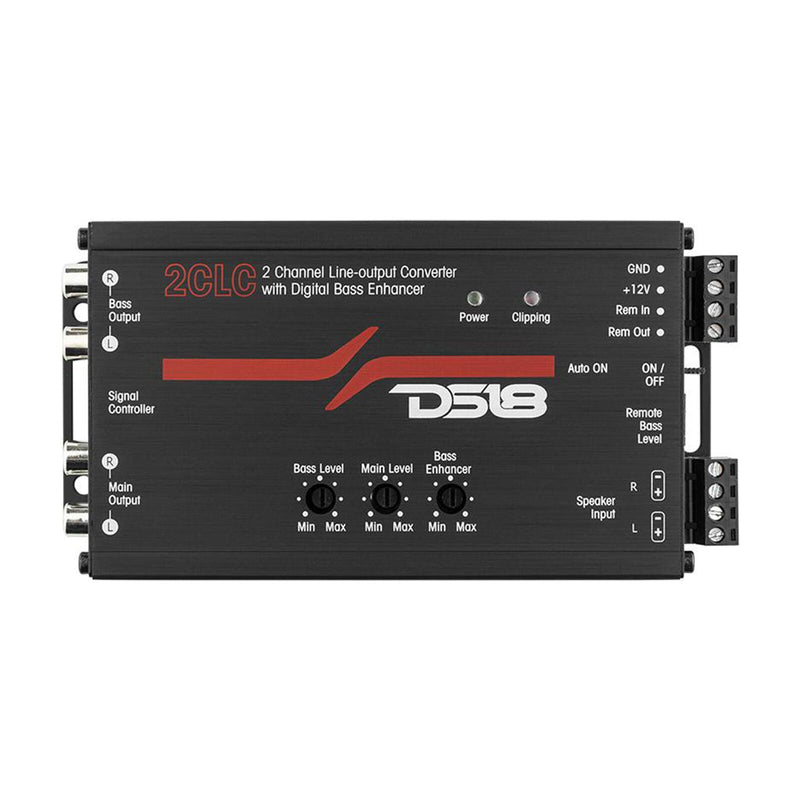

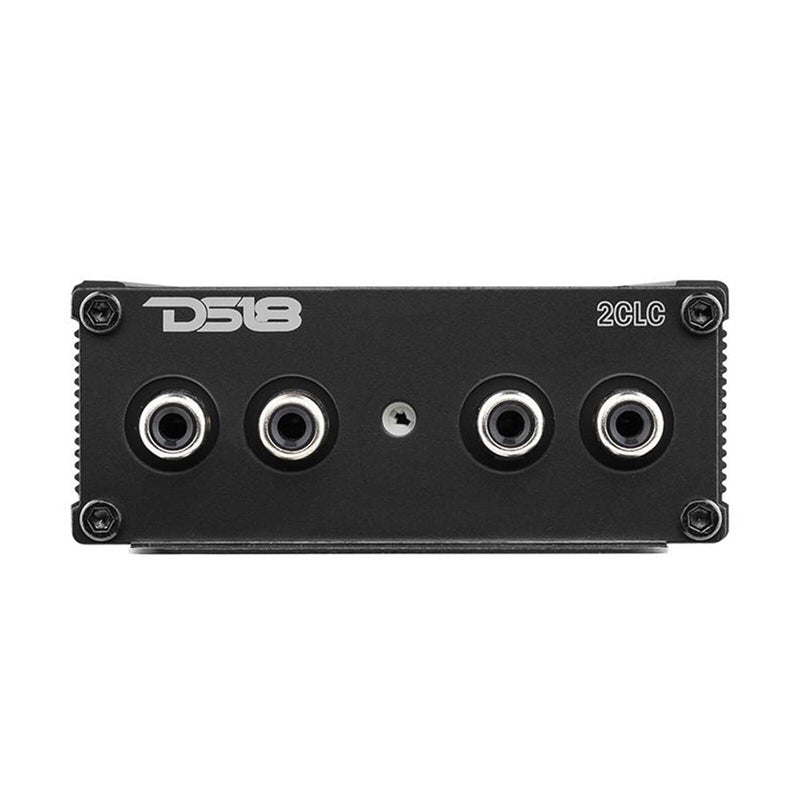

DS18 2 Channel hi/lo Line Output Converter w/ Digital Bass Enhancer & Bass Knob

DS18 2 Channel hi/lo Line Output Converter w/ Digital Bass Enhancer & Bass Knob

DS18's two-channel hi/lo converter now comes with a convenient and easy-to-use digital bass enhancer. This device is great if you are wanting to add an external amplifier and subwoofer to your existing factory system for booming bass without having to replace your radio.

This Listing Includes:

(1) 2-Channel Line Output Converter

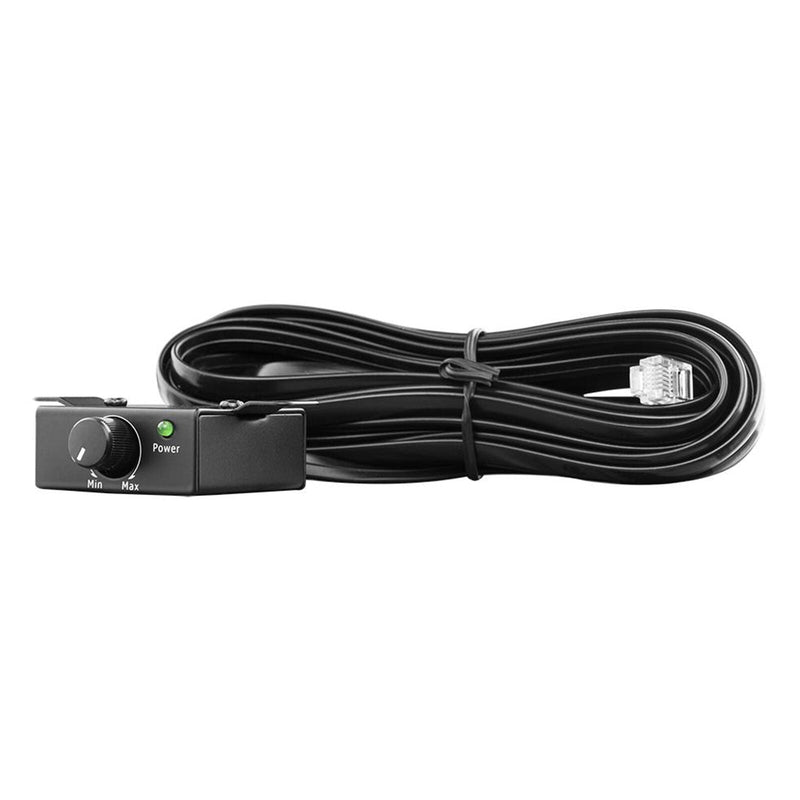

(1) Bass Knob

Features:

- Two channel level input converts your signal from your factory amps to enhance your bass output with an external sub and amp.

- Easy to tune with main level, bass, and bass enhancer knobs to reach the perfect bass frequencies that you are targeting.

- Bass enhancer that brings out even more bass where there once was very little, you will get more output.

Specifications:

Maximum Speaker Level Input: 400 watts per channel

Maximum Preamp Output: 9V rms

Dash Level Remote Control: +0db / - 19 dB

Frequency response: 10Hz-100kHz; + 1dB

Total Harmonic Distortion: 0.01%

Signal To Noise Ratio: More Than 110dB

Input Impedance: 20K Ohms

Output Impedance: 150 Ohms

Power Draw: 150mA

Recommended Fuse Rating: 1 amp

Speaker Level Input: 2 channels

Bass Enhancer: with adjustable control of bass roll-off

Selectable Auto ON: Signal Sensing or remote in

Remote Output: Up to 150mA

Dual Amplifier Outputs: Main/ Bass output

Level Matching Controls: Main/ Bass output Level knob

Dash Remote Level Control: Included

LED Indicators: Power Clipping

Dimensions:

Overall Length: 6.18"

Overall Wide: 3.22"

Overall Height: 1.25"

Heatsink Length: 5.39"

Gross Sible Unit Weight: 11oz
