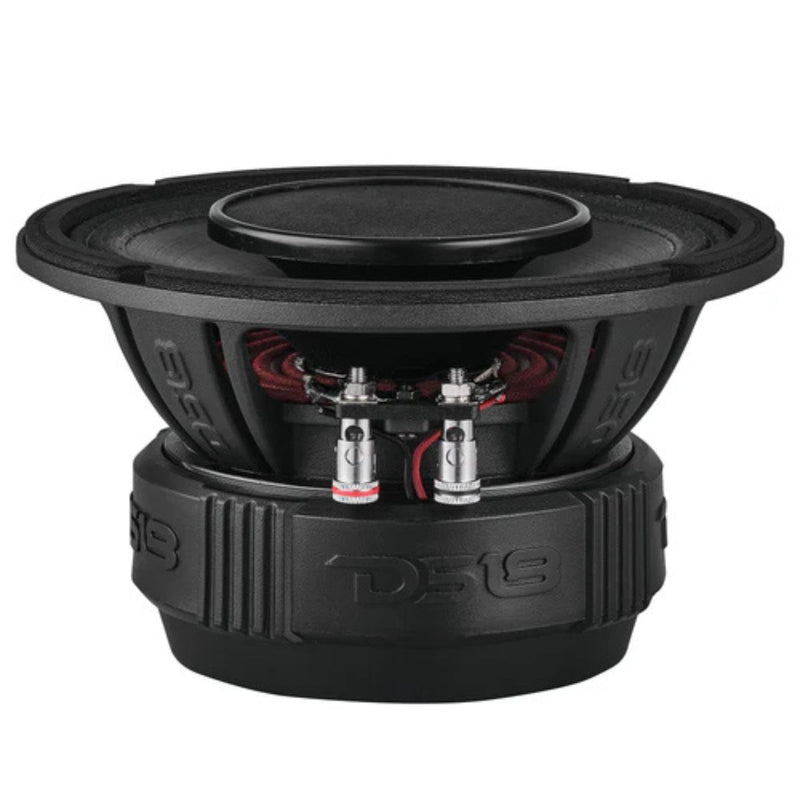

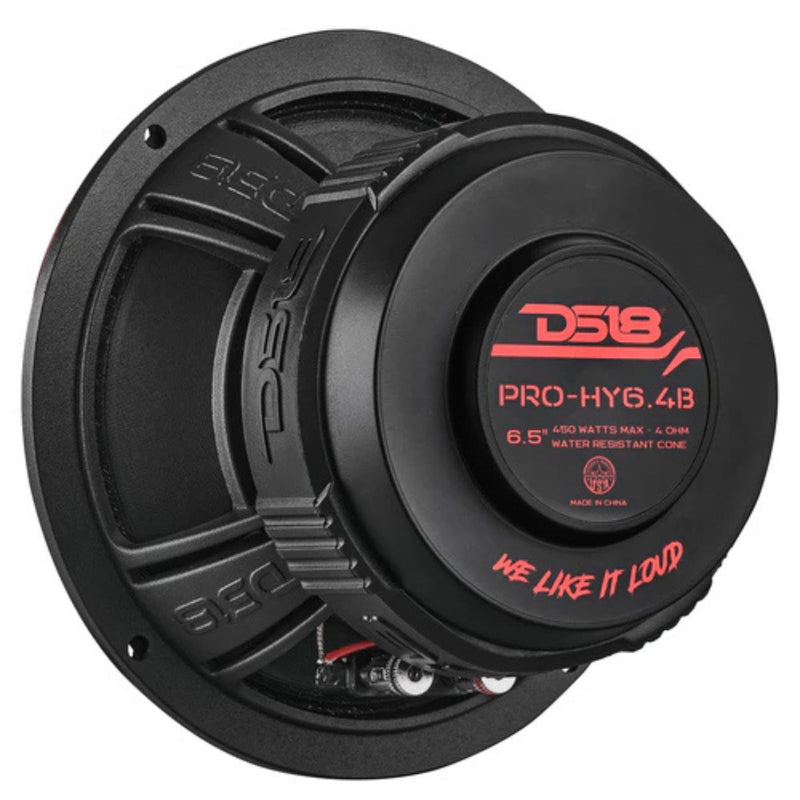

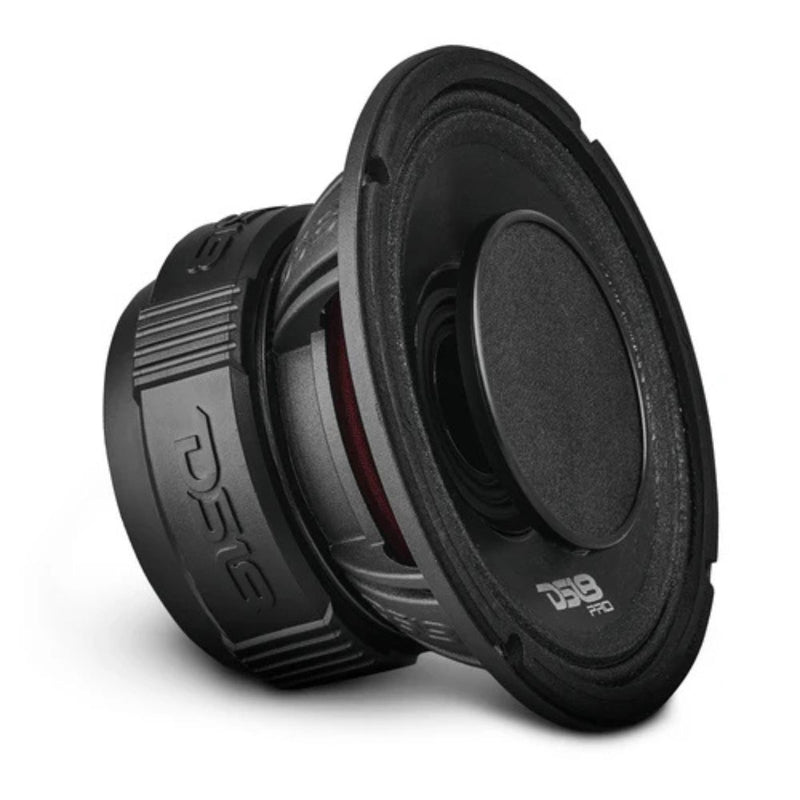

DS18 Marine / Motorcycle 6.5" Mid-Range Loudspeaker 450W 4 Ohm Built-in Driver

DS18 SKU: DS-PRO-HY6.4B

$75.95 $89.95 Save $14

Shipping calculated at checkout

Sold Out

DS18 Marine / Motorcycle 6.5" Mid-Range Loudspeaker 450W 4 Ohm Built-in Driver

If you like it really loud, this speaker is made for you. This DS18 Hybrid speaker give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high powered mega speaker combines both a 6.5" high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount an additional driver. Great for cars, trucks, motorcycles and boats!

This Listing Includes:
(1) DS18 6.5" Hybrid Mid-Range Speaker PRO-HY6.4B

Features:
- Hybrid design combines high wattage midrange and driver together in one beautiful frame.
- High volume 6.5" and 1" compression driver rated at 450 watts max for crazy loud volume in a full range of frequencies.
- Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too.

SPECIFICATIONS:
Nominal Diameter: 6.5"
Nominal Impedance: 4 Ohms
RMS Power Handling: 225 Watts
MAX Power Handling: 450 Watts
Sensitivity (1w/1m): 96dB
Frequency Response: 100Hz ~ 20KHz
Recommended Hi Pass Crossover: 120 Hz

MID-RANGE SPECIFICATIONS:
Voice Coil Diameter:1.5" / 38.6 mm
Voice Coil Former Material: Glass Fiber
Winding Material: CCAW
Cone Material: Water Resistant Paper
Surround Material: Cloth
Basket Material: Aluminum
Basket Color/Finish: Glossy Red
Magnet Material: Ferrite
Magnet Weight: 27 oz
Displacement volume: 0.047L

THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas 2.211L
Excursion (one way): Xmax 9.2 mm
Free Air Resonance: FS 199Hz
Mechanical Factor: Qms 5.96
Electrical Factor: Qes 1.524
Total Factor: Qts 1.214
Mechanical Mass: Mms 8.654g
Mechanical Compliance:    Cms 73.792 mm/N
BL Factor: BL 4.769
Voice Coil Inductance: Le 4.22mH
Cone Area: Sd 145.26 Cm2
DC Resistance: Re 3.2 ohms
Mechanical Mass: w/o Air: Mmd   6.7g

DRIVER SPECIFICATIONS:
Voice Coil Diameter:    1" / 25.4 mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Titanium
Magnet Material:    Neodymium
Horn Diameter: 3.26"

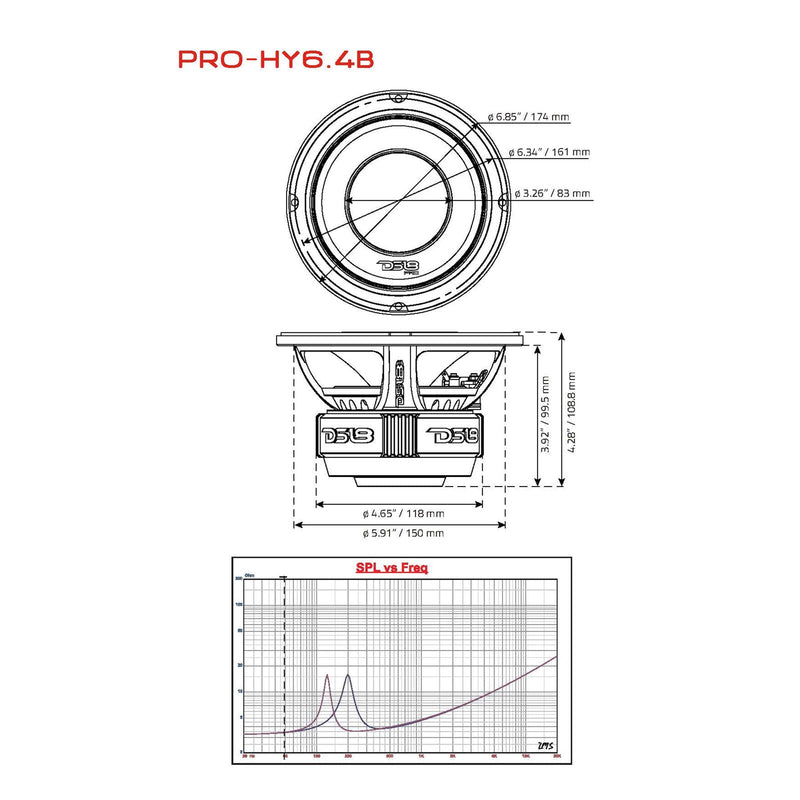

MEASUREMENTS:
Overall Diameter: 6.85" / 174 mm
Overall Depth: 4.28" / 108.8 mm
Front Mount Baffle Cutout: 5.91" / 150 mm
Mounting Depth: 3.92" / 99.5 mm
Motor Diameter: 4.65" / 118 mm
