DS18 2x 6.5 & 6.9" Coaxial Speakers, 4 Ch Amp, Under Seat Sub, 2x 8AWG Amp Kits

DS18 4x 6.5" Coaxial Speakers, 4 Ch Amp, Under Seat Sub w/ 2x 8 AWG Amp Kits

Another amazing complete system package has been put together by our experts to help you make your choices easy to get amazing sound coming from your vehicle. This package includes everything you need to get amazingly loud sound with very high sound quality. This combo includes a pair of our awesome ZXI series coaxial 6.5s and 6x9s to incorporate the perfect match of speakers that produce midbass, vocals, and highs to fill your vehicle with crisp and loud sound.

This Combo Includes:

(2) ZXI-654

(2) ZXI-694

(1) CANDY-X4B

(1) SB10A

(2) AMPKIT8

FEATURES:

-Our ZXI series of speakers never fails to impress! That is why we added these fantastic coaxial speakers to this combo. Not only do they produce impressive sound quality, but their maximum volume is truly astounding.

-The CANDY-X4B amplifier was matched to perfectly power the ZXI series speakers to their maximum potential all while maintaining durability and longevity.

-This all-in-one sub, enclosure, and amp produces very rich and punchy bass that will fill your vehicle with the lower frequencies you crave. Its size makes it small enough to fit just about anywhere (including behind truck seats) and not lose a lot of storage space.

-We also Include two installation kits to make the installation easy with high quality wiring which includes power, ground, remote, RCA, and fusing.

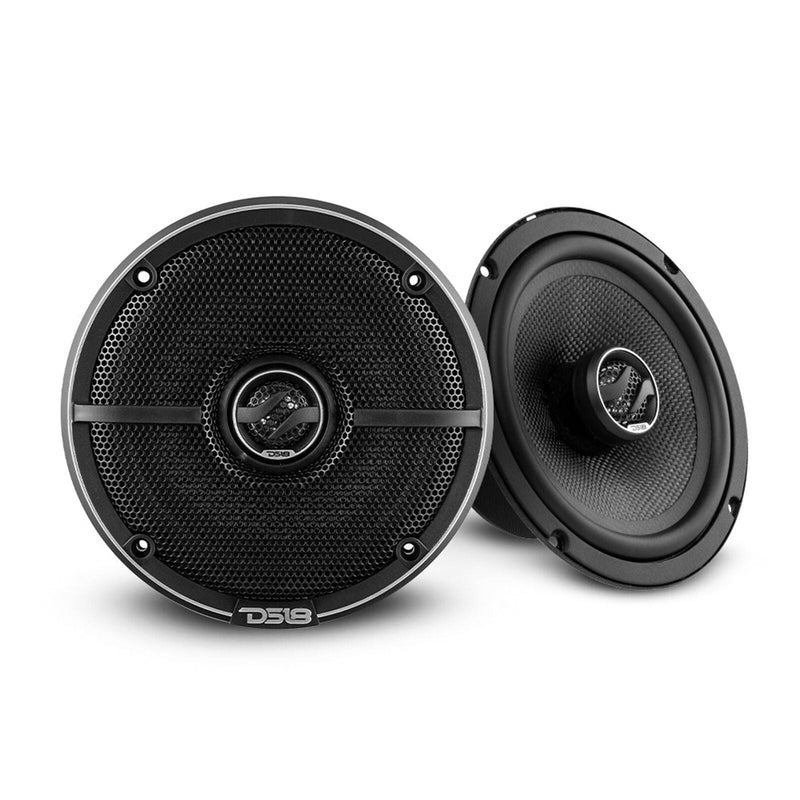

ZXI-654 SPECIFICATIONS:

Nominal Diameter: 6.5" / 165mm

Nominal Impedance: 4 ohm

RMS Power Handling: 80 Watts

MAX Power Handling: 240 Watts

Sensitivity (1w/1m): 89dB

Frequency Response:40Hz-20KHz

Recommended HI Pass Crossover: 60Hz

Speaker Type: 2-Way

Midrange:

Voice Coil Diameter: 1" / 25.5mm

Magnet Weight: 14.46 oz / 410g

Tweeter:

Nominal Diameter: 1" (25.4mm)

Voice Coil Diameter: 0.8"(20.4mm)

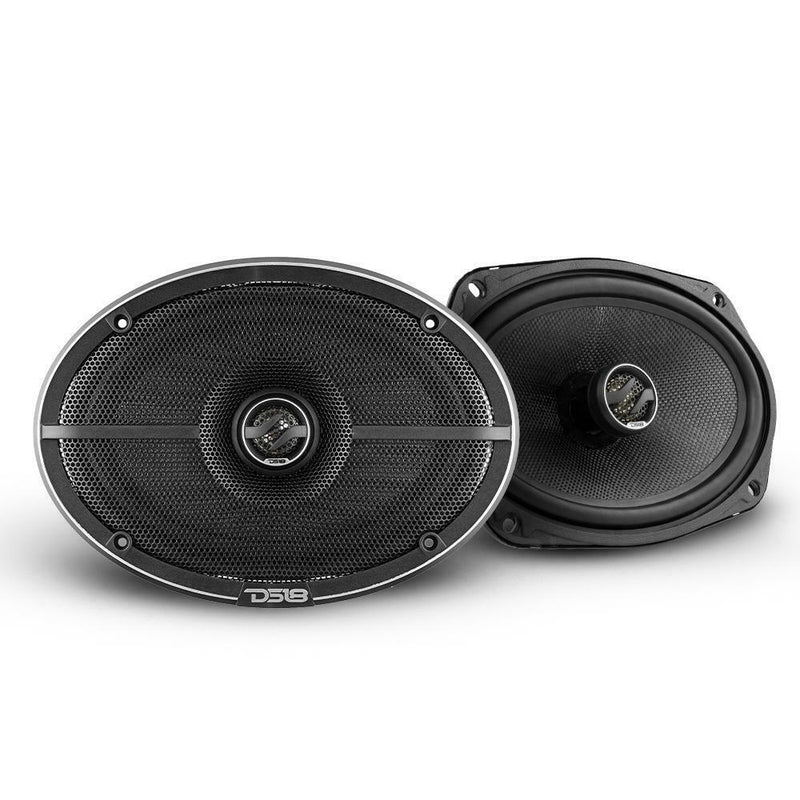

ZXI-694 SPECIFICATIONS:

Nominal Diameter: 6x9"

Nominal Impedance: 4 ohm

RMS Power Handling: 120 Watts

MAX Power Handling: 360 Watts

Sensitivity (1w/1m): 92dB

Frequency Response: 31.5Hz-20Khz

Recommended HI Pass Crossover: 50Hz

Speaker Type: 2-Way

Midrange:

Voice Coil Diameter: 1" / 25.5mm

Magnet Weight: 14.46 oz / 410g

Tweeter:

Nominal Diameter: 1" (25.4mm)

Voice Coil Diameter: 0.8"(20.4mm)

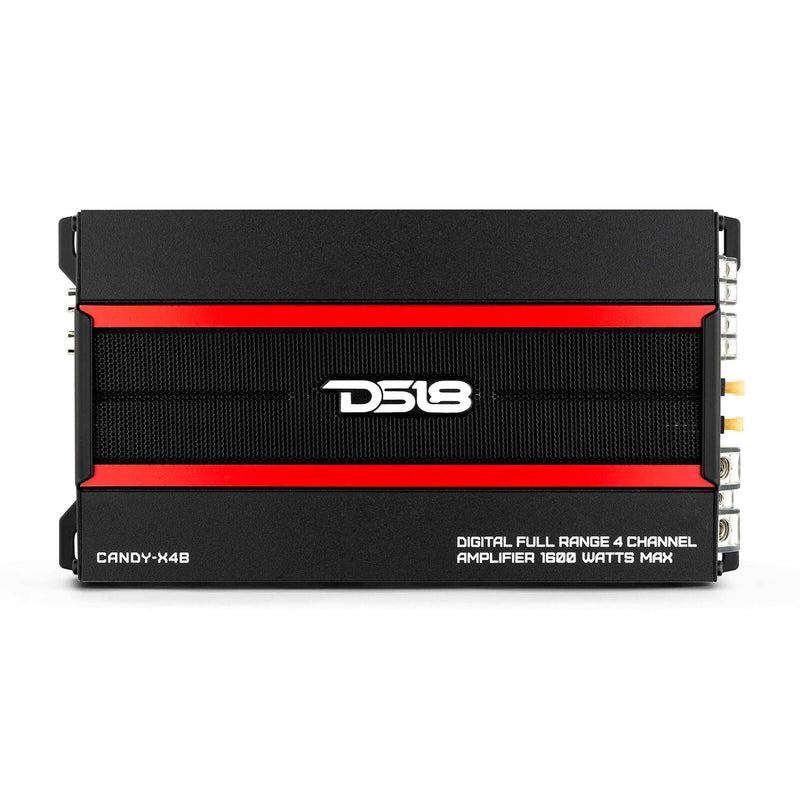

CANDY-X4B SPECIFICATIONS:

Class: Class-D

Type: Stereo Full Range

Channels: 4

Total Watts (PEAK): 1600W

RMS Power @ 4 ohm: 80W x 4CH

RMS Power @ 2 ohm: 120W x 4CH

RMS Power @ 4 ohm Bridge: 240W x 2CH

Min. Speaker Impendance: 2 OHM X 4CH

Frequency Response: 20Hz-20kHz

Signal/Noise Ratio: 100 dB

Iinput Impendence 10K

Channel Separation 50 dB

THD %: Less Than 0.01%

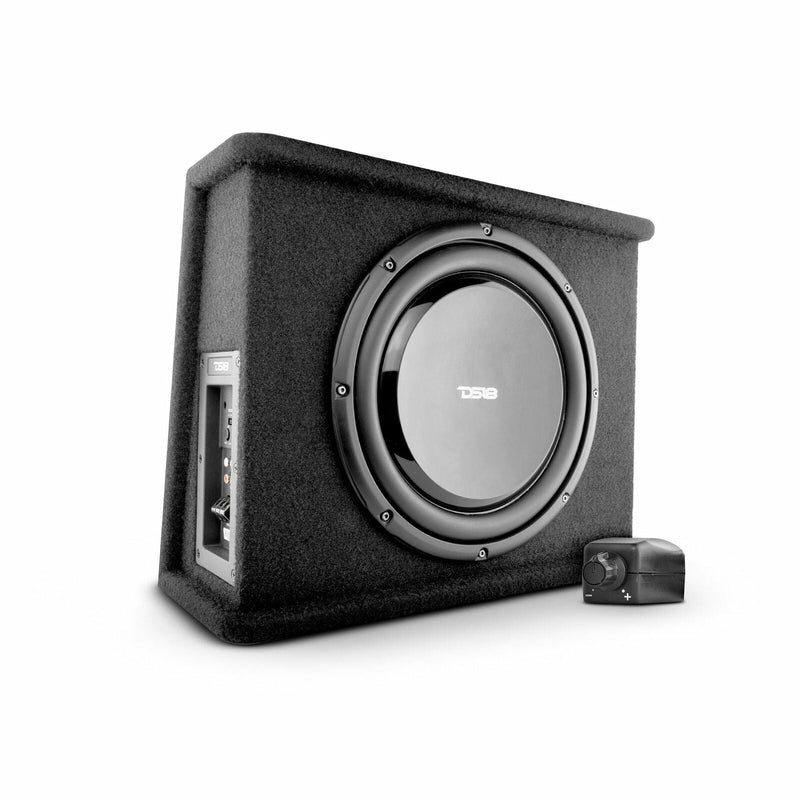

SB10A SPECIFICATIONS:

Speaker Size :10" / 261mm

Total Impedance: 2 ohms

RMS Power Handling: 350W

MAX Power Handling: 700W

Sensitivity (1w/1m): 83dB

Frequency Response: 38-250Hz

Voice Coil Diameter:1.5" / 38.6mm

Voice Coil Former Material: Aluminum

Winding Material: EISV

Cone Material: IPP

Surround Material: Rubber

Basket Material: SPCC

Magnet Material: Ferrite

Magnet Weight: 40 Oz

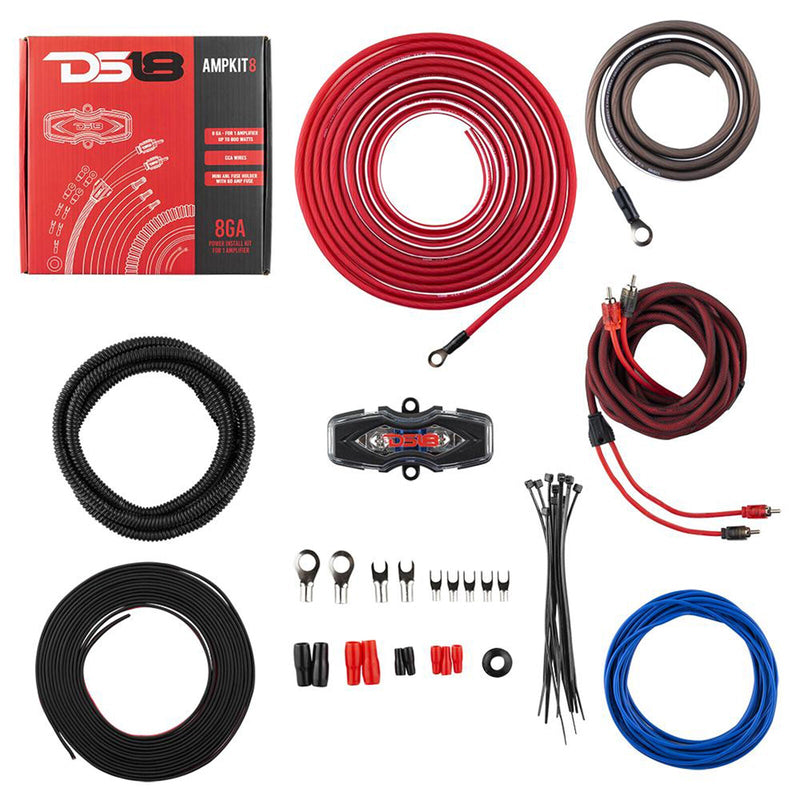

AMPKIT8 INCLUDES:

ANL fuse holder with ANL-100A

6 ft. 8-GA Loom Tube

Rubber Grommet

17 ft. Red Power Cable: 8.3mm OD: 6.7mm

3 ft. Black Ground Cable: 8.3mm OD:6.7mm

17 ft. Red/Black Twisted RCA

17 ft. Remote Cable 20 x 0.15mm

17 ft. Red/Black Speaker Cable 0.81mm x 2 wires OD 2.4 x 4.8mm
