- (1) DS-ENS-66X Under Seat Enclosure for Vehicle Mounting
- (6) DS-ZR6.4D 6.5-inch Subwoofer 1000W Dual Voice Coil 4-Ohm
- (1) ZR2000.1D Class D, 1-Channel Monoblock Amplifier 2000W RMS
- (1) AMPKIT0 0 Gauge Wiring Kit
Included in this combo is everything you need to give you car audio system a Huge boost in bass and low-end frequencies.

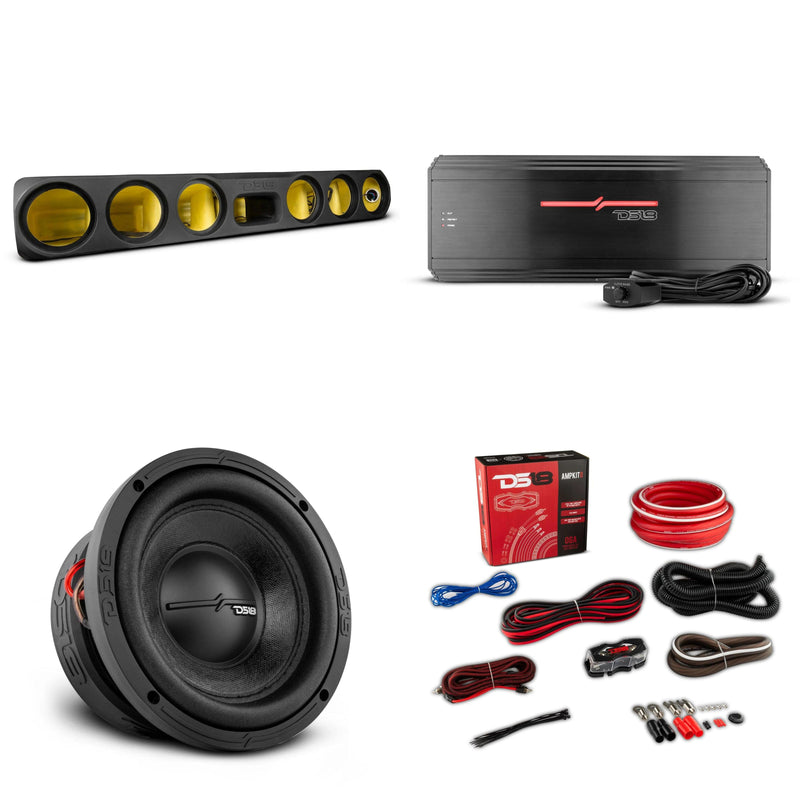

This Combo Includes:
(1) DS-ENS-66X Under Seat Enclosure for Vehicle Mounting
(6) DS-ZR6.4D 6.5-inch Subwoofer 1000W Dual Voice Coil 4-Ohm
(1) ZR2000.1D Class D, 1-Channel Monoblock Amplifier 2000W RMS

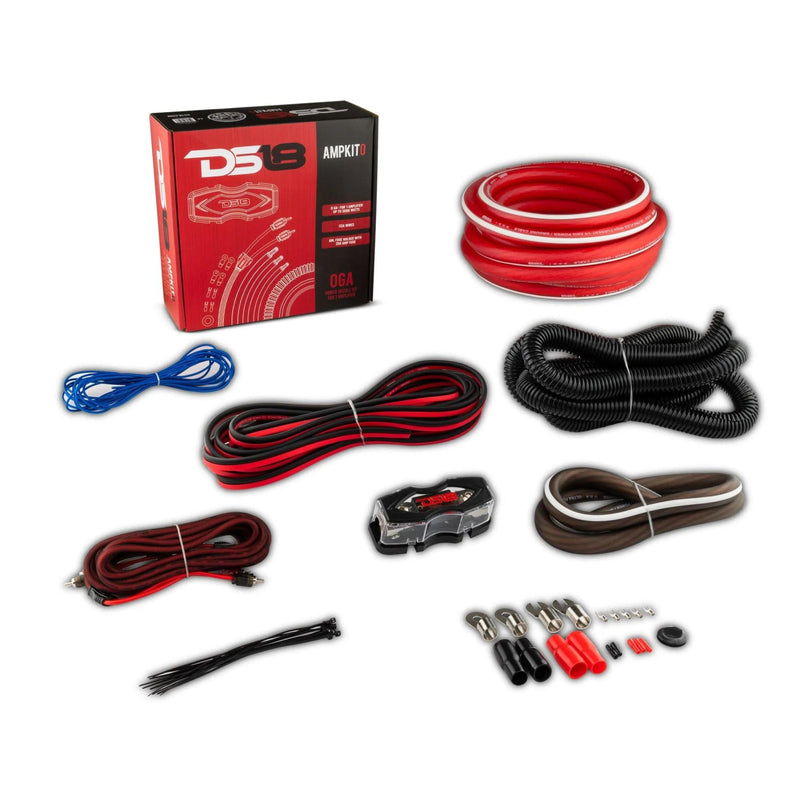

(1) AMPKIT0 0 Gauge Wiring Kit

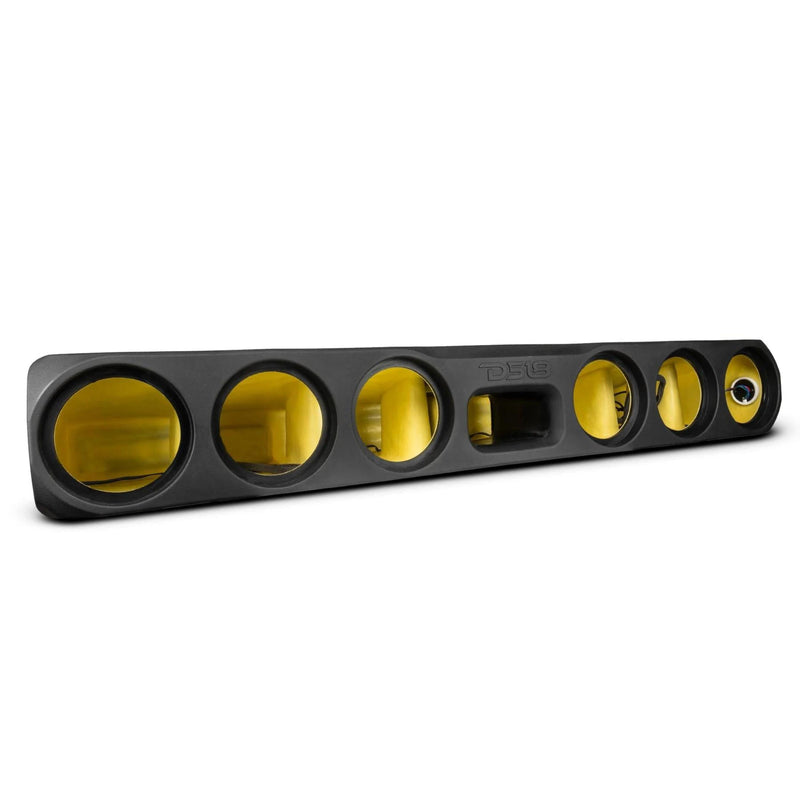

Under Seat Enclosure FEATURES:
- This box can hold six 6.5 inch subwoofers up to 5 inches in mounting depth.
- Highly durable and tough plastic mold injection with a greater thickness than other boxes.
- Because of the construction, the box will not crack, break, or crumble like wooden boxes do over years. The box is likely to outlast your vehicle.
- Because of its universal construction, it can be brought into most new vehicles with similar measurements when moving to a new vehicle.
- Stealth design sits under your rear bench seat, or full size seat.
- Internal Volume: 3ft / 84.9L
- Tuned Port: 27Hz
- Dimensions(L x W x H): 56.97" x 13.39" x 8.26" 1459mm x 340mm x 209.8mm
- Large foam surround for great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 300w RMS and 600w max through a high-strength 1.5" aluminum voice coil.
- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dust cap.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.

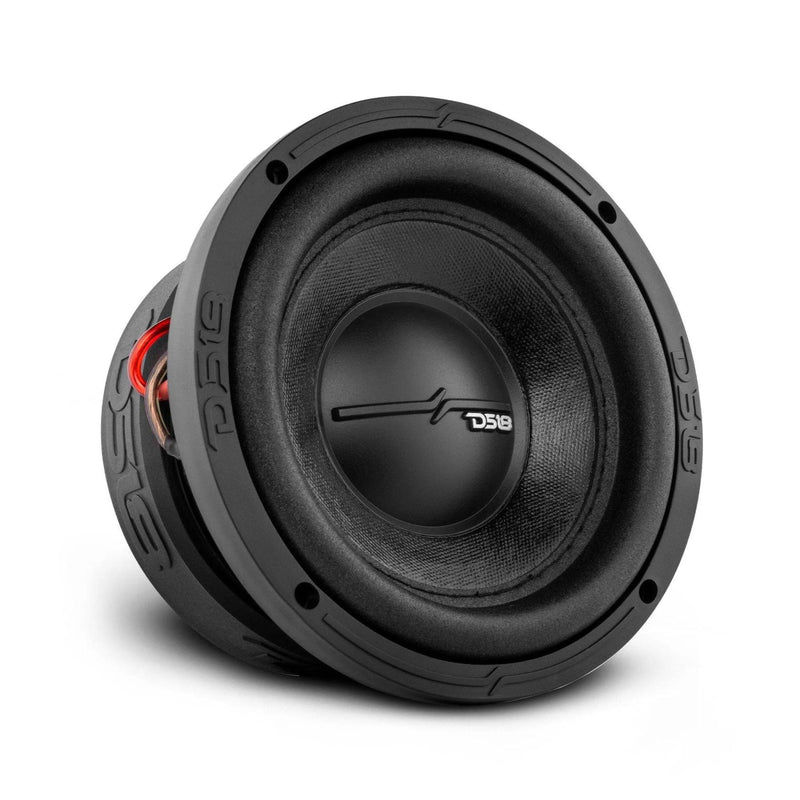

Nominal Diameter: 6.5"
Nominal Impedance: 4+4 OHM
RMS Power Handling: 300W
MAX Power Handling: 600W
Sensitivity (1w/1m): 82 dB
Frequency Response: 38Hz - 200 Hz
Voice Coil Diameter: 1.5" / 38.8mm VC
Former Material: Aluminum
Winding Material: Copper
Cone Material: Non Pressed Paper
Dust Cap Material: PPI Surround
Material: Foam Basket
Material: Steel Basket
Color/Finish: Matte Black
Magnet Material: Ferrite Magnet
Weight: 50 oz
Displacement Volume: 0.02 ft3
THIELE & SMALL PARAMETERS:
Equivalent Volume: 2.79 L
Excursion (one way): 15mm
Free Air Resonance: 70Hz
Mechanical Factor: 3.611
Electrical Factor: 0.86
Total Factor: 0.695
Moving Mass: 44.6g
Compliance: 96.01 m/N
BL Factor: 6.53
Voice Coil Inductance: 461.9m mH
Cone Area: 143 Cm2
DC Resistance: 3.4 + 3.4 ohm
Efficiency Bandwidth Product: 81.4
Overall Diameter: 6.75" (171.6 mm)
Overall Depth: 4.23" (107.4 mm)
Front Mount Baffle Cutout: 5.54" (140.8 mm)
Mounting Depth: 3.49" (88.8 mm)
Motor Diameter: 5.23" (133 mm)
-Digital Class D Subwoofer Monoblock
-MAX Wattage: 6000w Peak @ 1-Ohm
-Frequency Response: 10-220 Hz
-Signal to Noise Ratio: Greater Than 95Db
-Power and Ground Terminal: 0 Ga
-Minimum Impedance: 1 Ohm
POWER - Total Watts (Peak): 6000W
- RMS Power @ 4 ohm: 800W
- RMS Power @ 2 ohm: 1300W
- RMS Power @ 1 ohm: 2000W
- Frequency Response: 10-220Hz
- Signal to Noise Ratio: Greater than 95dB
- Efficiency @ 4ohm: 80%
- Damping Factor: 220
- Input Impedance: 20K ohm
- Total Harmonic Distortion (THD): 0.01%
- Low Level Input Range: 0.2-6V
- High Level Input: Yes
- Selectable X-Over: LPF Fixed
- X-Over Filter Range: 40-180Hz
- Bass Boost Range: 0-12db
- Bass Boost Frequency: 30-80hz
- Infrasonic Filter: 10-50hz
- Phase Selector: 0-180
