Triple Bank / 18 Yinlong LTO Cell Lug Style Bus Bars w/ BMS 5S-8S 10A Balancer

• Triple Bank / 18 Yinlong LTO Cell Lug Style Bus Bars – High-performance aluminum bus bars for lithium battery systems.
• 10A Capacitance Active Balancer – Ensures efficient voltage balancing for 5S-8S setups
• Voltage Range – 1.8V - 4.5V with a balancing accuracy of 5mV
• Operating Temperature – -10°C to 60°C for reliable performance
• Note – Battery cells are not included

Triple Bank / 18 Yinlong LTO Cell Lug Style Bus Bars w/ BMS 5S-8S 10A Balancer

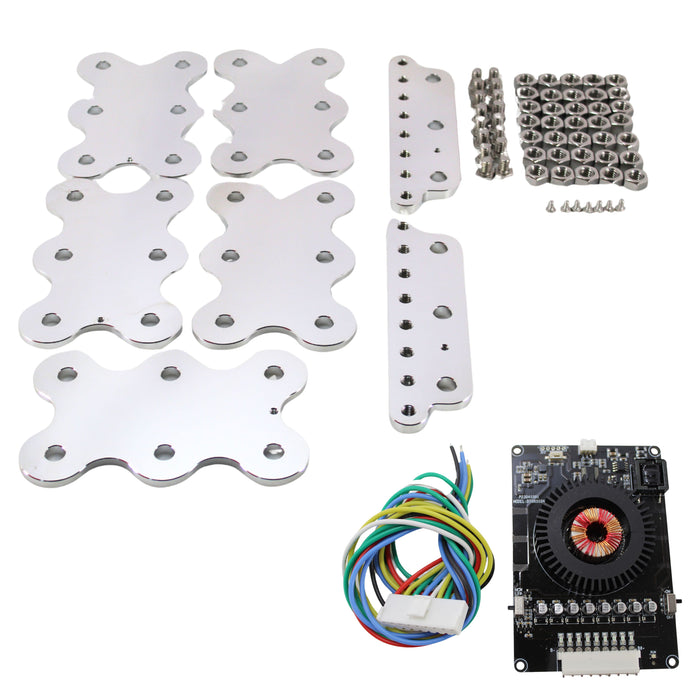

This Listing Includes:

• (1) 18 Battery Cell Lug Style Aluminum Bus Bar Set

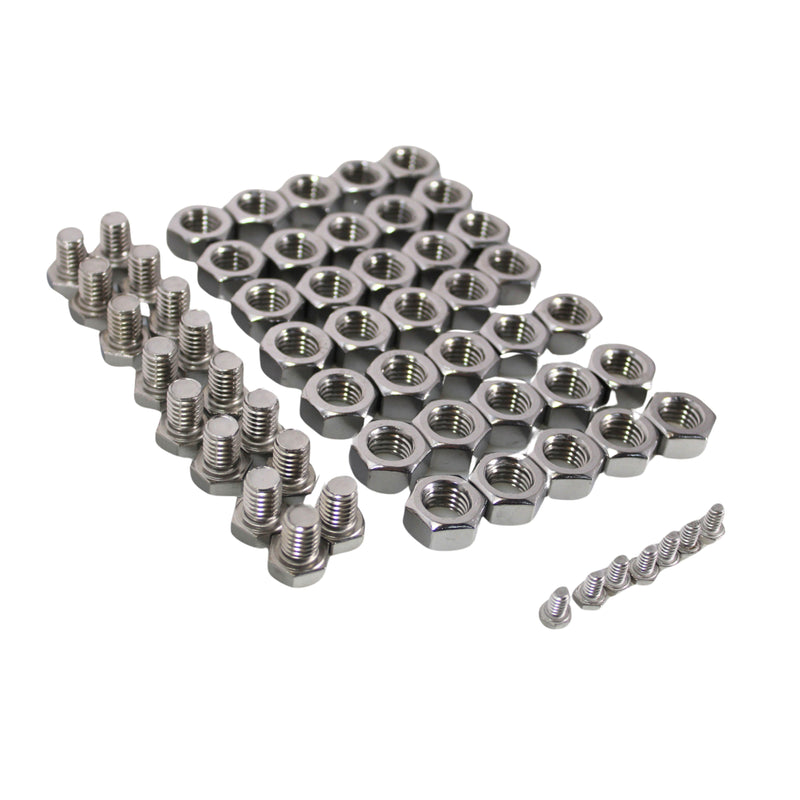

• (1) Set of Stainless Steel Hardware (cell nuts, bolts, balancer bolts)


• (1) 10 Amp Capacitance Active Balancer

The Triple Bank / 18 Yinlong LTO Cell Lug Style Bus Bars are designed for high-performance lithium battery systems, ensuring efficient power transfer and secure connections. Made from 6061 aluminum, these bus bars provide exceptional conductivity and durability, making them ideal for Yinlong 35Ah, 40Ah, and 45Ah lithium cells. The included 10A capacitance active balancer optimizes voltage across 5S-8S battery configurations, enhancing battery efficiency and longevity.

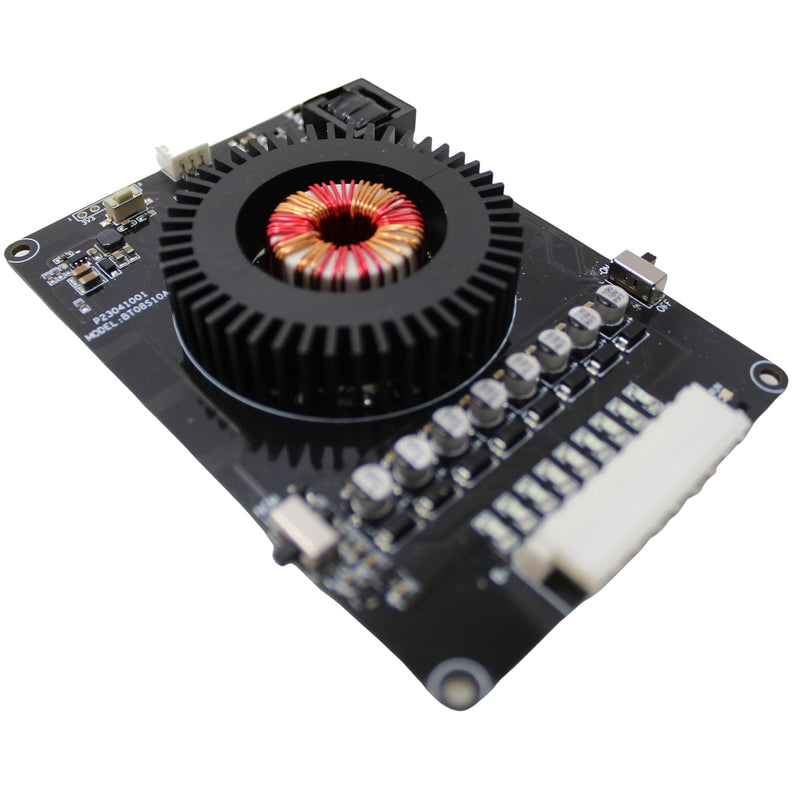

10 Amp Capacitance Active Balancer Features

• Supports 5S-8S battery setups for flexible configurations


• Maximum balance current: 10A


• Battery compatibility: NCM / LFP / LTO


• Operating voltage range: 1.8V - 4.5V


• Voltage balancing accuracy: 5mV (typical)


• Sleep protection voltage: NCM/LFP: 2.7V | LTO: 1.8V


• Standby current: 7mA


• Operating temperature range: -10 C  to 60 C


• Dimensions: 4.37" x 3.11" x 0.67"

Triple Bank / 18 Yinlong LTO Cell Lug Style Bus Bars Features

• Durable Construction - Made from high-quality 6061 aluminum for superior conductivity and strength


• Optimized for Yinlong Cells - Compatible with Yinlong 35Ah, 40Ah, and 45Ah lithium cells


• Complete Hardware Included - Comes with stainless steel cell nuts, bolts, and balancer bolts for easy assembly


• High Current Flow - Designed for extreme power applications, ensuring optimal energy transfer


• Convenient Design - Triple bank bussing accepts 8 lugs on each end for secure and versatile connections

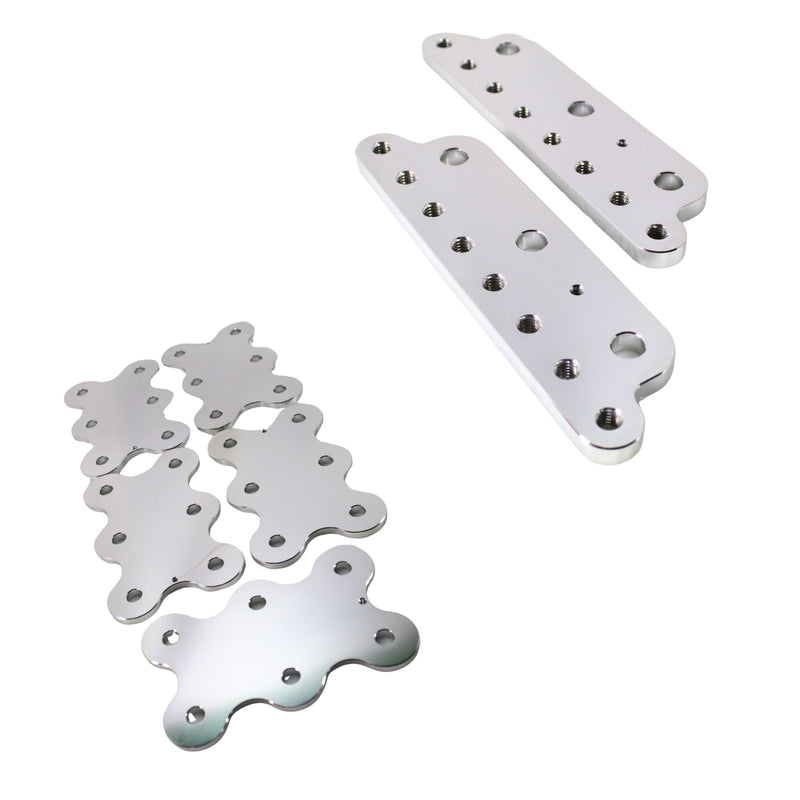

Triple Bank / 18 Yinlong LTO Cell Lug Style Bus Bars Dimensions

• Butterfly Bars: Length = 4.5" | Width = 4.5" | Depth = 0.375"


• End Bars: Length = 5.625" | Width = 2.25" | Depth = 0.375"

Note: Battery cells are not included.
