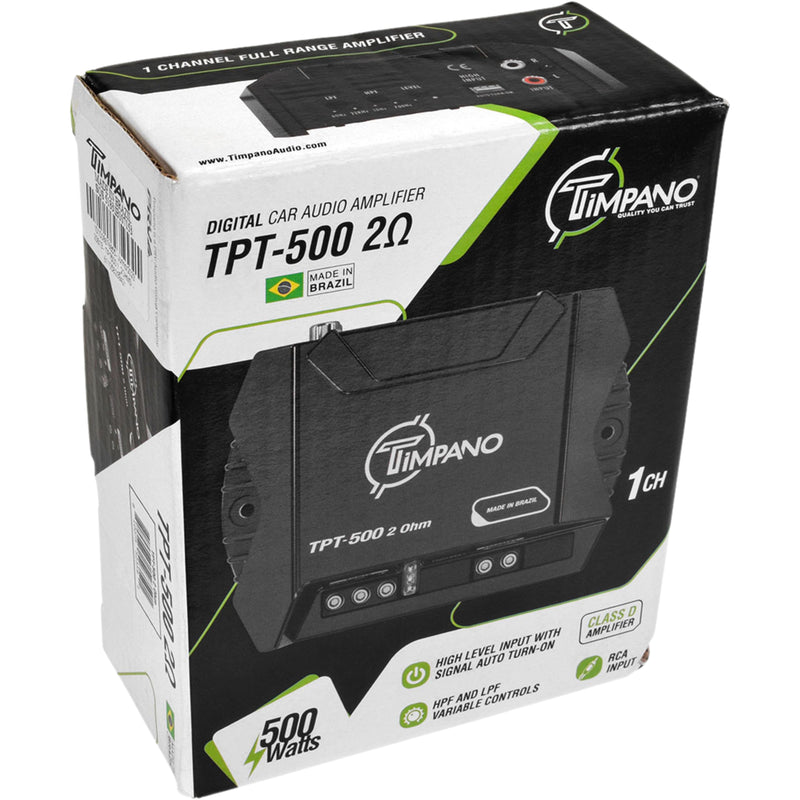

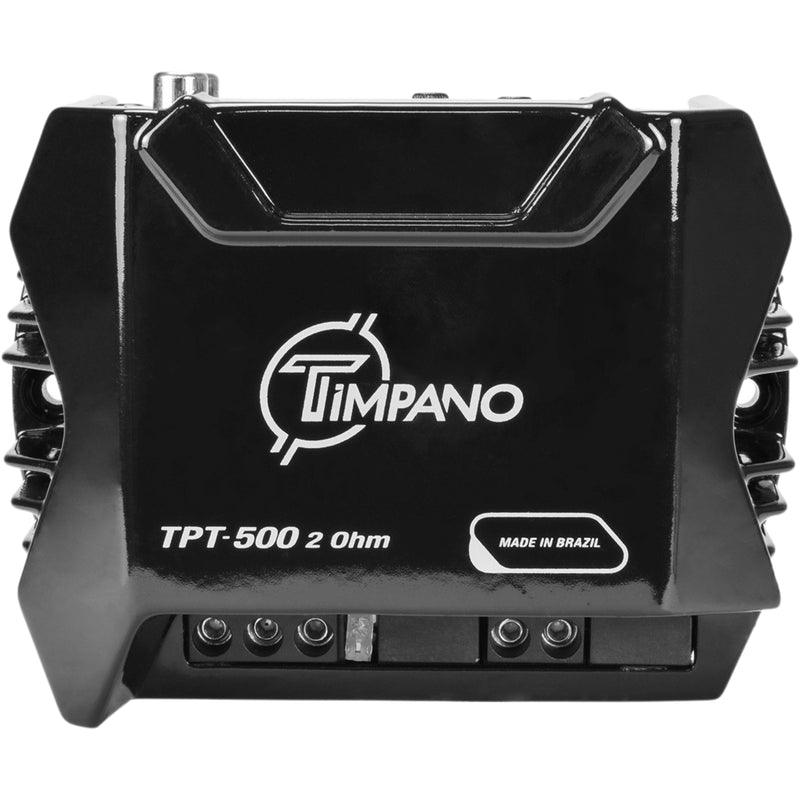

Timpano Compact 500W 2-Ohm Class-D Fullrange Monoblock Amplifier / TPT-500-2

• Powerful Output: Delivers a robust 500 watts of power, providing clear and undistorted sound for an exceptional audio experience.
• Class-D Efficiency: Advanced Class-D technology ensures maximum efficiency and minimal heat generation, enabling continuous high performance.
• Compact Design: Sleek and compact, this amplifier is perfect for installations in tight spaces without compromising on power or quality.
• Versatile Applications: Ideal for a wide range of audio setups, offering flexibility and compatibility with various car audio systems.
• Easy Installation: User-friendly design allows for straightforward installation, making it a great choice for both beginners and experienced installers.

Timpano Compact 500W 2-Ohm Class-D Fullrange Monoblock Amplifier / TPT-500-2

This Listing Includes:

• (1) TPT-500-2 Amplifier

Description:

Experience the power and precision of the Timpano Compact 500W 2-Ohm Class-D Fullrange Monoblock Amplifier. This compact powerhouse delivers an impressive 500 watts of pure, undistorted sound, making it perfect for audiophiles and car audio enthusiasts alike. Designed with advanced Class-D technology, this amplifier ensures maximum efficiency and minimal heat generation, allowing for continuous high performance. The sleek, compact design allows for easy installation in tight spaces, while providing the versatility to power a wide range of audio setups. Elevate your sound system with the Timpano Compact Monoblock Amplifier and enjoy crystal-clear audio on every drive.

Features:

• COMPACT DESIGN: Digital class D Brazilian technology allows this amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 3.93" depth x 5.02" width x 2" height


• POWER: This amplifier is designed to run your system with the power it needs to perform! 500 Watts maximum dynamic RMS power output on one channel. Its high efficiency rate of 85% provides more power with less battery consumption.

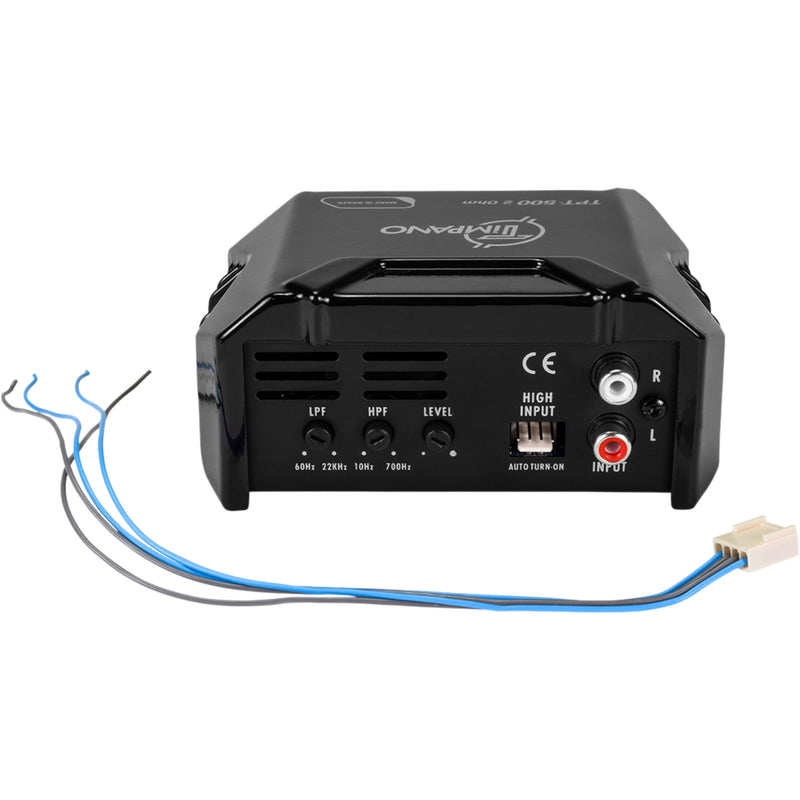

• HIGH LEVEL INPUTS with SIGNAL AUTO TURN ON: Attaches directly to systems using speaker-level inputs with signal auto turn-on to eliminate remote turn-on wiring


• TECHNOLOGY: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 10 to 22,000Hz was used to give the best sound reproduction on this tiny amplifier.

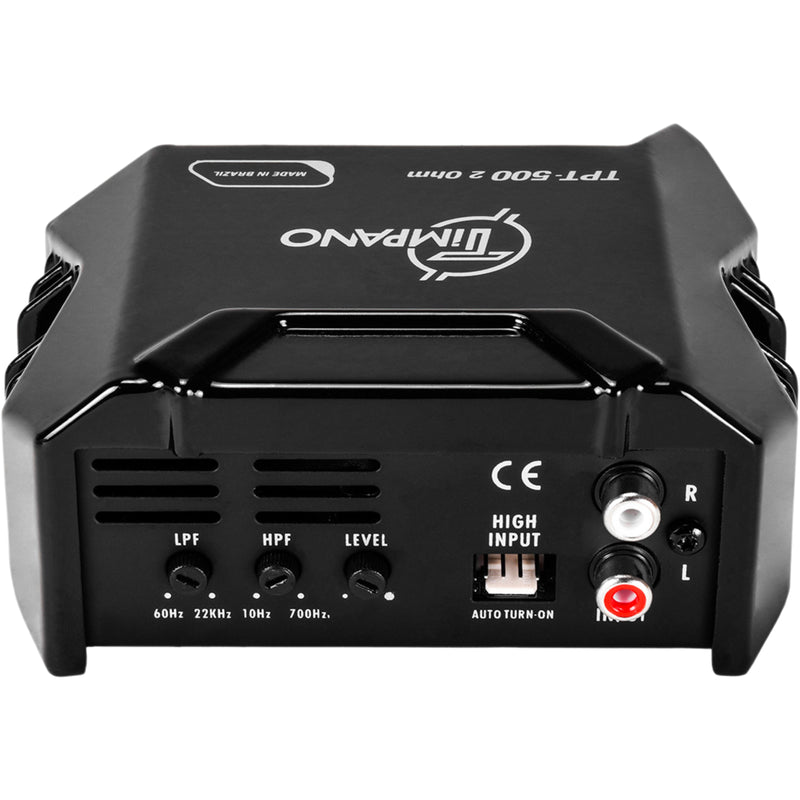

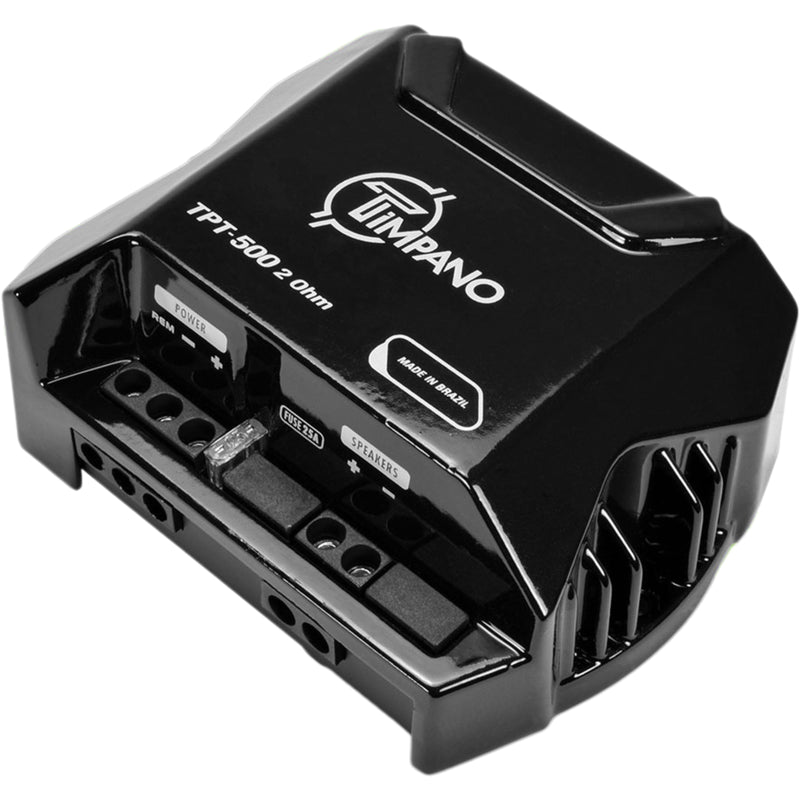

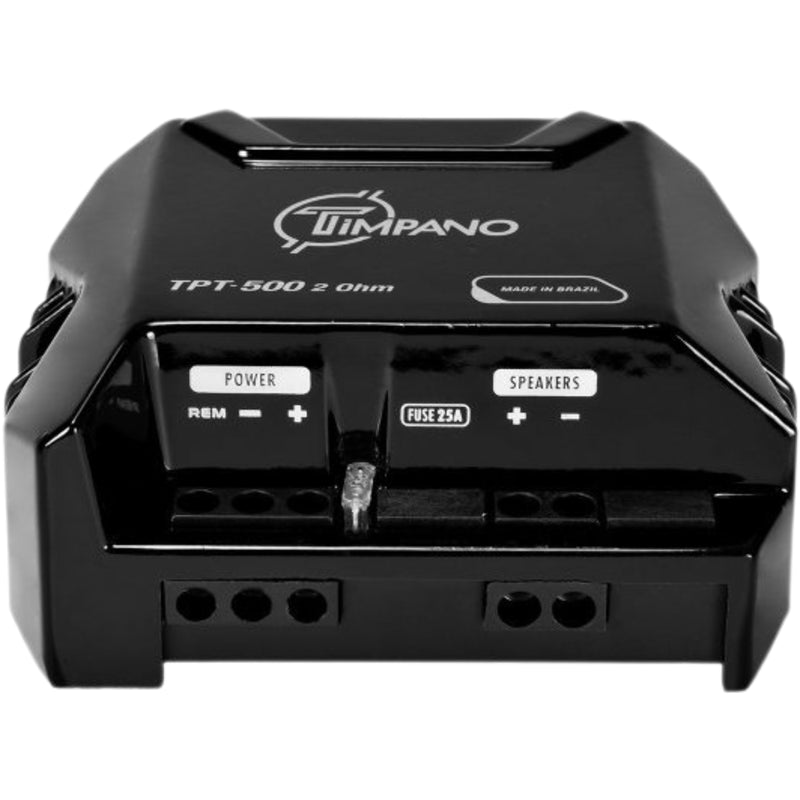

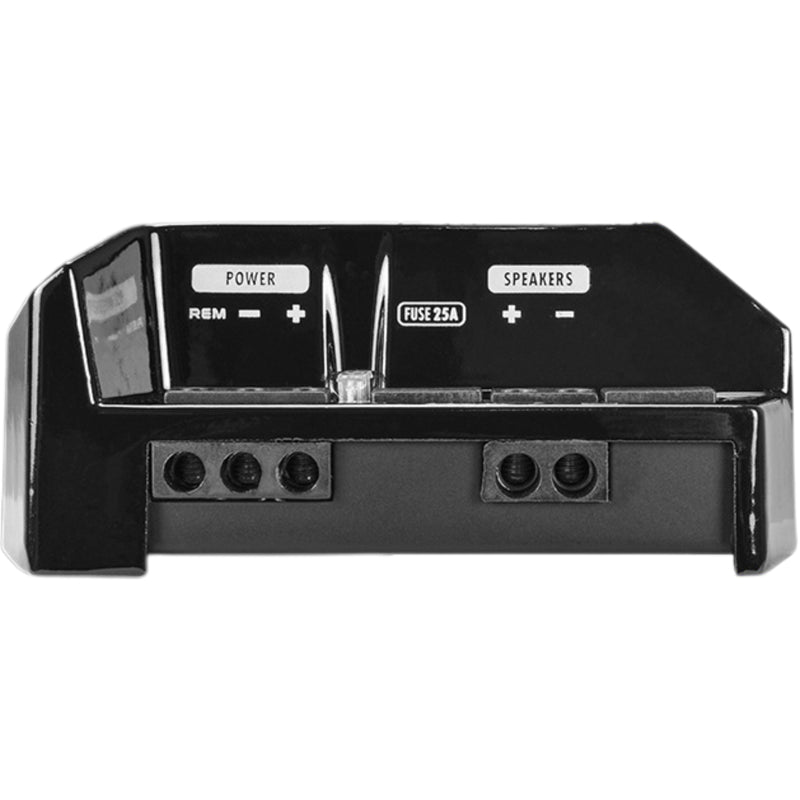

• FEATURES: Heavy Duty 10 Gauge power and speaker wire Inputs. Built-in crossover filters for easy tuning! Built-in variable crossover filters: HPF ( 10 - 700Hz ) and LPF ( 60 - 22 KHz ). It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.

Specifications:

• Number of Channels: 1


• Max Dynamic Output: 500 Watts RMS 2 Ohm


• 380 Watts RMS Power at 2 Ohm 12.6 Volts


• 150 Watts RMS Power at 4 Ohm 12.6 Volts


• Supply Voltage: 10 ~ 15V


• Frequency Response: 10Hz ~ 22KHz


• LPF - Crossover Low Pass: 60Hz to 22,000 Hz


• HPF - Crossover High Pass: 10Hz to 700 Hz


• Signal to Noise: > 90 dB


• Harmonic Distortion: < 0.9 % THD


• Input Impedance: 10K Ohm with RCA and 38K Ohm with Wires


• Impedance Output: 2 Ohm


• Consumption with Signal Musical: 1A ~ 18A

Measurements:

• Dimensions (L x W x H): 3.93" x 5.02" x 2"


• Weight: 1.12 Lbs
