- POWER: This monoblock Car Audio amplifier is designed to run your system with the power it needs to perform! 3000 Watts RMS power exclusive for BASS applications. Its high efficiency provides more power with less battery consumption.

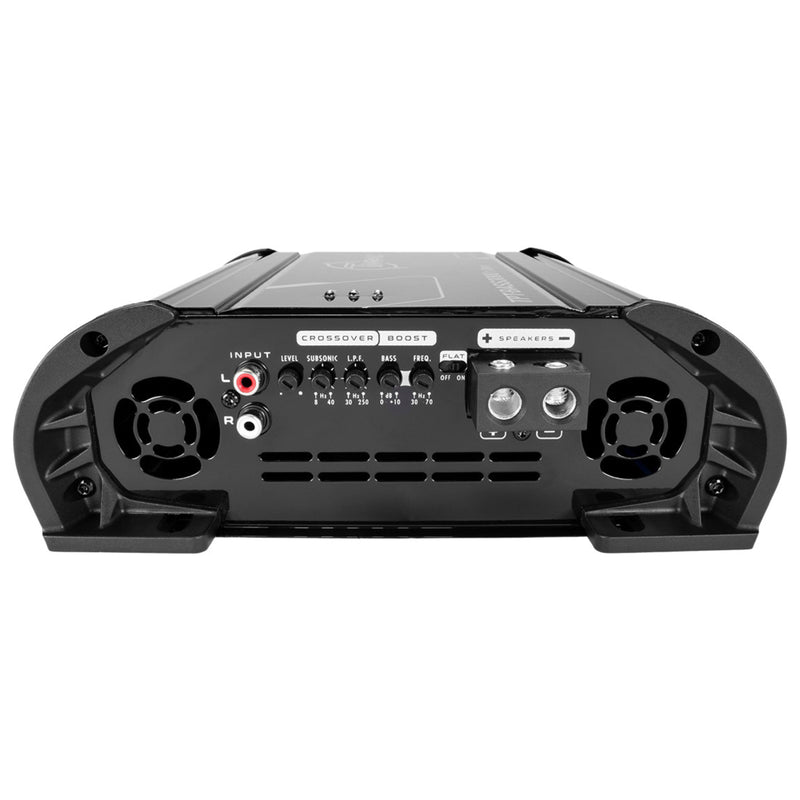

- FEATURES: Heavy duty power and speakers terminals. Built-in variable crossover filters for easy tuning! Set setting for your subwoofer with a SUBSONIC filter 8 to 40Hz and LPF 30 to 250Hz without a need for an external crossover or DSP. Fine tune it according to your box with variable frequency dial and BASS BOOST at choose frequency up to +10 dB. It also includes Variable Gain Control.

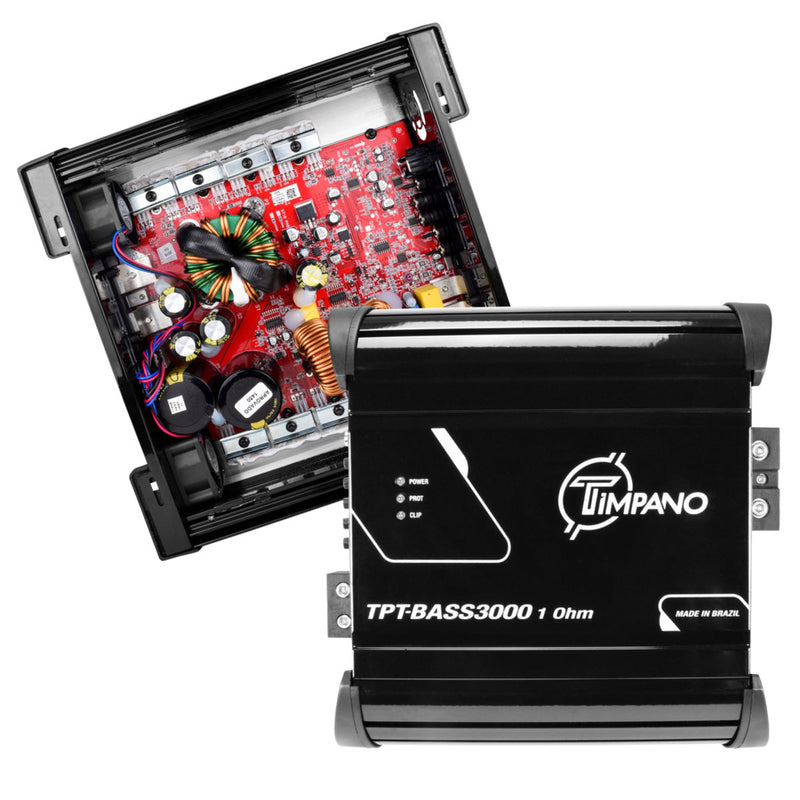

- DESIGN: Digital full bridge class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 9.36″ depth x 9.03″ width x 3.05″ height

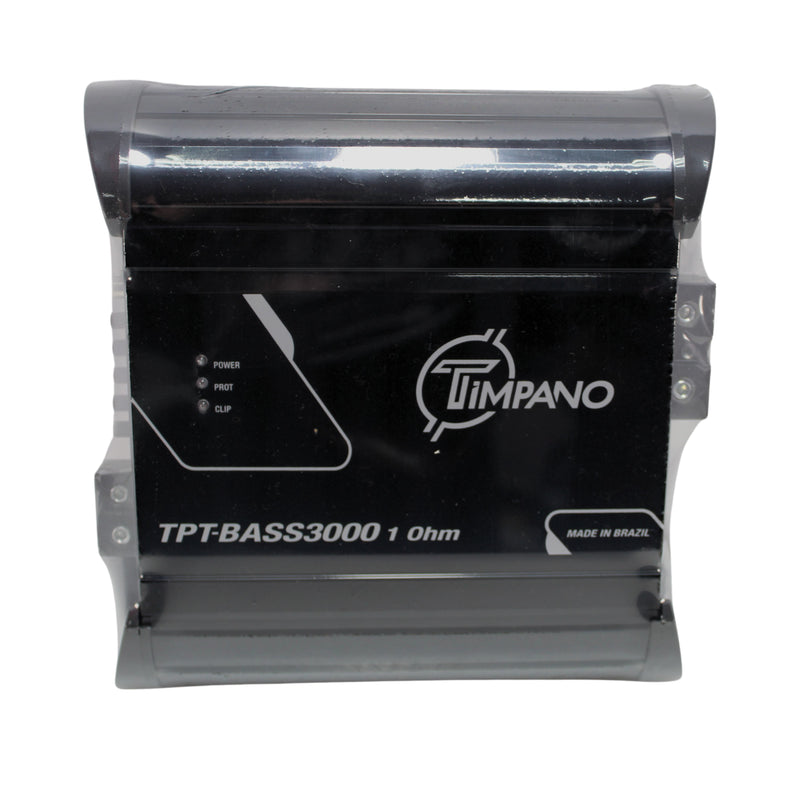

- TECHNOLOGY: This bass amplifier features power, clipping and protection LED indicators on top + intelligent 4-way protection circuitry. Smart and Silent Coolers ensure efficient and noise-free operation of the amplifier.

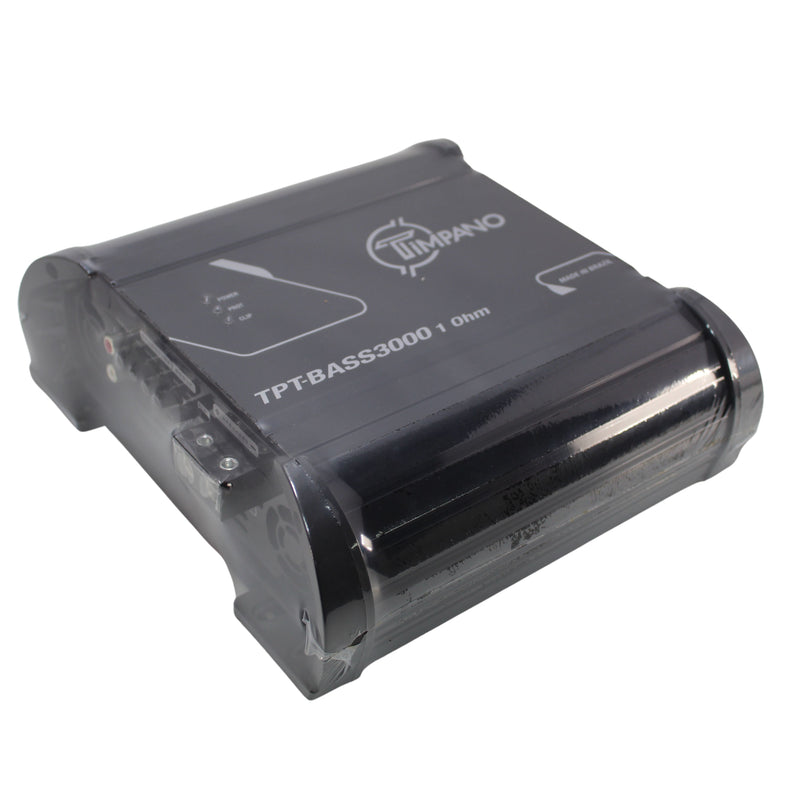

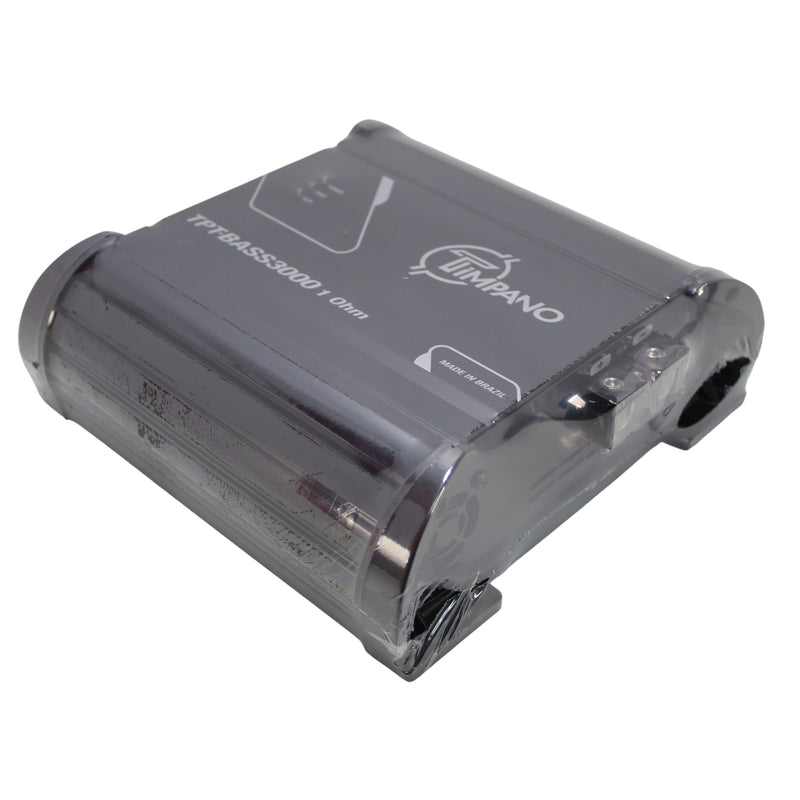

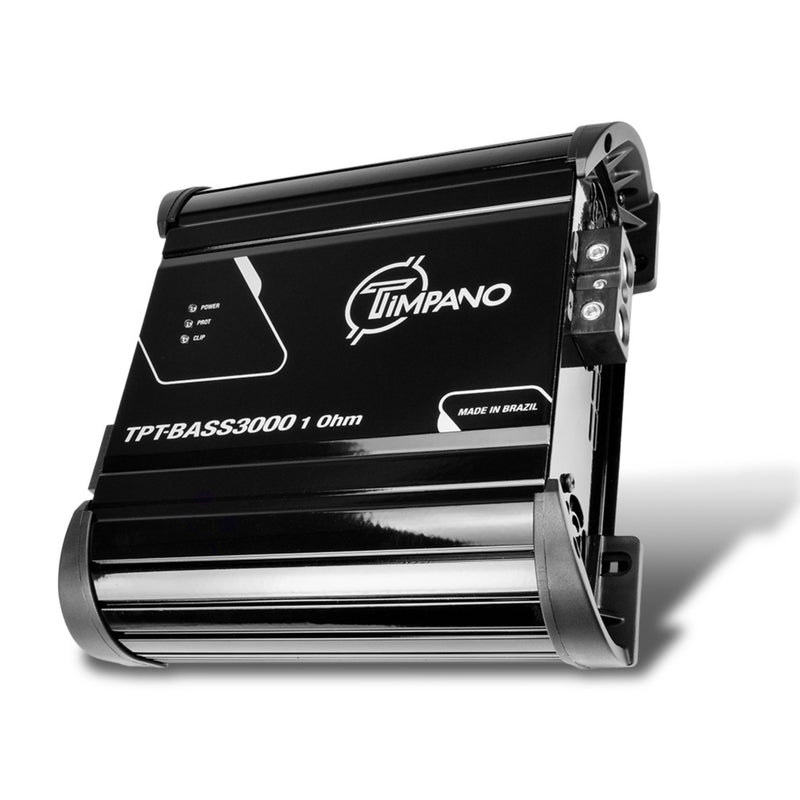

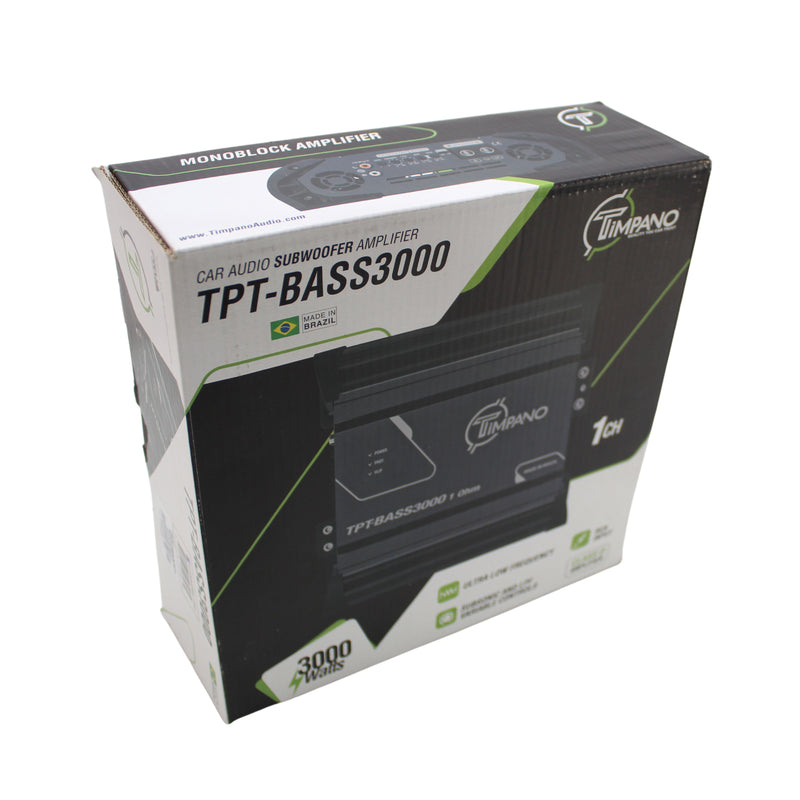

Timpano 3000 Watt Monoblock 1 Ohm Stable Class D Bass Amplifier TPT-BASS3000
This listing includes:

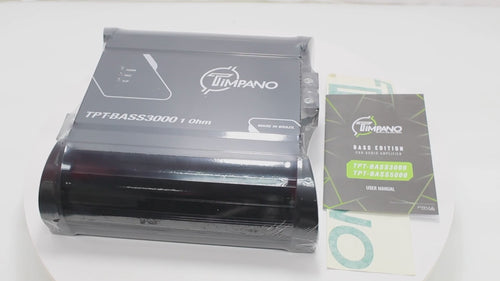

- (1) Timpano TPT-3000BASS Monoblock 1 Ohm 3000W Amplifier
The BASS Series from Timpano combines half-bridge amplifier engineering with the newest semiconductor technologies. Utilizing them, higher power-to-footprint ratios are possible, and the more compact chassis created for this technology does not degrade the output power or stability.

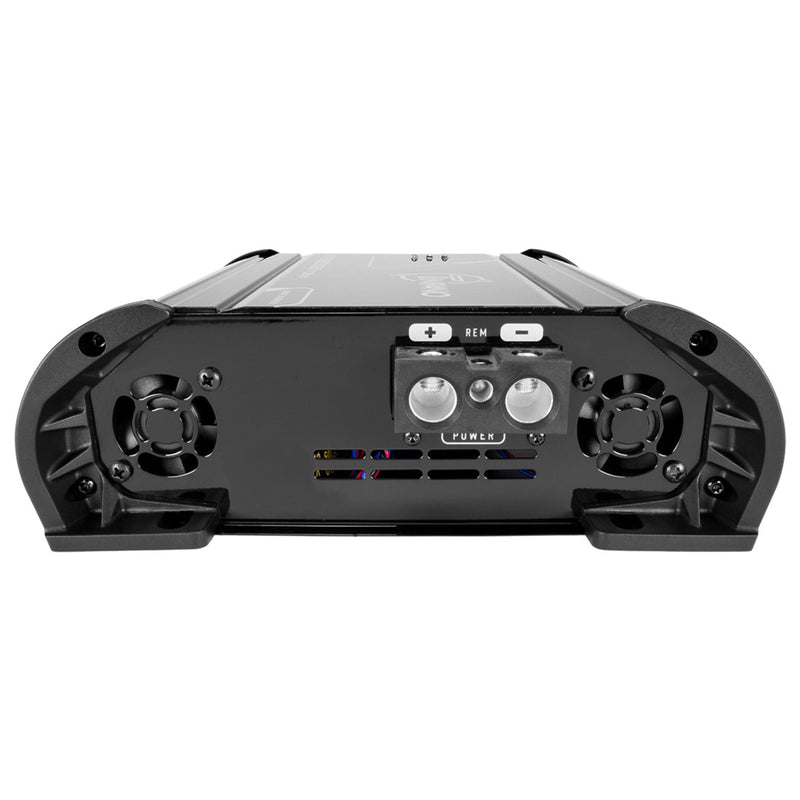

To handle even the most demanding bass sessions, this amplifier comes with sturdy heatsink, heavy duty power and ground inputs, high current PCBs, and premium internal components.
Specifications:
- Number of Channels: 1
- 3000 Watts RMS Power at 1 Ohm 14.4Volts
- 1800 Watts RMS Power at 2 Ohm 14.4 Volts
- Supply Voltage: 9V ~ 17V
- Frequency Response: 8Hz ~ 600KHz
- Flat Switch – ON ( no Crossover Filters ) 8Hz ~ 600Hz
- Crossover Low Pass Filter: 8Hz ~ 250KHz
- Crossover Subsonic Filter: 8Hz ~ 40Hz
- Bass Boost Freq: 30Hz ~ 70Hz
- Bass Boost Gain: 0 dB ~ +10 dB
- Signal to Noise: > 90 dB
- Impedance Output: 1 Ohm
- Musical Consumption: 132A
- Bass Consumption: 265A
- Dimensions (L x W x H): 9.36" x 9.03" x 3.05"
- Weight: 6.14 Lbs
Before Installing:
You must follow the instructions for the product’s installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
- Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to the equipment connected to the amplifier;
- Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
- Always use 100% Cooper cables and good quality connectors. This guarantees the sound’s quality and fidelity;
- To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: Use a 150A fuse 12 inches away from the battery as a safety precaution
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 40Hz sinusoidal signal and THD <= 10%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with subwoofers ), any load test ( resistant load ) is not recommended.
