- Number of Channels: 1
- 2600 Watts RMS Power at 1 Ohm 14.4 Volts
- 1720 Watts RMS Power at 2 Ohm 14.4 Volts
- Frequency Response: 10Hz ~ 22KHz
- High efficiency rate of 86% provides more power with less battery consumption

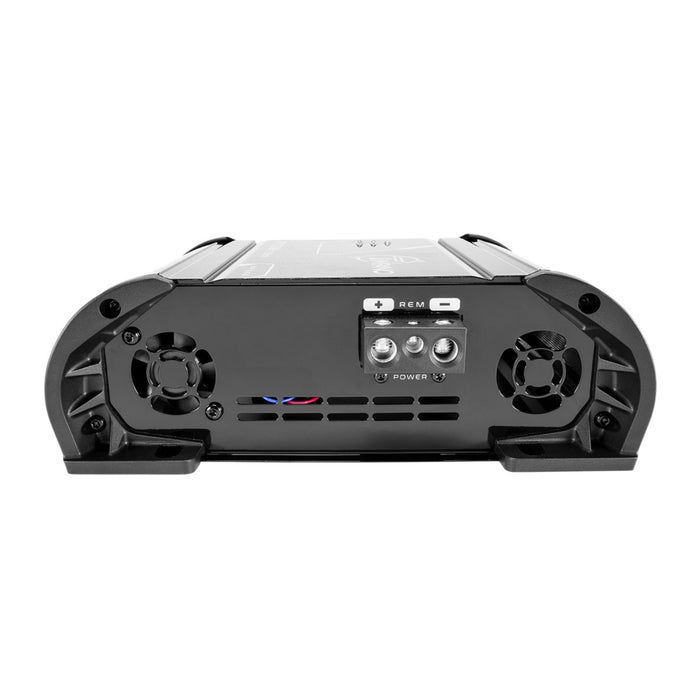

Timpano 1 Channel 2600W 1 Ohm Class D Monoblock Full Range Amplifier TPT-2200-1
This listing includes:
- (1) 1 Channel 2600W 1 Ohm Class D Monoblock Full Range Amplifier
Timpano 2200 Watts Car Audio Amplifier Fullrange TPT-2200 1 Ohm – 1 Channel Compact 12 volts Monoblock Fullrange Class D Car Amp
Small Footprint Technology! HD Sound Quality!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 80-90% in a compact Class D fullrange amplifier.
COMPACT DESIGN: Digital class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance.
POWER: This monoblock amplifier is designed to run your system with the power it needs to perform! 2200 Watts RMS power output at 1 Ohm 1 channel. Its high efficiency rate of 86% provides more power with less battery consumption.
FEATURES: Heavy duty power and speakers terminals. Built-in variable crossover filters for easy tuning! Set setting for your type of speaker with a HPF 10 to 90Hz and LPF 90 to 22,000Hz without a need for an external crossover or DSP. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.
TECHNOLOGY: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 10 to 22,000Hz was used to give the best sound reproduction on this compact amplifier.
Specifications:
- Number of Channels: 1
- 2015 Watts RMS Power at 1 Ohm 12.6 Volts
- 1330 Watts RMS Power at 2 Ohm 12.6 Volts
- Supply Voltage: 9V ~ 16V
- Frequency Response: 10Hz ~ 22KHz
- Crossover Low Pass: 90Hz ~ 22KHz
- Crossover High Pass: 10Hz ~ 90Hz
- Signal to Noise: > 90 dB
- Input Impedance: 12K Ohm
- Impedance Output: 1 Ohm
- Musical Consumption: 108A
Dimensions:
- Length: 9.36 inches
- Width: 7.46 inches
- Height: 3.05 inches
