- KOREAN-ENGINEERED EXTREME BASS POWER: The Synergy Mobile Audio WFO 5.1D mono Class D amplifier is designed and manufactured in Korea using premium components, heavy copper PCB construction, and an overbuilt power supply for uncompromising output.
- MASSIVE REAL-WORLD RMS OUTPUT: Produces up to 7,200W RMS at 1 ohm @ 14.4V and 7,600W RMS at 16V, delivering the current and headroom required for serious subwoofer systems, demo vehicles, and SPL competition builds.
- BUILT FOR DAILY DRIVERS & COMPETITION USE: Stable at 1 ohm with an extended 8V–16V operating range, the WFO 5.1D performs consistently in daily-driven vehicles, ground-pounding demo builds, and high-voltage competition setups.
- PRECISION BASS CONTROL & CLEAN OUTPUT: Adjustable subsonic (10Hz–50Hz) and low-pass (35Hz–250Hz) filters, high damping factor (>200), and low noise floor (>100dB S/N) ensure tight, controlled bass with excellent efficiency.
- OVERBUILT CONSTRUCTION & CONNECTIONS: Features dual 0-gauge power and ground terminals, nickel-plated 8-gauge speaker outputs, hand-soldered Tiffany RCA inputs, multiple power transformers, and a high-mass aluminum heat sink for superior cooling.

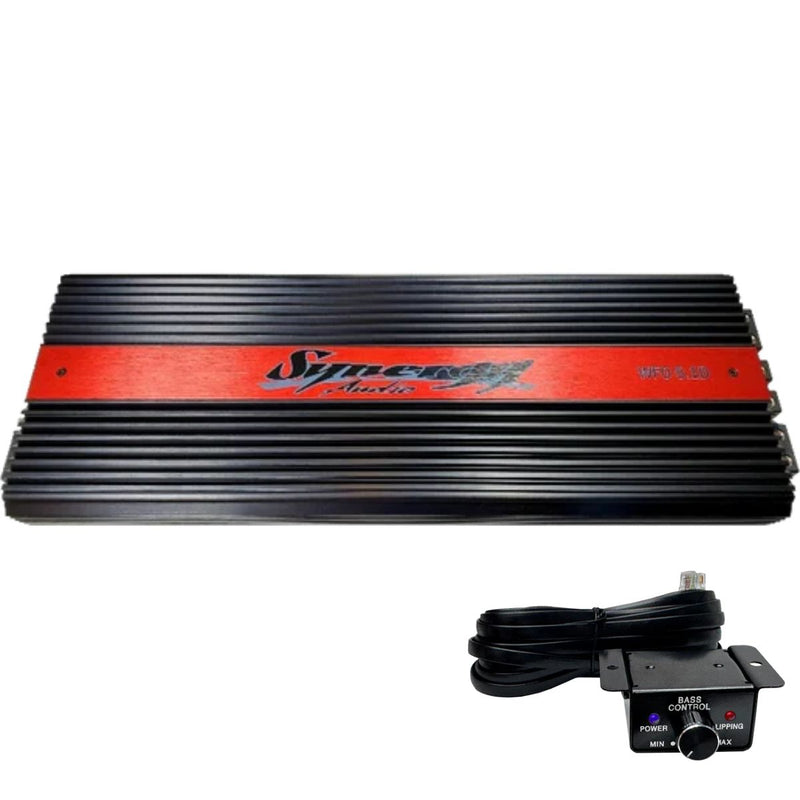

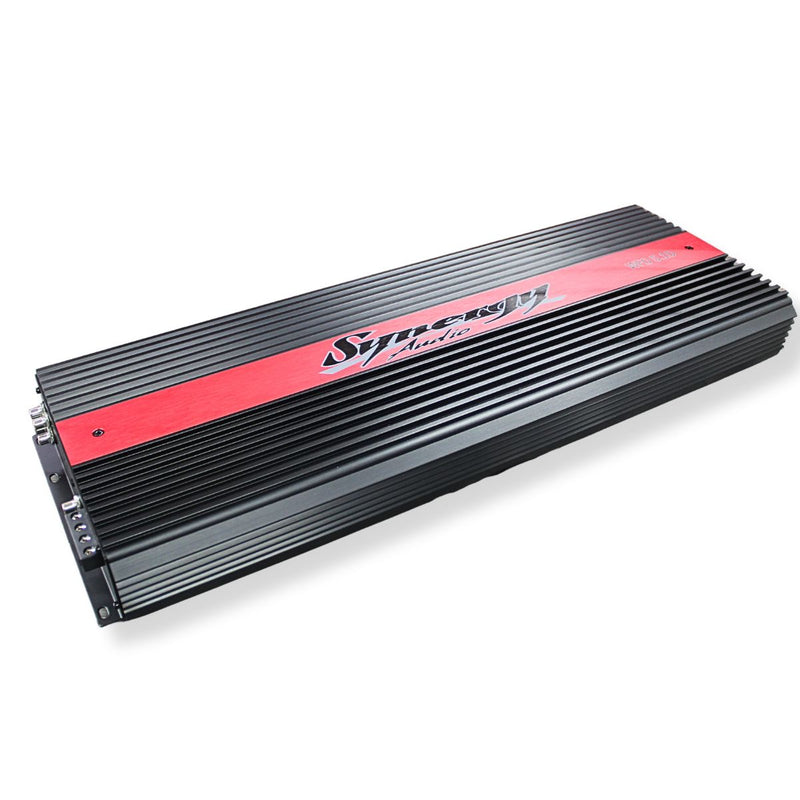

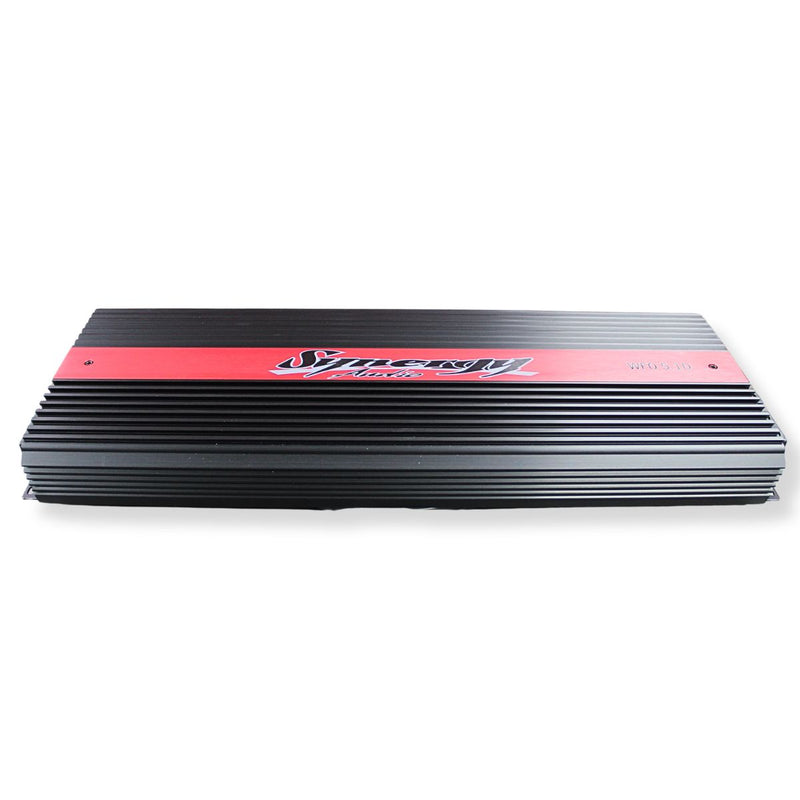

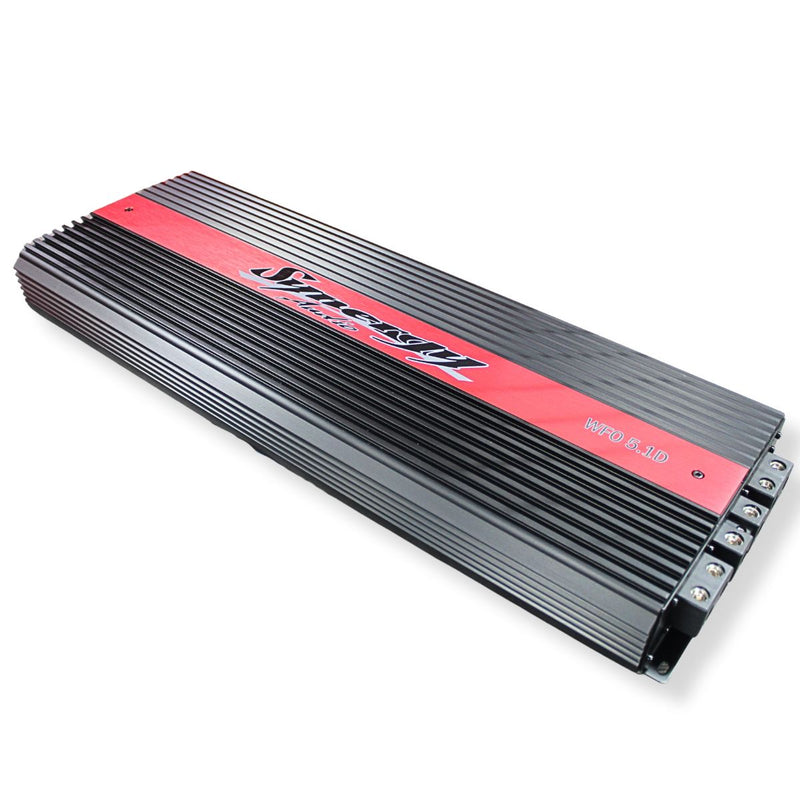

Synergy 7200 Watts RMS 1-Ohm Monoblock Class D Korean Amplifier WFO 5.1D
This Listing Includes:
- (1) Synergy Audio WFO Series WFO 5.1D Monoblock Class D Amplifier

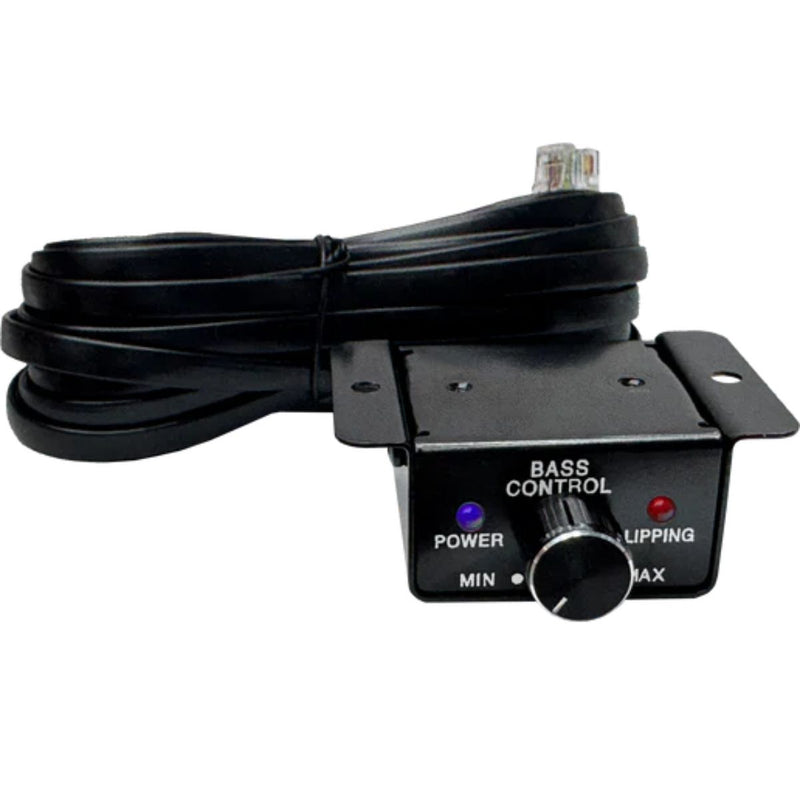

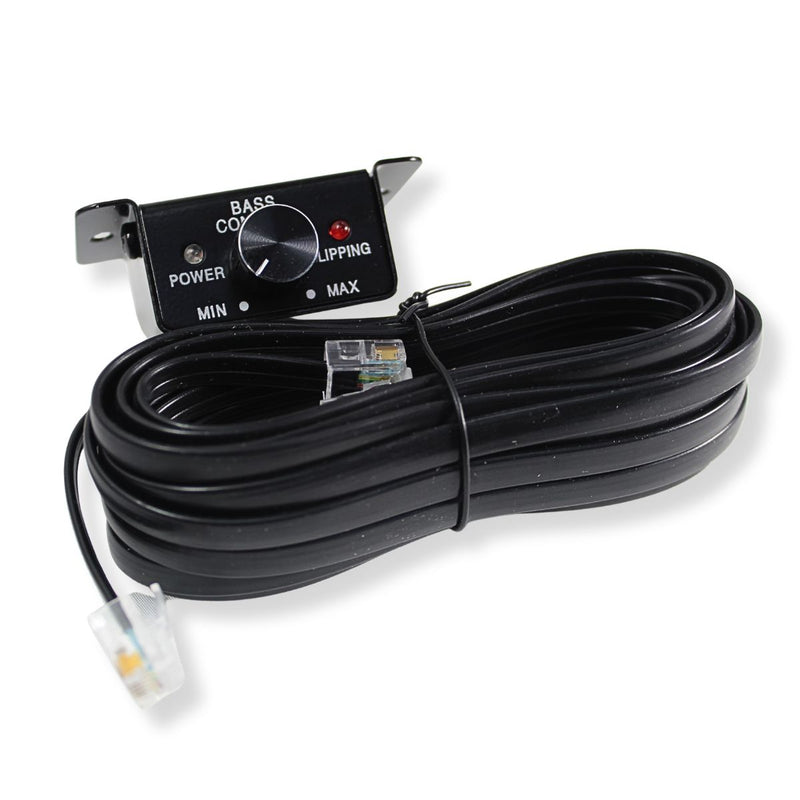

- (1) Remote gain control
- (1) Owner’s manual
The Synergy Audio WFO 5.1D is a Korean-built high-output monoblock amplifier designed for serious subwoofer systems in daily drivers, demo builds, and SPL competition vehicles. Rated at 7,200 watts RMS at 1 ohm on 14.4V, it delivers the current capability and controlled bass output needed for demanding multi-subwoofer setups.

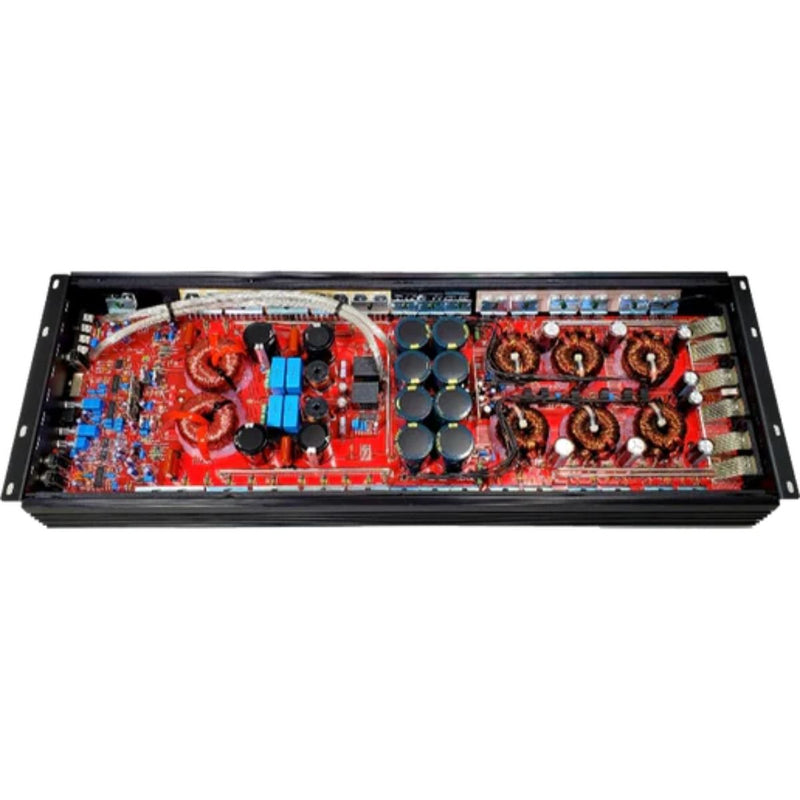

Built around a dual MOSFET PWM power supply, four high-current transformers, a heavy-duty double-sided 2 oz. copper PCB, and a high-mass aluminum heat sink, the WFO 5.1D is engineered to perform under sustained electrical and thermal load. Its 16V-capable design delivers up to 7,600 watts RMS at 1 ohm when used with a properly upgraded high-voltage electrical system.

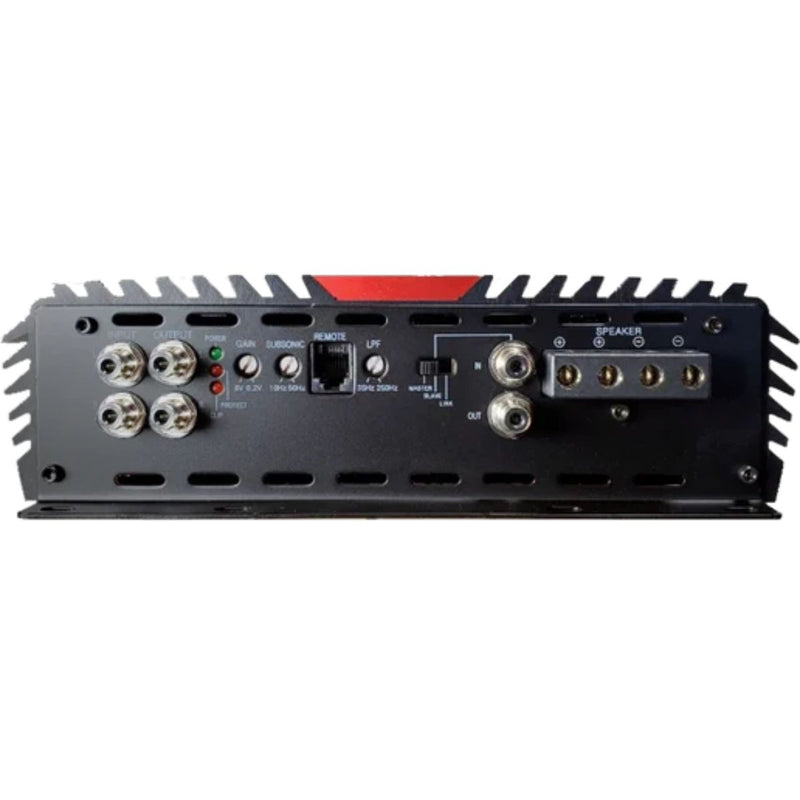

The WFO 5.1D also features adjustable subsonic and low-pass filters, remote gain control, and digital linkable/strappable capability for compatible high-output amplifier configurations.
Features:
- Korean-built Class D monoblock amplifier
- 1-ohm stable design
- 7,200W RMS at 1 ohm on 14.4V
- Up to 7,600W RMS at 1 ohm on 16V
- Digital linkable/strappable operation with a 2-ohm minimum strapped load
- Dual MOSFET PWM power supply
- Included remote gain control
- Adjustable subsonic and low-pass filters
- 16V-capable design for upgraded electrical systems

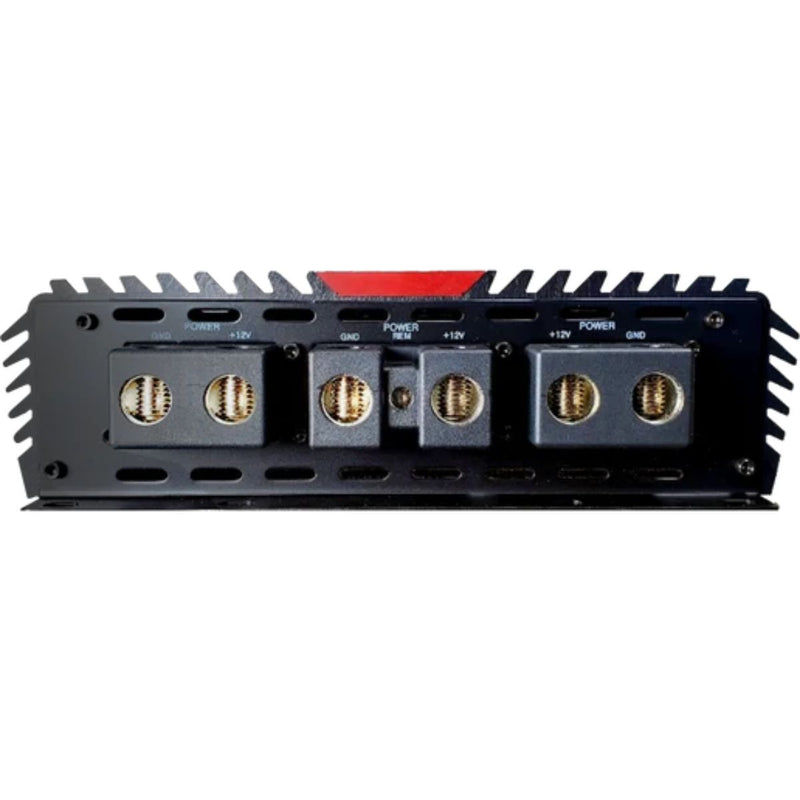

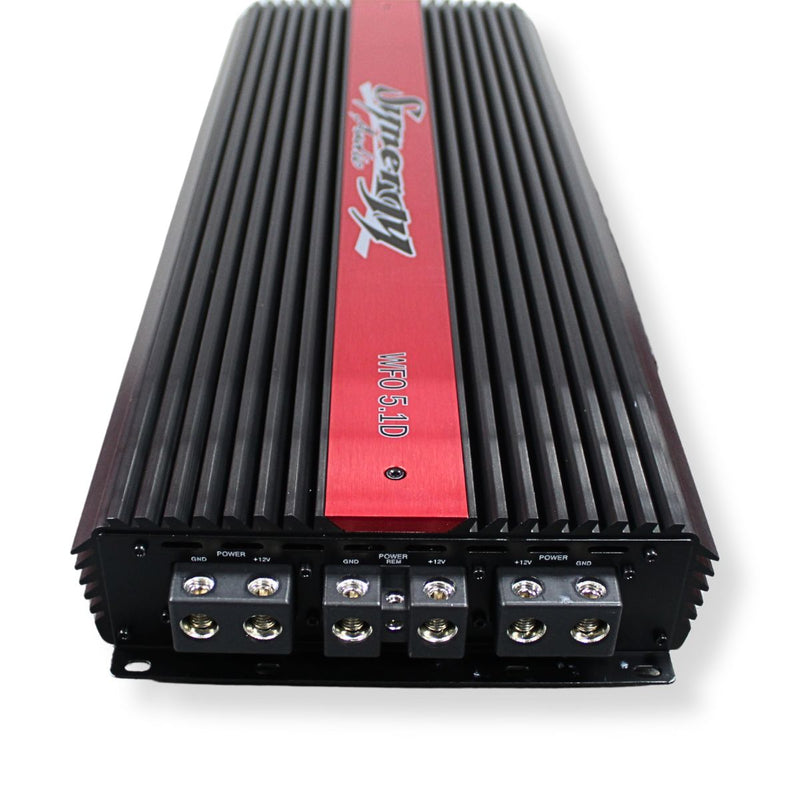

- Dual 0-gauge power and ground terminals
- (4) high-current power transformers

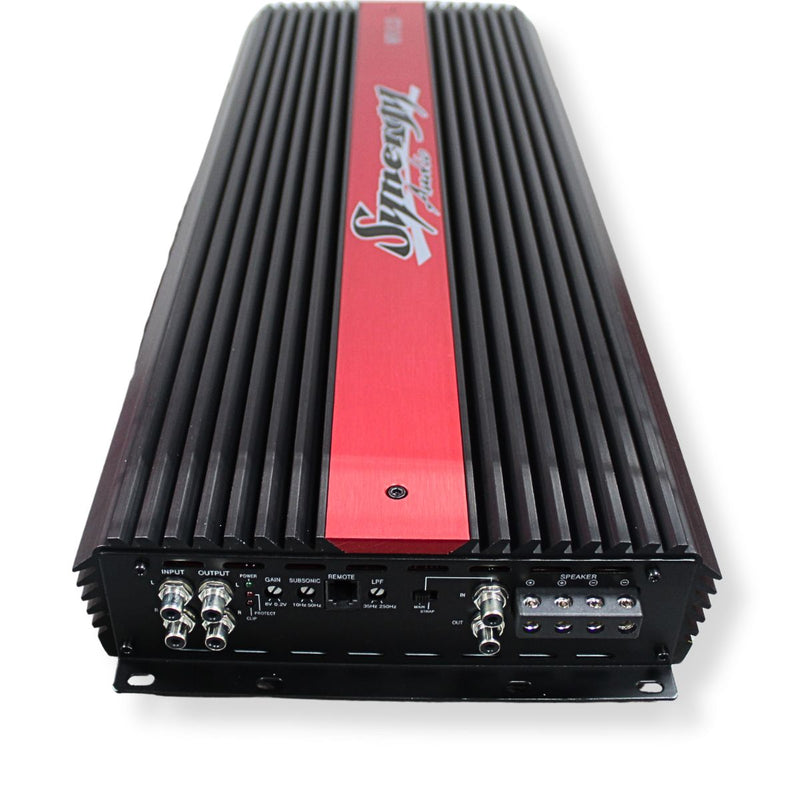

- Hand-soldered nickel-plated Tiffany RCA inputs and outputs
- Nickel-plated 8-gauge speaker outputs
- High-mass thermally optimized aluminum heat sink
- Heavy-duty double-sided 2 oz. copper PCB with solid copper traces
- Intelligent multi-level protection circuitry
Specifications:
- Amplifier Type: Class D Monoblock
- Power Output at 1 Ohm, 14.4V: 7,200W RMS
- Power Output at 2 Ohms, 14.4V: 4,500W RMS
- Power Output at 4 Ohms, 14.4V: 2,100W RMS
- Power Output at 1 Ohm, 16V: 7,600W RMS
- Frequency Response: 12 Hz–250 Hz
- Signal-to-Noise Ratio: Greater than 100 dB
- Damping Factor: Greater than 200
- Subsonic Filter: 10 Hz–50 Hz
- Low-Pass Filter: 35 Hz–250 Hz
- Input Sensitivity: 200 mV–8V
- Power and Ground Terminals: Dual 0-gauge
- Speaker Outputs: Nickel-plated 8-gauge
- Power Transformers: (4) High-current transformers
- PCB: Double-sided 2 oz. copper board with solid copper traces
- Heat Sink: High-mass, thermally optimized aluminum
Dimensions:
- Length: 24.41" / 620 mm
- Width: 9.41" / 239 mm
- Height: 2.72" / 69 mm
