- PREMIUM MONOBLOCK BASS POWER: The Synergy Mobile Audio SYN 3.5K mono Class D amplifier is engineered with high-end circuit design and premium internal components to deliver reliable, high-output bass performance.
- AUDIOPHILE-GRADE INTERNAL COMPONENTS: Built with South Korean Samyoung capacitors, Texas Instruments op-amps and ICs, German WIMA film and filter capacitors, and Fairchild chipsets for low distortion, efficiency, and long-term durability.
- POWERFUL REAL-WORLD RMS OUTPUT: Delivers 3,500W RMS at 1 ohm @ 14.4V and up to 5,025W RMS at 16V, making it ideal for high-power subwoofer systems in daily drivers, demo builds, and SPL competition vehicles.
- FULL ACTIVE BASS CONTROL: Adjustable subsonic (10Hz–50Hz) and low-pass (35Hz–250Hz) filters combined with a high damping factor (>200) provide tight, controlled bass across a wide range of enclosures.
- OVERBUILT CONNECTIONS & THERMAL DESIGN: Features dual 0-gauge power and ground terminals, nickel-plated 8-gauge speaker outputs, locking Tiffany RCA connections, multiple power transformers, and a high-mass aluminum heat sink for stable operation under extreme load.
Synergy Audio 3500 Watts RMS 1 Ohm Mono Class D Car Audio Amplifier SYN 3.5K
This Listing Includes:

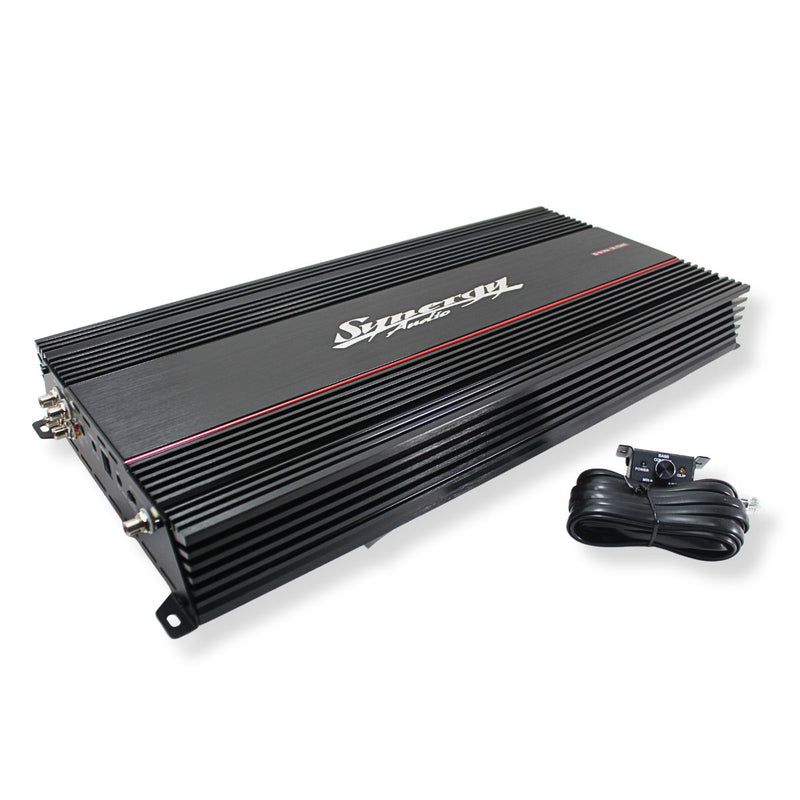

- (1) Synergy Audio SYN Series SYN 3.5K Class D Monoblock Amplifier
- (1) Remote gain control with power and clip indicators
- (1) Owner’s manual
The Synergy Audio SYN 3.5K is a 1-ohm-capable Class D monoblock amplifier built to deliver powerful, controlled bass for daily drivers, demo vehicles, and serious SPL-focused systems. Rated at 3,500 watts RMS at 1 ohm on 14.4V, it provides the current delivery and tuning range needed to support demanding subwoofer setups.
Premium internal components—including South Korean Samyoung capacitors, Texas Instruments op-amps and ICs, German WIMA film and filter capacitors, and Fairchild chipsets—support efficient, reliable performance. Four high-current power transformers, a heavy-duty double-sided 2 oz. copper PCB, and a high-mass thermally optimized aluminum heat sink help the SYN 3.5K perform under demanding conditions.
Built-in subsonic and low-pass filters, adjustable input sensitivity, and the included remote gain control allow for precise bass-system tuning. With up to 16V operating capability, the SYN 3.5K is ready for properly upgraded electrical systems.
Features
- 1-ohm-capable Class D monoblock design
- 3,500W RMS at 1 ohm on 14.4V
- Up to 5,025W RMS at 1 ohm on 16V
- Included remote gain control with power and clip indicators
- Adjustable subsonic and low-pass filters
- Up to 16V operating capability for upgraded electrical systems
- (4) high-current power transformers
- Premium Samyoung capacitors, WIMA capacitors, TI ICs, and Fairchild chipsets

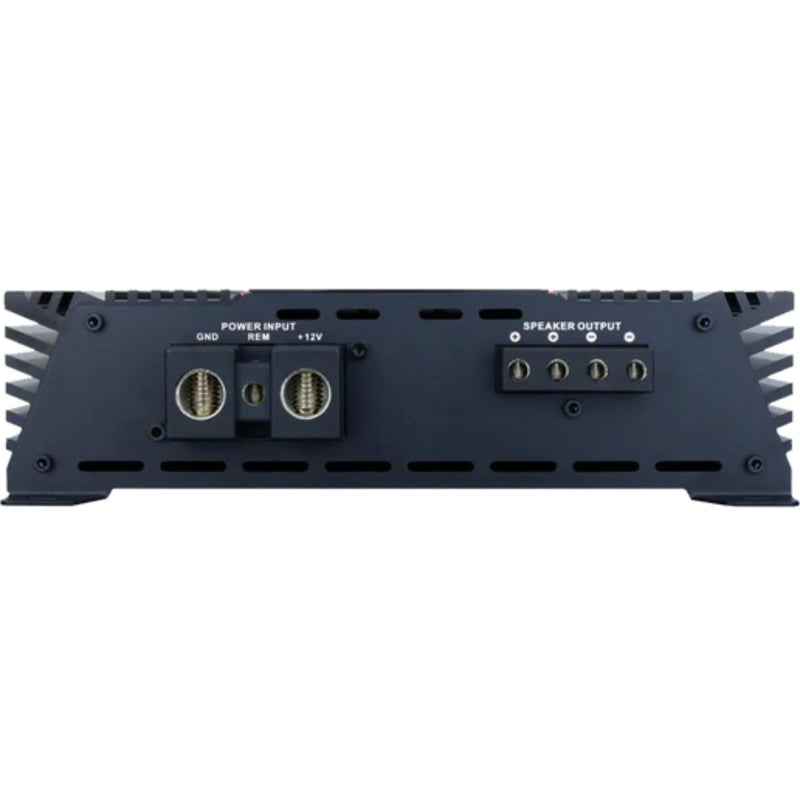

- Dual 0-gauge power and ground terminals
- Nickel-plated locking Tiffany-style RCA inputs and outputs
- Nickel-plated 8-gauge speaker outputs
- High-mass thermally optimized aluminum heat sink
- Heavy-duty double-sided 2 oz. copper PCB
- Intelligent multi-level protection circuitry
Specifications:
- Amplifier Type: Class D Monoblock
- Power Output at 1 Ohm, 14.4V: 3,500W RMS
- Power Output at 2 Ohms, 14.4V: 2,600W RMS
- Power Output at 4 Ohms, 14.4V: 1,500W RMS
- Power Output at 1 Ohm, 16V: 5,025W RMS
- Frequency Response: 10 Hz–250 Hz
- Signal-to-Noise Ratio: Greater than 85 dB
- Damping Factor: Greater than 200
- Subsonic Filter: 10 Hz–50 Hz
- Low-Pass Filter: 35 Hz–250 Hz
- Input Sensitivity: 200 mV–6V
- Power and Ground Terminals: Dual 0-gauge
- Speaker Outputs: Nickel-plated 8-gauge
- Power Transformers: (4) High-current transformers
- PCB: Double-sided 2 oz. copper board with thick copper traces
- Heat Sink: High-mass, thermally optimized aluminum
Dimensions:
- Length: 19.69"
- Width: 9.45"
- Height: 2.44"
