- PREMIUM 4-CHANNEL CLASS D POWER: The Synergy Mobile Audio SYN 150.4D delivers clean, efficient multi-channel power designed for daily-driven systems, demo vehicles, and competition-grade installs.
- UDIOPHILE-GRADE INTERNAL COMPONENTS: Built with South Korean Samyoung capacitors, Texas Instruments op-amps and ICs, German WIMA film capacitors, and Fairchild chipsets for low distortion, high reliability, and long-term performance.
- FLEXIBLE OUTPUT & BRIDGING OPTIONS: Produces 150W x4 @ 4 ohms, 230W x4 @ 2 ohms, or 450W x2 bridged, making it ideal for components, mids/highs, or high-power speaker configurations.
- FULL ACTIVE CROSSOVER CONTROL: Adjustable high-pass, low-pass, and subsonic filters with an X10 frequency multiplier provide precise system tuning across a wide frequency range.
- BUILT FOR RELIABILITY & CONTROL: Features 4-gauge power and ground terminals, locking Tiffany RCA connections, a high-mass aluminum heat sink, 16V capability, and intelligent multi-way protection circuitry.

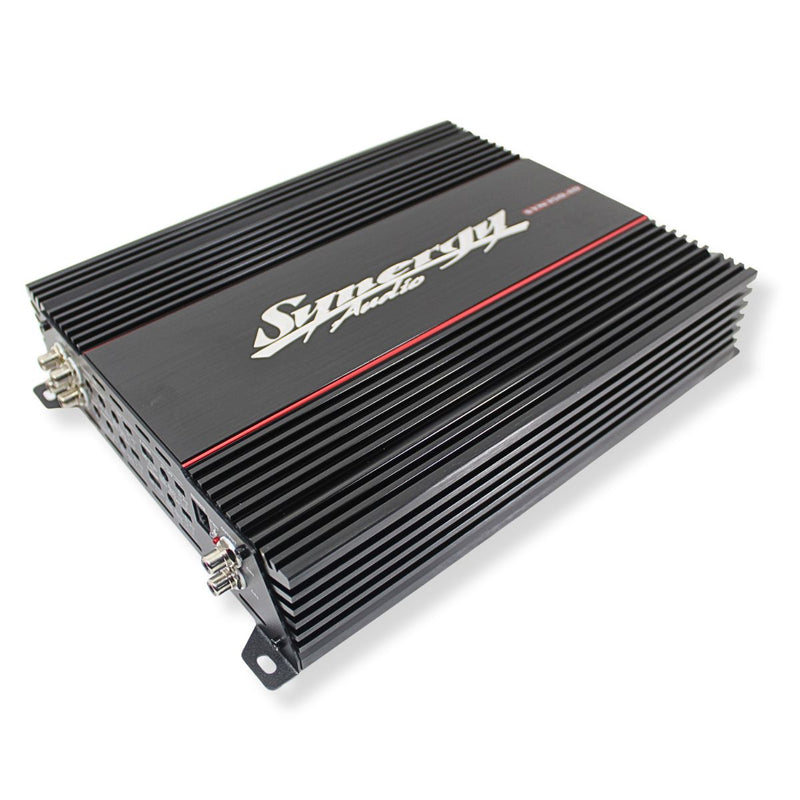

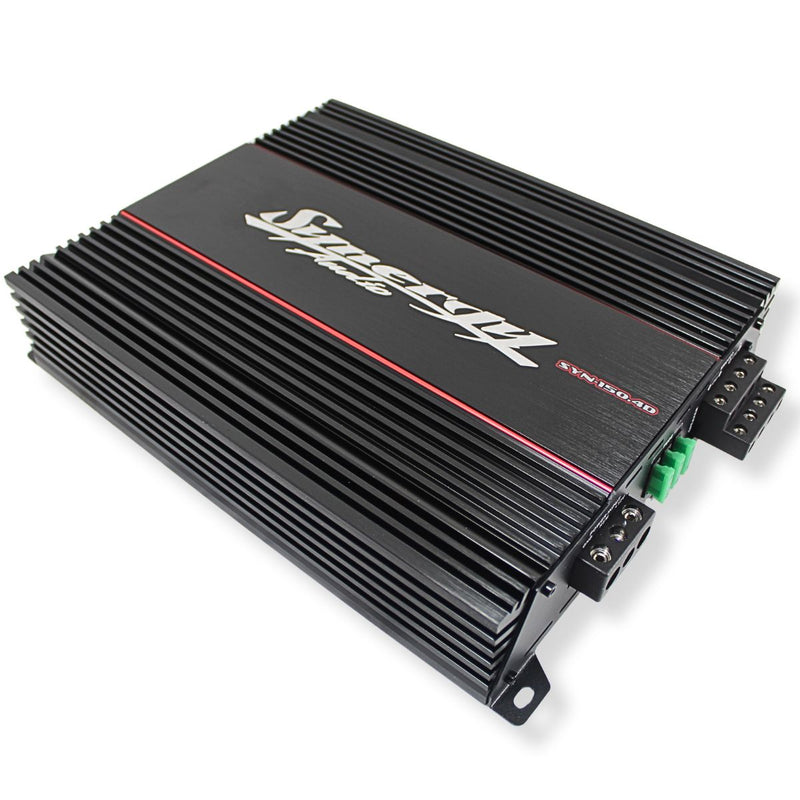

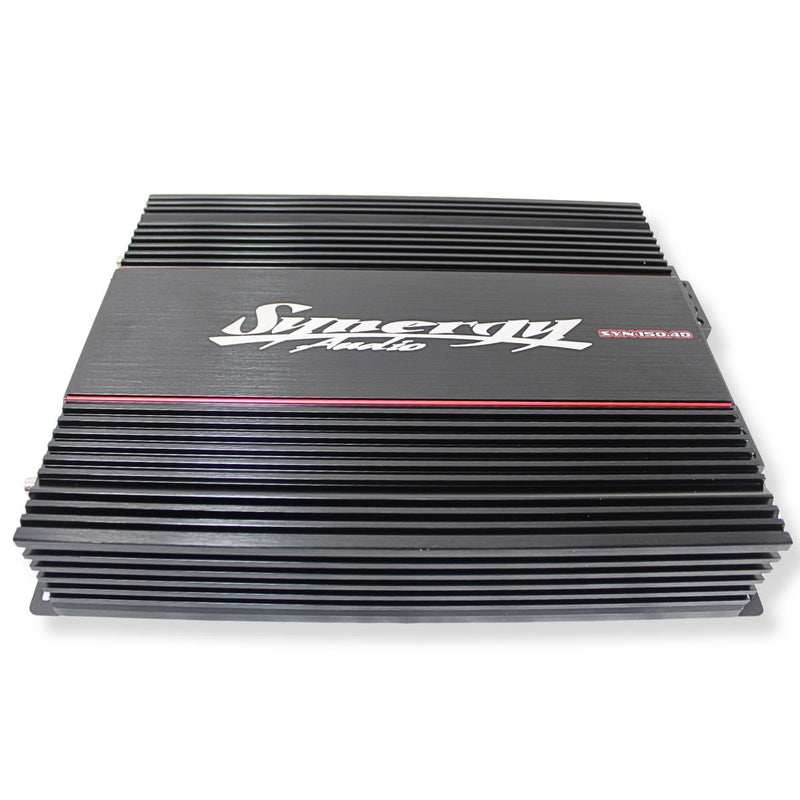

Synergy Audio SYN 230W x 4 @ 2 Ohm 150.4D 4-Channel Class D Vehicle Amplifier
This listing includes

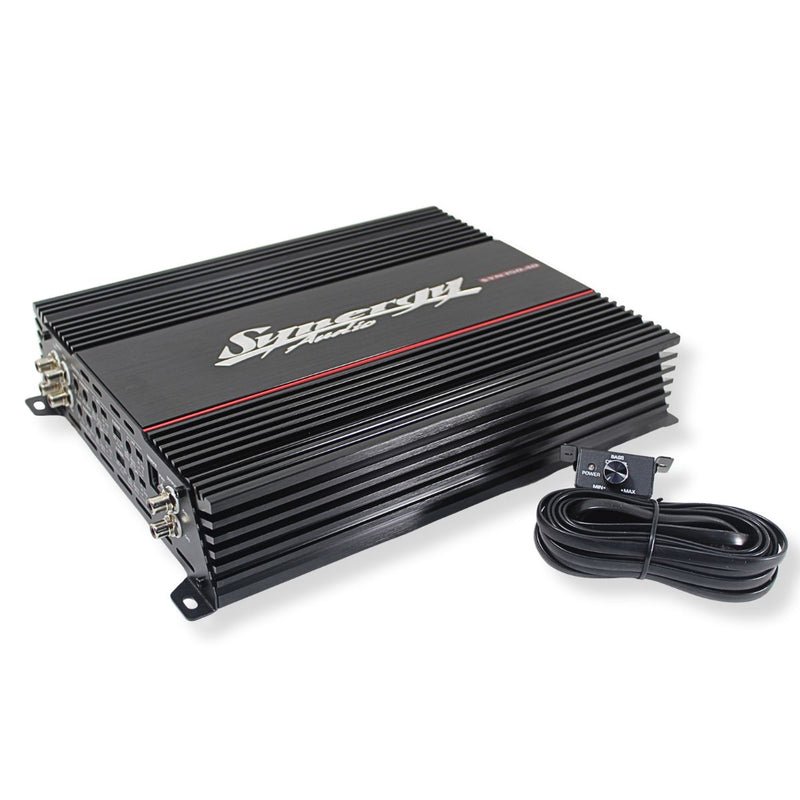

- (1) Synergy Audio 4-Channel Class D Amplifier SYN150.4D

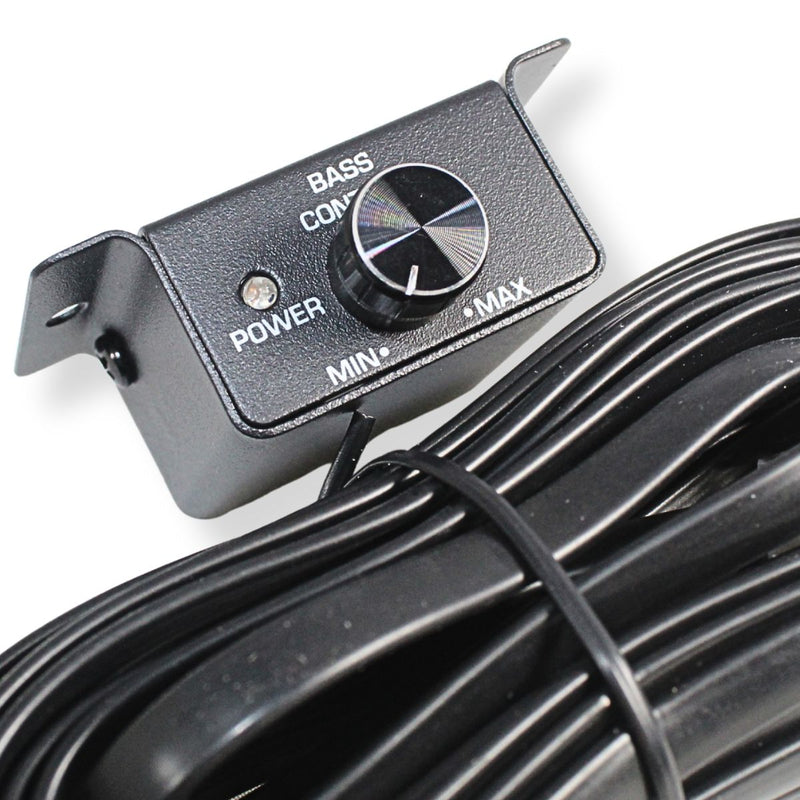

- Remote gain control with power & clipping indicators
- Owner’s manual
The Synergy Mobile Audio SYN Series amplifiers are engineered to deliver precise, reliable power with audiophile-grade component selection and professional-level control. Designed with high-end circuit architecture and manufactured using premium materials, the SYN 150.4D offers exceptional performance and long-term dependability.
This amplifier incorporates South Korean Samyoung capacitors, Texas Instruments op-amps and ICs, German-made WIMA film and filter capacitors, and Fairchild chipsets, ensuring clean signal integrity, low distortion, and rock-solid reliability for years of use.
The SYN 150.4D is perfectly suited for daily-driven vehicles, high-output demo systems, or competition-grade installs where accurate tuning and efficient multi-channel power are required. With full active crossover control and an X10 frequency multiplier, this amplifier provides outstanding flexibility for running mids, highs, components, or bridged speaker configurations.
Features
- High-end circuit design, engineering, and manufacturing
- Premium internal components for long-term reliability
- Full active crossover control with X10 frequency multiplier
- 16V capable for upgraded and competition electrical systems
- Overbuilt power supply and output section
- Nickel-plated locking Tiffany RCA inputs and outputs
- High-mass aluminum heat sink for efficient thermal management
- Intelligent multi-way protection circuitry
Specifications
Power Output (RMS @ 14.4V):
- 150W x 4 @ 4 Ohm
- 230W x 4 @ 2 Ohm
- 450W x 2 @ 4 Ohm (Bridged)
- Frequency Response: 20Hz – 20kHz
- THD @ 4 Ohm: 0.1%
- Signal-to-Noise Ratio: >85dB
- Damping Factor: >200
- Operating Voltage: Up to 16V
- Input Sensitivity: 6V – 200mV

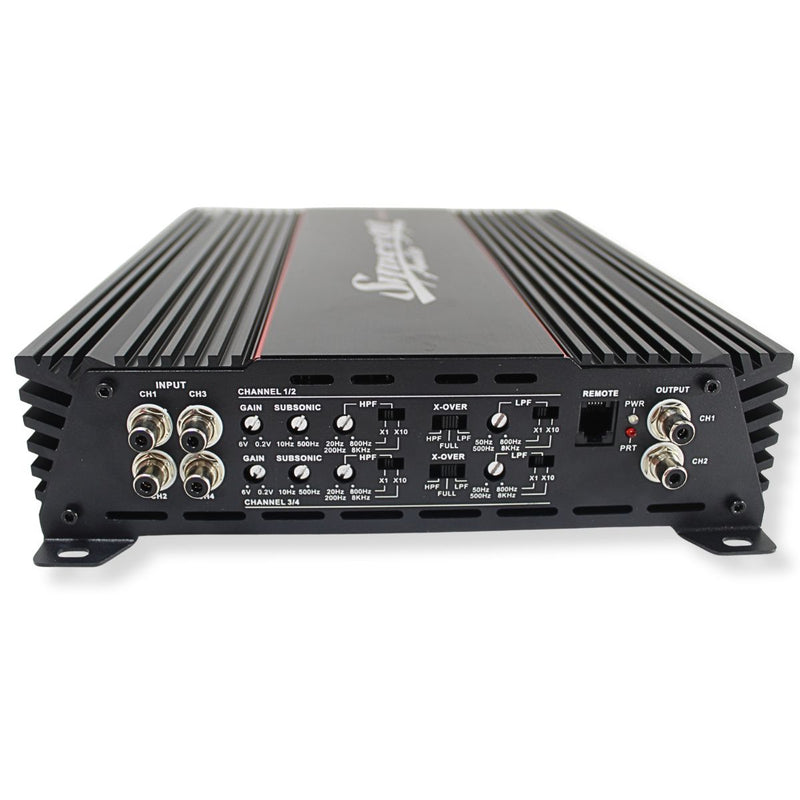

Crossover Controls
- High-Pass Filter:
X1: 20Hz – 800Hz
X10: 200Hz – 8kHz
- Low-Pass Filter: 35Hz – 250Hz
- Subsonic Filter: 10Hz – 50Hz
Build & Connections

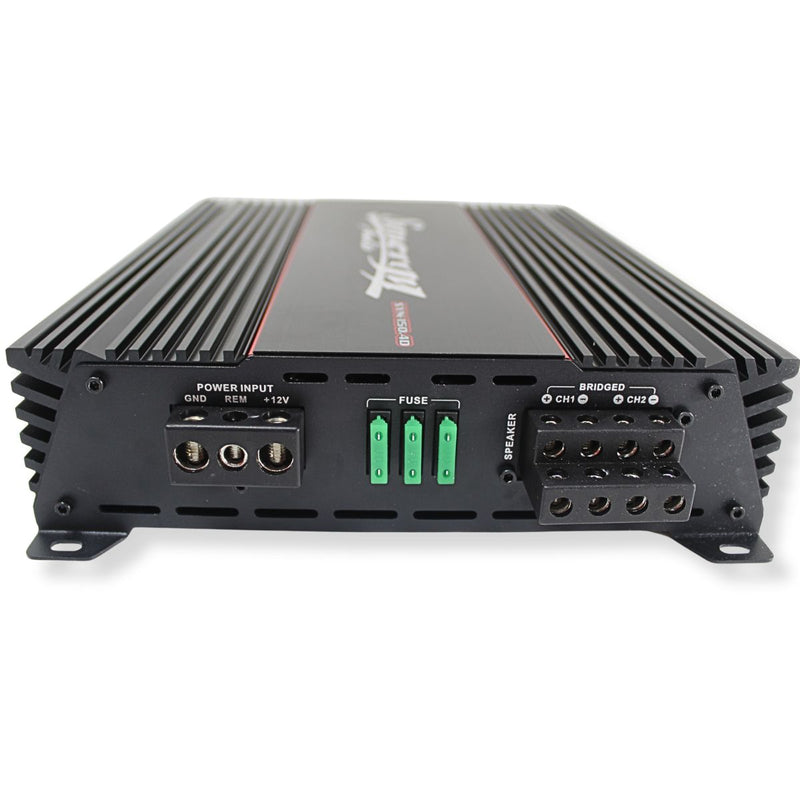

- 4 Gauge power and ground terminals
- Nickel-plated 8-gauge speaker outputs
- Heavy-duty 2oz double-sided PCB with thick solid copper traces
- Custom high-mass, thermally optimized aluminum heat sink
Dimensions:
- Length: 9.45"
- Width: 9.45"
- Height: 2.44"
