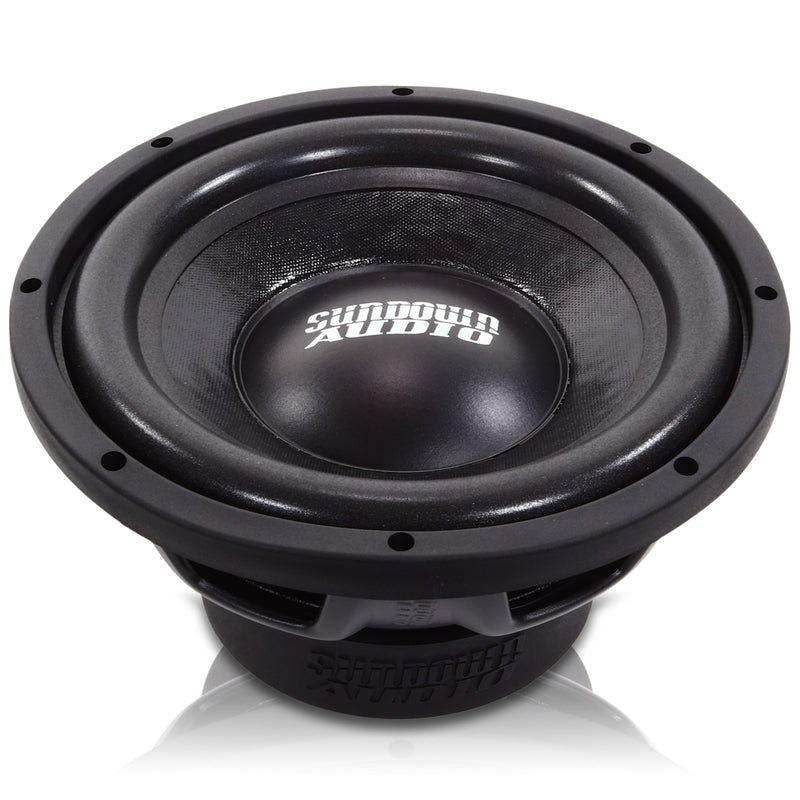

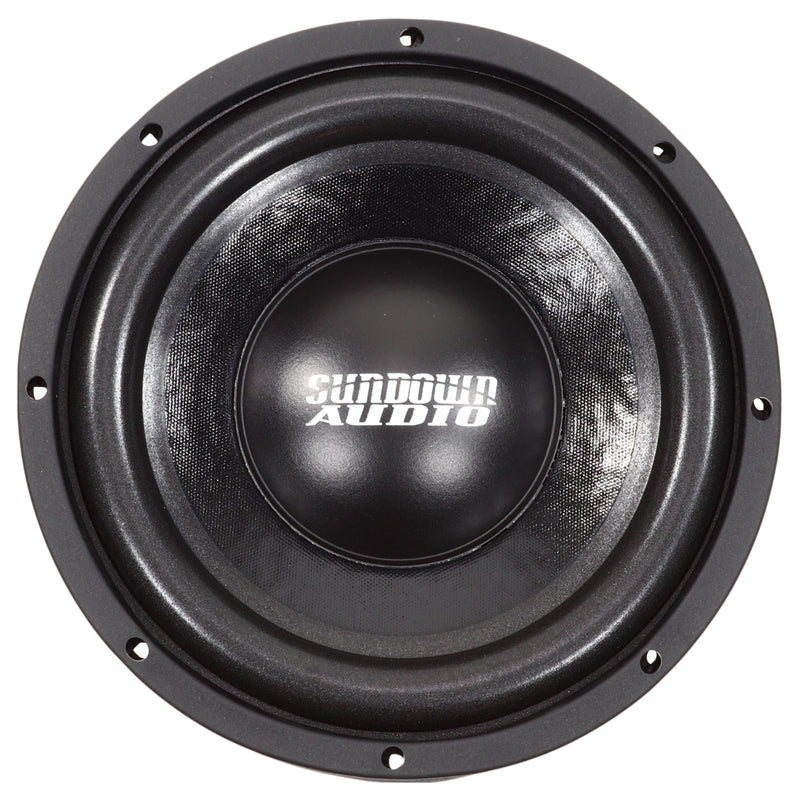

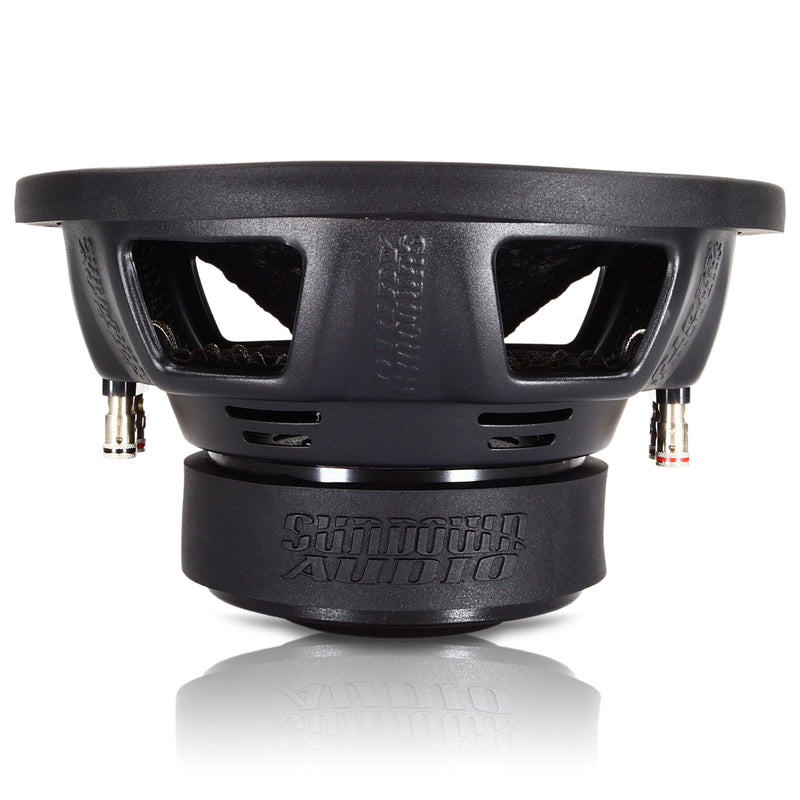

Sundown Car Audio LCS Series 500 Watt RMS Dual 4 Ohm Subwoofers 10" / 12"

Sundown Audio LCS Series 500 Watt RMS Dual 4 Ohm Subwoofers - 10" / 12"

This Listing Includes:

• (1) Sundown Audio LCS Series Dual 4 Ohm Subwoofer


• Select either the 10 Inch or 12 Inch model from the variation options

Experience the ideal balance of power, deep bass, and affordability with the Sundown Audio LCS Series subwoofers. Designed for enthusiasts who want reliable low-frequency performance without sacrificing value, the LCS Series delivers impressive output, excellent durability, and dependable everyday performance.

Unlike many entry-level subwoofers, the LCS Series is engineered with increased linear excursion, superior thermal management, and enhanced mechanical strength. The v.2 redesign introduced a custom-tooled vented steel frame, upgraded stitched tinsel leads, high-quality push terminals, and a rubber mounting gasket for improved reliability and easier installation.

A double-stacked magnet motor, long 4-layer copper voice coil, and class-leading 14mm one-way Xmax allow the LCS to deliver clean, controlled bass while maintaining excellent cooling through its vented magnetic gap and pole piece design. Optimized for small ported enclosures, the LCS Series is an outstanding choice for daily-driven systems and budget-conscious bass enthusiasts alike.

Features:

• 500 Watts RMS Power Handling


• 1000 Watts Peak Power Handling


• Dual 4 Ohm Voice Coils


• Class-Leading 14mm One-Way Xmax

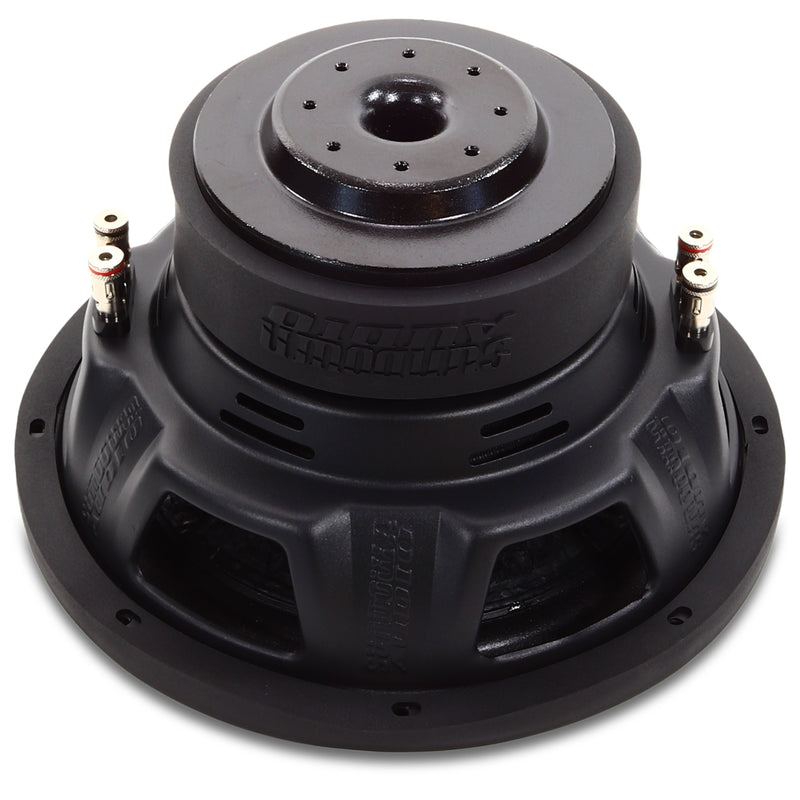

• Double-Stacked Magnet Motor


• Optimized for Small Ported Enclosures


• Vented Coil Gap and Pole Piece for Superior Cooling


• Extra Thick Custom Tooled Stamped Steel Frame


• High Temperature 4-Layer Copper Voice Coil


• High-Quality Push Terminals

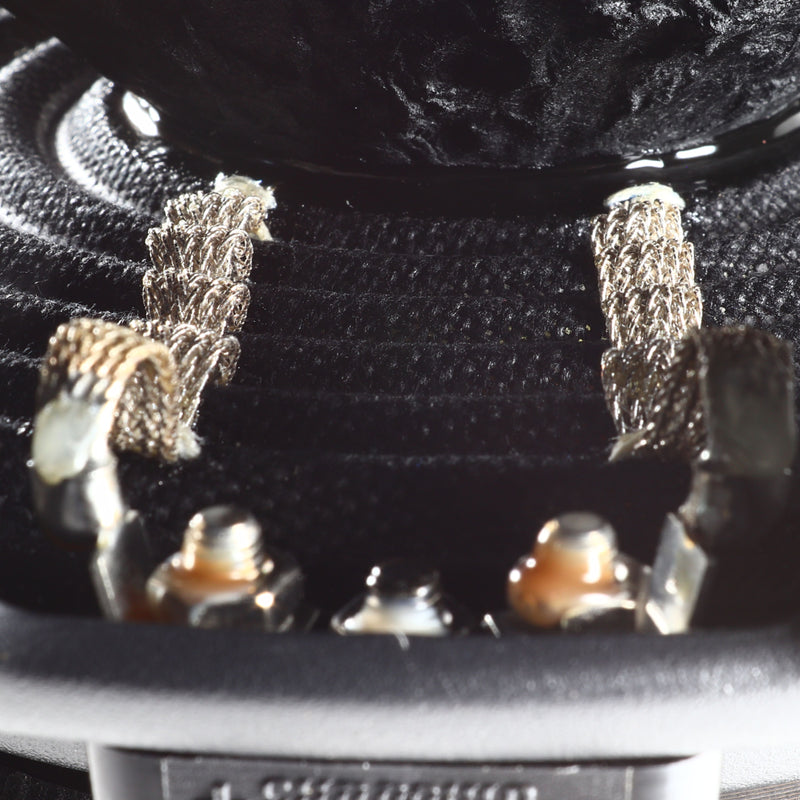

• Stitched-On Flat Tinsel Leads for Improved Durability


• Extremely Low Resonant Frequency (Fs)

10 Inch Specifications

• RMS Power: 500 Watts


• Peak Power: 1000 Watts


• Voice Coil Configuration: Dual 4 Ohm


• Xmax: 14mm


• Re: 7.140 Ohms


• Fs: 34.642 Hz


• Vas: 46.25 L


• Qes: 0.5668


• Qms: 5.3309


• Qts: 0.5124


• Le: 4.9056 mH


• BL: 19.287 N/A


• Mms: 133.9553 g


• Cms: 155.7102 uM/N


• Sensitivity: 87.13 dB @ 1W/1M

10 Inch Physical Dimensions

• Mounting Depth: 5.25"


• Cutout Diameter: 9.375"


• Motor Diameter: 5.74"


• Driver Displacement: 0.05 cu. ft.

10 Inch Recommended Enclosure

• Sealed Box: 1.0 cu. ft.


• Ported Box: 1.75 cu. ft.


• Recommended Port Area: 26 sq. in.


• Recommended Port Tuning: 35 Hz

10 Inch Recommended 4th Order Bandpass

• Sealed Chamber: 0.40 cu. ft.


• Ported Chamber: 1.20 cu. ft.


• Port Area: 24 sq. in.


• Port Length: 6"

12 Inch Specifications

• RMS Power: 500 Watts


• Peak Power: 1000 Watts


• Voice Coil Configuration: Dual 4 Ohm


• Xmax: 14mm


• Re: 6.900 Ohms


• Fs: 33.442 Hz


• Vas: 48.7754 L


• Qes: 0.5731


• Qms: 5.4179


• Qts: 0.5183


• Le: 4.8307 mH


• BL: 19.4373 N/A


• Mms: 154.5741 g


• Cms: 164.1827 uM/N


• Sensitivity: 86.03 dB @ 1W/1M

12 Inch Physical Dimensions

• Mounting Depth: 5.25"


• Cutout Diameter: 11.12"


• Outside Diameter: 12.27"


• Motor Diameter: 5.74"


• Driver Displacement: 0.07 cu. ft.

12 Inch Recommended Enclosure

• Sealed Box: 1.0 cu. ft.


• Ported Box: 1.75 cu. ft.


• Recommended Port Area: 26 sq. in.


• Recommended Port Tuning: 35 Hz

12 Inch Recommended 4th Order Bandpass

• Sealed Chamber: 0.75 cu. ft.


• Ported Chamber: 2.25 cu. ft.


• Port Area: 45 sq. in.


• Port Length: 6"
