- 1250W RMS Compact Powerhouse: Delivers serious bass output from an 8 inch subwoofer, perfect for high-performance daily and SPL builds
- Extreme 19mm Xmax Excursion: Deep, controlled low-frequency response with over 2.4 inches peak-to-peak movement
- Dual 2 Ohm System Flexibility: Ideal for wiring to maximize amplifier efficiency in compact high-output systems
- FEA-Optimized Suspension Design: Improved spider and surround for better control, durability, and low distortion at high power
- Triple-Stacked Motor with Shorting Ring: Enhances output, reduces distortion, and maintains clean bass under heavy load

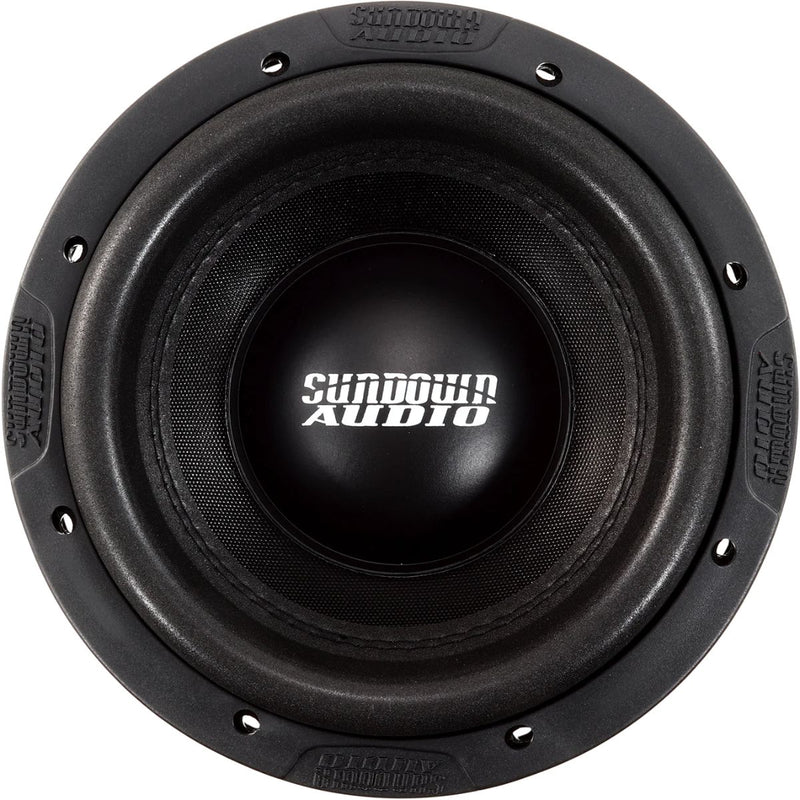

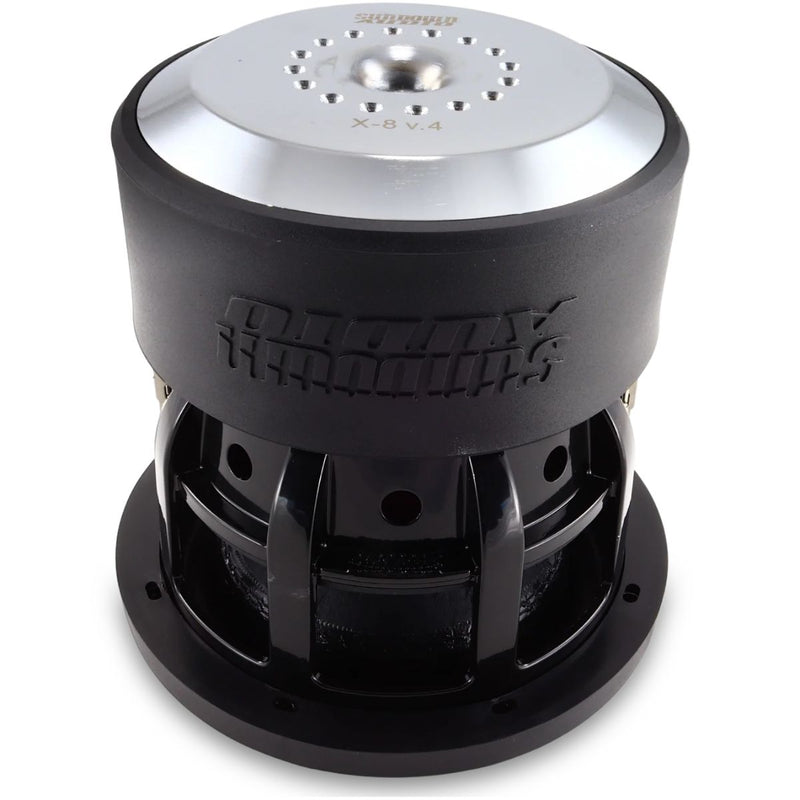

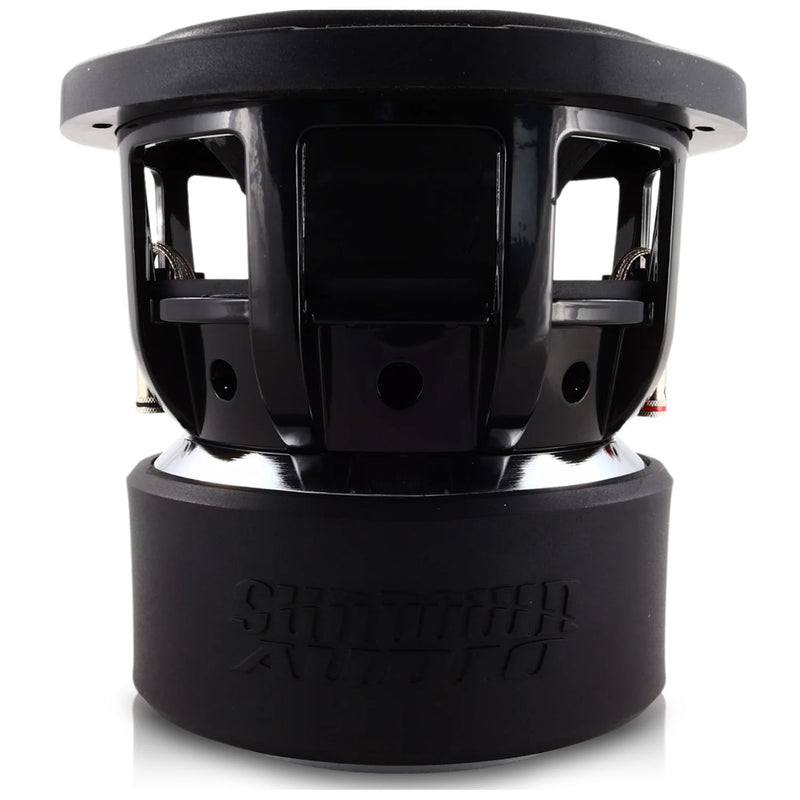

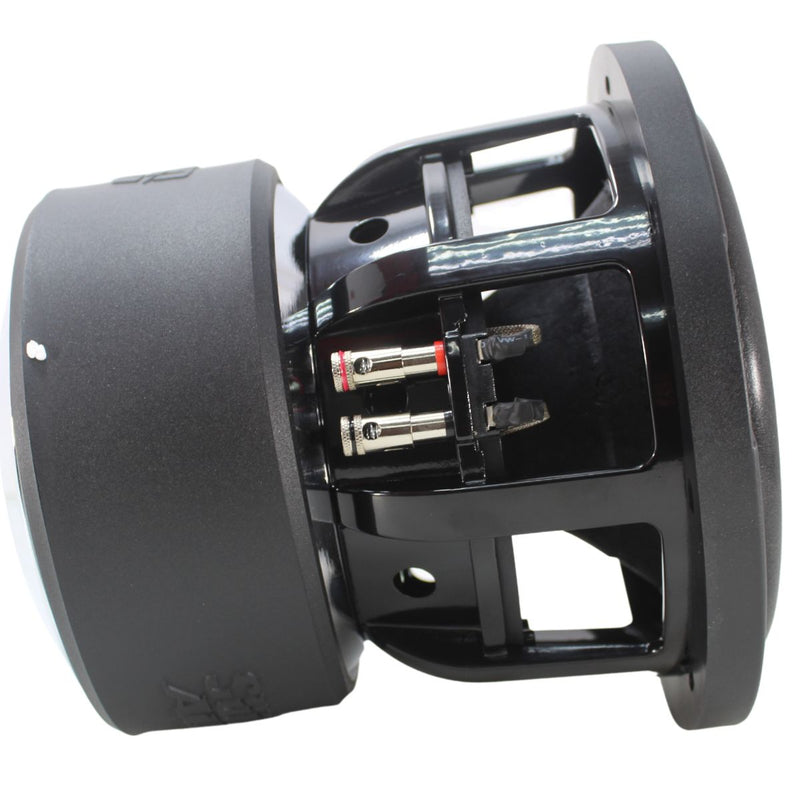

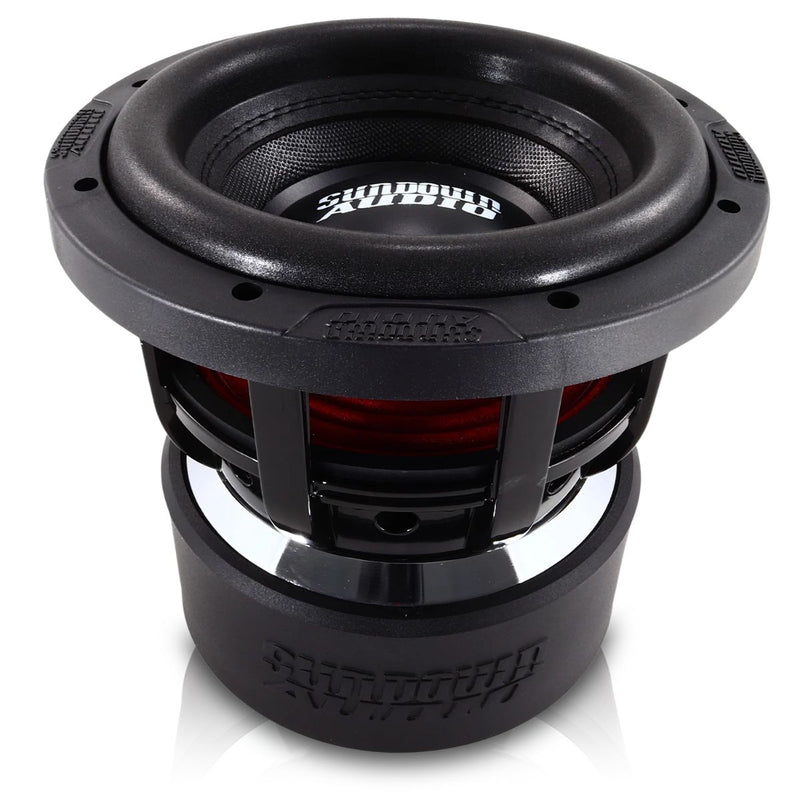

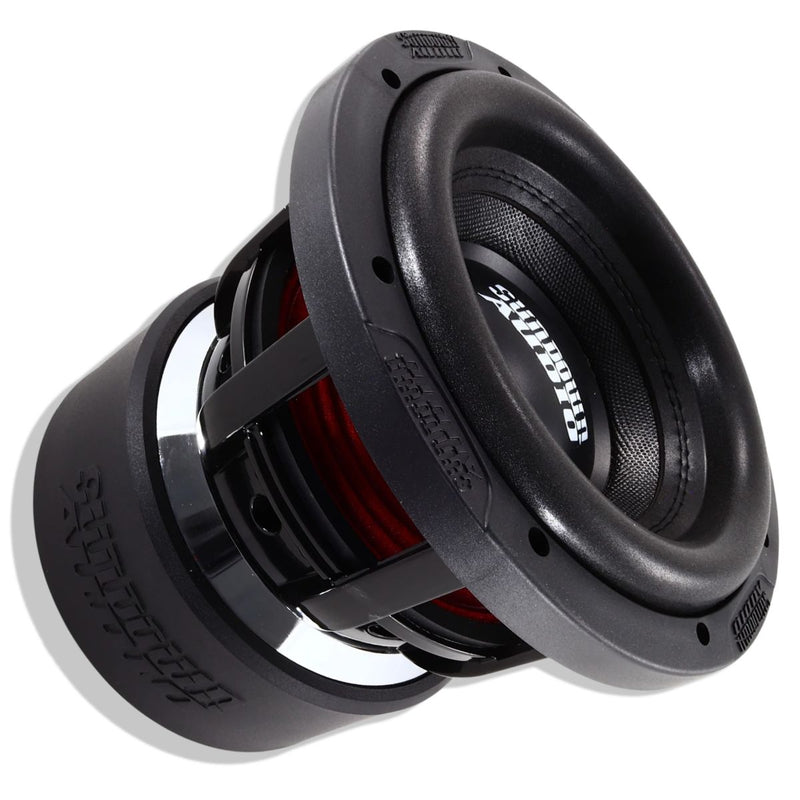

Sundown Audio X Series V.4 8" 1250W RMS Dual 2-Ohm Subwoofer X-8 V.4 D2
This listing includes:
- (1) Sundown Audio X Series V.4 8" Dual 2-Ohm Subwoofer
The Sundown Audio X-8 V.4 D2 redefines what is possible from a standard cutout 8-inch subwoofer. Designed for extreme output in compact systems, this subwoofer delivers 1250 watts RMS and 2500 watts peak, making it a top-tier choice for high-performance daily drivers and competition-grade SPL builds.
The V.4 generation represents a major leap forward from previous X-8 models, featuring a carefully FEA-optimized spider and surround system that dramatically improves linear excursion, control, and reliability at high power levels. With approximately 19mm of linear one-way Xmax and over 2.4 inches peak-to-peak excursion, the X-8 V.4 D2 delivers deep, controlled bass well beyond what most 8-inch drivers can achieve.
At the heart of the subwoofer is a massive triple-stacked motor assembly, paired with a 2.5-inch high-temperature voice coil and a hyper-extended pole design for maximum motor strength and thermal stability. An integrated aluminum magnet ID shorting ring minimizes inductive distortion, ensuring clean, accurate bass even at extreme output levels.
Compatible with sealed, ported, and 4th-order enclosures, the X-8 V.4 D2 is engineered for builders who demand maximum performance from minimal space.
Features
- 1250W rms high output
- 2500W peak power handling
- dual 2 ohm voice coil
- 19mm xmax high excursion
- triple-stacked motor design
- 2.5-inch high-temp voice coil
- fea optimized suspension
- low distortion performance
- compact high-output design
- works in sealed and ported boxes
Specifications – X Series V.4 8" Dual 2-Ohm
- RMS Power Handling: 1250W
- Peak Power Handling: 2500W
- Nominal Impedance: Dual 2 Ohm
- DC Resistance (Re): 3.6 Ohm
- Voice Coil Diameter: 2.5"
- Sensitivity (1W/1m): 80.1 dB
- Xmax (One-Way): 19mm
Thiele & Small Parameters
- Fs: 41.299 Hz
- Vas: 4.126 L
- Qes: 0.436
- Qms: 1.941
- Qts: 0.356
- BL: 21.576 NA
- Mms: 215.153 g
- Cms: 68.389 um/N
Enclosure Recommendations
Sealed Enclosure
- Volume: 0.30 – 0.40 cu ft
Ported Enclosure
- Volume: 0.75 – 1.0 cu ft
- Recommended Tuning: 32 Hz
- Recommended Port Area: 12 – 16 sq in
4th Order Enclosure
- Sealed Side: 0.20 cu ft
- Ported Side: 0.80 cu ft
- Port Area: 16 sq in
- Port Length: 8"
Dimensions
- Outside Diameter: 8.71"
- Cutout Diameter: 7.32"
- Mounting Depth: 7.56"
- Motor Diameter: 6.88"
- Driver Displacement: 0.13 cu ft
