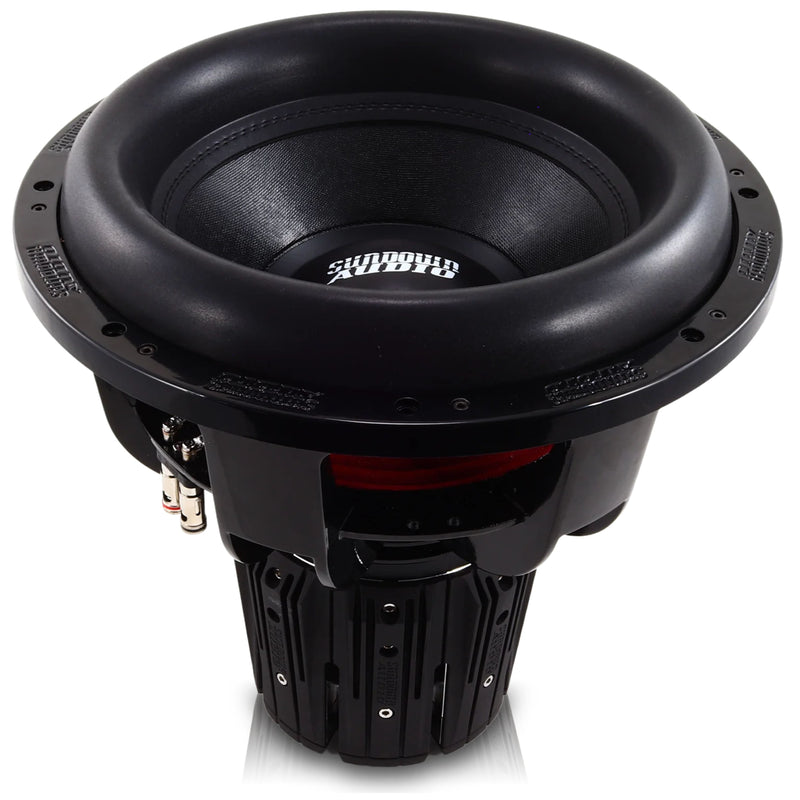

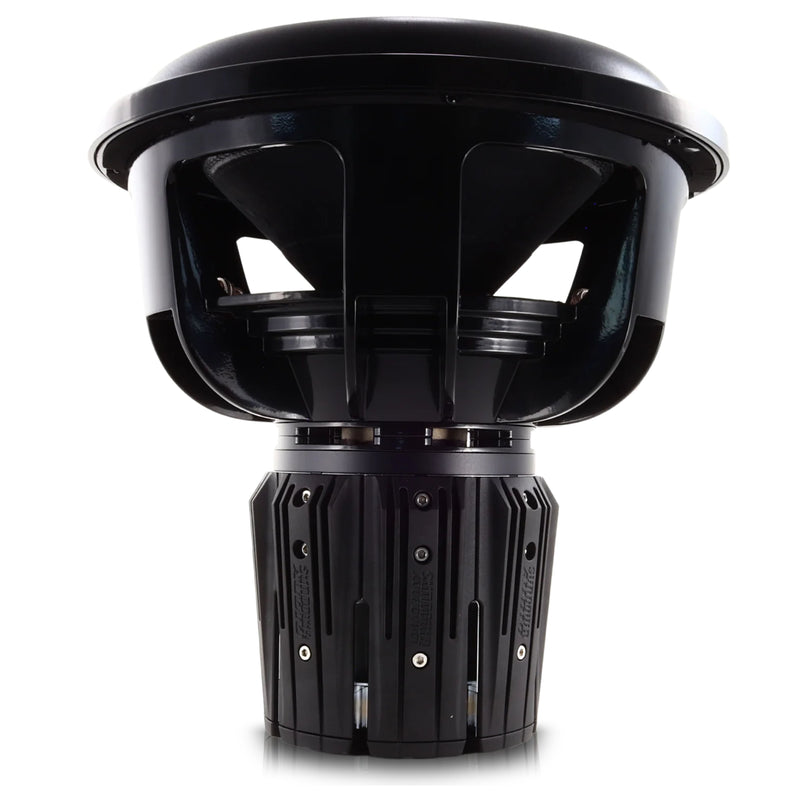

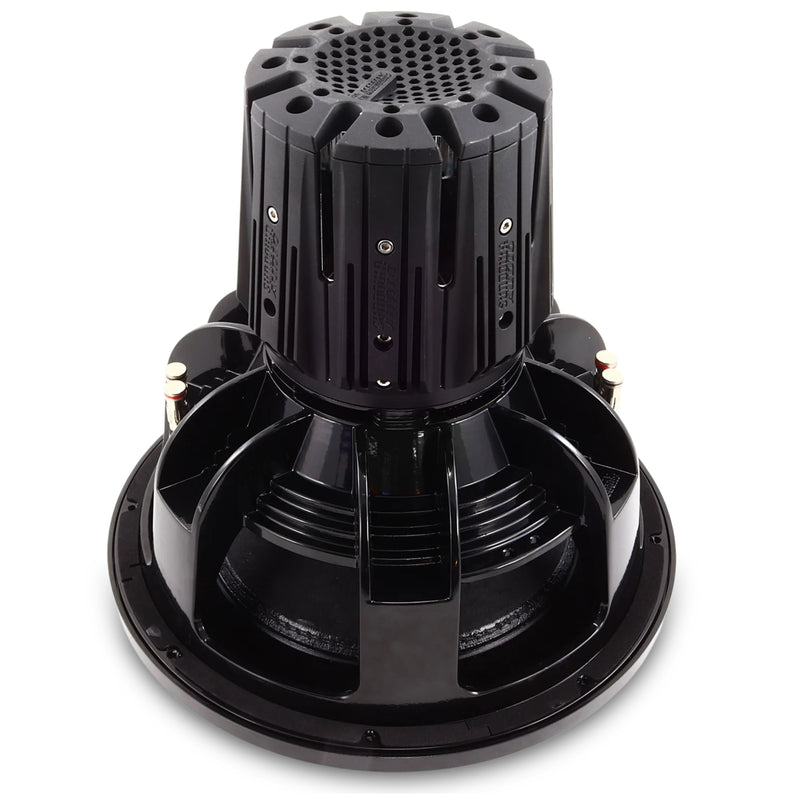

Sundown Audio 15" 3500 Watt RMS Nightshade Subwoofer Dual 1 or 2 Ohm NSV6

• MASSIVE 3500W RMS POWER HANDLING: Sundown Audio Nightshade V6 15" subwoofer delivers extreme low-frequency output with deep bass extension and serious SPL capability for high-performance car audio systems.
• AVAILABLE IN DUAL 1-OHM OR DUAL 2-OHM CONFIGURATIONS: Flexible voice coil options allow you to match your amplifier setup and optimize wiring for maximum power and efficiency.
• HIGH EXCURSION 35MM XMAX DESIGN: Engineered for massive cone travel and powerful low-end response while maintaining excellent control and reduced distortion at extreme output levels.
• ADVANCED SUNDOWN MOTOR AND COOLING TECHNOLOGY: Features the patented S.A.I.N.T motor platform, extended shorting ring, eight-layer voice coil, and advanced air exchange cooling system for superior thermal management and reliability.
• BUILT FOR EXTREME DAILY BASS AND HIGH SPL SYSTEMS: Custom tooled basket, ultra-linear spider pack, and Mega Roll V2 surround combine to deliver aggressive bass performance for serious enthusiasts and competition-style builds.

Sundown Audio 15" 3500 Watt RMS Nightshade Subwoofer Dual 1 or 2 Ohm NSV6

This Listing Includes:

• (1) Sundown Audio 15" Dual 1 or 2 Ohm Subwoofer

The Sundown Audio Nightshade V6 15" is engineered for extreme low-frequency performance, massive excursion capability, and advanced thermal management. Designed for serious bass enthusiasts and high-output systems, the Nightshade V6 combines Sundown’s proprietary motor technology, ultra-linear suspension design, and powerful cooling architecture to deliver exceptional output with clean, controlled bass response.

Built with an eight-layer voice coil, extended shorting ring, and custom ultra-linear spider pack, the Nightshade V6 is designed to maintain outstanding reliability and low distortion even under extreme power levels and demanding demo conditions.

Features

• 3500 Watts RMS / 7000 Watts Peak Power Handling


• Available in Dual 1-Ohm or Dual 2-Ohm Configurations


• High Excursion 35mm Xmax Design


• Patented Sundown S.A.I.N.T Motor Technology


• Massive 8-Layer Voice Coil Design


• Extended Shorting Ring for Reduced Distortion


• Ultra-Linear Mega Roll V2 Surround


• Advanced Air Exchange Cooling System


• Cast Aluminum Cooling Ring and Vent Ring


• Built for Extreme SPL and Daily Bass Systems

Dual 1-Ohm T/S Specifications

• RMS Power: 3500 Watts


• Peak Power: 7000 Watts


• Re: 1.8398 Ohms


• Fs: 30.5930 Hz


• Vas: 37.0627 L


• Qes: 0.405


• Qms: 5.3509


• Qts: 0.405


• Le: 1.6641 mH


• BL: 21.1132 N/A


• Mms: 552.2849 g


• Cms: 49.0041 uM/N


• Sensitivity: 85.5892 dB


• Xmax: 35mm

Dual 2-Ohm T/S Specifications

• RMS Power: 3500 Watts


• Peak Power: 7000 Watts


• Re: 3.5978 Ohms


• Fs: 30.8881 Hz


• Vas: 36.0601 L


• Qes: 0.4133


• Qms: 5.4272


• Qts: 0.3841


• Le: 3.4904 mH


• BL: 28.6043 N/A


• Mms: 556.845 g


• Cms: 47.6486 uM/N


• Sensitivity: 85.8487 dB


• Xmax: 35mm

Dimensions:

• Overall Diameter: 15.67"


• Mounting Depth: 13.91"


• Cutout Diameter: 13.93"


• Overall Depth: 15.98"


• Motor Diameter: 7.59"


• Bolt Circle Diameter: 14.57"


• Displacement: 0.26 cu ft

Recommended Ported Enclosure Specifications

• Recommended Airspace: 4.0 cu ft


• Recommended Port Area: 60 sq in


• Recommended Tuning Frequency: 32 Hz

4th Order Enclosure Recommendations

• Sealed Side: 2.0 cu ft


• Ported Side: 6.0 cu ft


• Port Area: 120 sq in


• Port Length: 8"
