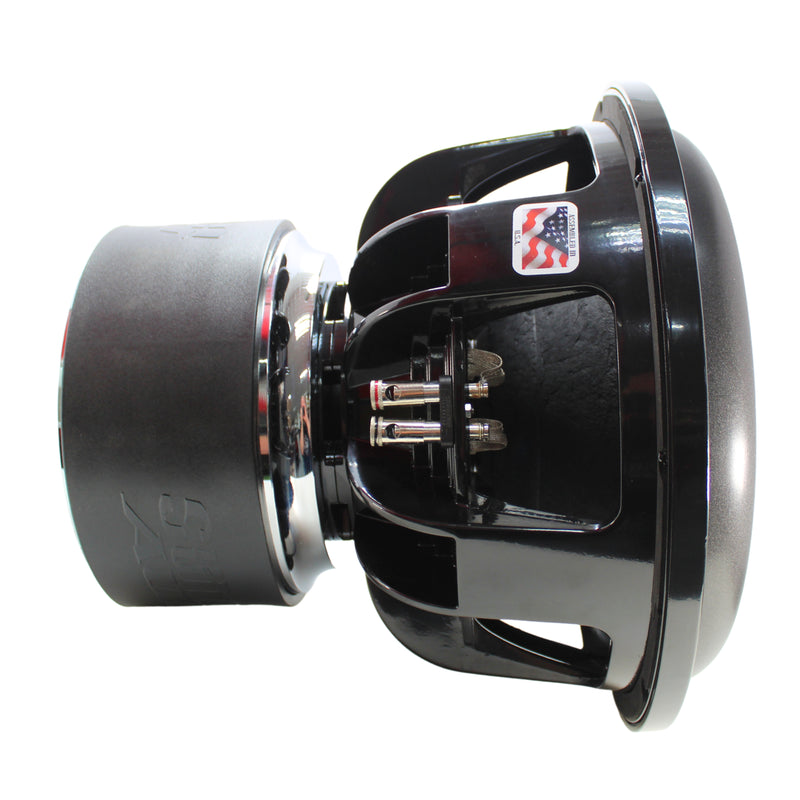

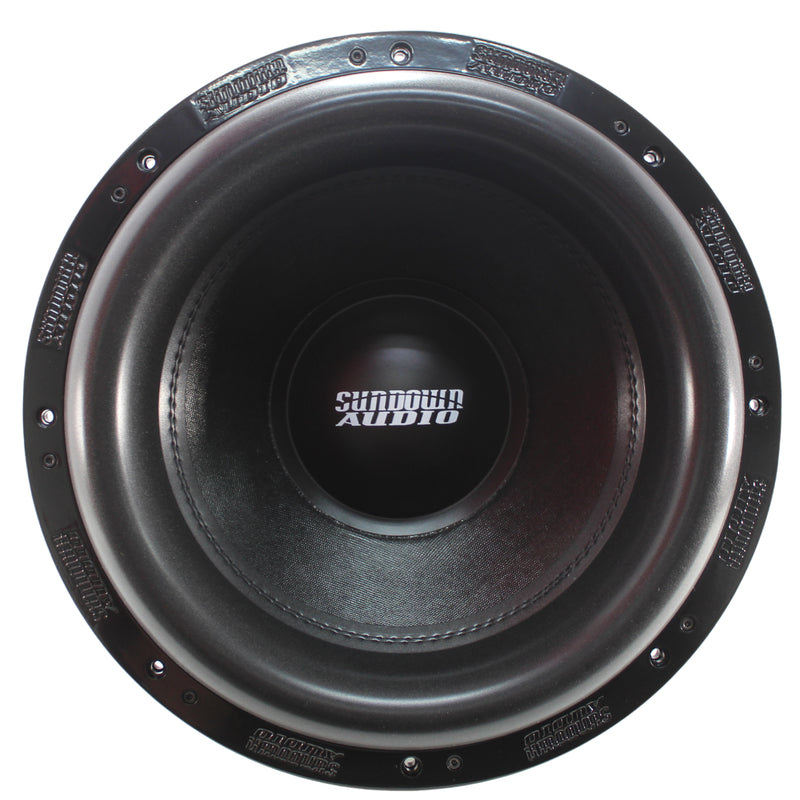

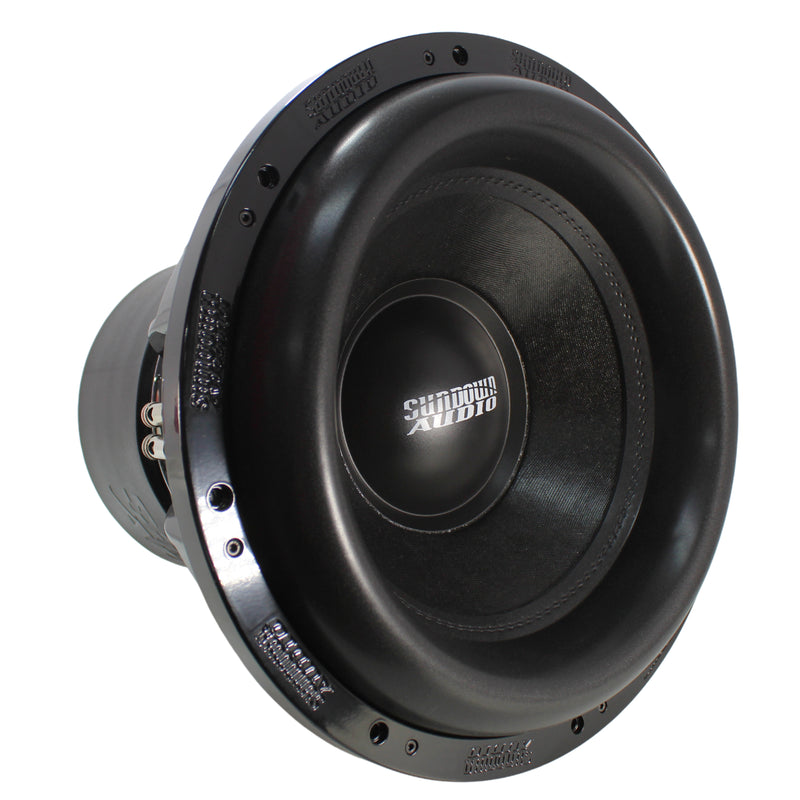

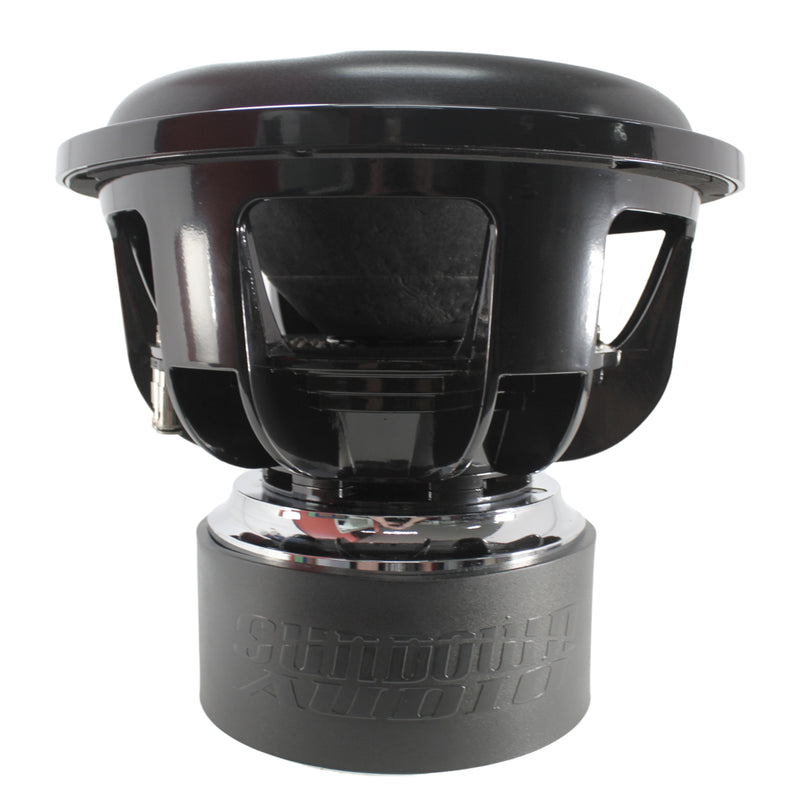

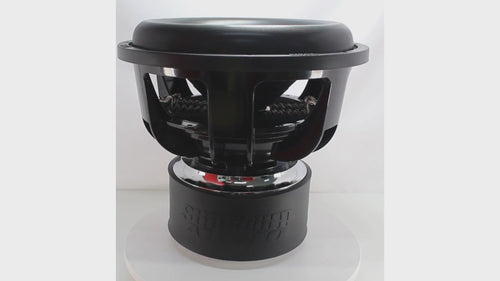

Sundown Audio Z v.6 Series 15" 3250W RMS Dual 1 Ohm VC Car Subwoofer ZV6-15-D1

• EXTREME MOUNTING DEPTH: Built for serious builds with a massive 12.93-inch mounting depth. Designed for deep enclosures and high-excursion setups that demand real space.
• OVERSIZED CUTOUT DESIGN: Requires a 13.93-inch cutout, giving you maximum cone area and airflow for harder hits and cleaner low-end output.
• HIGH-MASS MOTOR STRUCTURE: Features a 5.78-inch motor diameter engineered for insane power handling, control, and consistent performance under heavy load.
• ENCLOSURE DISPLACEMENT: Displaces 0.26 cubic feet of internal airspace. Critical for accurate box design and maximum efficiency.
• OPTIMIZED PORTED PERFORMANCE: Performs best in a 4.0 cubic foot ported enclosure with 60 square inches of port area tuned to 32 Hz for deep, aggressive bass.
• SEALED BOX NOT RECOMMENDED: Designed for high-output ported and bandpass applications. Sealed enclosures will restrict performance.

Sundown Audio Z v.6 Series 15" 3250W RMS Dual 1 Ohm VC Car Subwoofer ZV6-15-D1

This Listing Includes:

• (1) Z v.6 Series 15" Subwoofer

The Sundown Audio Z v.6 Series 15" Subwoofer is engineered for extreme performance, delivering a powerful 2500W RMS for deep, hard-hitting bass. Designed with a robust motor structure and an advanced cooling system, this subwoofer is built to handle high power levels with efficiency and reliability. The dual 1-ohm voice coil configuration offers flexible wiring options, while the precision-crafted cone and suspension ensure accurate low-frequency reproduction. Whether you're building a competition-level system or enhancing your daily drivers sound, the Z v.6 15" delivers the intensity and clarity that audiophiles demand.

Features

• Power Handling: 3250 Watts RMS / 6500 Watts Peak


• Xmax = 35mm one-way by 70% BL


• Heavily vented magnetic gap

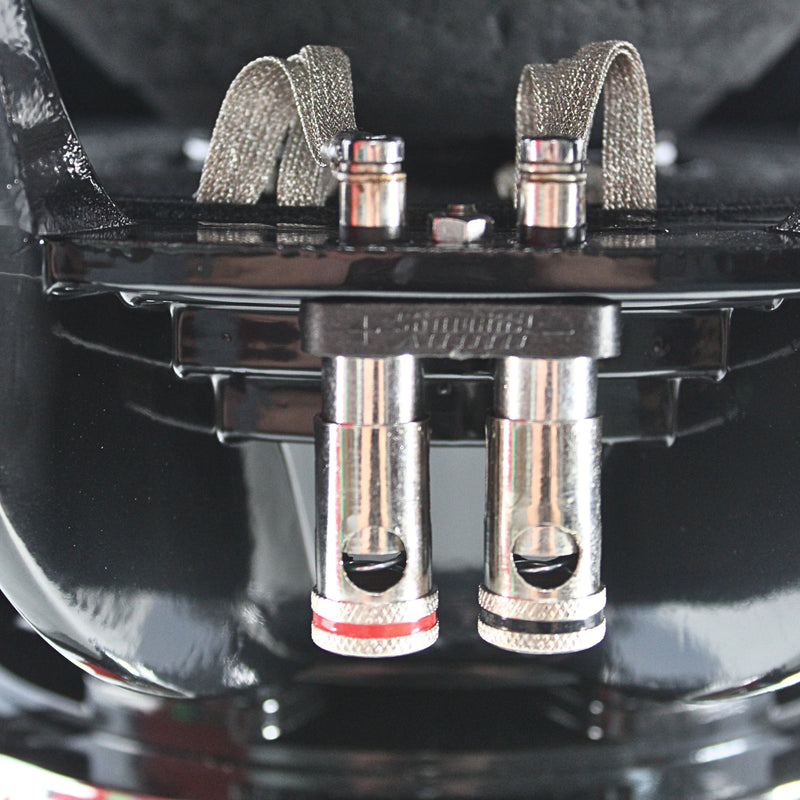

• Spring-Loaded Terminals


• Optimized high-velocity pole vent


• Innovative high-velocity cast-aluminum vented frame spacer ring


• Black aluminum 3-inch 8-layer voice coil


• Mega-Roll v.2 surround


• Custom tooled basket


• Large aluminum Faraday (shorting) Ring


• Stitched-On XL Tinsel Leads to prevent fatigue and failure


• Custom-tooled ultra-linear spider packs

Specifications:

• RE (Ohms): 1.8


• FS (Hz): 32.0678


• VAS (L): 36.8572


• Qes: 0.4453


• Qms: 5.8323


• Qts: 0.4138


• Le (mH): 1.9416mH


• BL (NA): 20.5424


• Mms (Grams): 505.4553g


• Cms (uM/N): 48.7324uM/N


• Sens (dB): 86.1079dB

Dimensions:

• Overall Diameter: 15.51 inches


• Gasket Diameter: 15.24 inches


• Cutout Diameter: 13.59 inches


• Total Depth: 15.00 inches


• Mounting Depth: 12.93 inches


• Motor Diameter: 13.83 inches


• Magnet Diameter: 9.72 inches


• Displacement: 0.26 cubic feet


• Pole Diameter: 5.51 inches


• Basket Height: 6.67 inches


• Top Plate Thickness: 0.74 inches


• Upper Clearance: 1.81 inches


• Spider Landing: 1.

PORTED ENCLOSURE RECOMMENDATION:

• Enclosure Size: 4.0 cubic feet


• Recommended Port Area: 60 square inches


• Recommended Tuning: 32 Hz

SEALED ENCLOSURE:

• Not Recommended

4TH ORDER BANDPASS SPECS:

• Sealed Side: 2.0 cubic feet


• Ported Side: 6.0 cubic feet


• Port Area: 120 square inches


• Port Length: 8 inches
