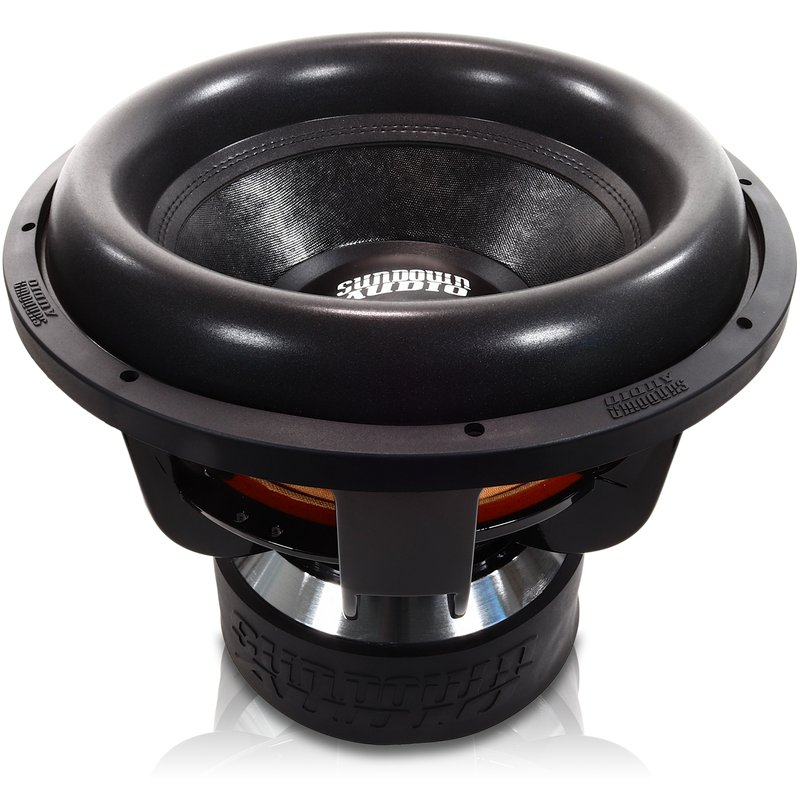

Sundown Audio X Series v.3 15" Subwoofer 2500 Watts RMS DVC 2-Ohm X-15-V3-D2

• POWER HANDLING: Rated for 2500 watts RMS and 5000 watts peak power for high-output car audio bass systems.
• DUAL 2 OHM VOICE COILS: Dual 2 ohm voice coils provide wiring flexibility for matching your amplifier and desired final impedance.
• DEEP BASS DESIGN: Built for extremely deep low-frequency output with a highly linear suspension for lower distortion.
• HIGH EXCURSION BUILD: Features a triple-stacked motor, hyper-extended pole, 3" voice coil, and Mega-Roll v.2 surround.
• PORTED BOX READY: Manufacturer recommends a 4.25 cubic foot ported enclosure tuned to 32 Hz with 68 square inches of port area.

Sundown Audio X Series v.3 15" Subwoofer 2500 Watts RMS DVC 2-Ohm X-15-V3-D2

This Listing Includes:

• (1) Sundown Audio 15" Subwoofer X-15-V3-D2

The Sundown Audio X v.3 15" subwoofer is built for serious low-frequency output, extremely deep bass, and high-excursion performance. Designed for ported enclosures, the X v.3 delivers strong low-end extension while maintaining low distortion through its highly linear suspension design.

This 15" D2 subwoofer is rated for 2500 watts RMS and 5000 watts peak power. It features a triple-stacked motor, hyper-extended pole design, 3" voice coil, upgraded motor ventilation, and the Mega-Roll v.2 surround. The X v.3 is designed to perform in smaller ported enclosures, but can also work in a larger enclosure when more low-end extension is the goal.

Features

• 15" high-excursion car audio subwoofer


• RMS Power: 2500 Watts


• Peak Power: 5000 Watts


• Impedance: Dual 2 Ohms


• Designed for extremely deep bass


• Triple-stacked magnet motor


• 3" voice coil


• Hyper-extended pole design


• Mega-Roll v.2 surround


• Up to 4" peak-to-peak excursion


• Designed for ported enclosures

Technical Specifications:

• Subwoofer Size: 15"


• RMS Power: 2500 Watts


• Peak Power: 5000 Watts


• Voice Coil Configuration: Dual 2 Ohms


• Re: 3.2 Ohms


• Fs: 31.423 Hz


• Vas: 45.924 L


• Qes: 0.561


• Qms: 2.801


• Qts: 0.468


• BL: 21.831 NA


• Mms: 423.436 g


• Cms: 60.585 uM/N


• Sensitivity: 85.9 dB


• Xmax: 30 mm


• Mounting Depth: 11.6"


• Outside Diameter: 15.51"


• Cutout Diameter: 13.83"


• Driver Displacement: 0.22 Cubic Feet

Recommended Enclosure Specifications

• Sealed Enclosure: Not Recommended


• Ported Enclosure: 4.25 Cubic Feet


• Recommended Tuning: 32 Hz


• Recommended Port Area: 68 Square Inches
