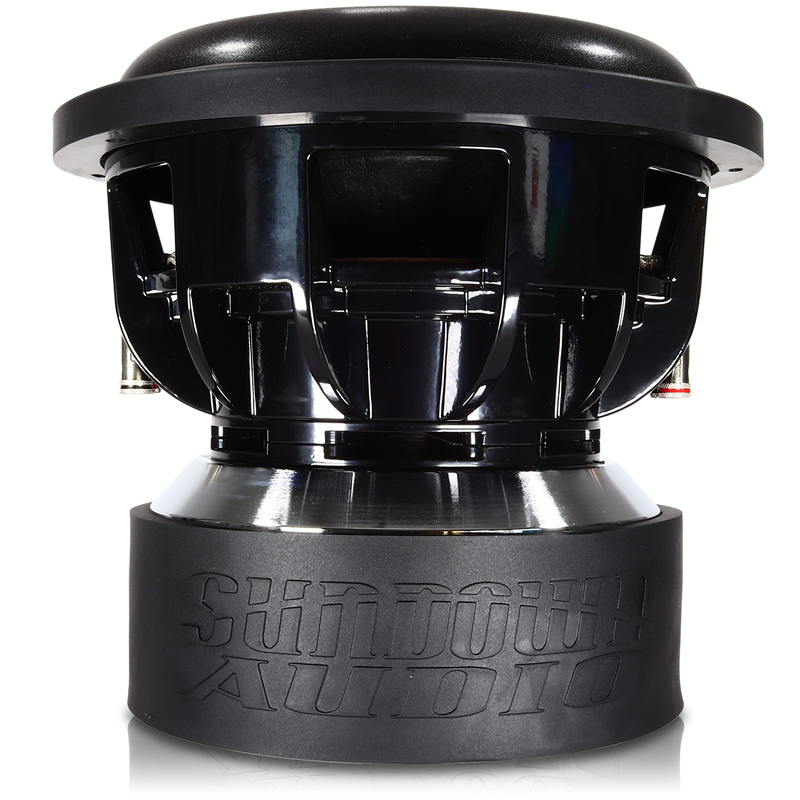

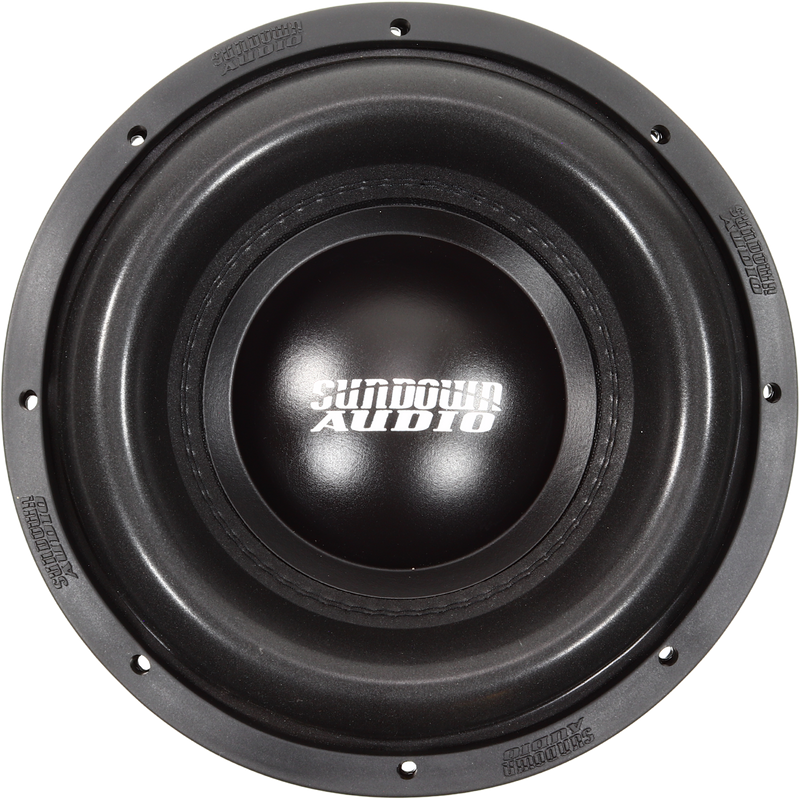

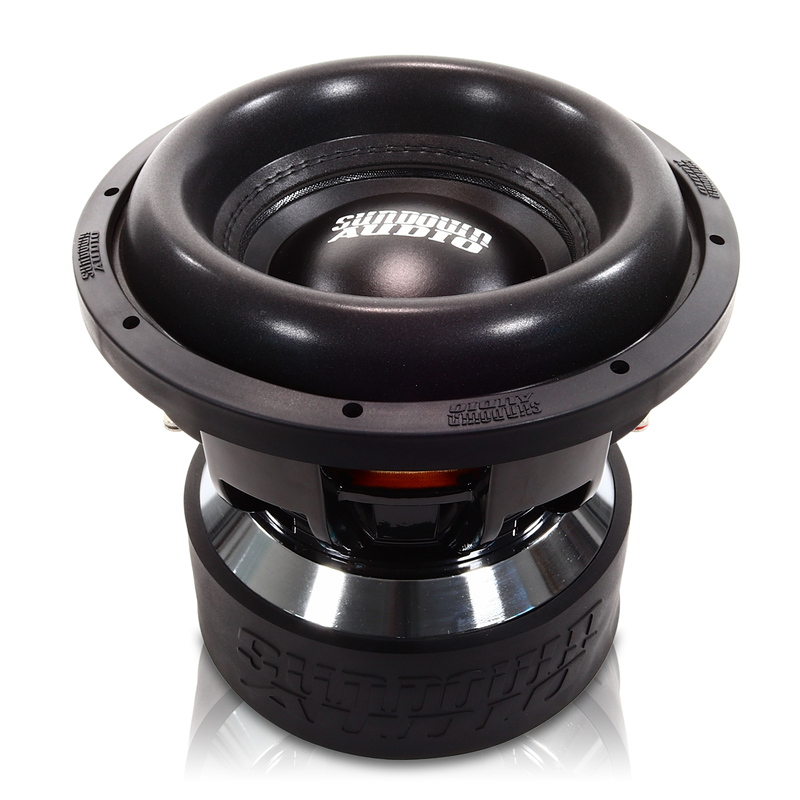

Sundown Audio X Series v.3 10" Subwoofer 2000 Watts RMS DVC 2-Ohm X-10-V3-D2

• POWER HANDLING: Rated for 2500 watts RMS and 5000 watts peak power for high-output car audio bass systems.
• DUAL 2 OHM VOICE COILS: Dual 2 ohm voice coils provide wiring flexibility for matching your amplifier and desired final impedance.
• DEEP BASS DESIGN: Built for extremely deep low-frequency output with a highly linear suspension for lower distortion.

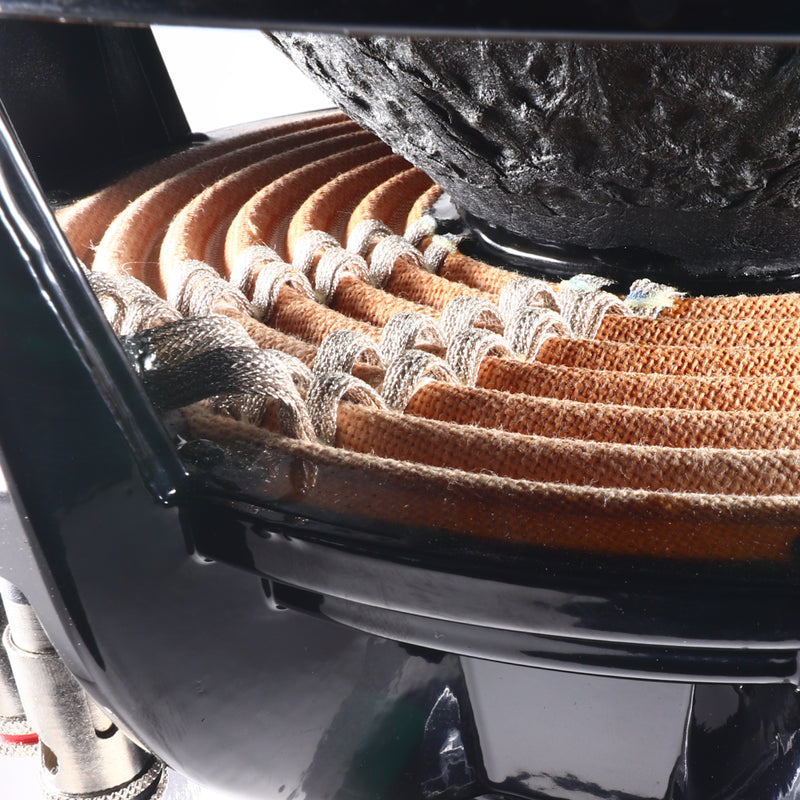

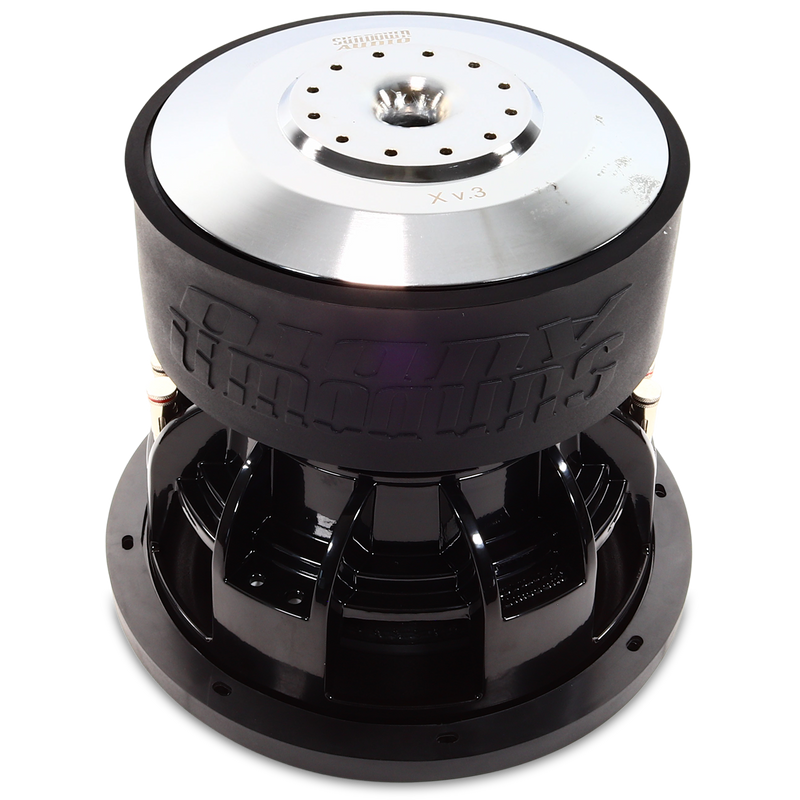

• HIGH EXCURSION BUILD: Features a triple-stacked motor, hyper-extended pole, 3" voice coil, and Mega-Roll v.2 surround.
• PORTED BOX READY: Manufacturer recommends a 1.5 cubic foot ported enclosure tuned to 32 Hz with 24 square inches of port area.

Sundown Audio X Series v.3 10" Subwoofer 2000 Watts RMS DVC 2-Ohm X-10-V3-D2

This Listing Includes:

• (1) Sundown Audio 10" Subwoofer X-10-V3-D2

The Sundown Audio X v.3 10" subwoofer is built for extremely deep bass, high power handling, and serious low-frequency output from a compact subwoofer platform. Its highly linear suspension is designed to deliver strong low-end extension while helping maintain low distortion.

Rated for 2500 watts RMS and 5000 watts peak power, the X v.3 features a triple-stacked magnet motor, hyper-extended pole design, 3" voice coil, improved motor ventilation, and the Mega-Roll v.2 surround. It is designed for smaller ported enclosures, with the ability to use a larger enclosure when more low-end extension is the goal.

Features

• 10" high-excursion car audio subwoofer


• RMS Power: 2500 Watts


• Peak Power: 5000 Watts


• Impedance: Dual 2 Ohms


• Designed for extremely deep bass


• Triple-stacked magnet motor


• 3" voice coil


• Hyper-extended pole design


• Mega-Roll v.2 surround


• Up to 4" peak-to-peak excursion


• Designed for ported enclosures

Technical Specifications

• Subwoofer Size: 10"


• RMS Power: 2500 Watts


• Peak Power: 5000 Watts


• Voice Coil Configuration: Dual 2 Ohms


• Re: 3.20 Ohms


• Fs: 39.01 Hz


• Qms: 4.0400


• Qes: 0.6000


• Qts: 0.5200


• Mms: 339.86 g


• Cms: 48.97 uM/N


• Sd: 506.6 cm2


• Vas: 9.32 L


• Sensitivity: 85.3 dB


• BL: 21.020 Tm


• Le: 2.37 mH


• Xmax: 30 mm


• Overall Diameter: 11.65"


• Cutout Diameter: 10.01"


• Motor Diameter: 9.37"


• Mounting Depth: 9.4"


• Driver Displacement: 0.22 Cubic Feet

Recommended Enclosure Specifications

• Sealed Enclosure: Not Recommended


• Ported Enclosure: 1.5 Cubic Feet


• Recommended Tuning: 32 Hz


• Recommended Port Area: 24 Square Inches


• 4th Order Sealed Section: 0.75 Cubic Feet


• 4th Order Ported Section: 2.25 Cubic Feet


• 4th Order Port Area: 45 Square Inches


• 4th Order Port Length: 8"
