- 750W RMS POWER HANDLING: Sundown Audio U-Series 8-inch subwoofer rated for 750 watts RMS and 1500 watts peak, built for compact high-output car audio systems.
- SELECT DUAL 2-OHM OR DUAL 4-OHM: Choose the D2 or D4 version to match your amplifier and preferred wiring configuration. Includes one selected U-8 subwoofer.
- 18MM XMAX FOR DEEP BASS: Delivers 18mm of one-way Xmax at 70% BL for strong low-frequency output and controlled excursion.
- ADVANCED COOLING AND LOW DISTORTION: Features a 2.25-inch aluminum voice coil former, high-temperature copper voice coil wire, rear gap venting, top-plate cooling channels, and an aluminum shorting ring cap.
- BUILT FOR SMALL PORTED ENCLOSURES: Heavy-duty cast aluminum basket, double-stitched surround, spring-loaded terminals that accept up to 8-gauge wire, and stitched-on heavy-duty tinsel leads support demanding daily-driver builds.

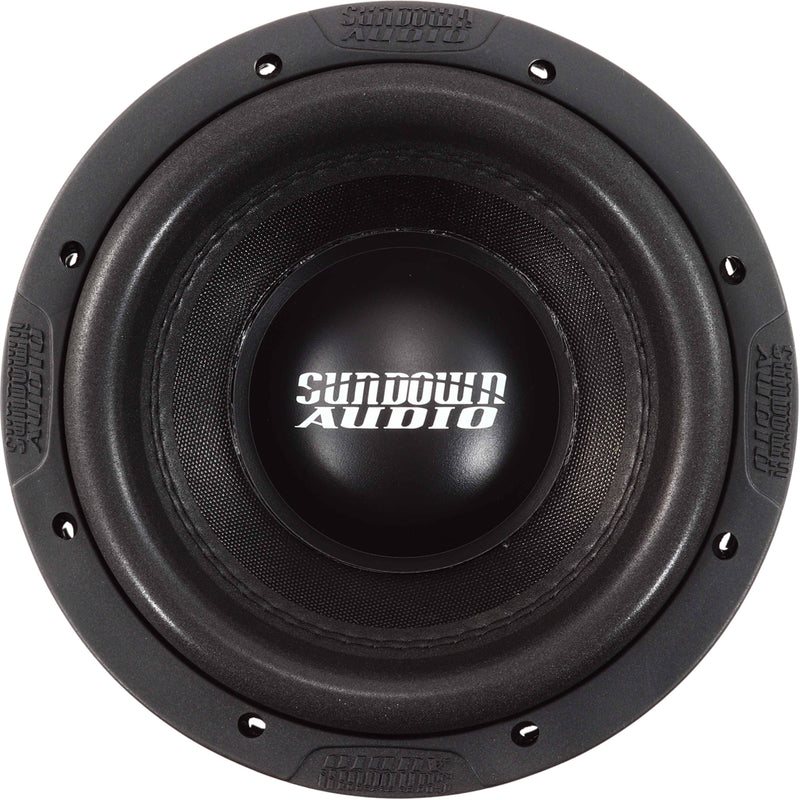

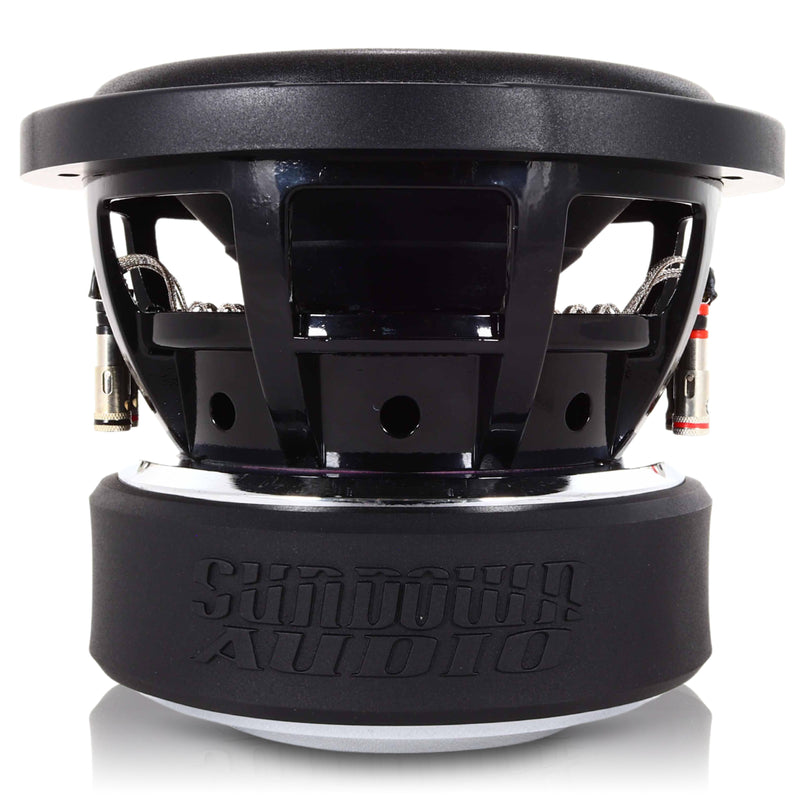

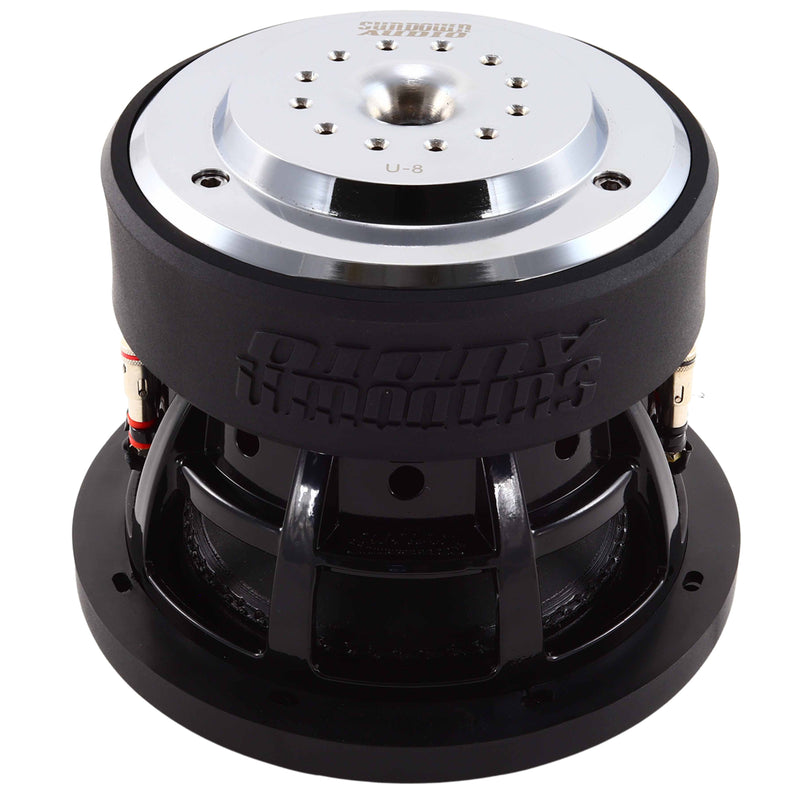

Sundown Audio U-Series 8" 750W RMS Dual 2 or 4 Ohm DVC Subwoofer U-8
This Listing Includes:
- (1) Sundown Audio U-Series 8" Subwoofer
The Sundown Audio U-Series 8" subwoofer delivers serious output and deep excursion from a compact platform. Rated for 750 watts RMS, the U-8 is built around a 2.25-inch aluminum voice coil former, high-temperature copper voice coil wire, a heavy-duty cast aluminum basket, and a highly ventilated motor design to support demanding car audio systems.
Designed for small ported enclosures, the U-8 combines an 18mm one-way Xmax with a solid pole featuring vent channels, rear gap venting, top-plate cooling channels, and an aluminum shorting ring cap. Double-stitched surround construction, spring-loaded terminals that accept up to 8-gauge wire, and heavy-duty stitched tinsel leads provide the durability needed for powerful daily-driver and compact high-output builds.
Features:
- 8-inch U-Series subwoofer
- 750 watts RMS power handling
- 1500 watts peak power handling
- Available in Dual 2-Ohm or Dual 4-Ohm voice coil configurations
- 18mm one-way Xmax measured at 70% BL
- Custom 2.25-inch aluminum voice coil former
- High-temperature copper voice coil wire
- Double-stitched surround
- Heavy-duty cast aluminum basket
- Solid pole with vent channels and aluminum shorting ring cap
- Rear gap venting and top-plate cooling channels
- Spring-loaded terminals accepting up to 8-gauge wire
- Stitched-on heavy-duty tinsel leads
- Optimized for small ported enclosures
Technical Specifications:
- Speaker Size: 8 inches
- RMS Power Handling: 750 watts
- Peak Power Handling: 1500 watts
- Voice Coil Diameter: 2.25 inches
- Voice Coil Former: Aluminum
- Voice Coil Wire: High-Temperature Copper
- Xmax: 18mm one-way at 70% BL
- Recommended Enclosure Type: Small Ported
U-8 D2 Specifications:
- Voice Coil Configuration: Dual 2 Ohm
- Re: 3.8 Ohms
- Fs: 39.387 Hz
- Vas: 6.345 L
- Qes: 0.412
- Qms: 2.474
- Qts: 0.353
- BL: 20.00 N/A
- Mms: 175.340g
- Cms: 93.125 uM/N
- Sensitivity: 81.6 dB @ 1W/1M
U-8 D4 Specifications:
- Voice Coil Configuration: Dual 4 Ohm
- Re: 6.34 Ohms
- Fs: 41.288 Hz
- Vas: 6.970 L
- Qes: 0.519
- Qms: 2.542
- Qts: 0.431
- BL: 21.45 N/A
- Mms: 145.239g
- Cms: 102.308 uM/N
- Sensitivity: 81.6 dB @ 1W/1M
Important Power Rating Notice:
Sundown Audio has updated its published subwoofer power ratings to better reflect real-world performance. During this transition, some product packaging may display earlier ratings. This U-Series 8" subwoofer carries the current published rating of 750 watts RMS and 1500 watts peak. Product performance remains consistent with Sundown Audio’s current specifications.
