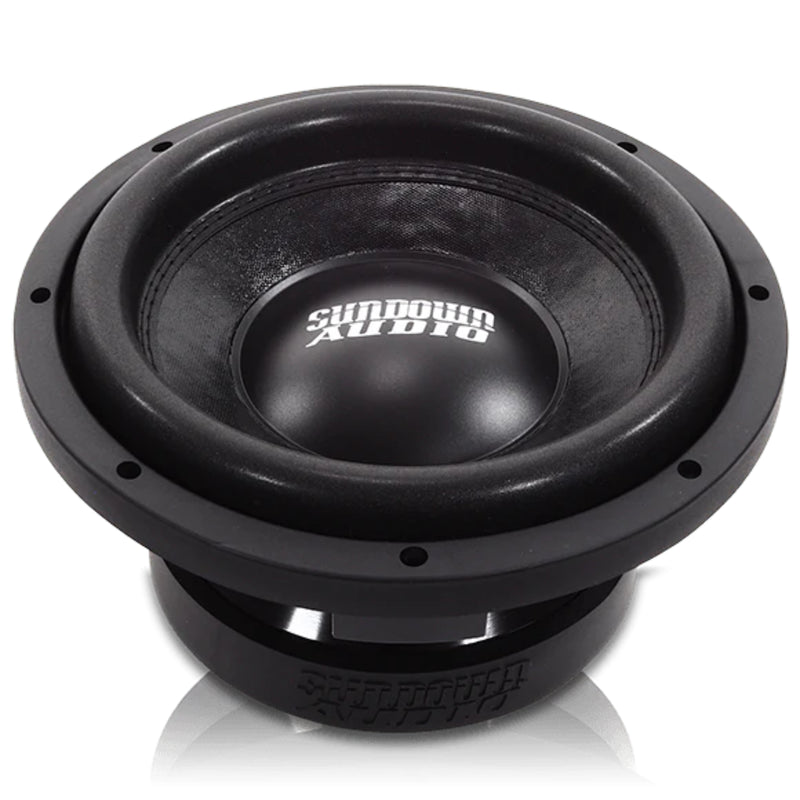

10" 600W RMS 4-Ohm DVC Shallow Subwoofer Sundown Audio SLD Series / SLD-10-D4

• Black Aluminum 2.5" voice coil former for superior heat dissipation
• High Temperature 4-Layer copper voice coil wire

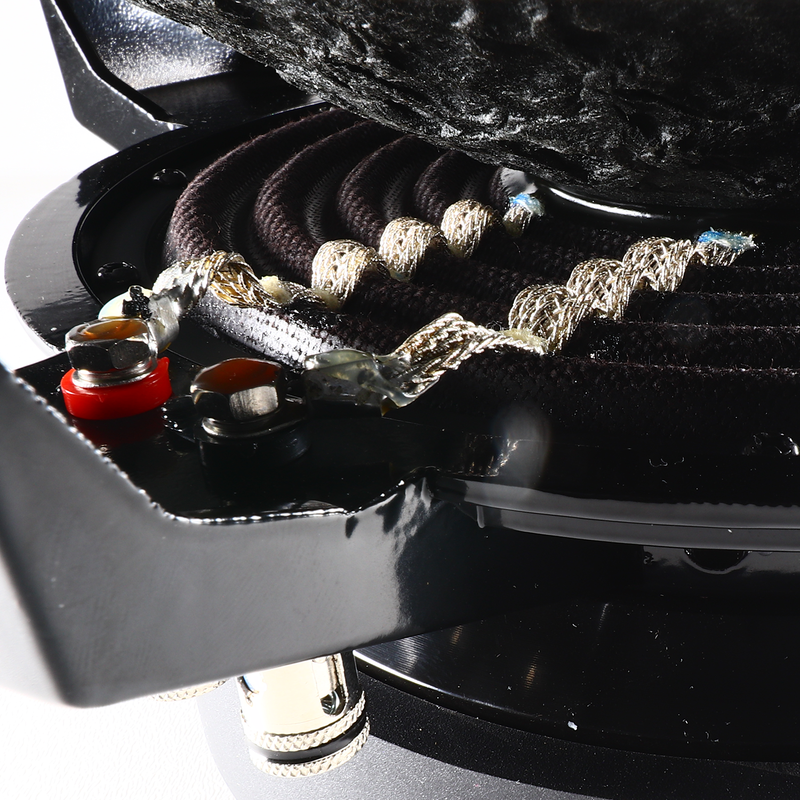

• Stitched-On "Mini-XL" Tinsel Leads to prevent fatigue and failure
• Solid Pole with high velocity vent channels machined around the OD

10" 600W RMS 4-Ohm DVC Shallow Subwoofer Sundown Audio SLD Series / SLD-10-D4

This listing includes:

• (1) Sundown Audio SLD-10 D4 10" 600 Watt Dual 4 Ohm Shallow Subwoofer

Description:

The Sundown SLD series can be considered a "re-boot" of the SD-2 line from 2011. The SD-2 was essentially a "shallow SA v1" by design – meaning it shared the cone, surround, and spider with the SA but with a shorter motor with a shorter coil. The SD series went another route starting with the 3rd generation (SD-3) – tilting more towards SQ and sealed enclosures (this remains true for the SD-4 series as well). Due to popular demand we created the SLD series to add a heavily abuse tolerant "shallow" that likes ported boxes back into the line-up!

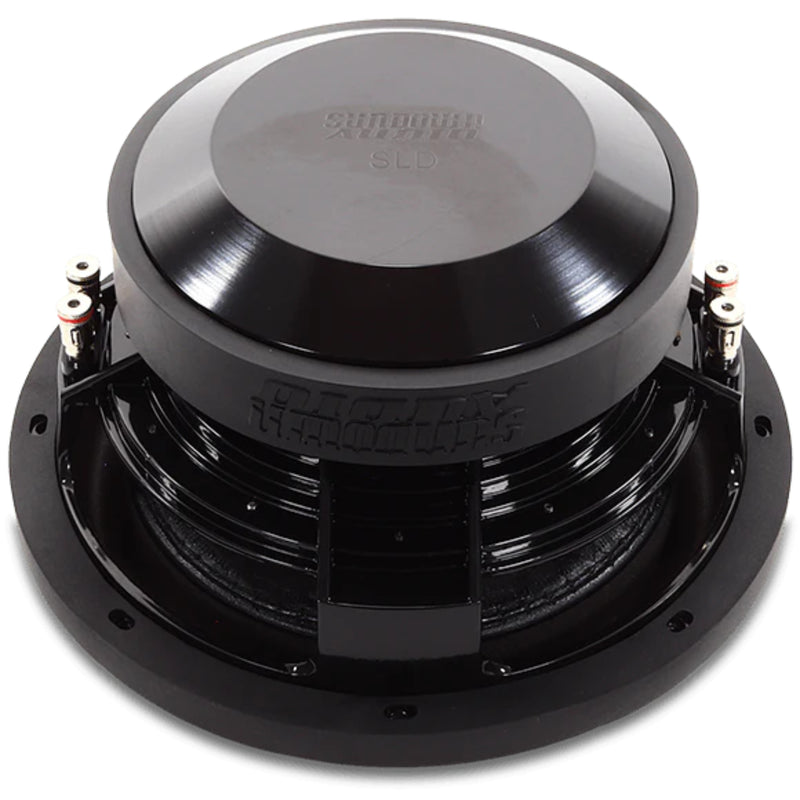

Much like the current SD-4 series we utilized solid pole-piece so the SLD can also be mounted directly against the rear enclosure wall to reduce net depth requirements. Compared to the old SD-2 we have introduced numerous important upgrades: pole-piece channels for reduced air noise & increased cooling, top-plate "slits" for better cooling and less distortion, and a magnet ID shorting ring. In terms of long-term reliability we have also bolted down the spider, bolted the motor together, bolted on the aluminum pole cap, and added "mini-XL" lead wires thus ensuring many years of flawless service.

The bottom line is if you need a relatively shallow woofer that will take a beating then the SLD is, hands-down, the woofer for you from our line. If you are looking for more SQ then look toward the SD-4 series.

Features:

• RMS 600 watts


• Black Aluminum 2.5" voice coil for superior heat dissipation


• High-temperature 4-layer copper voice coil wire


• Stitched-on "Mini-XL" tinsel leads to prevent fatigue and failure


• Solid pole-piece and multi-vent magnetic gap


• Dual-magnet design for smooth acoustic response


• Custom tooled cone shape for reduced mechanical noise over high excursion


• Bolt-through motor design to ensure maximum longevity and ruggedness

Specifications:

• RE (Ohms): 6.85


• FS (Hz): 46.817


• VAS (L): 12.091


• Qes: 0.547


• Qms: 2.246


• Qts: 0.440


• BL (NA): 24.492


• Mms (Grams): 162.818


• Cms (uM/N): 70.979


• Sens (dB @ 1w/1m): 85.4

Enclosure Specifications:

• Sealed Enclosure: 0.5 cu ft


• Ported Enclosure: 1.0 cu ft


• Recommended Tuning: 35Hz


• Recommended Port Area: 15 sq in


• Depth: 4.9"


• Outside Diameter: 10.5"


• Cut-Out: 9.25"

Subwoofer Dimensions:

• Overall depth: 6.01"


• Mounting depth: 4.94"


• Overall diameter: 10.4"


• Cutout diameter: 9.28"
