Sundown Audio SA Series 8" 500W RMS Dual 4-Ohm Voice Coil Subwoofer SA-8v.3

• Stitched-On “XL" Tinsel Leads to prevent fatigue and failure
• High velocity under-spider frame vents

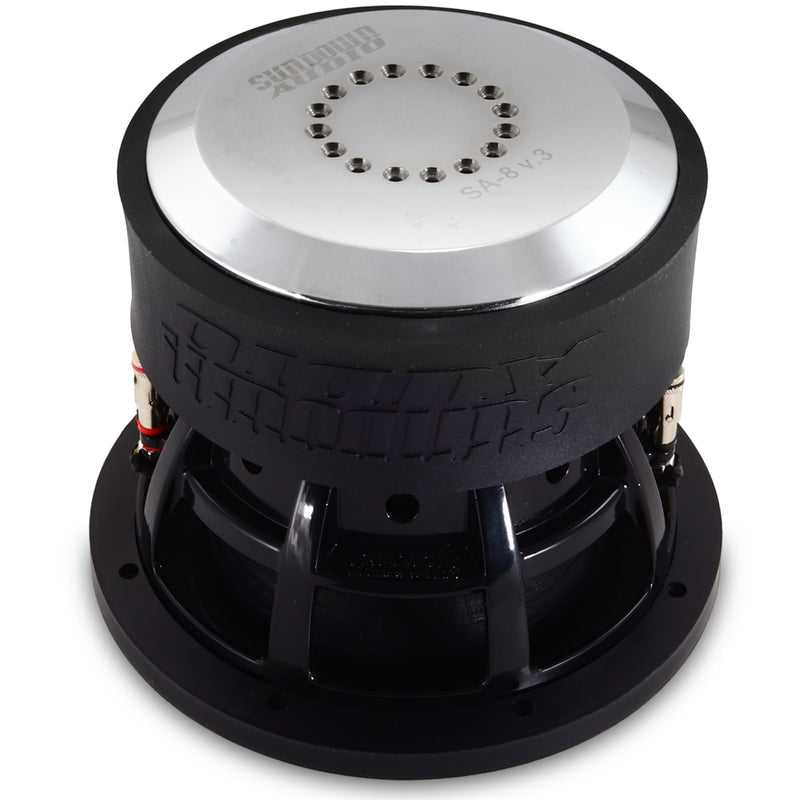

• Solid Pole piece with chamfered edges for increased air powered voice coil cooling
• Vented magnetic gap featuring sixteen chamfered gap vents
• RMS Power = 500-watts

Sundown Audio SA Series 8" 500W RMS Dual 4-Ohm Voice Coil Subwoofer SA-8v.3

This Listing Includes:

• (1) 8" Dual 4-Ohm Voice Coil Subwoofer

Proprietary FEA optimized motor design engineered just for the SA-8 v.3 which features a large aluminum faraday right for low magnetic and inductive distortion levels. This motor is mated to a custom tooled and patented frame which allows for a larger spider and superior clearances to nearly any other 8" woofer. Features a full 16mm of Klippel verified one-way linear excursion and mechanical capacity in excess of double the linear limits to ensure that mechanical failures are nearly impossible. We employed a solid pole-piece to maximum magnetic flux in the motor. In order to reduce mounting depth we did not use a vented frame spacer; instead, drilled vent holes around the basket base. Also added sixteen chamfered gap vents to the back plate to keep the high-velocity air flowing over the voice coil.

Features:

• Xmax = 16mm one-way by 70% BL


• RMS Power = 500-watts

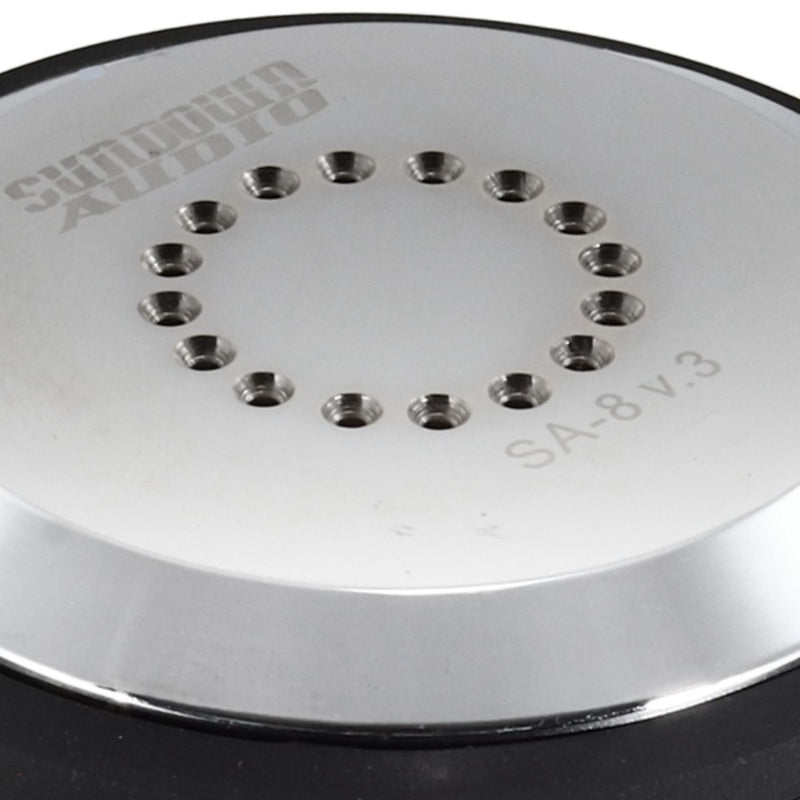

• Vented magnetic gap featuring sixteen chamfered gap vents


• Solid Pole piece with chamfered edges for increased air powered voice coil cooling


• High velocity under-spider frame vents


• Black Aluminum 2" voice coil former for superior heat dissipation


• High Temperature copper voice coil wire


• Large Magnet ID aluminum faraday ring

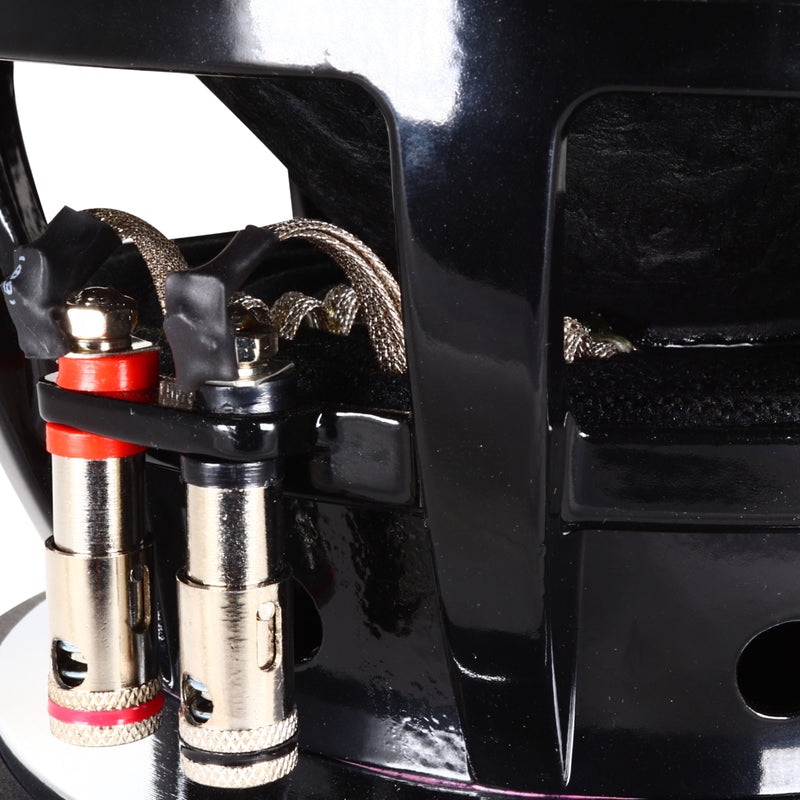

• Spring Loaded Terminals


• Stitched-On "XL" Tinsel Leads to prevent fatigue and failure


• High strength & patented cast aluminum frame


• Optimized for small, ported enclosures

Specifications:

• RE (Ohms) 6.0


• FS (Hz) 40.0


• VAS (L) 7.17


• Qes 0.392


• Qms 4.31


• Qts 0.36


• Le (mH) 3.32


• BL (NA) 22.06


• Mms (Grams) 126.6


• Cms (uM/N) 125


• Sens (dB @ 1w/1m) 82.71
