- High Efficiency Digital Multi-Channel Design.
- 12dB/Octave-Variable High Pass Filter.
- 12dB/Octave-Variable Low Pass Filter.
- DC Auto sense feature.
- Water Resistant.

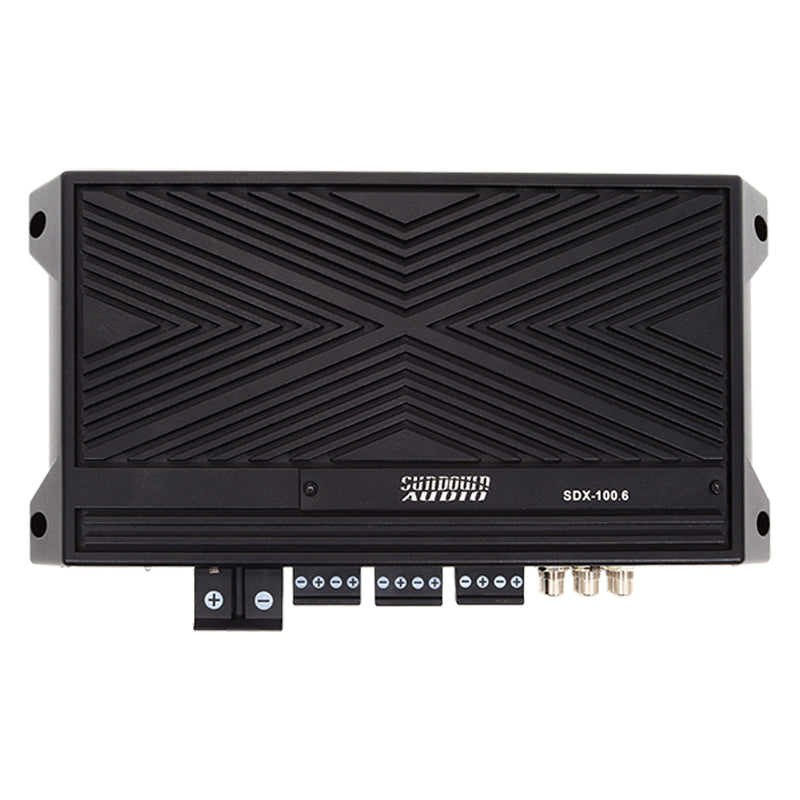

Sundown Audio Marine & Power Sports 6 Channel Amplifier 300 Watt Full Range Class D with Bass Knob SDX-100.6
Moderate power, tiny size, but at the top-end of Full-Range Class-D fidelity. The controls will have a removable cover that bolts down on top of them. The overall case is a big chunk of cast aluminum to keep temperatures in check!
Crazy powerful for its size and fully bridgeable with tons of crossover features. This amp is extremely versatile and capable of running in 6ch, 5ch, 4ch, and 3ch mode for ultimate flexibility. With plenty of power on tap and so much control, you can easily run your entire car stereo off this single amplifier.
Features:
- High Efficiency Digital Multi-Channel Design.
- 12dB/Octave-Variable High Pass Filter.
- 12dB/Octave-Variable Low Pass Filter.
- DC Auto sense feature.
- Water Resistant.
- 4 Way Protection Circuit (Thermal, Voltage, Speaker short, and DC Offset).
This listing includes:
(1) Sundown Audio 6 Channel Amplifier SDX-100.6

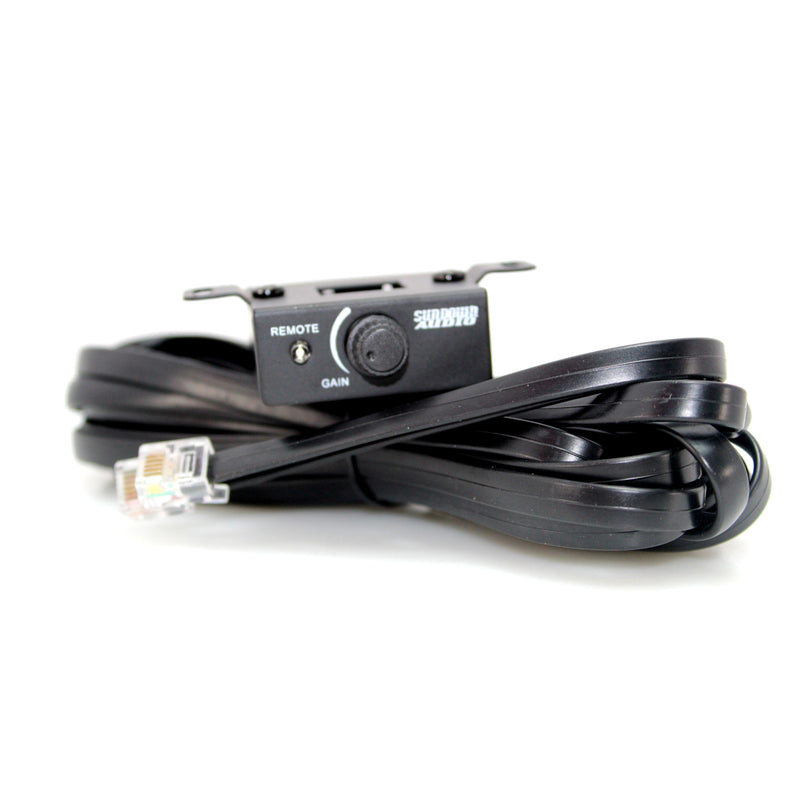

(1) Sundown Audio Remote Bass Knob
Includes Mounting Hardware, Manual, and Fuses
RMS Power @ 4 OHM: 100 Watts x 6CH
RMS Power @ 2 OHM: 150 Watts x 6CH
RMS Power @ 1 OHM: N/A
RMS Power @ 4 OHM Bridge: 300 Watts x 3CH
AUDIO SPECIFICATIONS:
Signal To Noise Ratio: 89dB
Low Pass Filter (-12dB/8) Variable:
(CH 5/6 30Hz ~ 500Hz)
(CH 3/4 30Hz ~ 500Hz or 600Hz ~ 10KHz @ 20x)
(CH 1/2 15Hz ~ 500Hz or 300Hz ~ 10KHz @ 20x)
High Pass Filter (-12dB/8) Variable:
(CH 3/4 15Hz ~ 500Hz)
(CH 1/2 15Hz ~ 500Hz or 300Hz ~ 10KHz @ 20x)
Input Sensitivity: 6V Max
FEATURES:
Amplifier Class: D
Amplifier Type: Full Range Multi-Channel
Number Of Channels: 6
Minimum Impedance: 2 Ohm
Led Indicator: Yes (Power/Protect)
Recommended Fuse Rating: 80A
Remote Level Control: Yes
Thermal Protection: Yes
DC Offset Protection: Yes
Speaker Short Protection: Yes
Voltage Protection: Yes
Body Color | Finish: Black
DIMENSIONS:
Overall Length: 12.25 (312mm)
Overall Width: 7 (178mm)
Overall Height: 2.125 (54mm)
Unit Weight: 7lbs (3.175kg)
