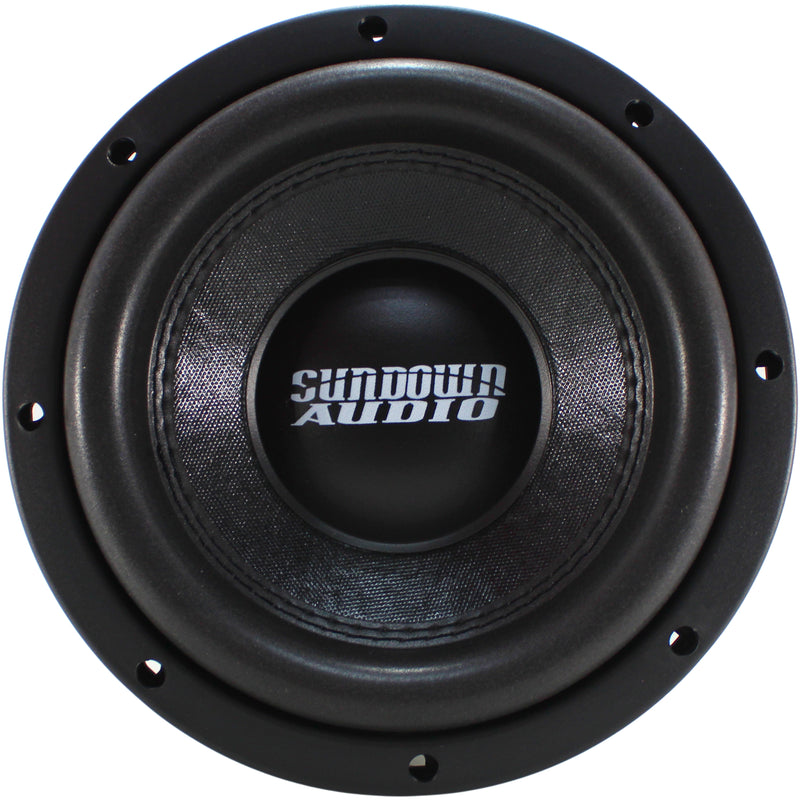

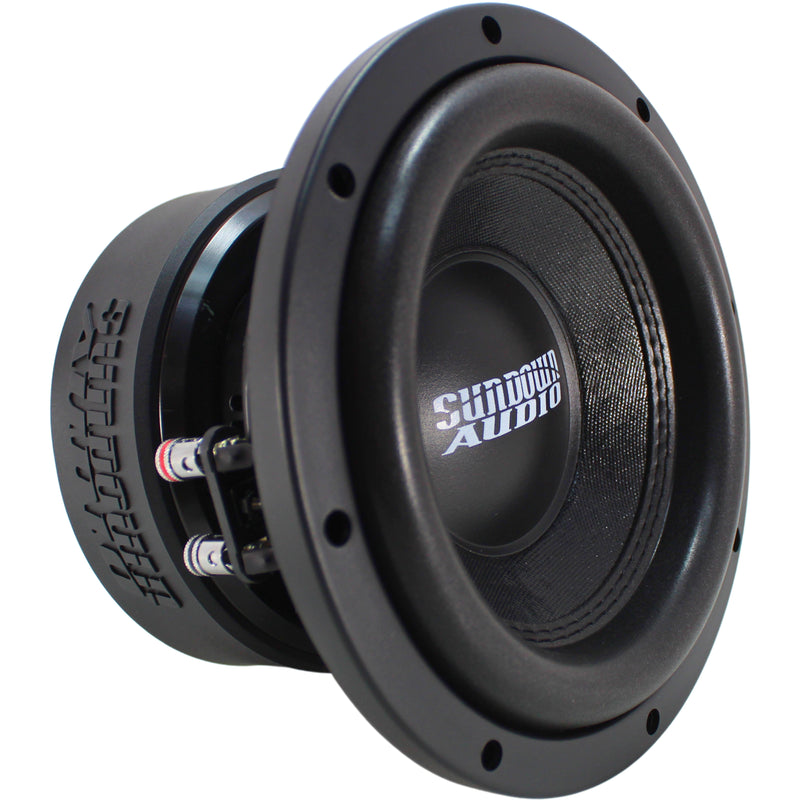

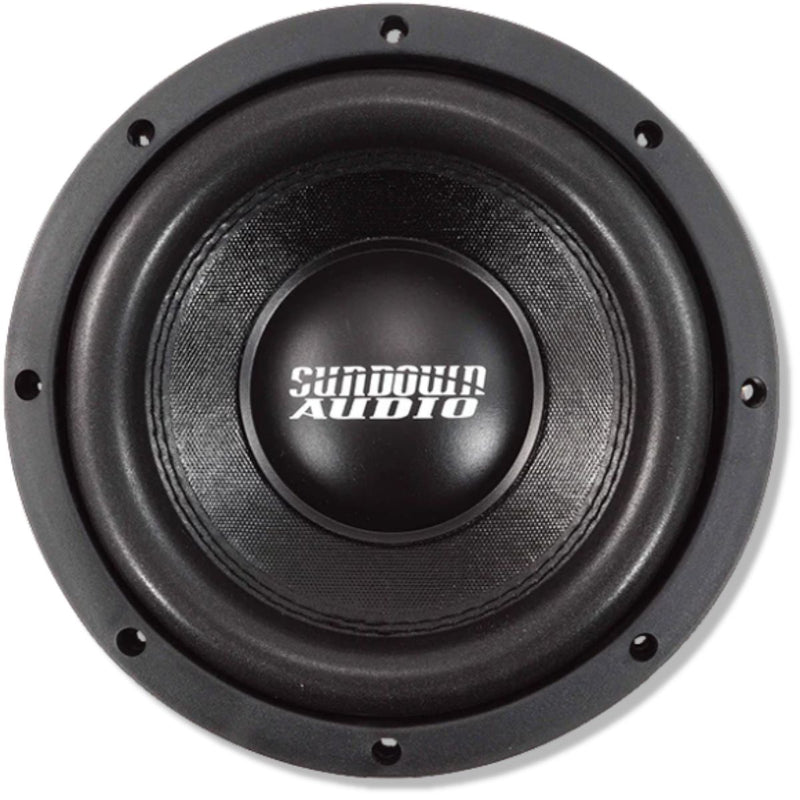

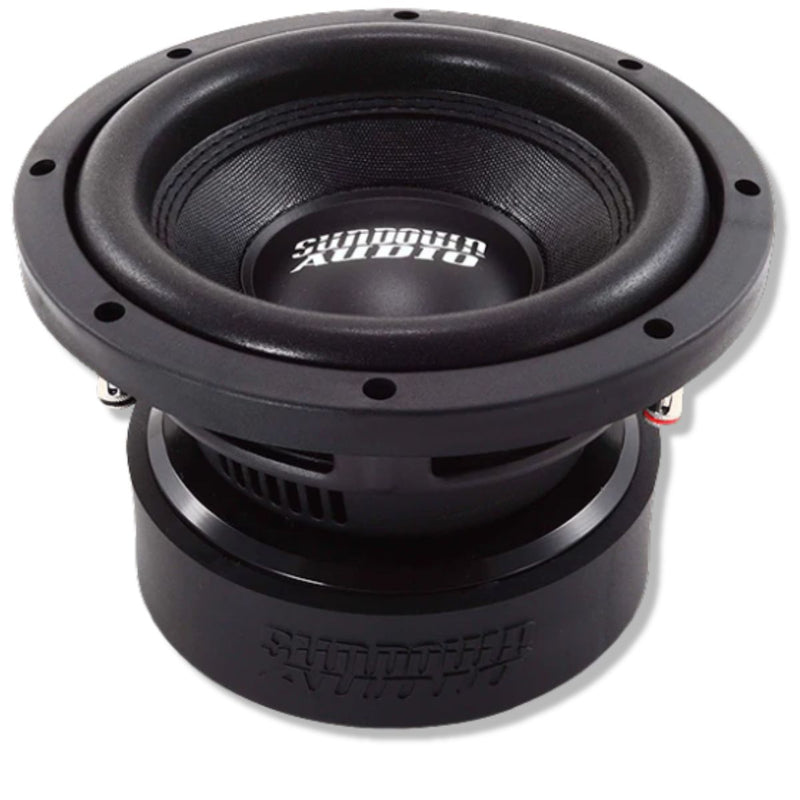

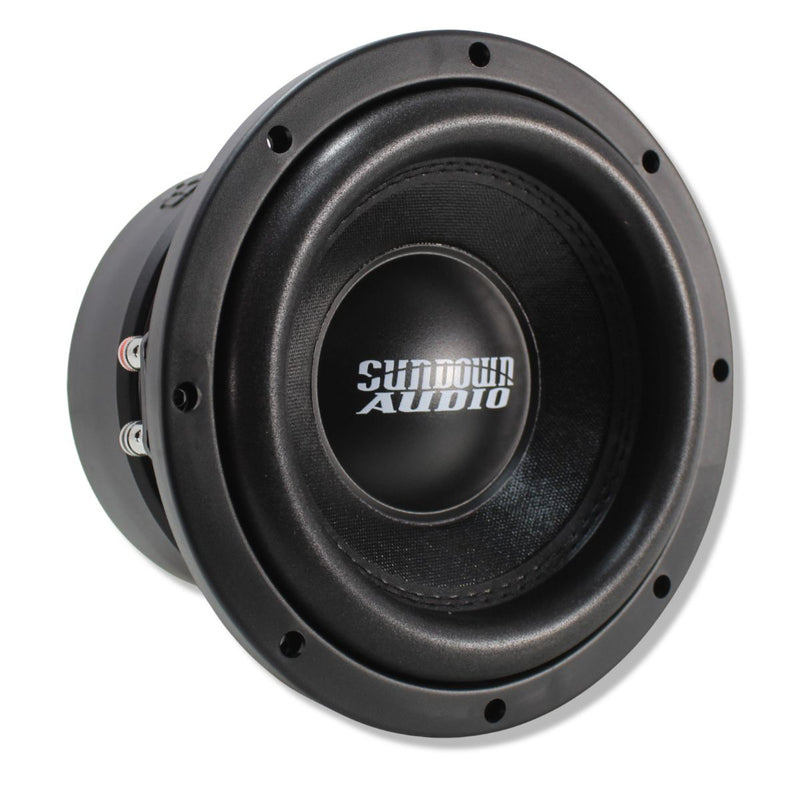

Sundown Audio E-Series V.6 8" 300 Watts RMS Dual 4-Ohm VC Subwoofer E-V.6-8-D4

• COMPACT 8" BASS PERFORMANCE: The Sundown Audio E-Series V.6 8" subwoofer delivers powerful low-end output from a space-saving design, making it ideal for daily drivers, compact car audio builds, custom trunk setups, and ported enclosures.
• 400W RMS POWER HANDLING: Built to handle 400 watts RMS and 800 watts peak power, the E-V.6-8-D4 gives you strong, controlled bass performance without needing a full-size subwoofer setup.
• DUAL 4-OHM VOICE COILS: The dual 4-ohm voice coil design gives installers flexible wiring options for matching the subwoofer to compatible amplifiers and system layouts.
• ADVANCED COOLING DESIGN: A vented magnetic gap, vented pole piece, black aluminum voice coil former, and high-temperature 4-layer copper voice coil wire help improve heat dissipation during high-output play.
• BUILT FOR PORTED ENCLOSURES: Optimized for a 0.65 cu. ft. net ported enclosure tuned to 35Hz, this 8" Sundown subwoofer is designed to deliver deep, efficient bass response in small-box applications.

Sundown Audio E-Series V.6 8" 300 Watts RMS Dual 4-Ohm VC Subwoofer E-V.6-8-D4

This Item Includes:

• (1) Sundown Audio E-V.6-8-D4 8" Subwoofer

The Sundown Audio E-Series V.6 8" Subwoofer brings serious low-end performance to compact car audio builds. Built from years of Sundowns E8 development, this subwoofer is designed to deliver deep, controlled bass from a small footprint while maintaining the durability and output Sundown Audio is known for.

The E8 V.6 features a 2" high-temperature 4-layer copper voice coil, a black aluminum voice coil former for improved heat dissipation, and a double-stacked magnet structure for strong motor force. Its heavily vented magnetic gap and pole piece help improve cooling during high-output use, while the optimized motor geometry allows for an impressive 14mm one-way Xmax.

Designed for ported enclosures, the E-V.6-8-D4 is ideal for daily car audio systems, compact bass builds, under-seat applications, trunk setups, and custom installs where space is limited but bass output still matters. With 400 watts RMS power handling and rugged construction throughout, this 8" subwoofer is made to hit harder than its size suggests.

Please Note:

Sundown Audio has updated its subwoofer power ratings to better reflect real-world performance. During this transition, some packaging may show previous ratings. Product performance aligns with the current published specifications listed here.

Features:

• 8" E-Series V.6 car subwoofer


• Dual 4-ohm voice coils


• 400 watts RMS power handling


• 800 watts peak power handling


• for ported enclosures


• 14mm one-way Xmax

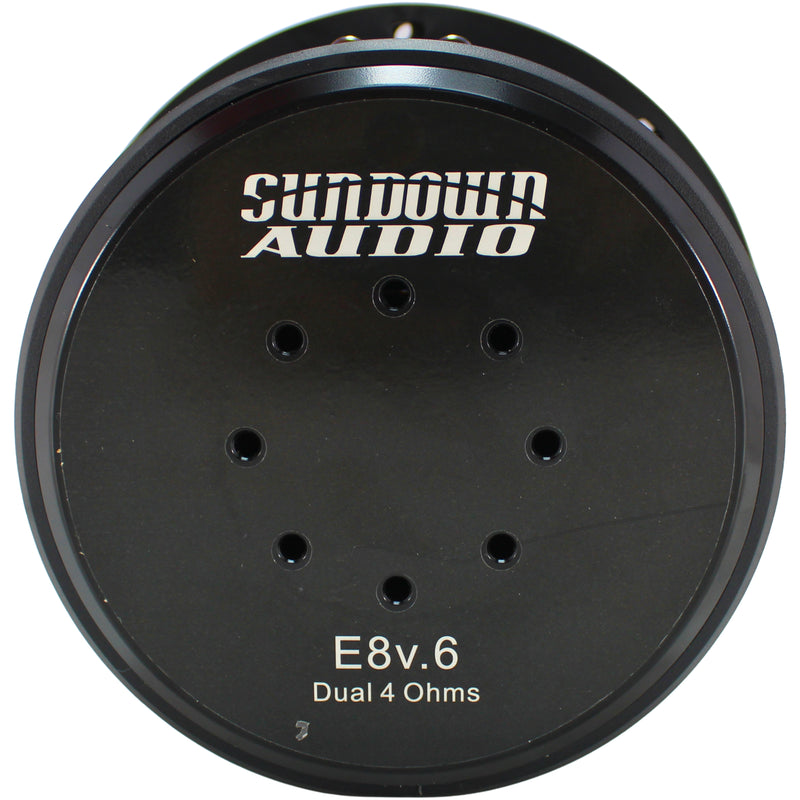

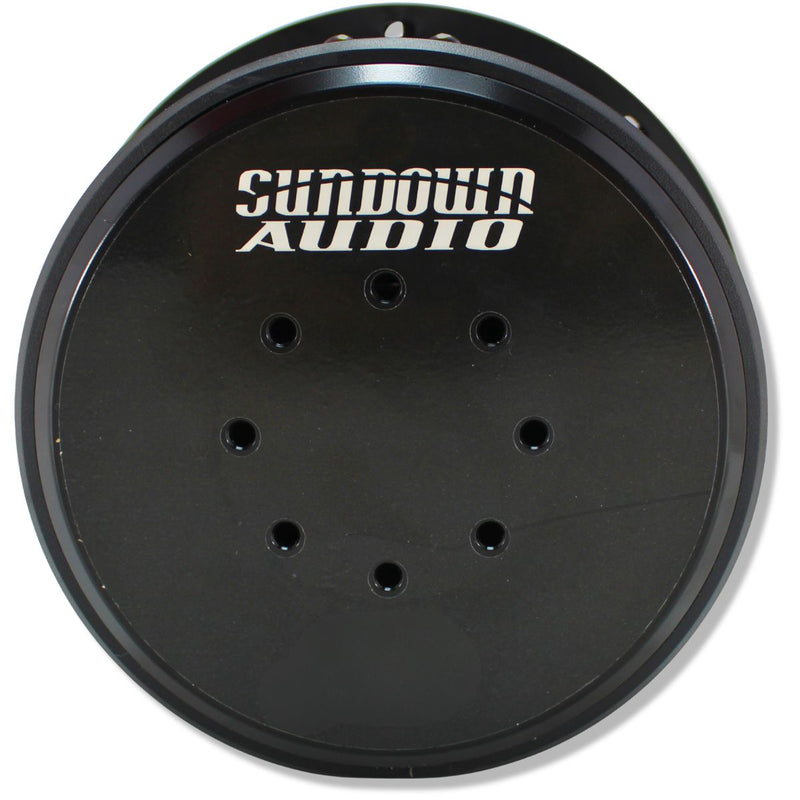

• Double-stacked magnet structure


• 2" black aluminum voice coil former


• High-temperature 4-layer copper voice coil wire

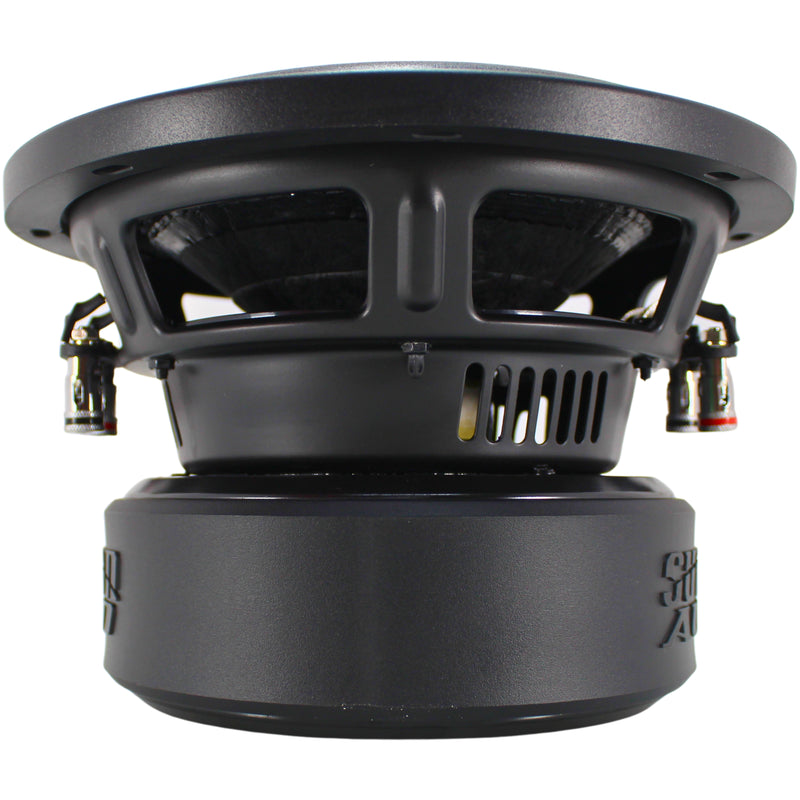

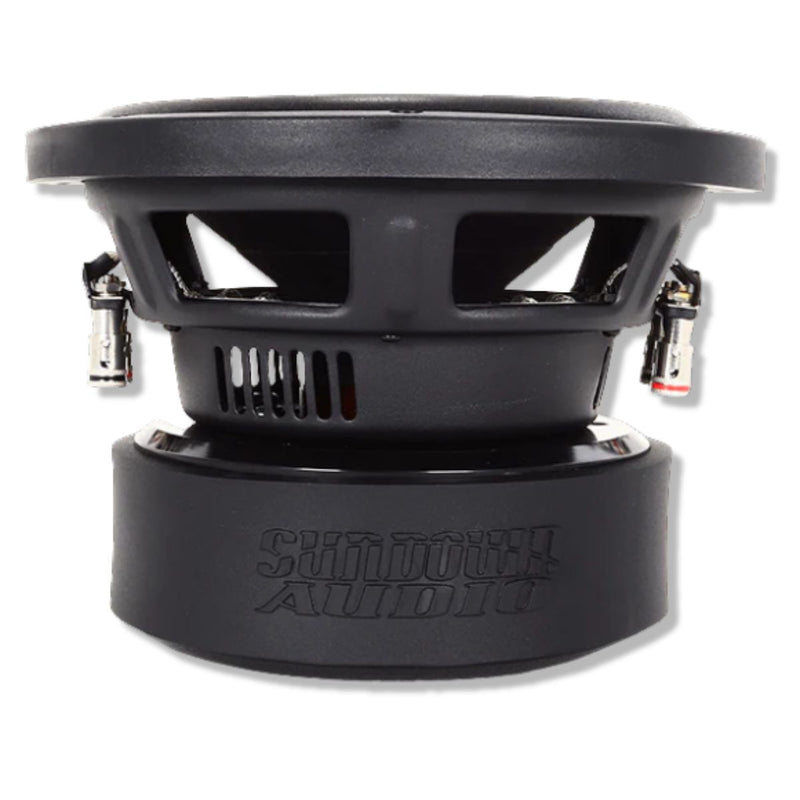

• Vented magnetic gap and pole piece for improved cooling


• Solid pole piece with optimized motor geometry


• High-strength stamped steel frame

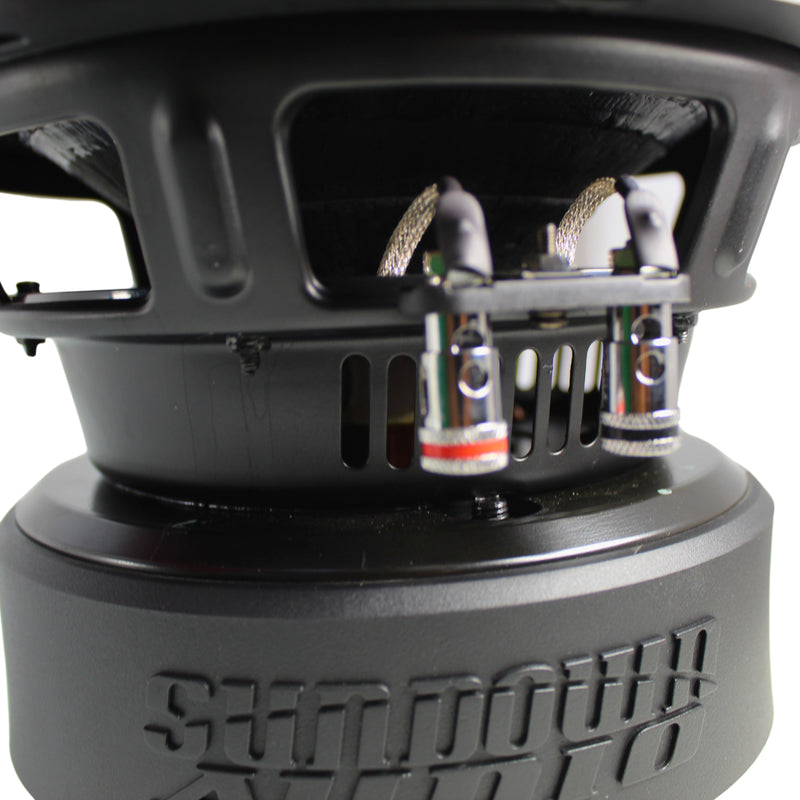

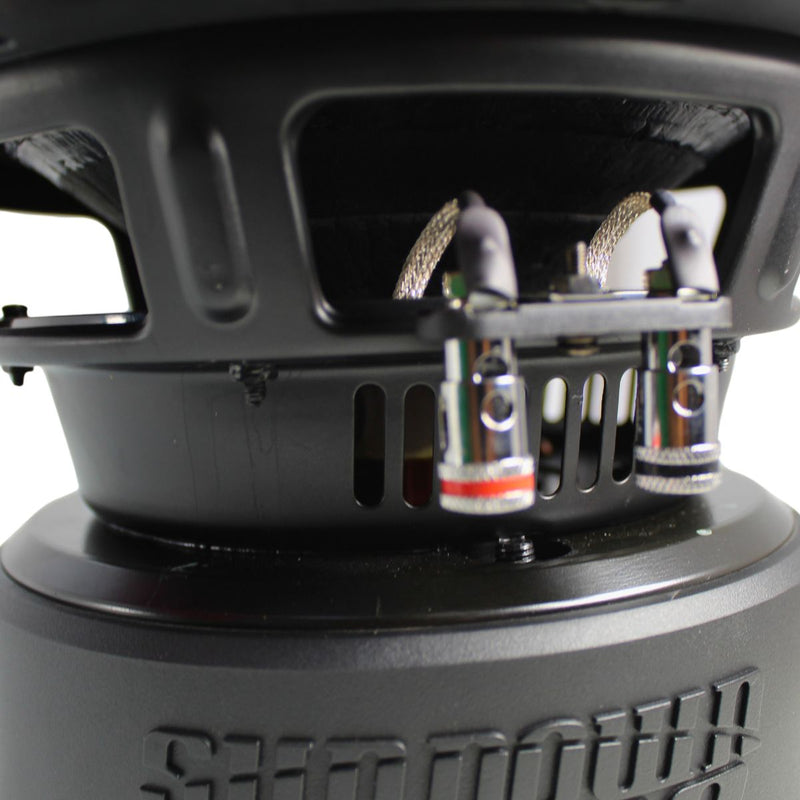

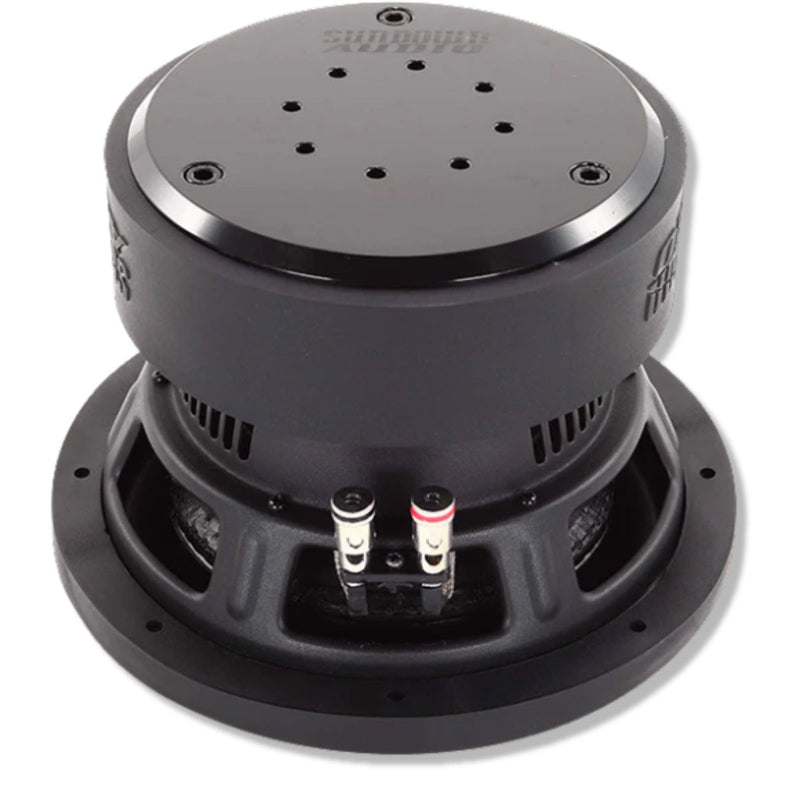

• Spring-loaded push terminals

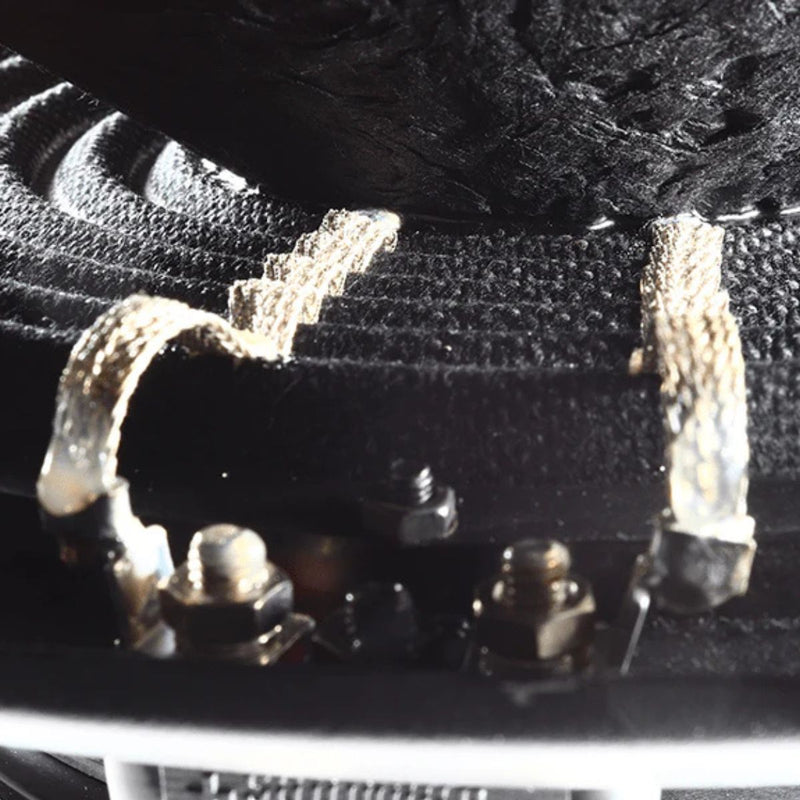

• Stitched-on Mini-XL tinsel leads


• Bolted-on spider pack


• Bolt-through motor design for added durability


• Designed for compact, high-output bass builds

Specifications:

• Model: E-V.6-8-D4


• Series: E-Series V.6


• Speaker Size: 8"


• Voice Coil Configuration: Dual 4 Ohm


• RMS Power Handling: 400 Watts


• Peak Power Handling: 800 Watts


• Xmax: 14mm one-way


• Sensitivity: 81.69 dB


• Re: 5.94 Ohms


• Fs: 45.5932 Hz


• Vas: 6.4189 L


• Qes: 0.617


• Qms: 5.2248


• Qts: 0.5518


• Le: 5.3356 mH


• BL: 17.0644 NA


• Mms: 105.652 g


• Cms: 113.3354 uM/N

Enclosure Specs

*Sealed Enclosure Not Recommended*

Ported Enclosure

• Ported Enclosure Size: 0.65 cu. ft. net


• Recommended Port Area: 9 sq. in.


• Recommended Port Tuning: 35 Hz

4th Order Enclosure Specs:

• Sealed Side: 0.375 cu. ft.


• Ported Side: 1.5 cu. ft.


• Port Area: 3 sq. in.


• Port Length: 6"

Dimensions:

• Mounting Depth: 4.98"


• Outside Diameter: 8.5"


• Cutout Diameter: 7.25"


• Motor Diameter: 6.37"


• Displacement: 0.07 cu. ft.


• Push Terminals: 8 Gauge
