- Ultra-High Excursion Mega-Platform Subwoofer: The Sundown Audio Z v.7 is the third step in Sundown’s 2025 ultra-high excursion lineup, positioned above the M and X v.4 series and engineered for extreme low-frequency performance in compact ported enclosures.
- Massive Quad-Stack Motor Design: Features Sundown’s largest Z-Series motor ever built with a quad-stacked 265mm (10.43") motor and 100mm (3.94") total magnet height, delivering approximately 50% higher BL²/Re than the previous Z v.6 generation.
- Extreme Linear Excursion Capability: Achieves 42mm one-way linear Xmax at 70% BL with over 4 inches of peak-to-peak mechanical travel before bottoming, providing deep, powerful bass with exceptionally low distortion.
- Advanced Cooling and Thermal Control: Equipped with a patent-pending airflow-directing pole cap, six pole OD channels, sixteen gap vents, and a cross-drilled slotted top plate to keep the voice coil cool under sustained high-power operation.
- Heavy-Duty Voice Coil and Frame System: Built on Sundown’s patented Mega-Platform cast frame and powered by a 3.3" 4-layer round wire aluminum voice coil using Sundown’s custom fat-wire winding method, designed to handle extreme power and long-term abuse.

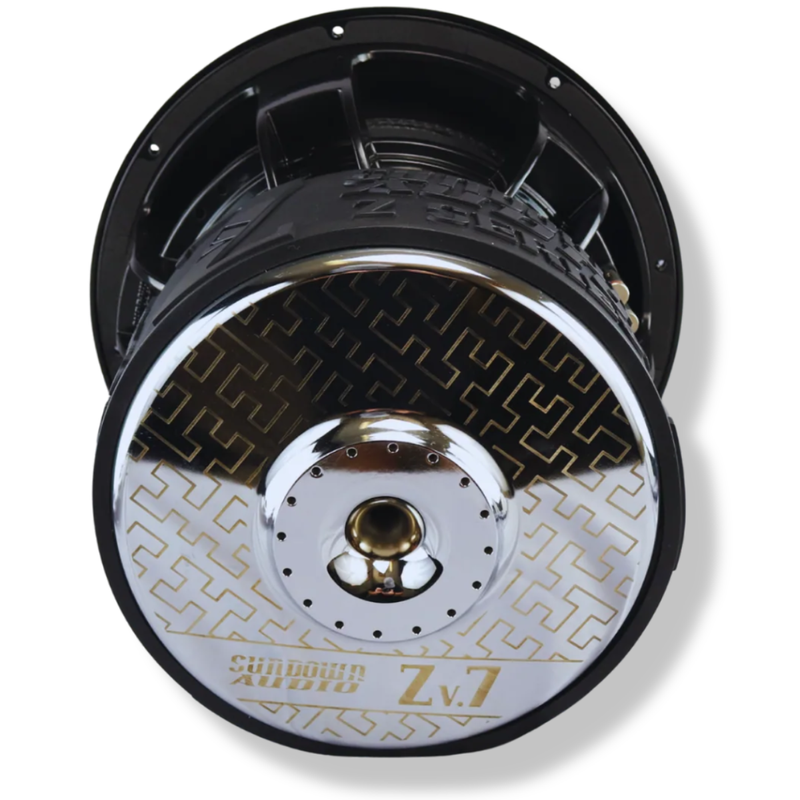

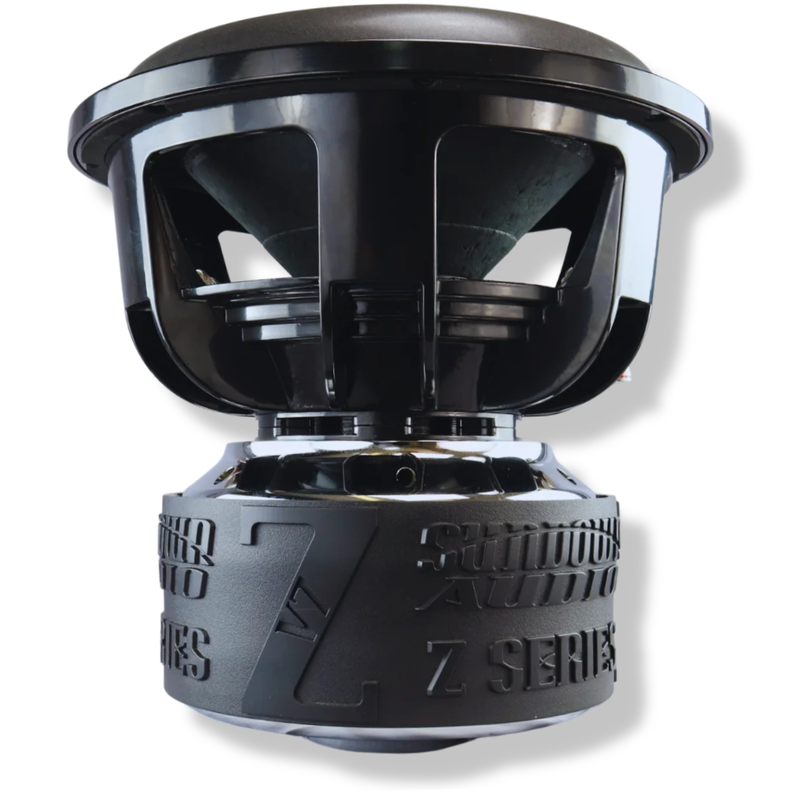

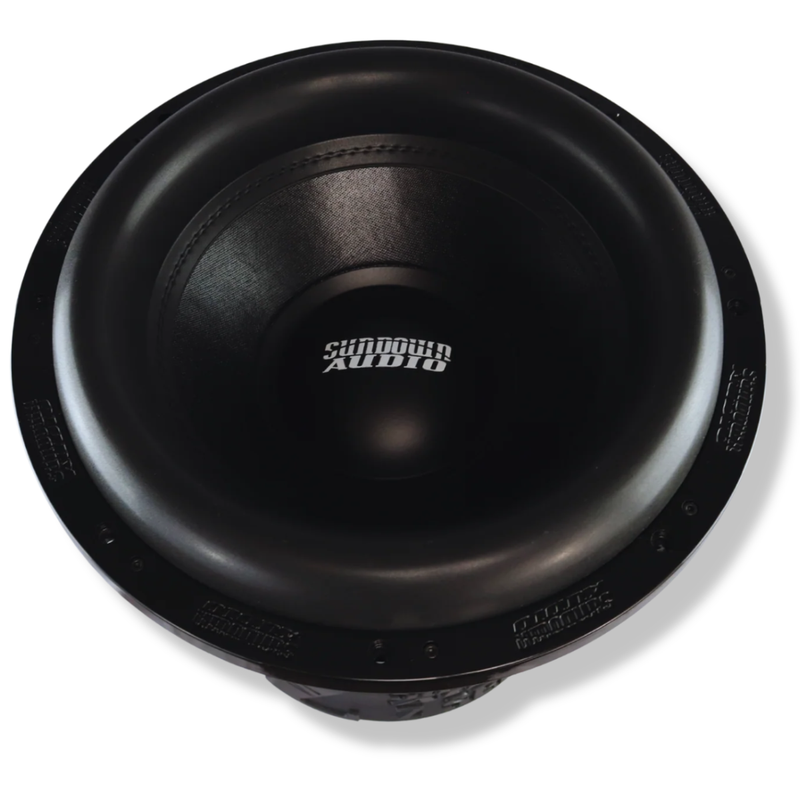

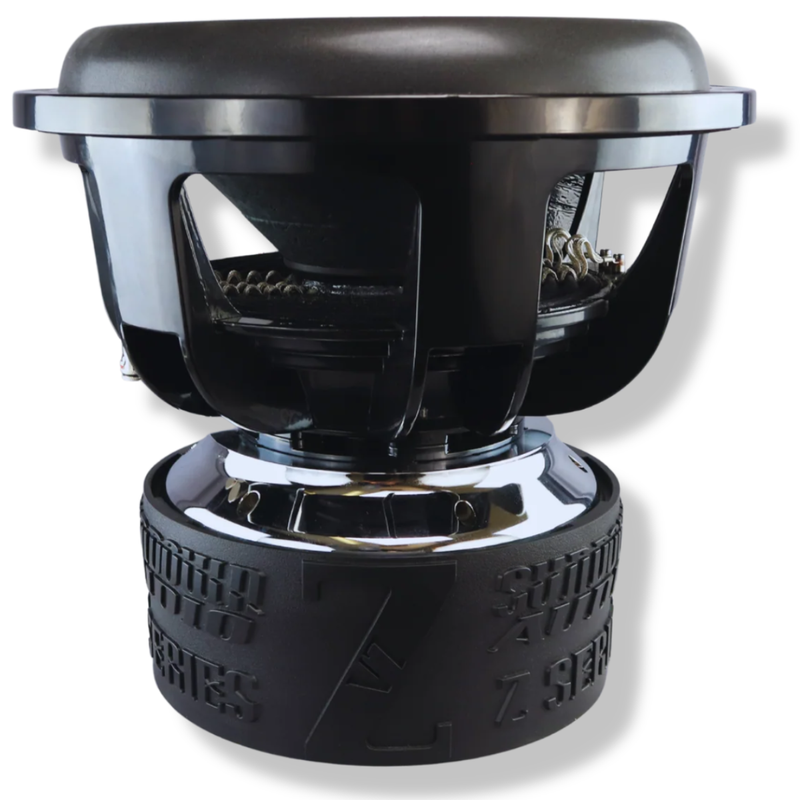

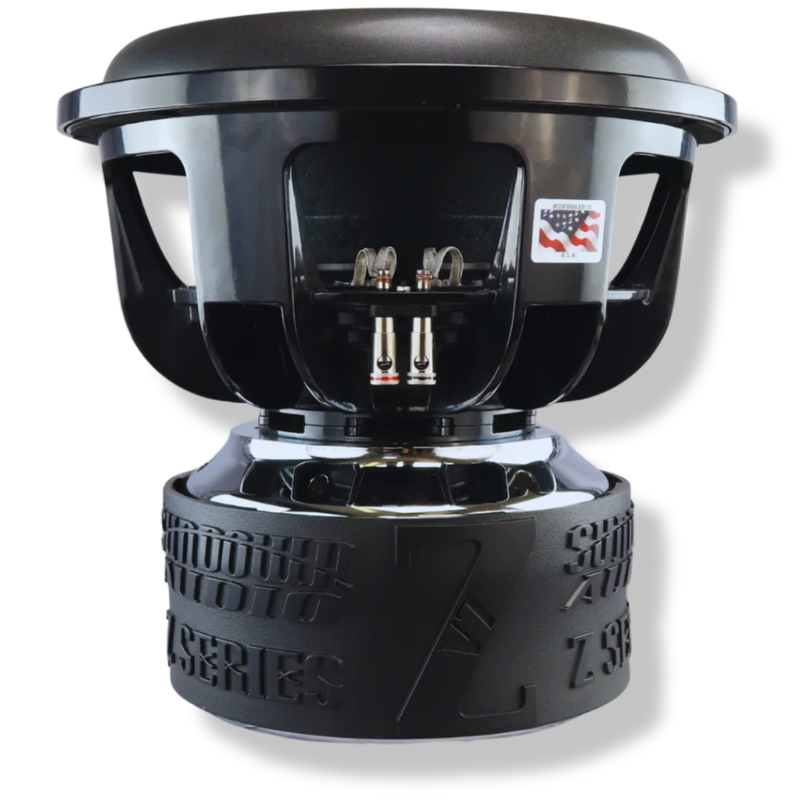

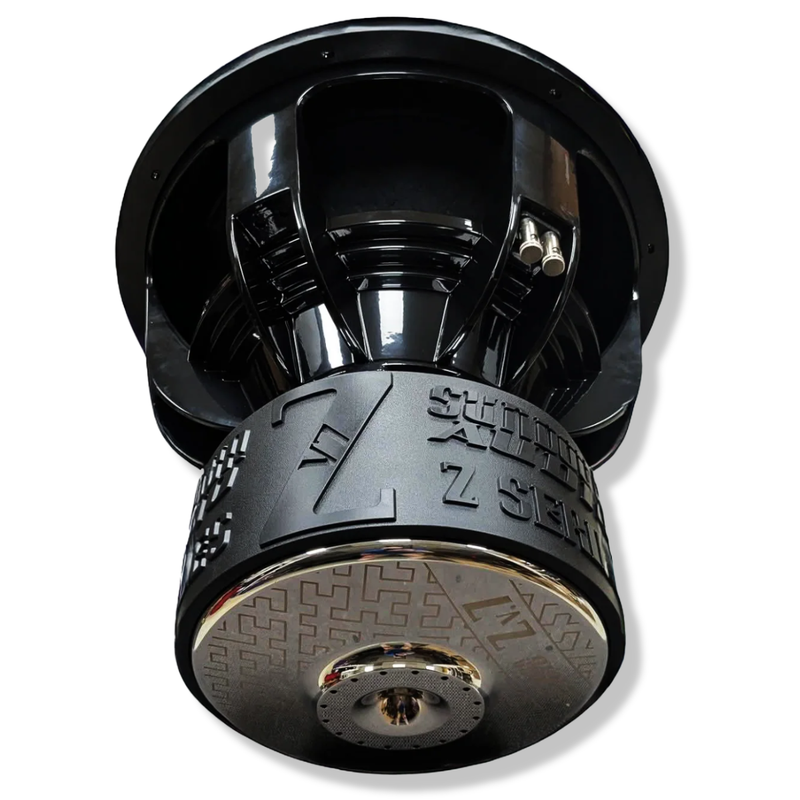

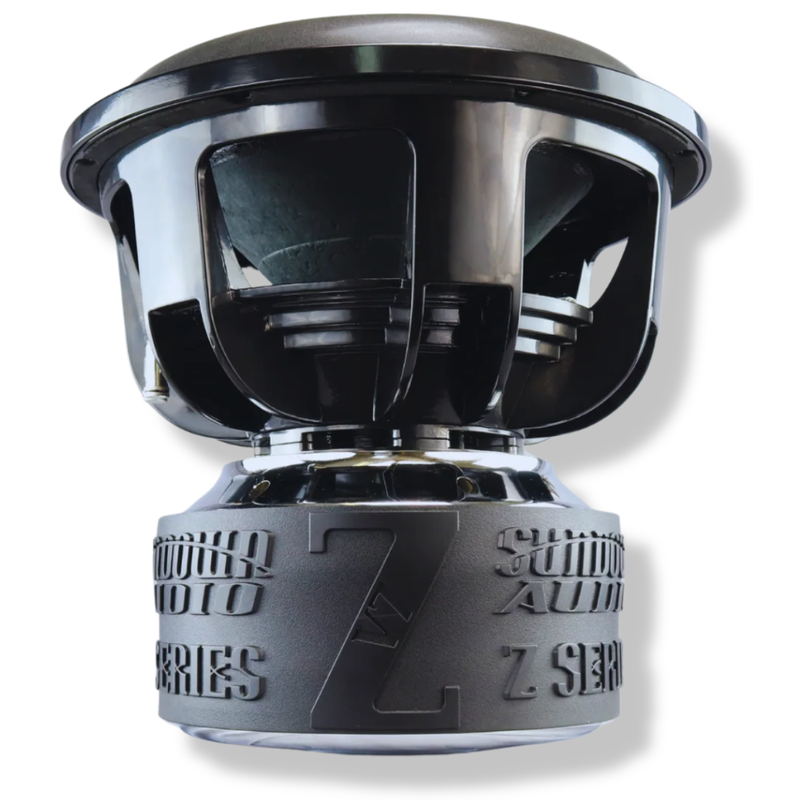

Sundown Audio 15" 3500W RMS 2-Ohm DVC Ultra-High Excursion Subwoofer ZV7-15-D2
This listing includes
- (1) Sundown 15" 2-Ohm Subwoofer ZV7-15-D2
The Z v.7 is the next evolution of Sundown's ultra-high excursion monsters, sitting proudly as the third step up in Sundown Audio's 2025 lineup, right above the M and X v.4 series. This isn't a mild upgrade. This is a full-send redesign built for people who want real low bass, real power handling, and real reliability.
Available in 12", 15", and 18", every Z v.7 is built on Sundown's custom-tooled, patented Mega-Platform frame system (US Patents D691597, D691598, D741841). These frames are engineered specifically for extreme excursion and structural strength. Due to the sheer size of the motor, 10" versions are not offered except by special order.

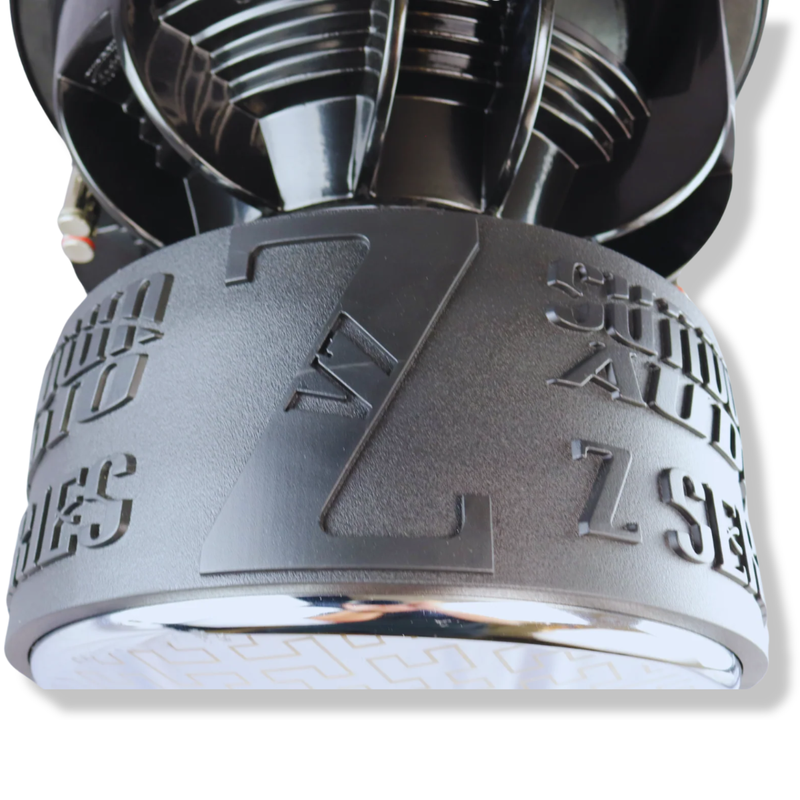

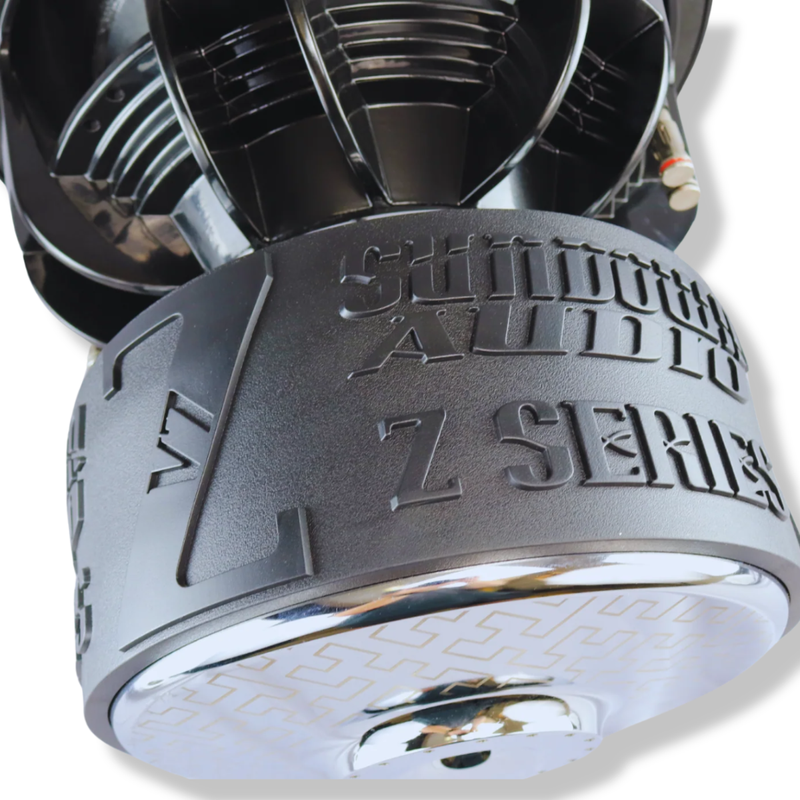

At the heart of the Z v.7 is the largest motor Sundown has ever put on a Z-Series subwoofer. A quad-stacked 265mm (10.43") diameter motor with a 100mm (3.94") magnet stack height, paired with a hyper-extended pole and massive clearances. The result is over 4 inches of peak-to-peak mechanical travel before bottoming. In real-world terms, this woofer just keeps moving. Motor force factor is approximately 50% higher than the previous Z v.6, which means more control, more output, and more authority at extreme excursion.
Driving that motor is a 3.3" 4-layer round wire aluminum voice coil, wound on a thick aluminum former. Sundown's custom fat-wire winding method allows this coil to soak up serious power and punishment without giving up linearity or reliability. This platform was built to take abuse, not just survive dyno sheets.
Cooling has been pushed even further. The Z v.7 features a brand-new, patent-pending airflow-directing pole cap, combined with six pole OD channels, sixteen gap vents, and a cross-drilled, slotted top plate. This airflow system keeps the voice coil dramatically cooler during long demos, daily driving, or competition-level power.
The motor also incorporates a 9mm thick magnet ID Faraday ring, locked into both the top and back plates, paired with an all-new pole-extension inductance sleeve. This combination delivers the most linear inductive performance of any Mega-Platform subwoofer Sundown has produced, keeping distortion low even at extreme excursion.
And yes, it digs. The Z v.7 achieves 42mm of one-way linear excursion at 70% BL, with an exceptionally smooth curve thanks to extensive FEA optimization and a massive 95mm long voice coil winding length.
The end result is a subwoofer engineered from the ground up to dominate the low-frequency, small ported enclosure category. It drops stupid-low, stays clean, and works in the same proven enclosure designs used for other Sundown Mega-Platform subs. This is not a sealed-box woofer. This is a ported box weapon.
The Z v.7 is different because it doesn't rely on brute force alone. Its incredibly linear suspension allows it to play lower, cleaner, and longer than most subs in its class. If your goal is serious bass extension in a compact enclosure with minimal distortion, this is exactly the kind of woofer Big Jeff builds systems around.
Features:
- Ultra-High Excursion Mega-Platform Design: Third step in Sundown Audio's 2025 ultra-high excursion lineup, positioned above the M and X v.4 series
- Patented Mega-Platform Frame: Custom tooled cast frames utilizing Sundown patents D691597, D691598, D741841 for extreme strength, cooling, and excursion control
- Largest Z-Series Motor Ever Built: Quad-stacked 265mm (10.43") motor with 100mm (3.94") total magnet height
- Bottomless Mechanical Travel: Hyper-extended pole and extreme clearances allow over 4" peak-to-peak travel before mechanical bottoming
- Massively Increased Motor Force: Approximately 50% higher BL/Re compared to the previous Z v.6 generation
- Advanced Cooling System: Patent-pending airflow directing pole cap, six pole OD channels, sixteen gap vents, and cross-drilled/slotted top plate
- High-Power Voice Coil Assembly: 3.3" diameter 4-layer round wire aluminum voice coil wound on a thick aluminum former using Sundown’s custom "fat wire" winding method
- Extreme Thermal Stability: Designed to handle sustained high power and heavy abuse without loss of performance
- Superior Inductance Control: 9mm thick magnet-ID Faraday ring locked into top and back plates with a dedicated pole extension inductance sleeve
- Exceptional Linearity: Achieves 42mm one-way Xmax at 70% BL with an extremely uniform BL curve via extensive FEA motor optimization
- Optimized for Small Ported Enclosures: Designed to deliver deep, clean, low-frequency bass in compact ported boxes
- Sealed Enclosures Not Recommended: Engineered specifically for ported and 4th-order designs
- No 10" Production Model: Not available in 10" sizes except by special order due to motor dimensions
Specifications:
Power Handling
- RMS Power: 3500W
- Peak Power: 7000W
T/S Parameters
- Re: 3.84 Ohms
- Fs: 30.399 Hz
- Vas: 35.564 L
- Qes: 0.364
- Qms: 5.607
- Qts: 0.342
- Le: 3.716 mH
- BL: 34.26 N/A
- Mms: 582.893 g
- Cms: 47.022 m/N
- Sensitivity: 89.316 dB @ 1W/1m
- Xmax: 42 mm
Recommended Enclosures
Ported Enclosure (Recommended)
- Net Volume: 4.0 cu ft
- Recommended Port Area: 60 sq in
- Recommended Tuning Frequency: 32 Hz
Sealed Enclosure
4th Order Bandpass Enclosure
- Sealed Chamber Volume: 2.0 cu ft
- Ported Chamber Volume: 6.0 cu ft
- Port Area: 120 sq in
- Port Length: 8"
Dimensions:
- Driver Displacement: 0.29 cu ft
- Mounting Depth: 13.94"
- Cutout Diameter: 13.93"
- Motor Diameter: 10.8"
