- Enhanced Durability: Features a custom-tooled, stronger stamped steel frame and a high-strength poly-cotton blend spider, ensuring maximum durability and longevity.
- Superior Cooling: Upgraded with a directional forced-air cooling spacer, providing efficient thermal management for extended performance during heavy use.
- Class-Leading Excursion: Boasts a double-stacked magnet structure and an extended voice coil, achieving an impressive 14mm linear X-max and over 2” peak-to-peak mechanical clearance.
- Upgraded Tinsel Leads: Equipped with “Mini-XL” 63-strand tinsel leads, significantly reducing the risk of failure due to amplifier clipping and enhancing overall reliability.
- Value and Performance: Offers industry-leading performance at an unbeatable price, making it the perfect choice for both beginners and seasoned professionals seeking high-quality audio without breaking the bank.

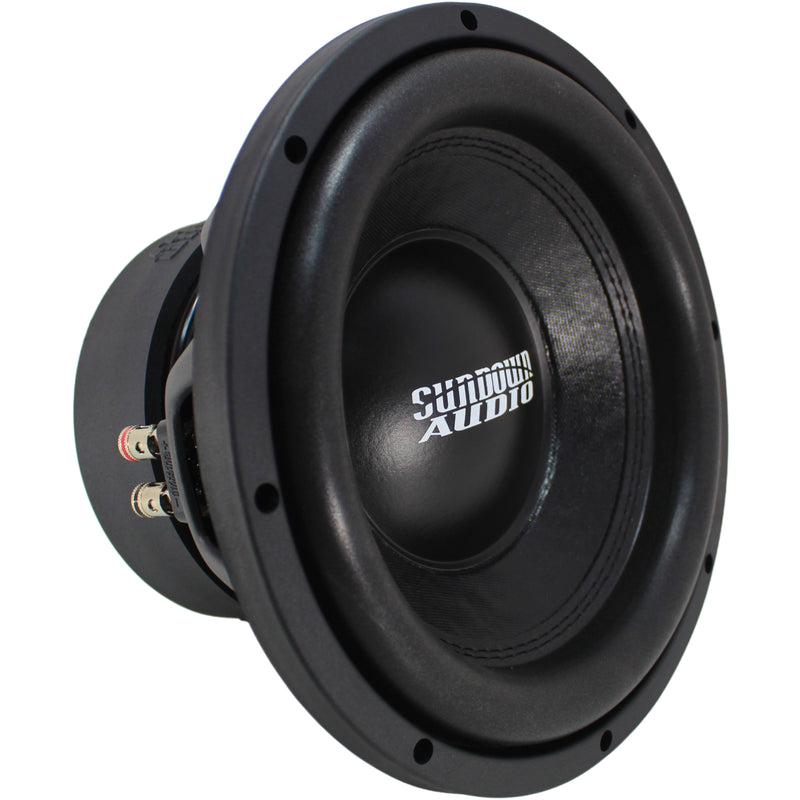

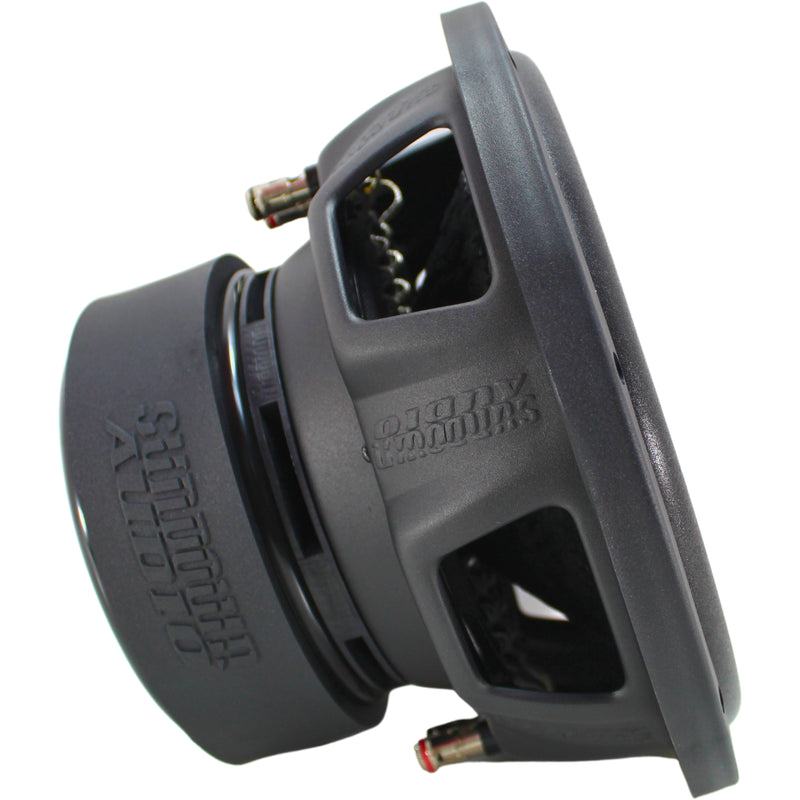

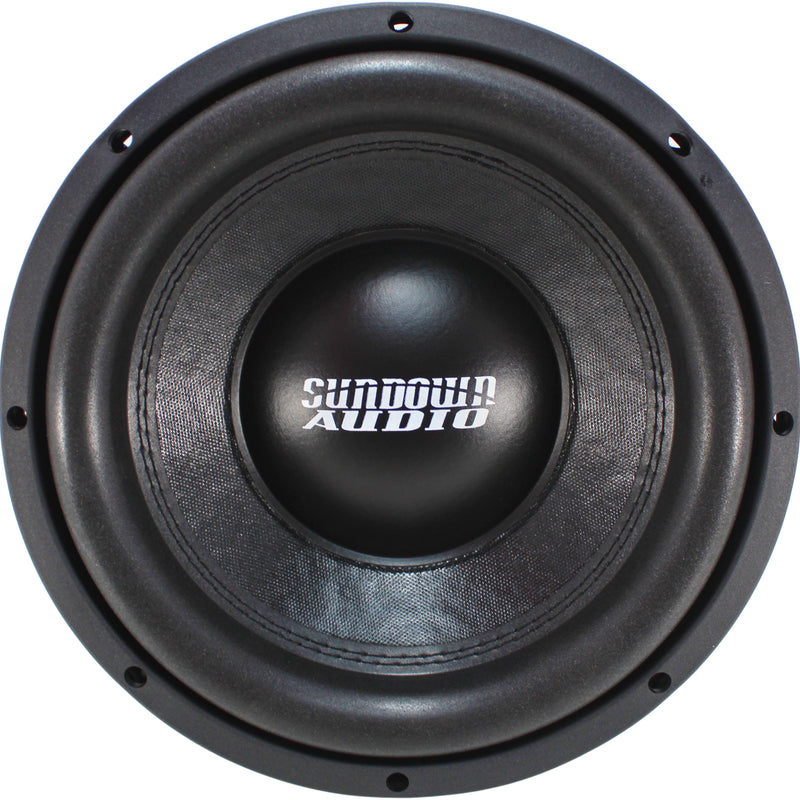

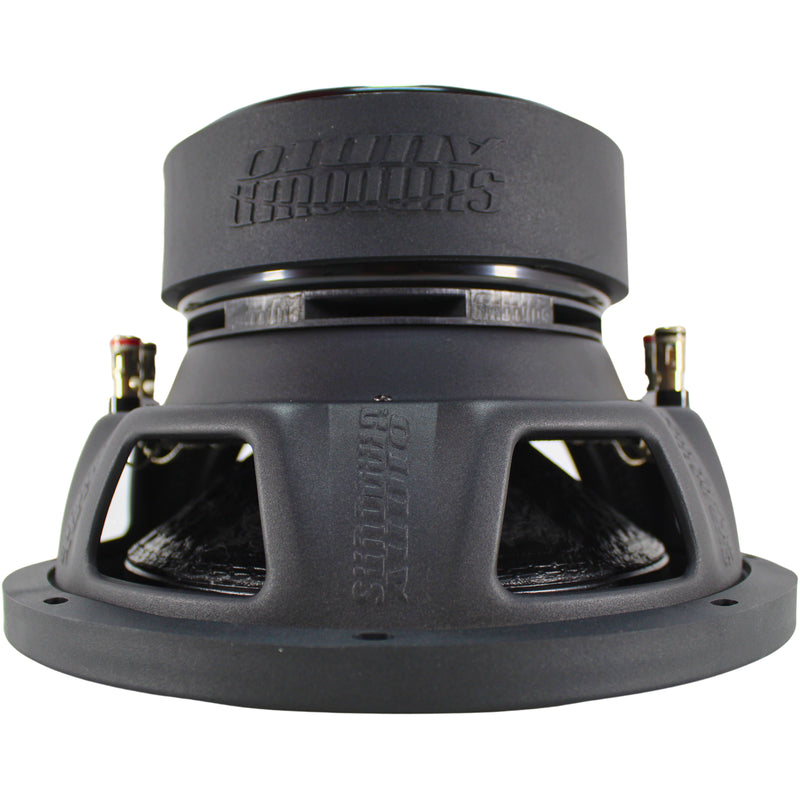

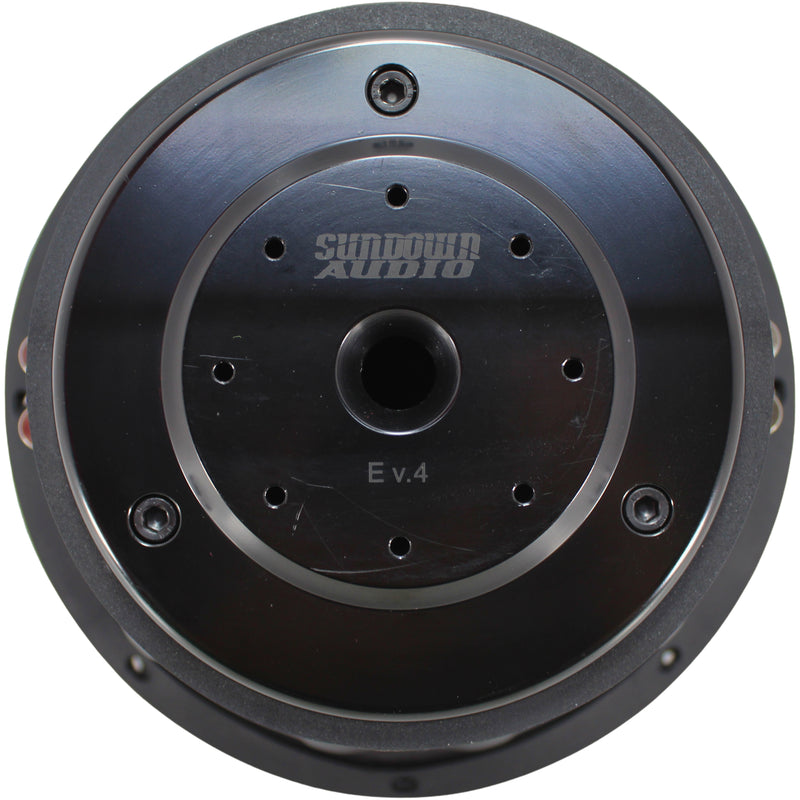

Sundown Audio E-Series V.4 10" 500W RMS Dual 2-Ohm VC Subwoofer / E-V.4-10-D2
This Listing Includes:
- (1) E-V.4-10-D2 10" Subwoofer
Description:
Introducing the fourth generation of our acclaimed E series, refreshed for 2020. Since the debut of the E series in 2012, we have continuously pushed the boundaries of entry-level woofers. Traditional entry-level woofers often fall short in linear excursion, mechanical ruggedness, and thermal performance. With the E v.4, we've elevated these standards once again.

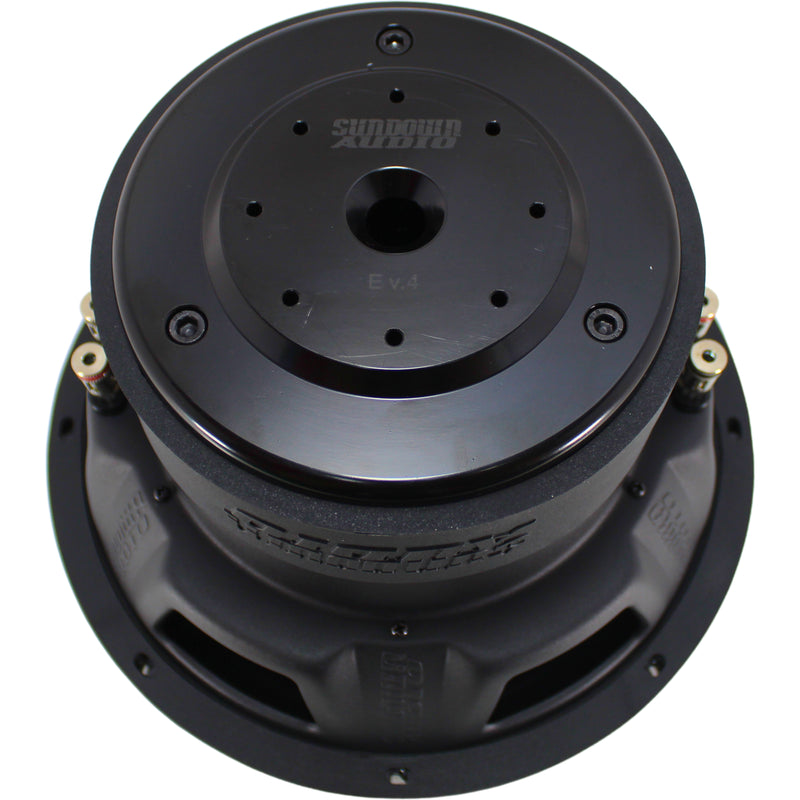

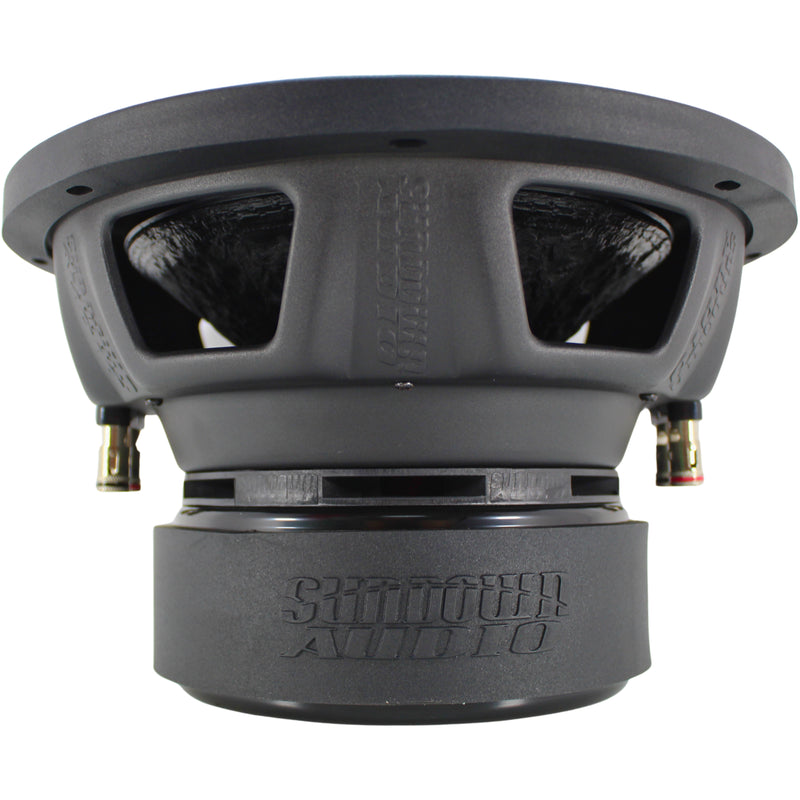

This update brings a custom-tooled, stronger stamped steel frame and an improved directional forced-air cooling spacer. A double-stacked magnet structure and an extended voice coil provide a class-leading linear X-max of 14mm one-way, with over 2" of peak-to-peak mechanical clearance. The E v.4 series features a full 2.5" diameter coil, upgraded from the 2" coil of earlier models.

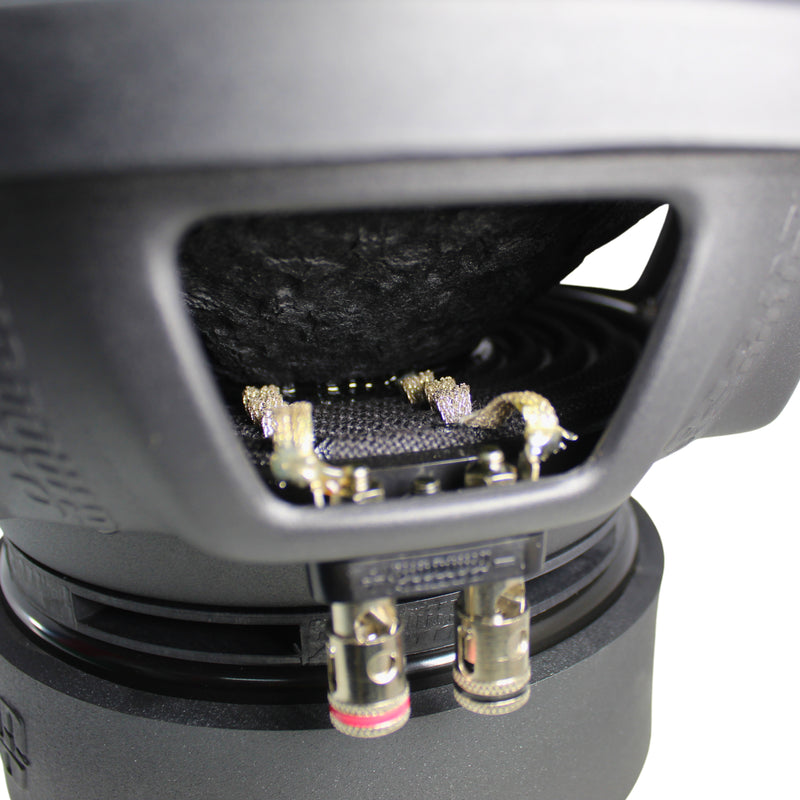

We've also enhanced the tinsel leads to "Mini-XL" with 63 strands of conductor, significantly reducing the risk of failure due to amplifier clipping. The high-strength poly-cotton blend spider is bolted and glued to the frame for maximum durability, capable of handling the motor's full capacity.
In summary, if you're searching for an outstanding subwoofer that offers exceptional performance without breaking the bank, the Sundown E-Series v.4 is your ideal choice. Perfect for beginners and seasoned professionals alike, these woofers deliver industry-leading performance at an unbeatable value.
Features:
- Xmax: 14mm one-way by 70% BL
- RMS Power: 500-watts
- Vented magnetic gap
- Vented pole piece with optimized geometry
- Black Aluminum 2.5" voice coil former for superior heat dissipation
- High Temperature 4-Layer copper voice coil wire
- Spring Loaded Terminals
- Stitched-On "Mini-XL" Tinsel Leads to prevent fatigue and failure
- Bolted-on Spider Pack
- Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures
- High strength stamped steel frame
- Optimized for ported enclosures
- Push Terminals: 8 Ga
Specifications:
- RE: 4.03 Ohms
- FS: 33.27 Hz
- VAS: 21.124 L
- Qes: 0.525
- Qms: 3.657
- Qts: 0.459
- BL(NA): 16.392
- Mms(Grams): 167.587
- Cms(mm/N): 136.554
- Sens(dB @ 1w/1m): 83.6
Enclosure Specs
Ported Enclosure
- Size: 1 cu. ft. net
- Port Area: 15 sq.in.
- Port Tuning: 35 Hz
- Displacement: 0.11 cu. ft.
- Depth: 5.625" / 142.875 mm
- Outside Diameter: 10" / 254 mm
- Cutout: 8.875" / 225.425 mm
*Sealed Enclosure Not Recommended*
