- Exceptional Power Handling: Delivers a potent 750W RMS for deep, impactful bass that elevates your audio experience.
- Dual Voice Coil Flexibility: The 4-Ohm DVC design offers versatile wiring options to maximize your system's potential.
- Precision Bass Reproduction: Engineered to maintain clarity and accuracy, even at high volumes, ensuring every note is heard as intended.
- Built for Durability: Rugged construction and high-quality materials make this subwoofer a long-lasting addition to your audio setup.
- Sundown Audio Legacy: Part of the renowned SA Series, trusted by audiophiles for its consistent, high-performance bass output.

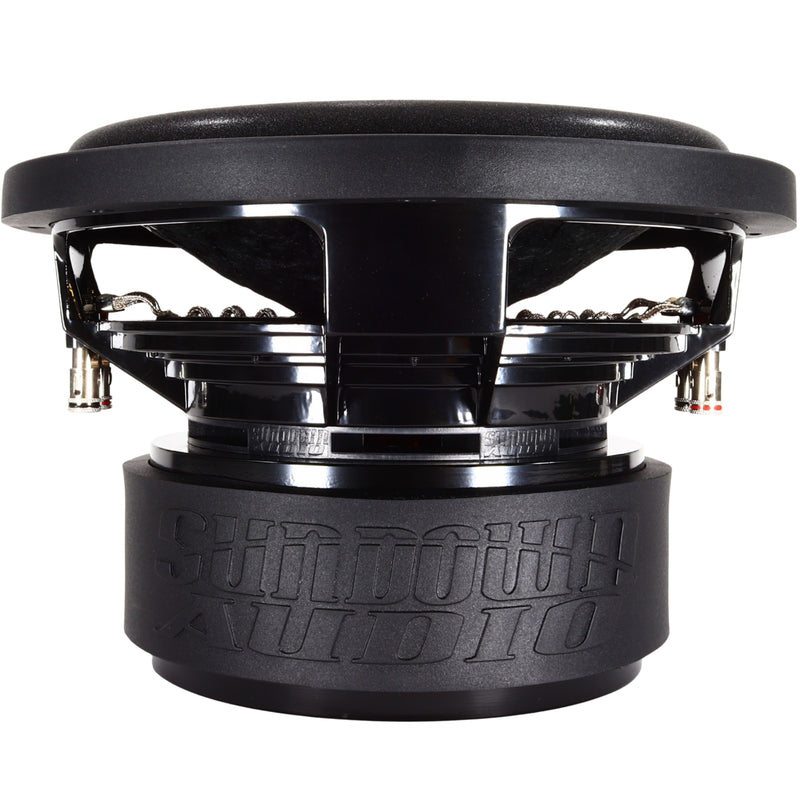

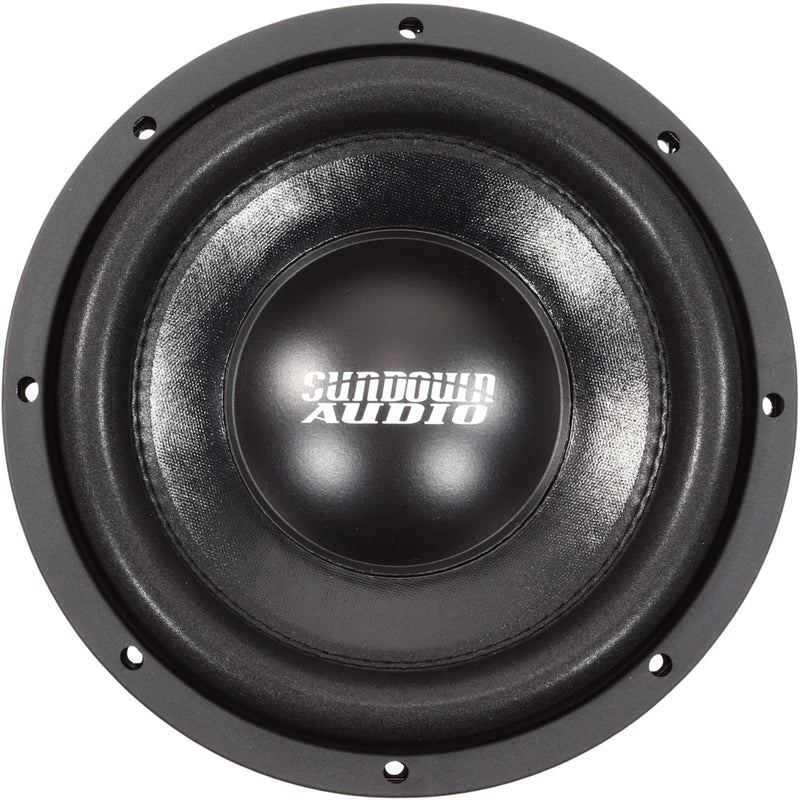

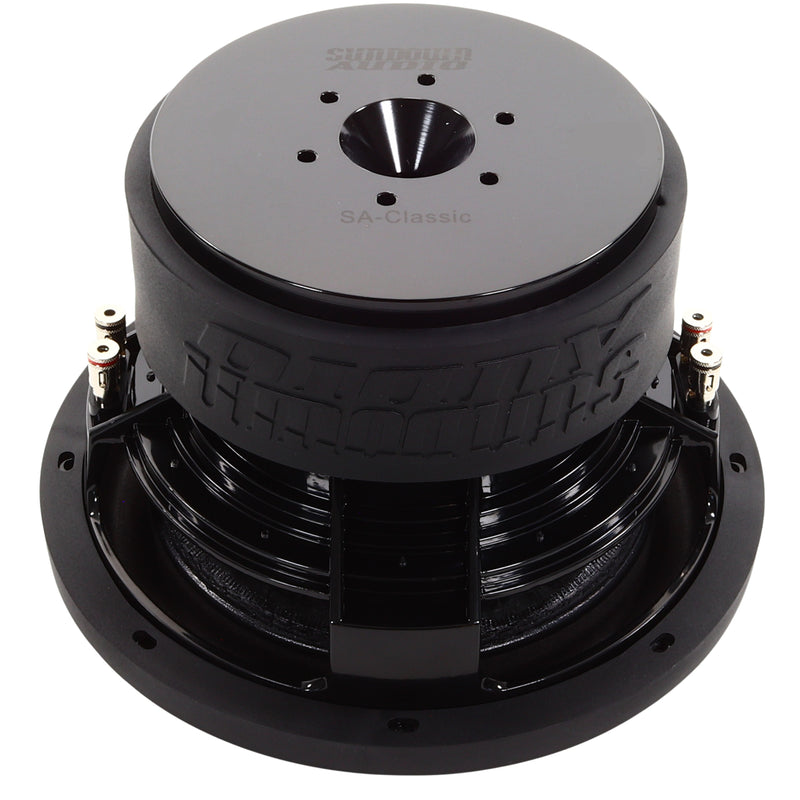

Sundown Audio SA Classic 10" 1000 Watts RMS Dual 4-Ohm Subwoofer CLASSIC-10-D4
This Listing Includes
- (1) Sundown Audio SA Classic 10" Dual 4-Ohm Subwoofer CLASSIC-10-D4
The Sundown Audio SA Classic 10" subwoofer combines serious power handling with deep excursion in a compact, versatile design. Rated for 1000 watts RMS and 2000 watts peak, the CLASSIC-10-D4 is built around a custom 2.5-inch voice coil, robust double-layer Nomex spider, and SPL competition-grade paper cone for strong, controlled low-frequency output.
Its high-strength cast aluminum frame, low-distortion motor construction, and large aluminum Faraday ring support smooth acoustic response and dependable performance under demanding conditions. High-temperature voice coil wire, spring-loaded terminals, and stitched-on XL tinsel leads complete a subwoofer designed for reliable daily use and high-output builds.
Optimized for small ported, sealed, and fourth-order band-pass enclosures, the SA Classic 10 gives builders flexible enclosure options without sacrificing the deep, hard-hitting bass Sundown Audio is known for.
Features
- 10-inch SA Classic Series subwoofer
- 1000 watts RMS power handling
- 2000 watts peak power handling
- Dual 4-Ohm voice coil configuration
- Custom 2.5-inch voice coil
- 19mm one-way Xmax
- SPL competition-grade paper cone
- Robust double-layer Nomex spider
- Large aluminum Faraday ring for smooth acoustic response
- Low-distortion motor construction
- High-strength cast aluminum frame
- High-temperature voice coil wire
- Spring-loaded terminals

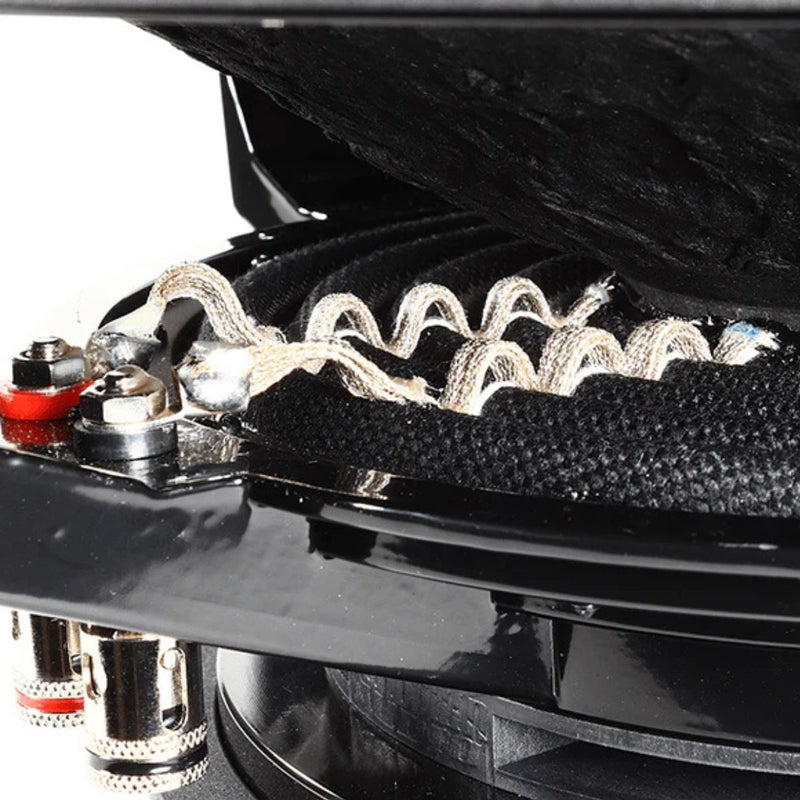

- Stitched-on XL tinsel lead wires
- Optimized for small ported, sealed, and fourth-order band-pass enclosures
Technical Specifications:
- Model: CLASSIC-10-D4
- Series: SA Classic
- Speaker Size: 10 inches
- RMS Power Handling: 1000 watts
- Peak Power Handling: 2000 watts
- Voice Coil Configuration: Dual 4 Ohm
- Voice Coil Diameter: 2.5 inches
- Xmax: 19mm one-way
- Sensitivity: 81.6 dB @ 1W/1M
- Re: 7.08 Ohms
- Fs: 36.6 Hz
- Vas: 10.66 L
- Qes: 0.54
- Qms: 5.41
- Qts: 0.49
- Le: 4.71 mH
- BL: 24.82 N/A
- Mms: 205g
- Cms: 92.4 uM/N
Recommended Enclosure Specifications Per Subwoofer:
- Ported Enclosure Volume: 1.0 cu ft
- Recommended Port Area: 15 sq in
- Recommended Port Tuning: 35 Hz
- Sealed Enclosure Volume: 0.5 cu ft
- 4th Order Sealed Side: 0.4 cu ft
- 4th Order Ported Side: 1.2 cu ft
- 4th Order Port Area: 24 sq in
- 4th Order Port Length: 6 inches
Dimensions:
- Mounting Depth: 6 inches
- Cutout Diameter: 9.25 inches
- Motor Diameter: 7.4 inches
- Driver Displacement: 0.07 cu ft
