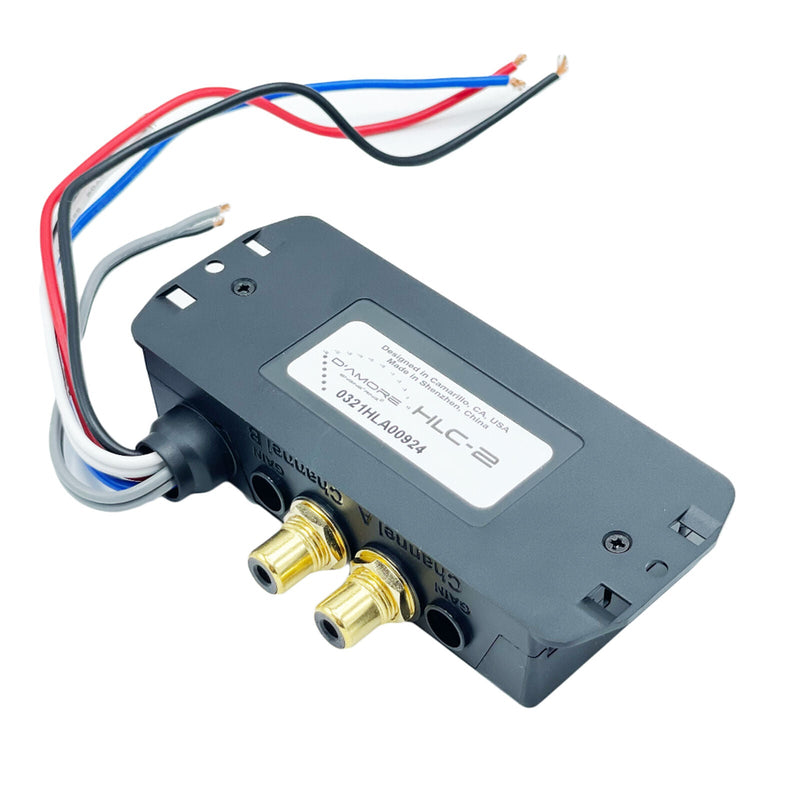

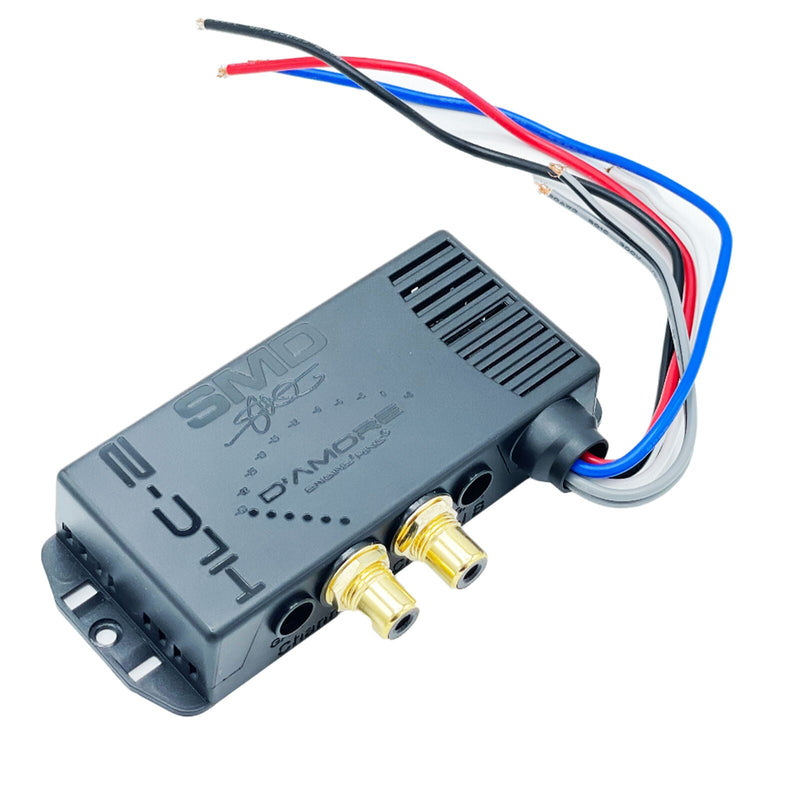

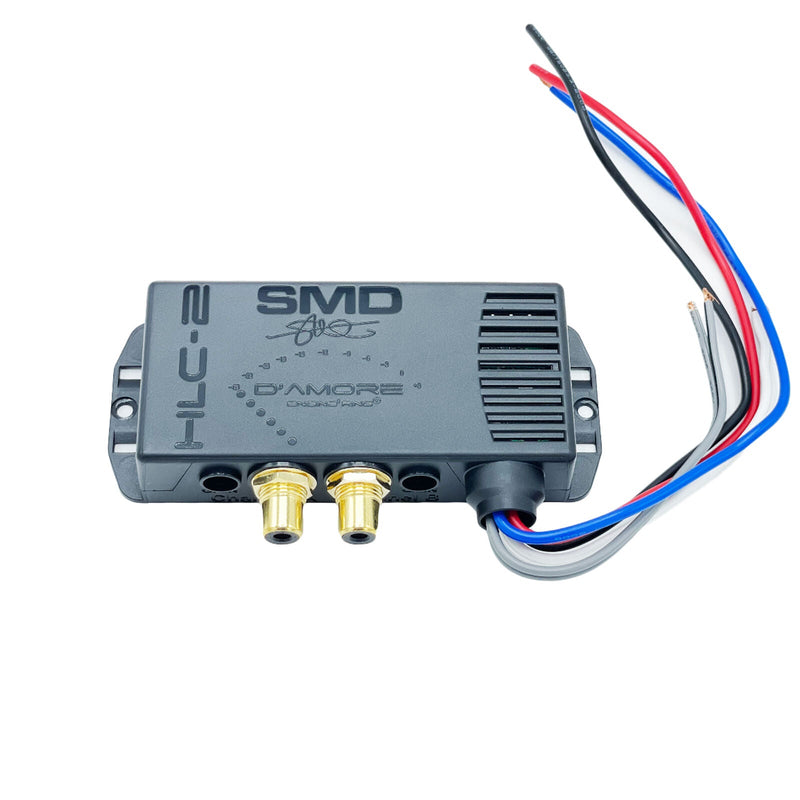

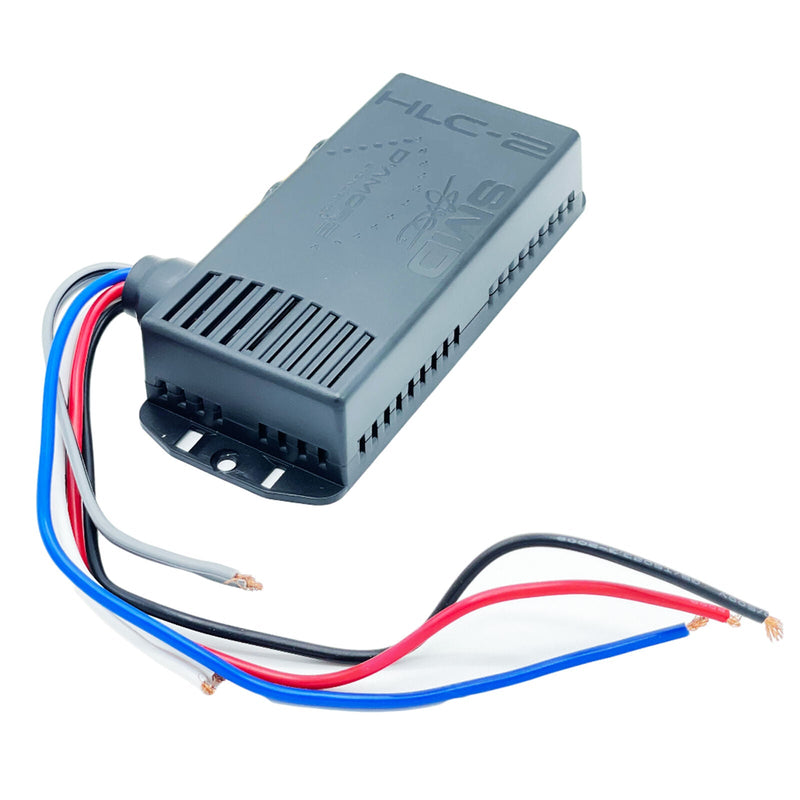

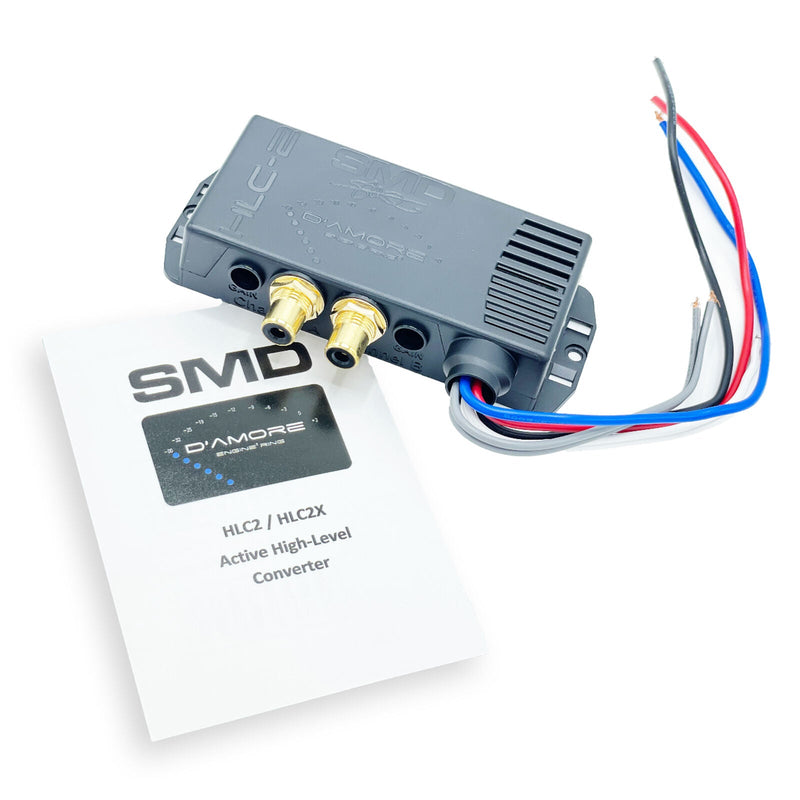

Steve Meade Designs Active High Level Converter HLC-2

The Steve Meade Designs HLC-2 is an audiophile quality stereo active high level converter useful for connecting aftermarket audio amplifiers to OEM audio systems that do not have RCA (low level) inputs. The HLC-2 includes a pair of independent gain controls for left and right channels. The output is Class A/B , the filters are 100% analog, and it has a military grade micro-power high speed bi-polar boost converter power supply. This means it will deliver a super clean, distortion-free signal over the entire audio spectrum with no low frequency roll-off, 10 Volts RMS output, all while drawing just 0.08 Amps of current. It draws so little current that it could run from a 9V battery if you wanted to.

This Listing Includes:

(1) SMD Active High Level Converter HLC-2

Features:

-Class A/B Output

-2-channel active high-level converter

-Balanced 2 wire high-level inputs and unbalanced RCA outputs

-Independent Left/Right gain controls

-10V RMS output

-Micro-power high speed mil spec power supply

-Ultra-low distortion over entire audio spectrum

-Blue LED power good indicator

Specifications:

Operating voltage range for power supply: 6-18 VDC

Operating voltage range for remote turn on: 6-18 VDC

Frequency Response: 10Hz-40,000 Hz +/- 0.3dB

Maximum input voltage: 40V RMS BTL

Maximum output voltage: Greater than 10V RMS

Signal to Noise: greater than 115dBA

Distortion THD+N: 0.003%

Current Draw @12.6 V: 80mA

Output Impedance: 100 ohms

Output Voltage RCAs: 10V RMS

Dimensions: 4.10" x 2.19" x .80"

Weight: 2.4 oz.
