SoundDigital 2 Channel NANO Amplifier Class D Clear 250 Watts RMS SD250.2D

SoundDigital SKU: SD-250.2

$143.95

Shipping calculated at checkout

Sold Out

SoundDigital 2 Channel NANO Amplifier Class D Clear 250 Watts RMS SD250.2D

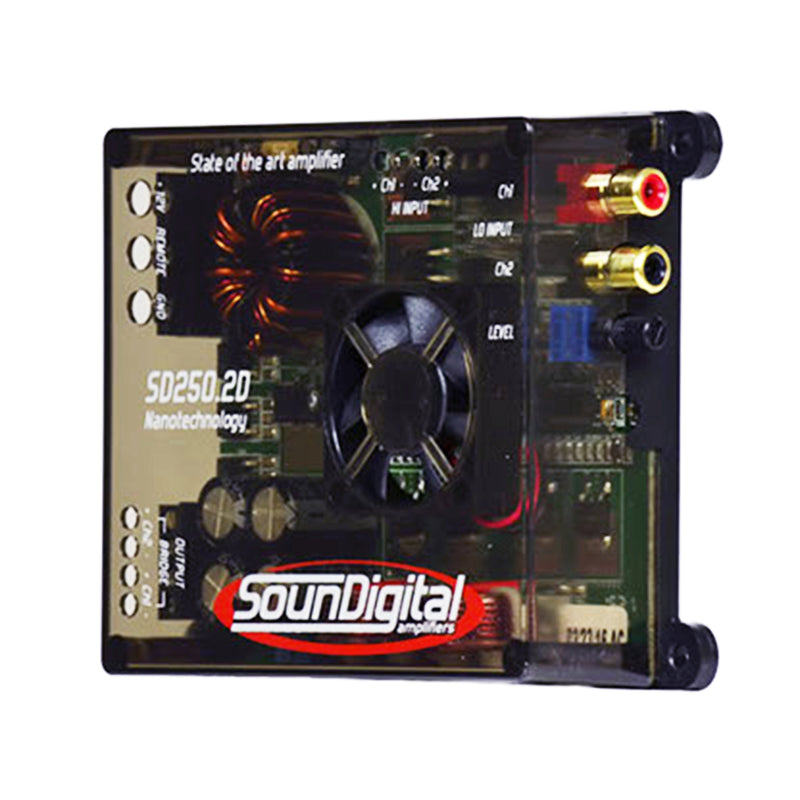

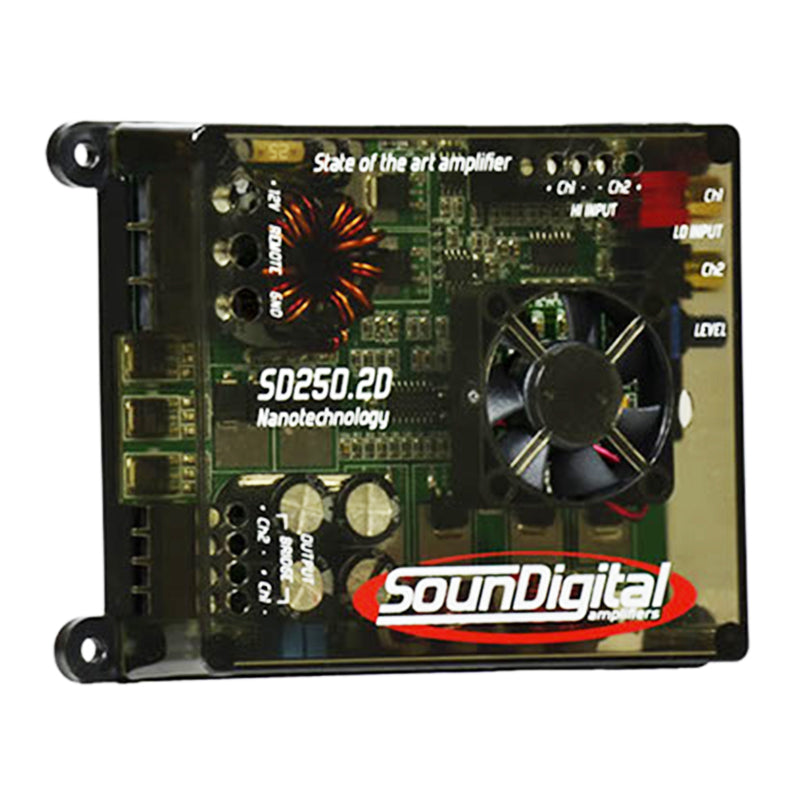

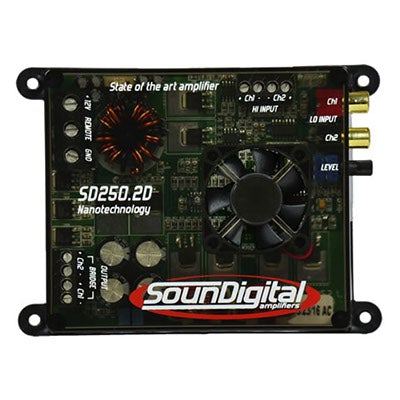

The Soundigital SD250.2D NANO amplifier has 2 channels with 125 W RMS each. This model is suitable for use in woofers, drivers, super tweeters, and subwoofers in this power range. The SD250.2D is a class D amplifier, that is, it has a digital architecture. This ensures greater energy savings and less heat.

This Listing Includes:
(1) Amplifier

Features:
- Class D Technology
- Can be used in TRI-MODE connection

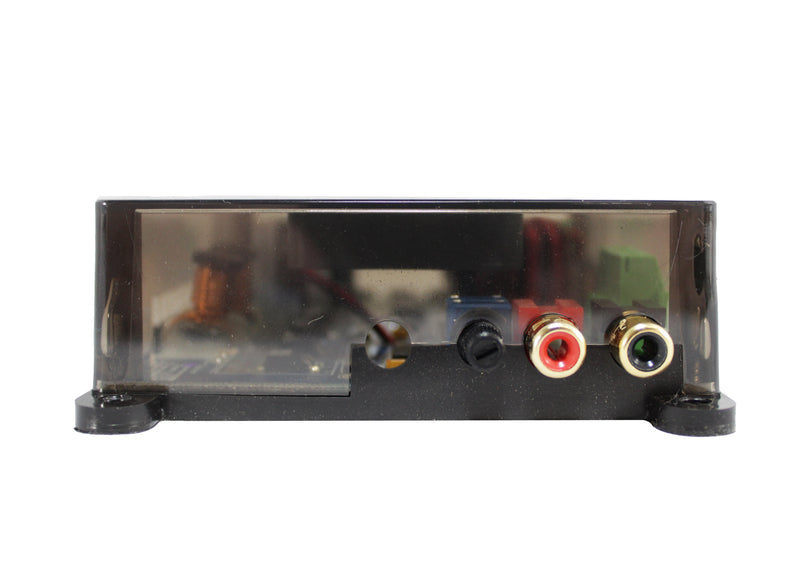

- RCA Inputs and "High" Type

Specifications:
Power 2 x 125 watts RMS at 2 ohms @ 12.6V
Power 2 x 85 Watts RMS at 4 ohms @ 12.6V
Power 1 x 250 watts @ 4 ohms in bridge @ 12.6V
Power 1 x 300 watts @ 4 ohms in bridge @ 14.4V
Maximum power: PMPO 3000W
Efficiency: 95%
Frequency response: 5Hz to 20KHz
Input sensitivity: 0.5V to 6V
Supply voltage: 12.6V (10V to 16V)
Damping Factor: 400
Harmonic Distortion: 0.01 % THD+N @ 60W
Inputs Resting consumption: Less Than 0.1A
Maximum consumption (resistive load): 22A
Maximum consumption (musical signal): 11A
Minimum capacity of the battery: 30 A
Recommended fuse/circuit breaker: 30 A
Size of recommended power cable: 6mm²
Size of recommended speaker cable: 1.5mm²

Dimensions:
Length: 115 mm / 4.5"
Width: 100 mm / 3.9"
Height: 35 mm / 1.4"
