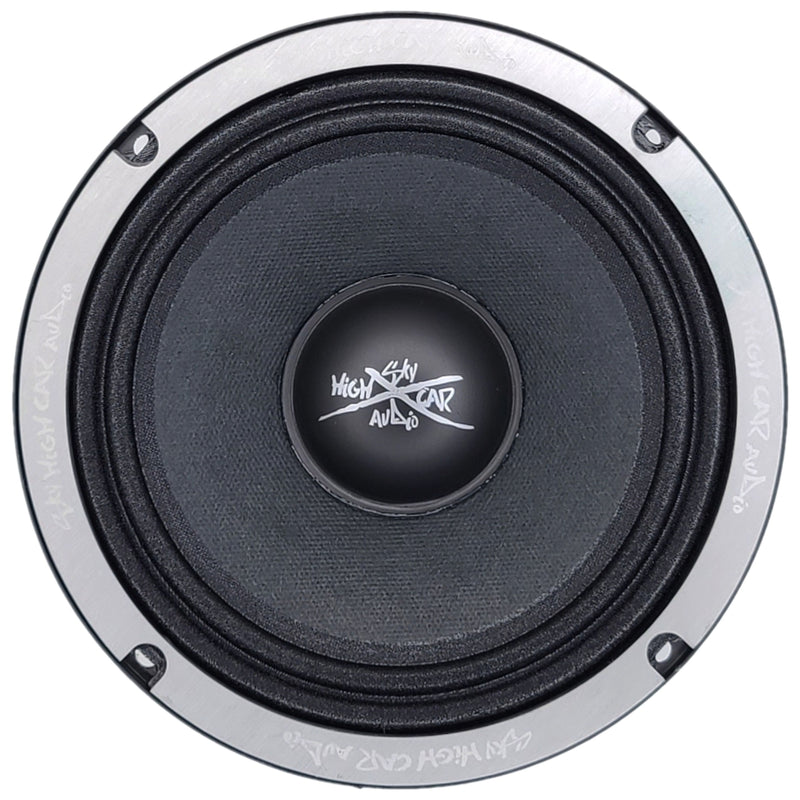

Sky High Car Audio 8 Inch 550W 8 Ohm Pro Audio Midrange Speaker SH-EL88

• Maximum Power Rating of 550 Watts, RMS Power Rating of 275W.
• Frequency Response: 80Hz - 13KHz
• Sensitivity: 98 dB
• 8 Ohm Nominal impedance

Sky High Car Audio 8 Inch 550W 8 Ohm Pro Audio Midrange Speaker SH-EL88

This listing includes:

• (1) 8 Inch 550W 8 Ohm Pro Audio Midrange Speaker

SPECIFICATIONS:

• Nominal Diameter: 8 inches


• Nominal Impedance: 8 Ohm


• Peak Power Handling: 275W


• Maximum Power Handling: 550W


• Sensitivity (1w/1m): 98 dB


• Frequency Response: 80Hz - 13KHz


• Recommended Hi Pass Crossover: 100hz

MOTOR:

• Voice Coil Diameter: 1.50 inches


• Voice Coil Former Material: KAPTON


• Winding Material: CCAW


• Cone Material: PAPER


• Surround Material: CLOTH


• Basket Material: STEEL


• Magnet Material: FERRITE


• Magnet Weight: 30 Oz

THIELE & SMALL PARAMETERS:

• Equivalent Volume (Vas): 5.85 LTR


• Excursion (Xmax): 9.3mm


• Free Air Resonance (Fs): 100 Hz


• Mechanical Factor (Qms): 13.041


• Electrical Factor (Qes): 0.684


• Total Factor (Qts): 0.65


• CD Resistance (Re): 5.2 Ohms

MEASUREMENTS:

• Overall Diameter: 8.22 inches


• Front Mount Baffle Cutout: 7.16 inches


• Mounting Depth: 3.11 inches


• Overall Depth: 3.38 inches


• Motor Diameter: 4.72 inches
