Rockford Harley Davidson Street Glide Radio, 2 Speakers, 4CH Amplifier & Amp Kit

Rockford Fosgate SKU: RF-HD9813SG-STAGE2


Shipping calculated at checkout

Only 3 left!

Rockford Harley Davidson Street Glide Radio, 2 Speakers, 4CH Amplifier & Amp Kit

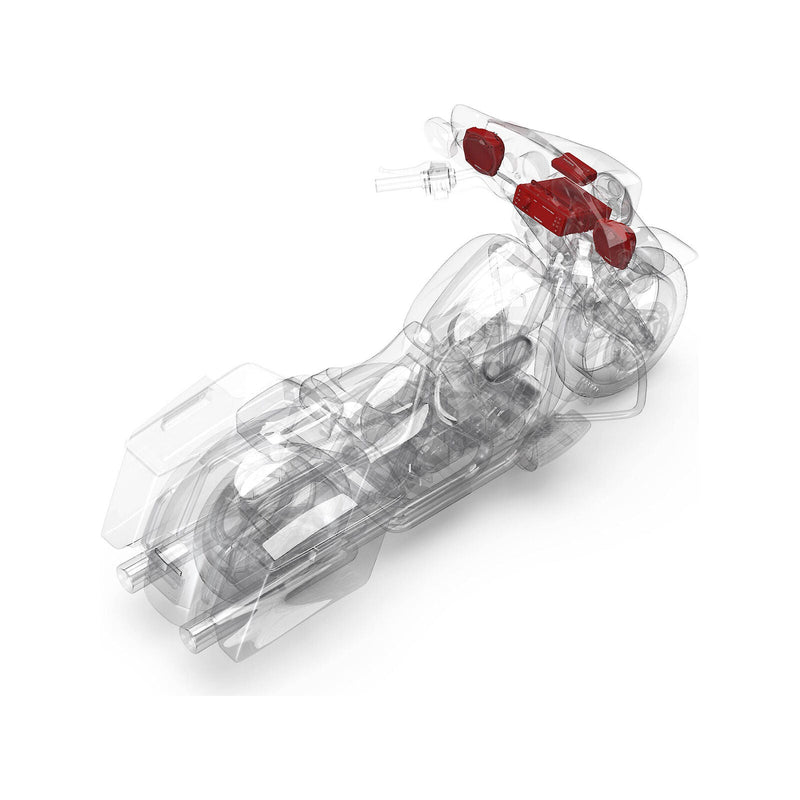

This Rockford Fosgate 2-speaker, 400-watt high performance audio system is specifically designed for select 1998-2013 Harley-Davidson® Street Glide & Electra Glide motorcycles. The replacement digital media receiver provides total control over your music with Bluetooth® wireless streaming,USB and AUX inputs, along with Pandora® and an AM/FM digital tuner that is SiriusXM® ready and has a 3" color TFT display with day/night mode. The included 6.5" fairing speakers are frequency-response tuned to overcome wind, exhaust, and road noise up to 75 MPH so you can hear your music at highway speeds! The 400-watt amplifier features 2-channels for the fairing speakers with 2 channels reserved for the later addition of TourPak or saddlebag speakers. The amplifier installation kit includes an external heat-sink, mounting brackets, speaker and power wiring with all necessary hardware. No drilling or cutting required. Kits bolt to factory attachment points for easy installation. Direct connect wiring harnesses for Harley-Davidson® models. Radio integration supports front/rear fader control.

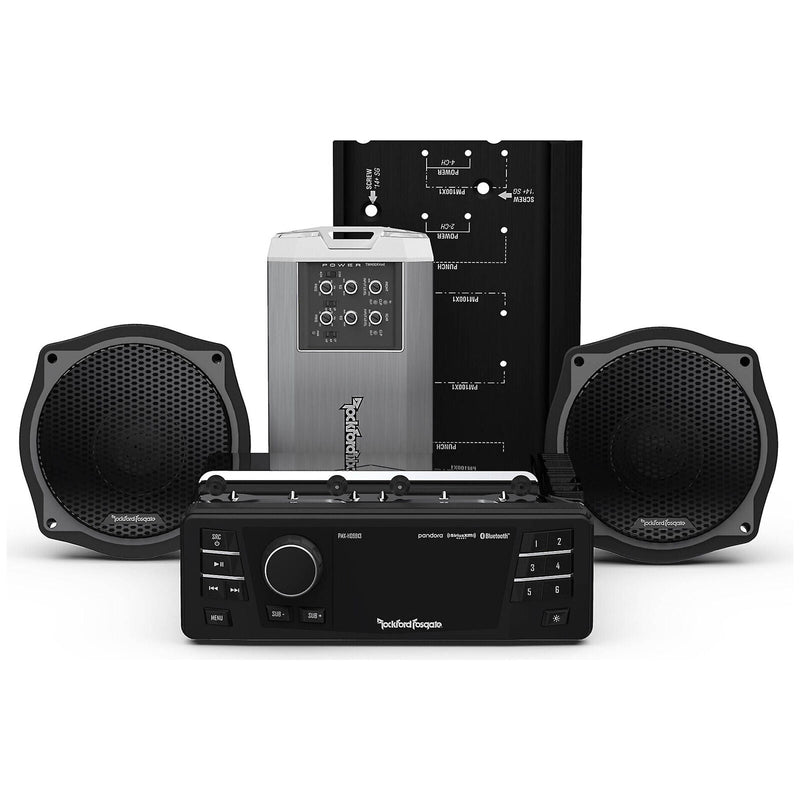

(1) Rockford Fosgate PMX-HD9813 Digital Media Receiver
(2) Rockford Fosgate TMS6SG 6-1/2" full-range fairing speakers
(1) Rockford Fosgate TM400X4AD Power Series marine/powersports 4-channel amplifier

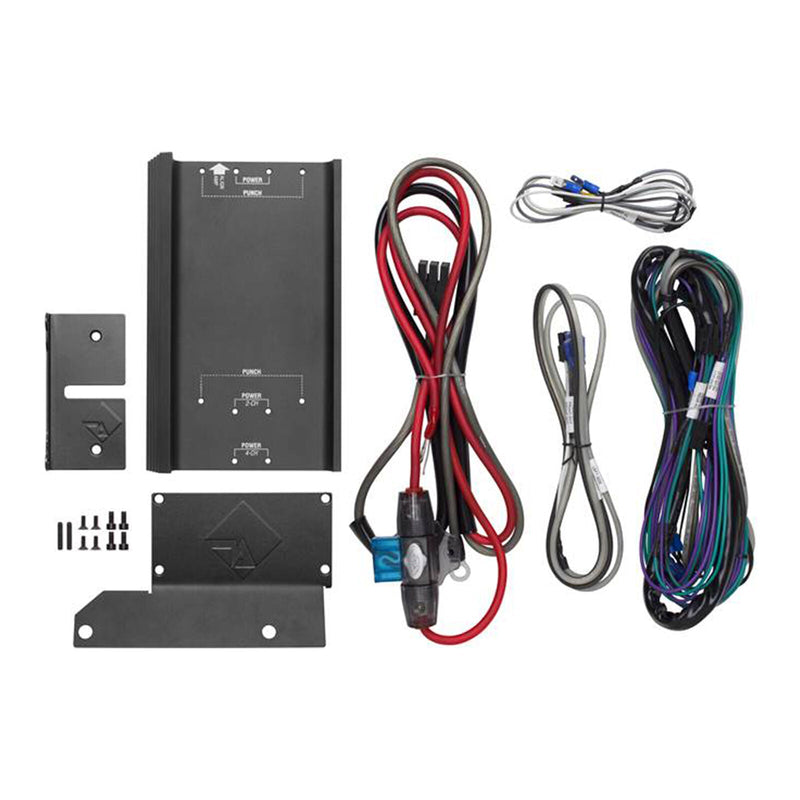

(1) Rockford Fosgate RFKHD9813 Installation Kit

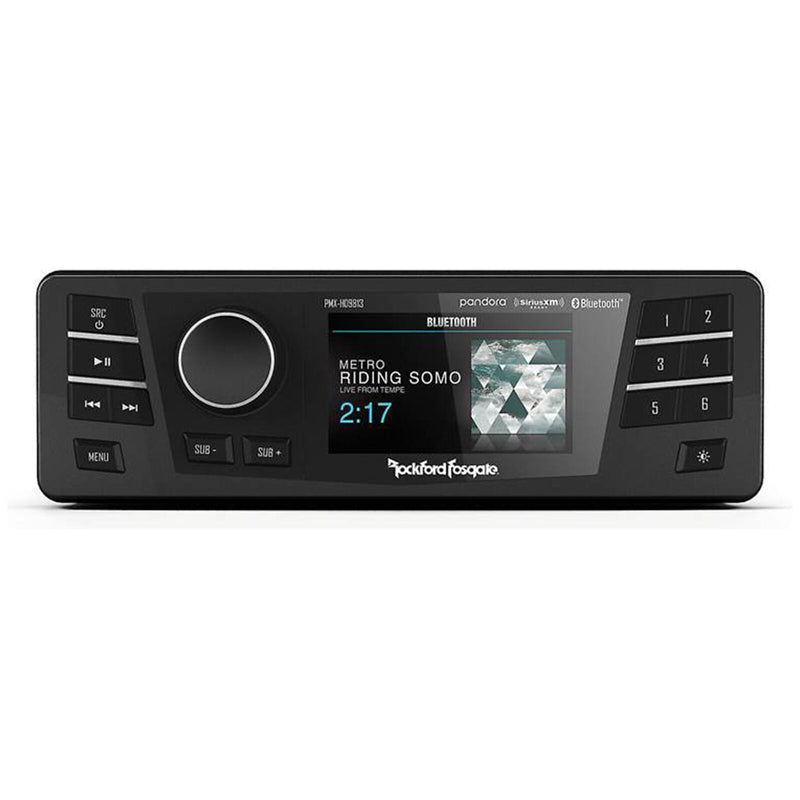

PMX-HD9813 Features:
-All-element digital media receiver with AM/FM tuner
-3" Color display with day/night mode -Built-in Bluetooth connectivity
-Built-in iPod, iPhone, and iPad control
-SiriusXM Ready
-Uses factory mounting points and factory connectors and works with factory handlebar controls
-Rear-panel USB and AUX inputs

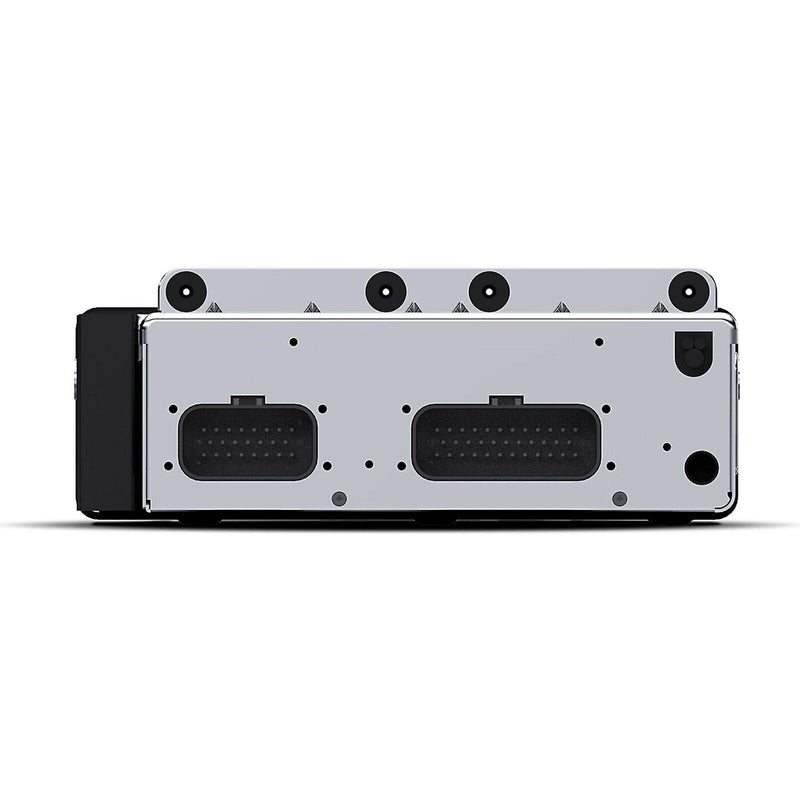

PMX-HD9813 Dimensions:
Faceplate: 2.7" x 8.4" x 0.7" (HxWxD)
Chassis: 2.5" x 8.2" x 7.5" (HxWxD)

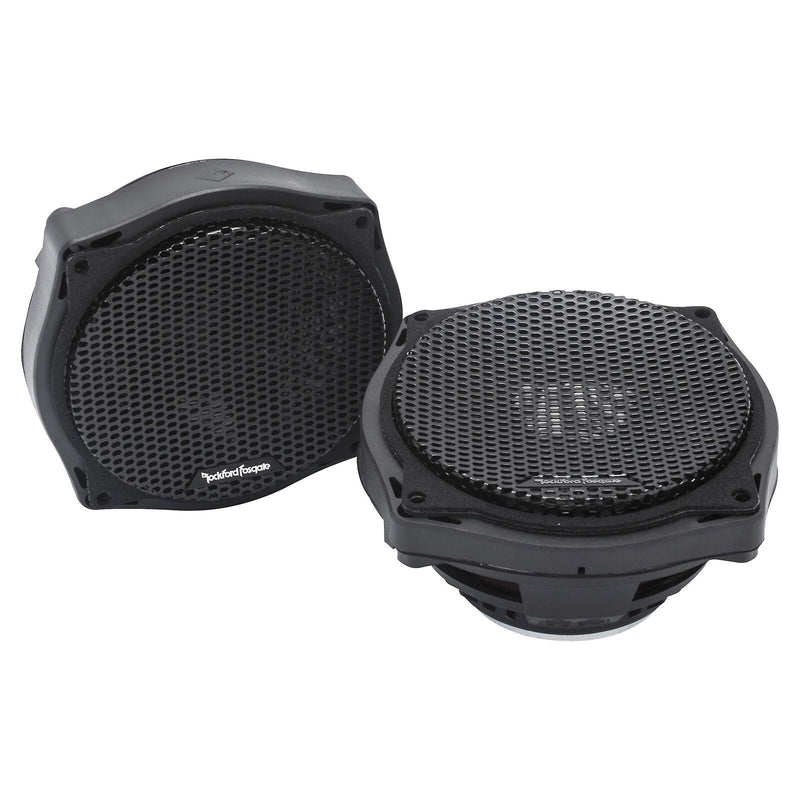

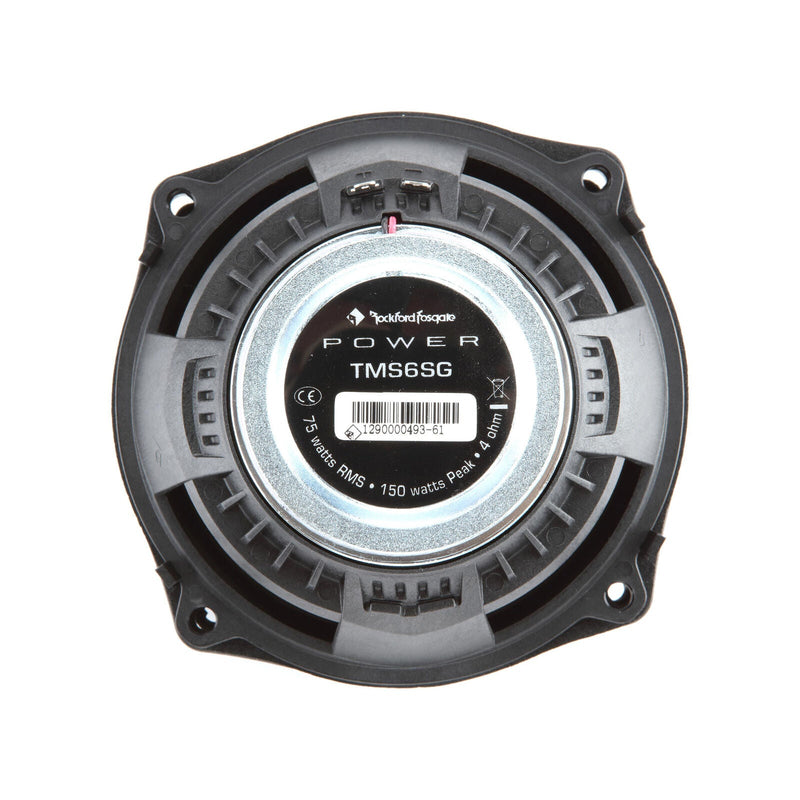

TMS6SG Features:
-Designed for the fairing speaker locations on 1998-2013 Harley-Davidson Road Glide models
-Element-Ready design is weather- and water-resistant
-Power handling: 75 watts RMS (150 watts peak)

TMS6SG Specifications:
Speaker Type: 2-Way Coax
Midrange Size(Nominal Diameter): 6.5"
Frequency Response (Hz): 56 Hz - 20 kHz
Nominal Impedance (Ohms): 4-Ohm
Power Handling (MAX): 150 Watts
Power Handling (RMS): 75 Watts

TMS6SG Dimensions:
Mounting Diameter: 5.0"
Mounting Depth: 2.1"

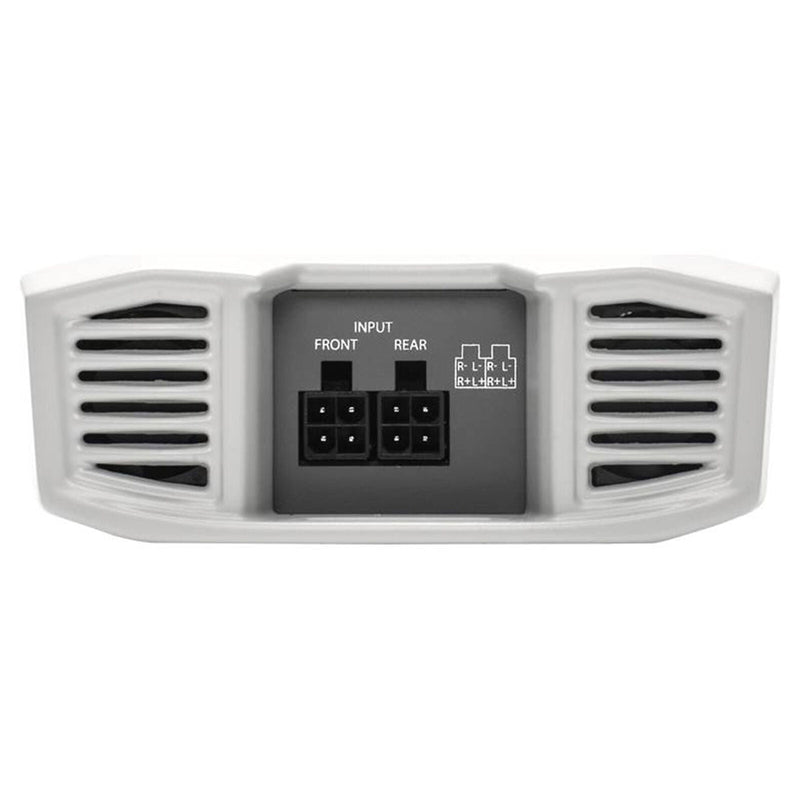

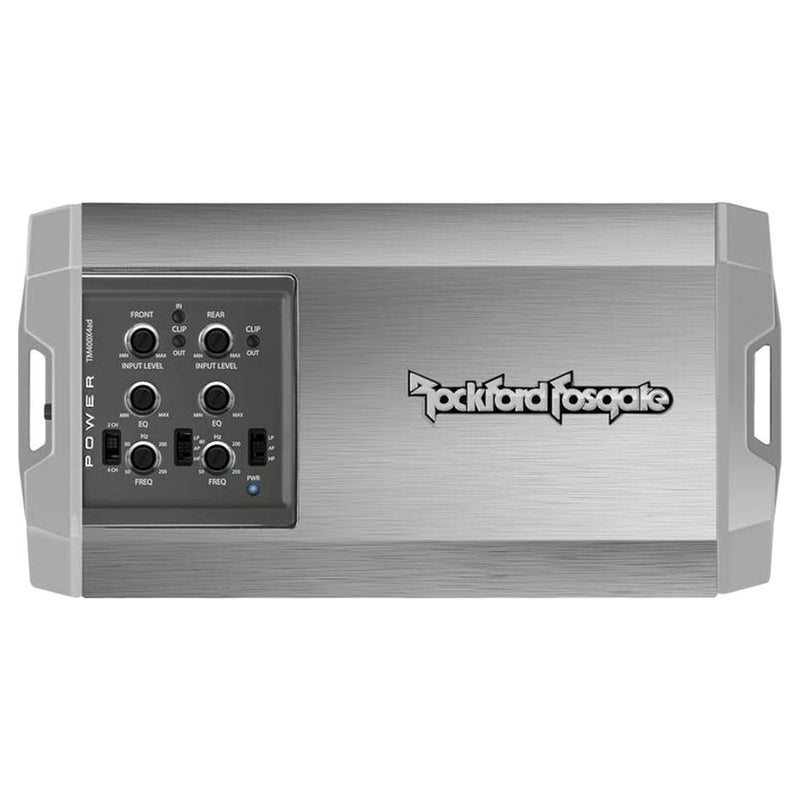

TM400X4AD Features:
-Class AD -100 watts RMS x 4 at 4 ohms (400 watts peak)
-Suitable for power sports and marine applications
-Twin cooling fans and real-time thermal sensing

TM400X4AD Specifications:
Number of Channels: 4
Total Power(Sum of Rated Power): 400 Watts
Rated Power (RMS Continuous Power):
- 100 Watts x 4 @ 4-Ohm
- 100 Watts x 4 @ 2-Ohm
- 200 Watts x 2 @ 4-Ohm Bridged
Dynamic Power(PVC/PowerCube®):
- 128 Watts x 4 @ 4-Ohm
- 152 Watts x 4 @ 2-Ohm
- 290 Watts x 2 @ 4-Ohm Bridged

RFKHD9813 Features:
-Everything you need to install your amp in select 1998-2013 Harleys
