Rockford Fosgate Punch Marine 500W Class-bd Mono Subwoofer Amplifier PM500X1BD

Rockford Fosgate SKU: RF-PM500X1BD


Shipping calculated at checkout

Only 5 left!

Rockford Fosgate Punch Marine 500W Class-bd Mono Subwoofer Amplifier PM500X1BD

This listing includes:
(1) PM500X1BD 500W Marine Amplifier
(1) 2.5mm Allen Wrench
(4) 1-1/2" Self-tapping screws
(1) Setup disc (CD)
(1) Setup Guide
(1) Certificate of Performance Verification

With its super efficient Class-bd circuit topology, the PM500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.

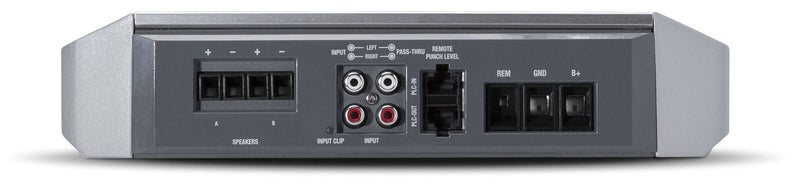

High level input capable with Auto Turn-On circuit
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
RCA pass-thru outputs
12dB/octave Butterworth crossover
On-board Punch EQ with +18dB boost @ 45Hz
Muted turn on

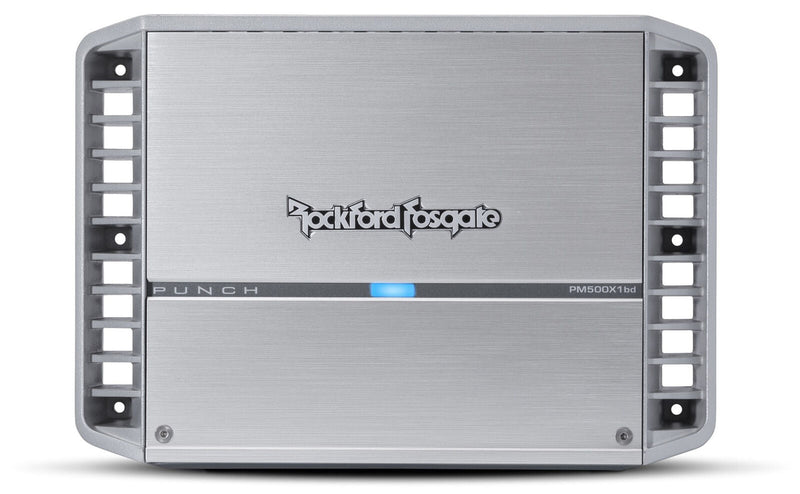

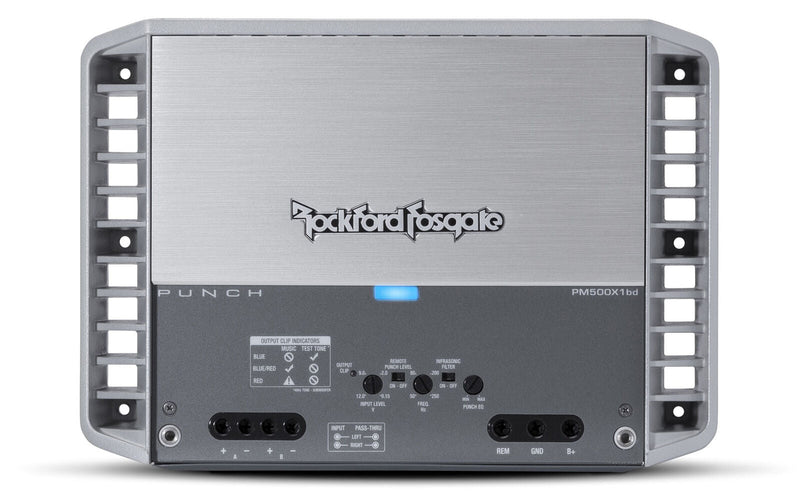

Stealth top mounted control panel
Cast aluminum heatsink
Short circuit protection
Over current protection
Infrasonic filter
Marine grade two part epoxy coating on circuit boards
Marine grade stainless steel hardware
2-Year Warranty

1 Channel
Rated Power:
150W x 1 @ 4 Ohm
300W x 1 @ 2 Ohm
500W x 1 @ 1 Ohm
Dynamic Power:
224W x 1 @ 4 Ohm
410W x 1 @ 2 Ohm
787W x 1 @ 1 Ohm
Total Power: 500W
Bridgeable: No
Operating Voltage: 9-16 VDC
Max. Current Draw: 70A
Suggested Alternator: 75A
Recommended Fuse: 80A
Average Current Draw: 35A
Efficiency: 86 Percent @ 4 Ohm
Input Sensitivity: 150 mV - 12 V
Power Wire Gauge: 4 AWG
Speaker Wire Gauge: 8 AWG to 18 AWG
Circuit Topology Class: Class BD
Frequency Response: 20Hz to 250Hz +/-1.0dB

2.38 x 7.76 x 11.03 (in)
6.05 x 19.71 x 28.02 (cm)
