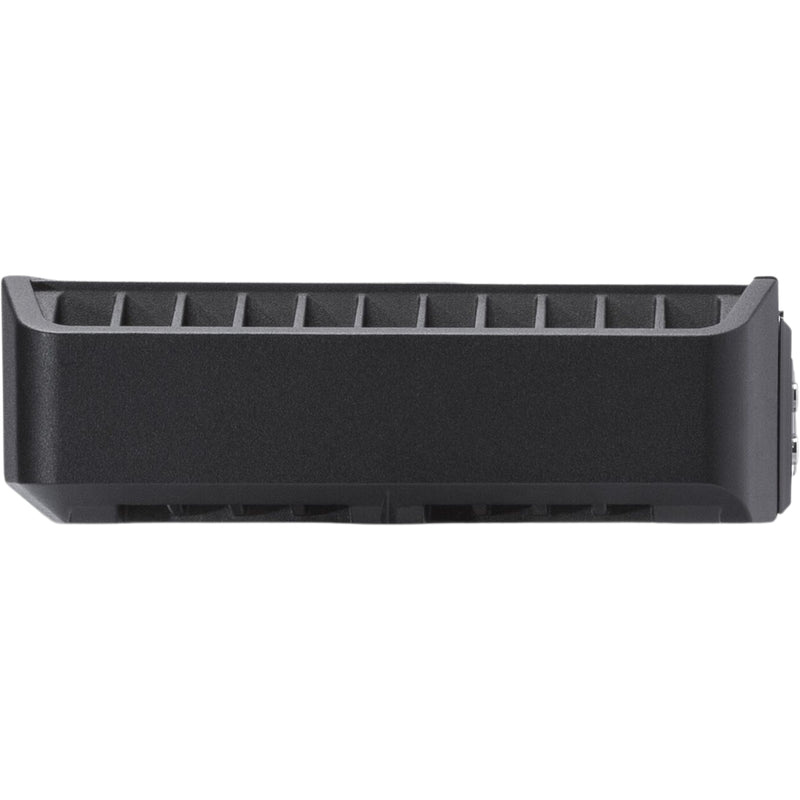

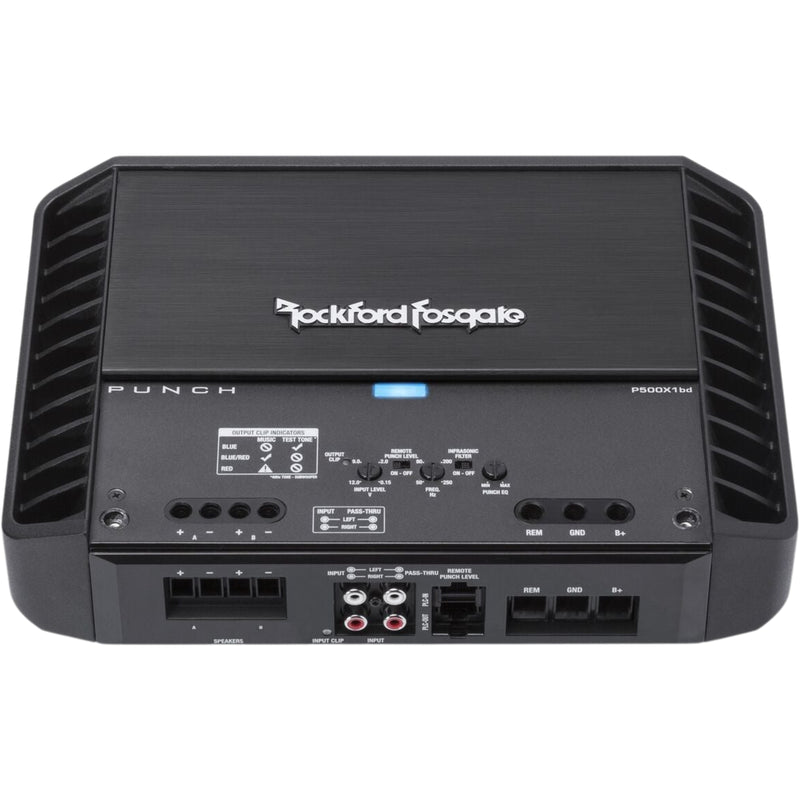

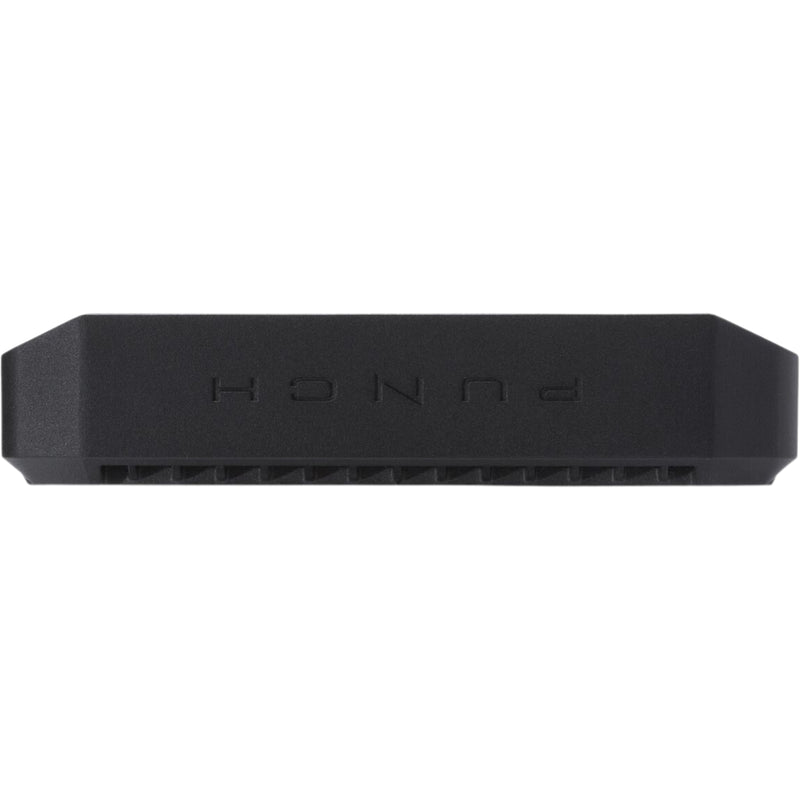

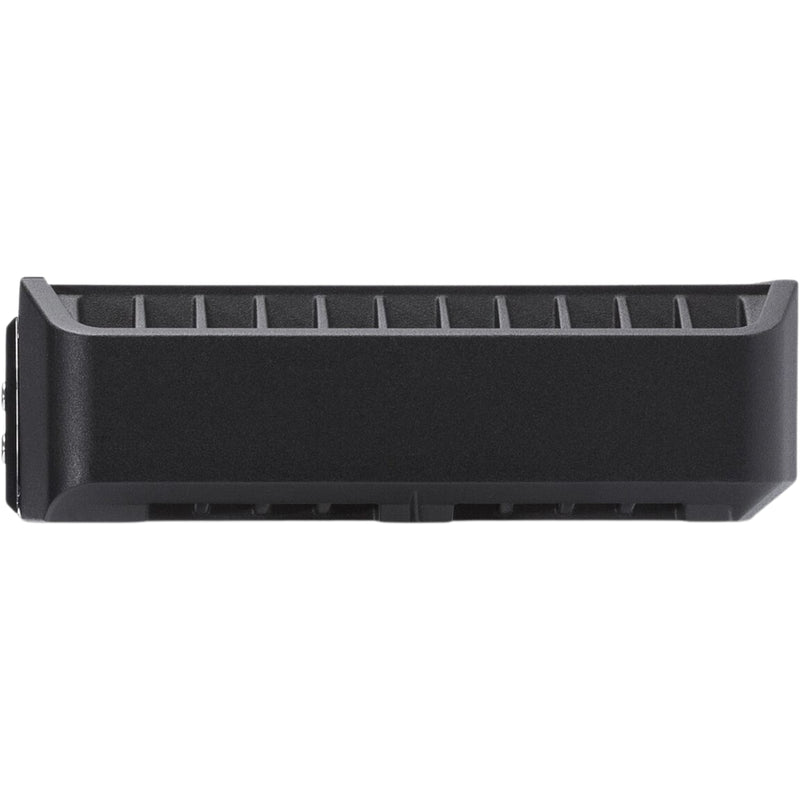

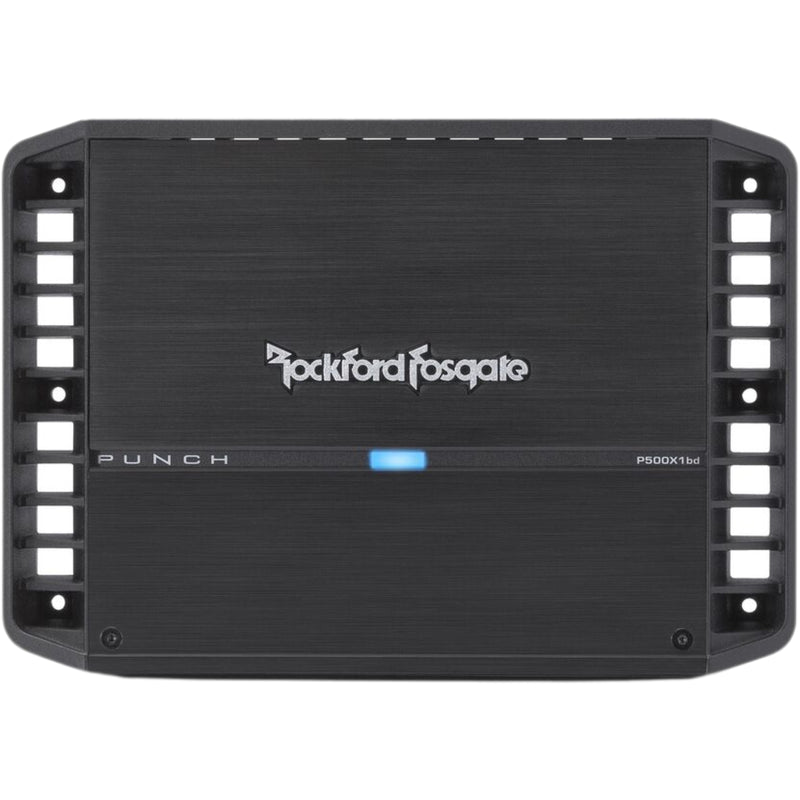

Rockford Fosgate Punch 500W Class-bd Mono Amplifier P500X1BD


SKU: RF-P500X1BD Rockford Fosgate

Fast Shippng
& Handling



Rockford Fosgate Punch 500W Class-bd Mono Amplifier P500X1BD

This listing includes:
(1) P500X1BD - 500W Class-bd Mono Amplifier

With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.

High level input capable with Auto Turn-On circuit
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
RCA pass-thru outputs
12dB/octave Butterworth crossover
On-board Punch EQ with +18dB boost @ 45Hz
Muted turn on
Stealth top mounted control panel
Cast aluminum heatsink
Short circuit protection
Over current protection
Infrasonic filter
1 Year Warranty

Number of Channels: 1
Total Power: 500W
Rated Power:
150W x 1 @ 4 Ohm
300W x 1 @ 2 Ohm
500W x 1 @ 1 Ohm

Dynamic Power:
224W x 1 @ 4 Ohm
410W x 1 @ 2 Ohm
787W x 1 @ 1 Ohm

Frequency Response: 20Hz to 250Hz +/- 1.0dB
Input Sensitivity: 150 mV - 12V
Efficiency: 86% @ 4 Ohm

2.38 x 7.76 x 11.03 (in)
6.05 x 19.71 x 28.02 (cm)
