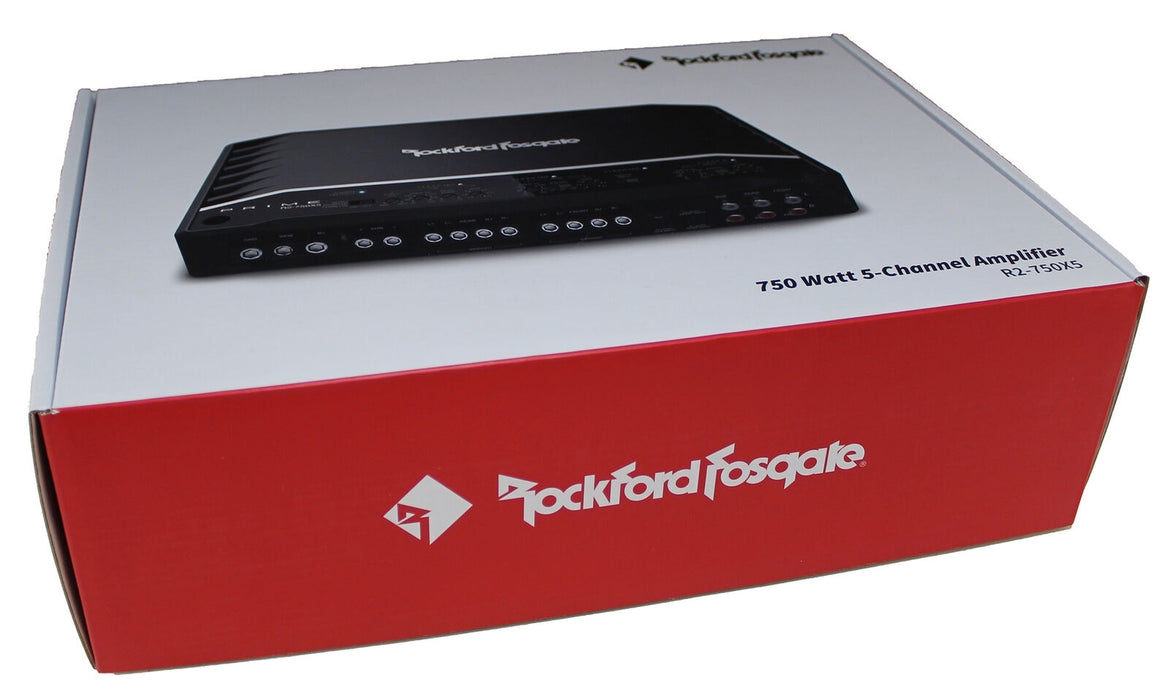

Rockford Fosgate Prime 750W 5-Channel Full Range Class-D Amplifier R2-750X5

• Short Circuit & Over Current Protection
• Cast aluminum heat sink
• Full Range Class D
• Speaker Wire Gauge: 8 AWG, Power Wire Gauge: 4 AWG
• Frequency Response: 20 Hz - 20 kHz

Rockford Fosgate Prime 750W 5-Channel Full Range Class D Amplifier R2-750X5

This listing includes:

• (1) R2-750X5 750W 5-Channel Amplifier


• (1) Wired Remote Level Control Module


• (1) 16' Remote Cable


• (3) 7" Speaker Input Harnesses


• (1) 3mm Allen Hex Key


• (4) 3/4" Screws


• (5) Flat Washers


• (1) Nut


• (1) Installation Manual


• (1) Certificate of Performance


• (1) Rockford Fosgate Contact Information

Primed for Performance, the R2-750X5 amplifier is a 750 watt, full-range class-D, capable of operating at 4 or 2 stereo, and 4 bridged/mono with a subwoofer channel that can be run at 4 or 2. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

The Prime Series were developed for car audio fanatics that want a reliable amplifier - with all the power and performance you've come to expect from Rockford Fosgate - at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being "under rated," easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

Features:

• Balanced Differential Inputs with RCA Pass Through Outputs


• High-Level Input Capable


• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)


• Features C.L.E.A.N. Set-up


• 2/4/5 Channel Input Selection Switch


• Includes RLC Remote Level Control


• Variable Infrasonic Filter


• Front, Rear and Sub Variable Input Gain adjustment level


• Continuously Variable On Board Punch EQ


• Top Mounted Control Panel


• Short Circuit & Over Current Protection


• CEA-2006 Compliant & CE Compliant


• Cast aluminum heat sink


• Full Range Class D


• Rollback Protection


• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers


• 1 Year Manufacturer Warranty

Specifications:

• 5-Channel Amplifier


• Class D


• 750W

Rated Power:

• 50W x 4 + 200W x 1 @ 4 Ohm


• 100W x + 350W x 1 @ 2 Ohm


• 200W x 2 + N/A @ 4 Ohm Bridged / Mono

Dynamic Power:

• 70W x 4 + 241W x 1 @ 4 Ohm


• 114W x 4 + 426W x 1 @ 2 Ohm


• 234W x 2 + N/1 @ 4 Ohm Bridged / Mono


• Frequency Response: 20 Hz - 20 kHz


• Input Sensitivity: Low-Level: 150 mV - 4 V


• High-Level: 450 mV-12V

Signal Input:

• Front Low-Level: 2 RCA


• Front High-Level: 4-Pin Molex


• Rear Low-Level: 2RCA


• Rear High-Level: 4-Pin Molex


• Sub Low-Level: 2 RCA


• Sub High-Level: 4-Pin Molex


• Input Switch: 2/4/5 Input (Works for RCA/Hi-Level Inputs)

Crossover Controls:

• Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth


• Front Low-Pass: 50Hz - 250 Hz @ 12dB/Octave Butterworth


• Rear High-Pass: 50 Hz-250Hz @ 12dB/Octave Butterworth


• Rear Low-Pass: 50 Hz - 250 Hz @ 12dB / Octave Butterworth


• Sub Low-Pass: 50 Hz - 250 Hz @ 12 dB/Octave Butterworth


• Sub Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth


• Remote Control: Yes


• Power Wire Gauge: 4 AWG


• Power Input Connector: Compression Terminal Block


• Speaker Wire Gauge: 8 AWG


• Speaker Output Connector: Compression Terminal Block


• Operating Voltage: 9-16 VDC


• Recommended Fuse: 120 A ( Not Included )


• Max. Current Draw (13.8V Sinewave) 71 A

Dimensions:

• Length: 11.2" / 28.5 cm


• Width: 6.8" / 4.9 cm


• Height: 1.9" / 1.3 cm
