Rockford Fosgate Prime 200W 2-Channel Full Range Class D Amplifier R2-200X2

Rockford Fosgate SKU: RF-R2-200X2


Shipping calculated at checkout

Available Now!

Rockford Fosgate Prime 200W 2-Channel Full Range Class D Amplifier R2-200X2

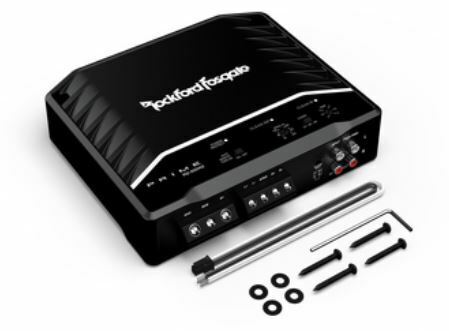

This listing includes:
(1) R2-200X2 2 Channel Full Range Class D Amplifier
(1) 7" Speaker Input Harness
(1) 3mm Allen Hex Key
(4) 3/4" Screws
(4) Flat Washers
(1) Installation Manual
(1) Certificate of Performance
(1) Rockford Fosgate Contact Information

Primed for Performance, the R2-200X2 amplifier is a 200 watt, full-range class-D, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

The Prime Series were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

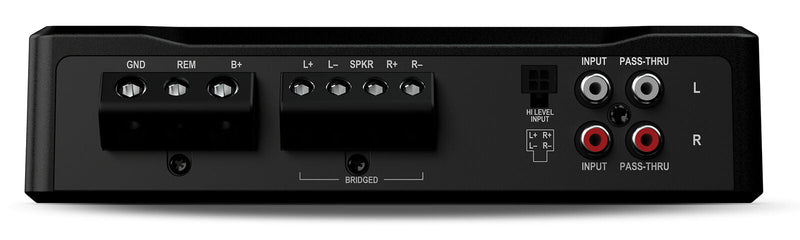

Balanced Differential Inputs with RCA Pass Through Outputs
High Level Input Capable
Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
Features C.L.E.A.N. Set-up
Variable Input Gain adjustment level
Continuously Variable On Board Punch EQ
Top Mounted Control Panel
Short Circuit & Over Current Protection
CEA-2006 Compliant & CE Compliant
Cast aluminum heat sink
Full Range Class D
Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
1 Year Warranty

2 Channels
200W Total Power
Rated Power:
50W x 2 @ 4 Ohm
100W x 2 @ 2 Ohm
200W x 1 @ 4 Ohm Bridged / Mono
Dynamic Power:
60W x 2 @ 4 Ohm
107W x 2 @ 2 Ohm
215W x 1 @ 4 Ohm Bridged/Mono
Bridgeable: Yes
Frequency Response: 20 Hz - 20 kHz
Input Sensitivity:
Low-Level: 150mV - 4V
High-Level: 450mV - 12V
Class D Circuit Topology Class
Signal Input:
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Crossover Controls:
50Hz-250Hz @ 12dB/Octave Butterworth
50Hz-250Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote Control: No
Power Wire Gauge: 4 AWG
Power Input Connector: Compression Terminal Block
Speaker Wire Gauge: 8 AWG
Speaker Output Connector: Compression Terminal Block
Cooling: Convection
Operating Voltage: 9-16VDC
Recommended Fuse: 30 A (Not Included)
Max. Current Draw (13.8V Sinewave) 18A

Dimensions: (HxWxD)
1.9" x 6.8" x 8.1"
(4.9cm x 17.3cm x 20.5cm)
