Rockford Fosgate Monoblock Subwoofer Amplifier 500 Watt Class BD + Install Kit

• Purchasing this amp and install kit bundle at no additional cost gives you an additional year warranty on your amplifier!
• 24dB/octave crossover
• RCA pass-thru outputs
• Total Power (Sum of Rated Power): 500 Watts RMS
• Dimensions: (H x W x D) 2.14 x 8.14 x 11.41 (in)

Rockford Fosgate Monoblock Subwoofer Amplifier 500 Watt Class BD + Install Kit



The T500-1bdCP is based on the legendary T500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. With the T500-1bdCP, you can now use an "under-the-seat" dedicated subwoofer amplifier to drive two 4-Ohm DVC subwoofers. This amp will provide enough bass to separate you from those envious car audio geeks.

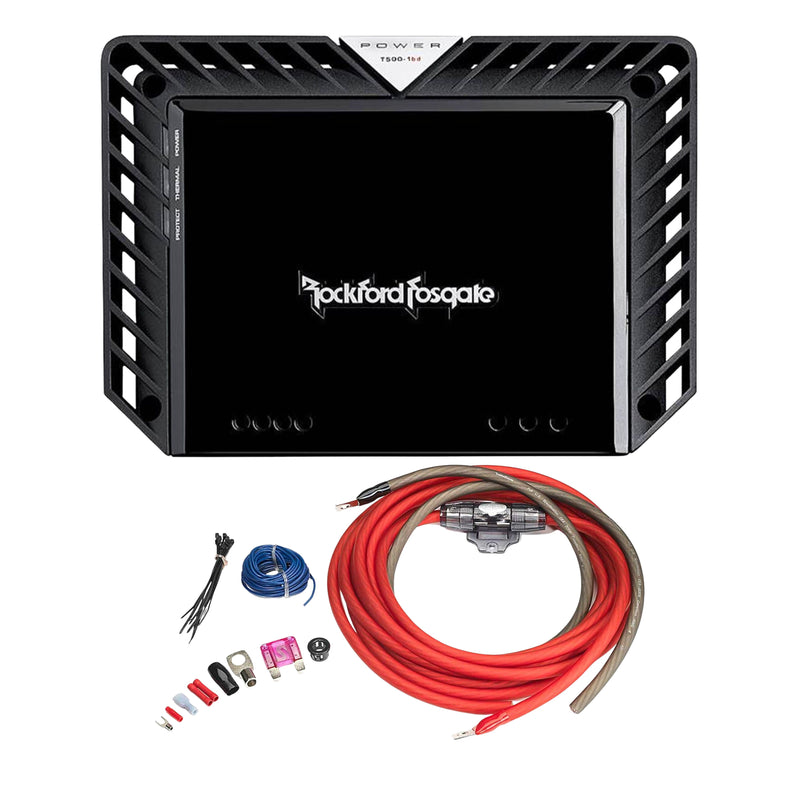

This Listing Includes:

(1) Monoblock Subwoofer Amplifier 500 Watt Class BD

(1) RFK4 4 Gauge PC-OFC Power Install Amplifier Kit

Features:

-24dB/octave crossover

-MOSFET power supply

-MOSFET output stage

-4 Gauge power/ground connectors

-Audiophile grade speaker connections

-RCA pass-thru outputs

-Infrasonic filter



Specifications:

Number of Channels: 1

Total Power (Sum of Rated Power): 500 Watts RMS

Bridgeable: No

Frequency Response: 20Hz to 250Hz +/- 0.5dB

Input Sensitivity: 150 mV to 4 V

Circuit Topology Class: Class BD

Signal Input: Low level: 1 RCA pair

Signal Output: Low Level: 1 RCA pair

Power Wire Gauge: 4 AWG

Power Input Connector: Block

Speaker Wire Gauge: 8 AWG to 18 AWG

Speaker Output Connector: Screw terminal barrier strip

Cooling: Convection

Operating Voltage: 9 - 16 VDC

Recommended Fuse (not included): 80 A Average

Current Draw (13.8V Music): 35 A Max.

Current Draw (13.8V Sinewave): 70 A

Suggested Alternator: 75 A

Signal Input: Low level: 1 RCA pair

Signal Output: Low Level: 1 RCA pair

Tone Controls: Bass: 0dB to +18dB @ 45Hz



Rated Power (RMS Continuous Power):

300 Watts x 1 @ 4-Ohm

500 Watts x 1 @ 2-Ohm

500 Watts x 1 @ 1-Ohm



Dynamic Power(PVC/PowerCube):

328 Watts x 1 @ 4-Ohms

537 Watts x 1 @ 2-Ohms

707 Watts x 1 @ 1-Ohm



Efficiency (average):

86.2% @ 4-Ohm

82.3% @ 2-Ohm

73.4% @ 1-Ohm



Total Harmonic Distortion (THD+Noise):

4-Ohm: Less Than 1.0%

2-Ohm: Less Than 1.0%

1-Ohm: Less Than 1.0%



Crossover Controls:

Low-Pass (LP): 35-250Hz 24dB/Octave Butterworth

Infrasonic Filter: -3dB @ 28Hz 12dB/Octave



Visual Indicators:

Power

Thermal

Protect



Dimensions: (H x W x D)

2.14 x 8.14 x 11.41 (in)
