Rockford Fosgate Monoblock Subwoofer Amplifier 500 Watt Class BD Constant Power T500-1bdCP

Rockford Fosgate SKU: RF-T500-1BDCP


Shipping calculated at checkout

Only 6 left!

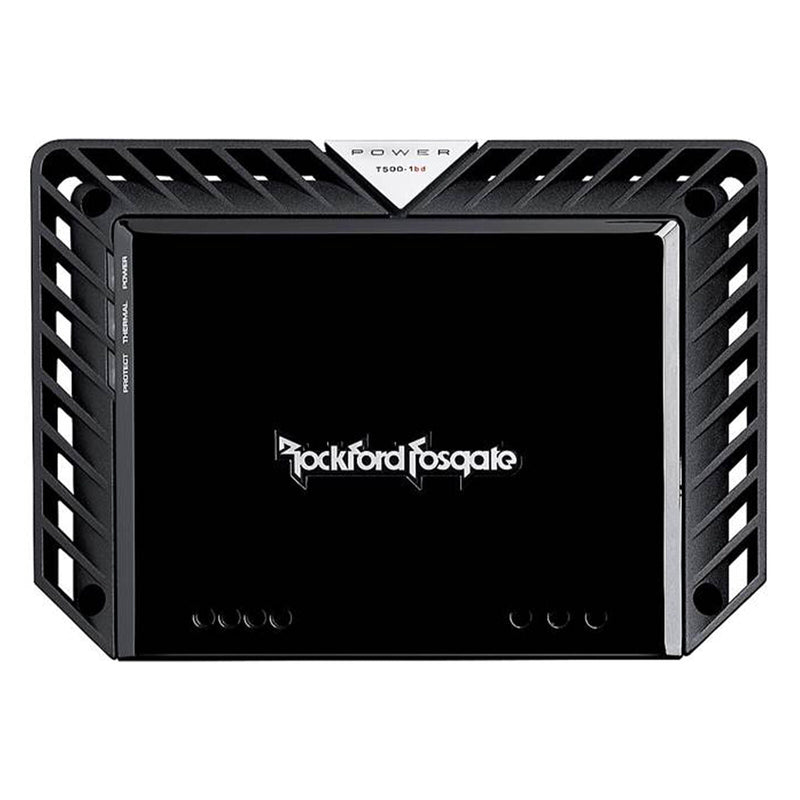

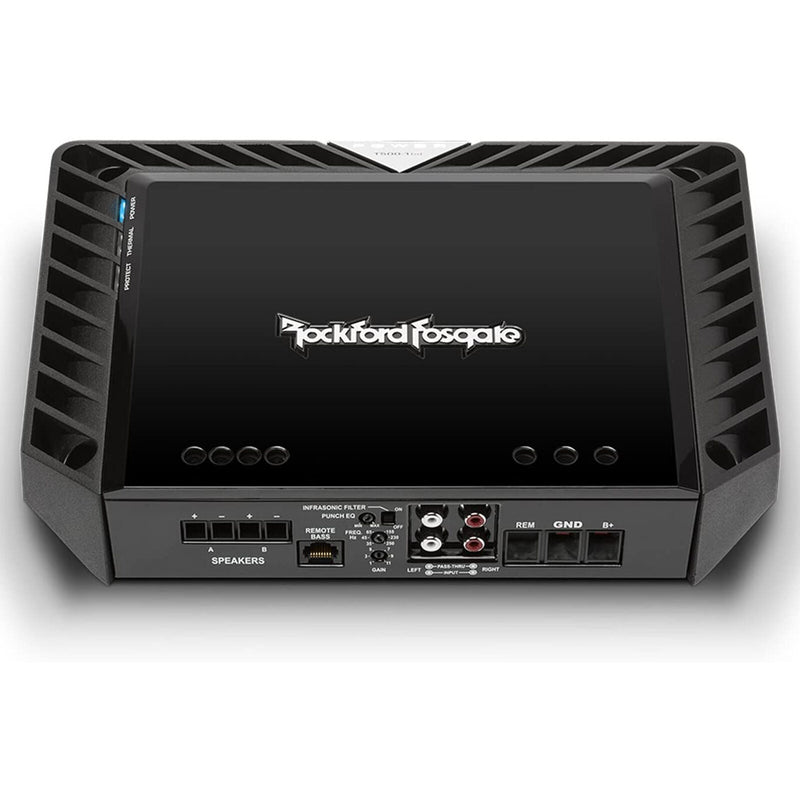

Rockford Fosgate Power T500-1bdCP Monoblock 500 Watts Class BD Constant Power Amplifier

The T500-1bdCP is based on the legendary T500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. With the T500-1bdCP, you can now use an "under-the-seat" dedicated subwoofer amplifier to drive two 4-Ohm DVC subwoofers. This amp will provide enough bass to separate you from those envious car audio geeks.

This Listing Includes:
(1) 4-channel amplifier
(4) Screws

-24dB/octave crossover
-MOSFET power supply
-MOSFET output stage
-4 Gauge power/ground connectors
-Audiophile grade speaker connections
-RCA pass-thru outputs
-Infrasonic filter

Number of Channels: 1
Total Power (Sum of Rated Power): 500 Watts RMS
Bridgeable: No
Frequency Response: 20Hz to 250Hz +/- 0.5dB
Input Sensitivity: 150 mV to 4 V
Circuit Topology Class: Class BD

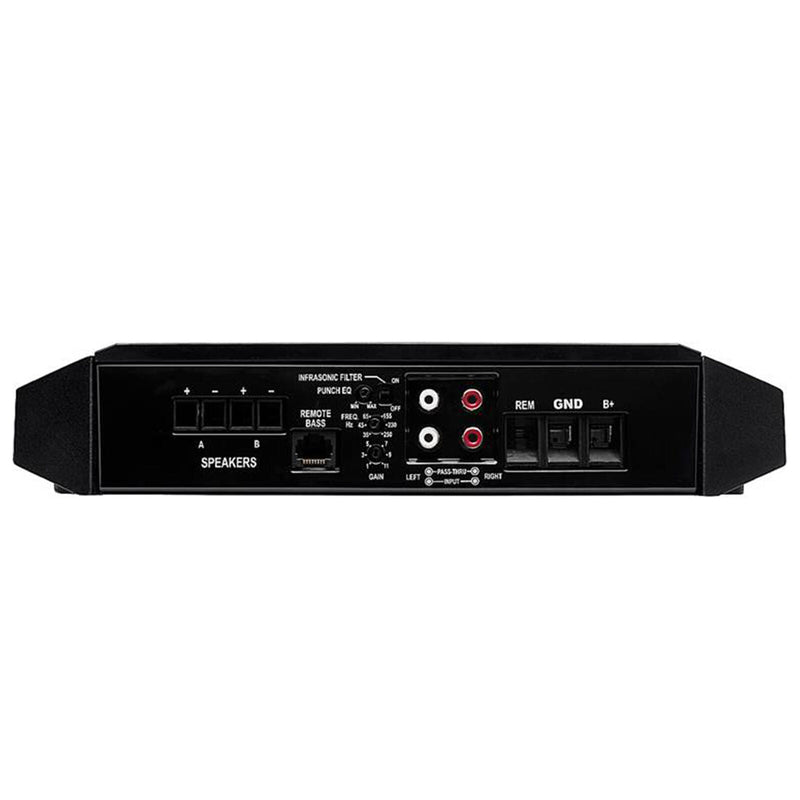

Signal Input: Low level: 1 RCA pair
Signal Output: Low Level: 1 RCA pair
Power Wire Gauge: 4 AWG
Power Input Connector: Block
Speaker Wire Gauge: 8 AWG to 18 AWG
Speaker Output Connector: Screw terminal barrier strip
Cooling: Convection
Operating Voltage: 9 - 16 VDC
Recommended Fuse (not included): 80 A Average
Current Draw (13.8V Music): 35 A Max.
Current Draw (13.8V Sinewave): 70 A
Suggested Alternator: 75 A
Signal Input: Low level: 1 RCA pair
Signal Output: Low Level: 1 RCA pair
Tone Controls: Bass: 0dB to +18dB @ 45Hz

Rated Power (RMS Continuous Power):
300 Watts x 1 @ 4-Ohm
500 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm

Dynamic Power(PVC/PowerCube®):
328 Watts x 1 @ 4-Ohms
537 Watts x 1 @ 2-Ohms
707 Watts x 1 @ 1-Ohm

Efficiency (average):
86.2% @ 4-Ohm
82.3% @ 2-Ohm
73.4% @ 1-Ohm

Total Harmonic Distortion (THD+Noise):
4-Ohm: Less Than 1.0%
2-Ohm: Less Than 1.0%
1-Ohm: Less Than 1.0%

Crossover Controls:
Low-Pass (LP): 35-250Hz 24dB/Octave Butterworth
Infrasonic Filter: -3dB @ 28Hz 12dB/Octave

Visual Indicators:

Dimensions: (H x W x D)
2.14 x 8.14 x 11.41 (in)
5.42 x 20.68 x 28.97 (cm)
