Rockford Fosgate M2-200X2 2 Channel 200 Watt Full Range Class D Marine Amplifier

• Bridgeable: Yes
• Number of Channels: 2
• Power Wire Gauge: 4 AWG
• Top Mounted Control Panel

Rockford Fosgate M2-200X2 2 Channel 200 Watt Full Range Class D Marine Amplifier



Designed to withstand the elements, the M2-200X2 Element Ready amplifier is a 200 watt, full-range class-D model, capable of operating at 4 or 2 stereo, and 4 bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases.

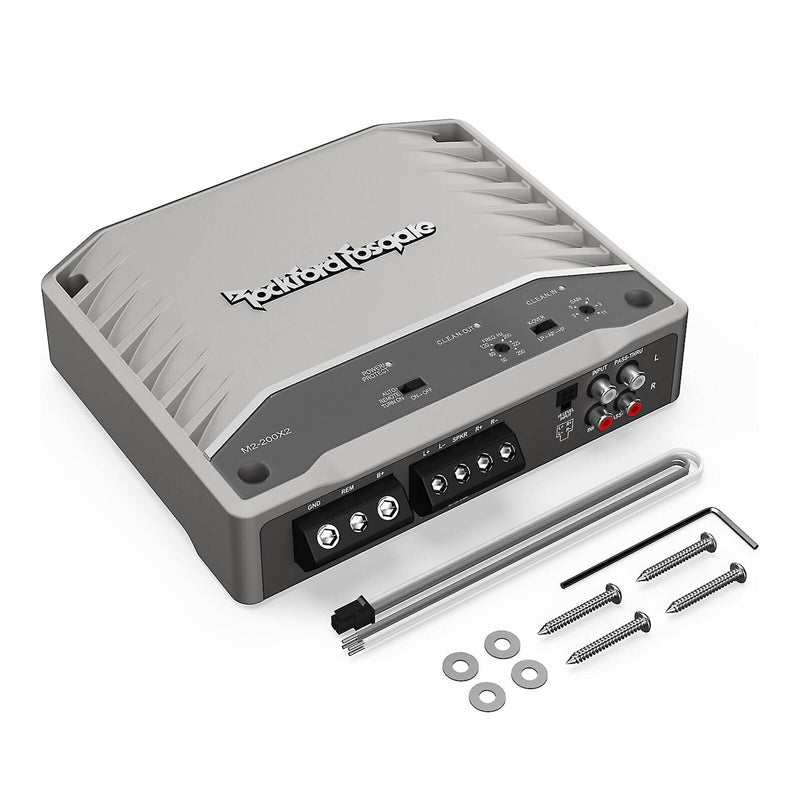

This Listing Includes:

(1) Marine Amplifier

(1) 7" Speaker Input Harness

(1) 3mm Hex Key

(4) 3/4" Screws

(4) Flat Washers



Features:

- Element Ready design protects against outdoor exposure

- Conformal coated circuit board protects against dust and water

- UV stable powder coated cast aluminum heatsink

- Zinc Nickel-plated Marine grade brass connection terminals

- C.L.E.A.N. input/output clip detection and indicator LEDs

- Optimized using AudioGraph PowerCube measurement tool

- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices

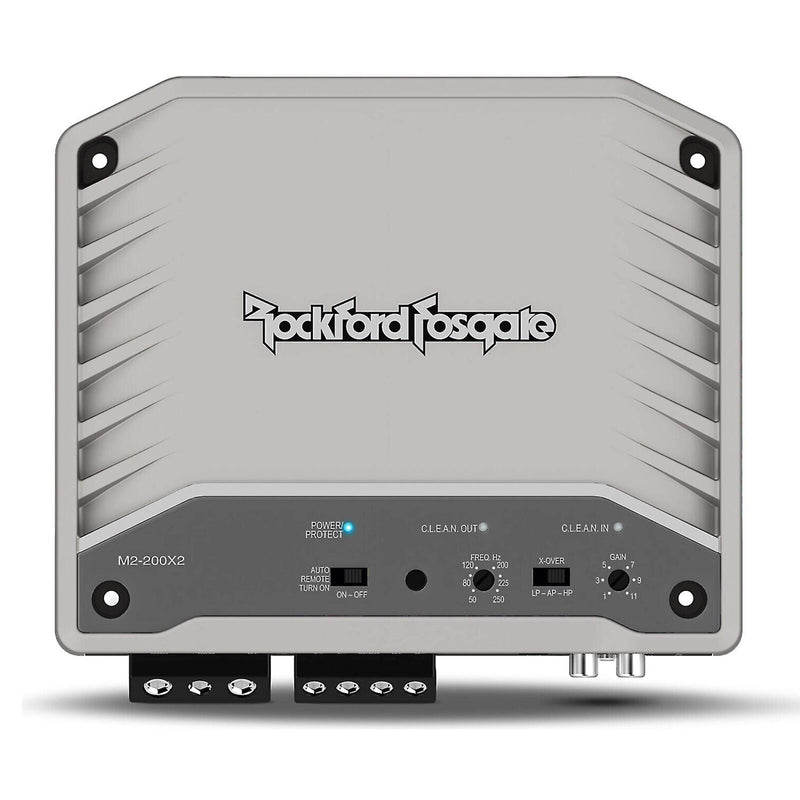

- Top Mounted Control Panel

- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

- Short Circuit & Over Current Protection

- Variable Infrasonic Filter

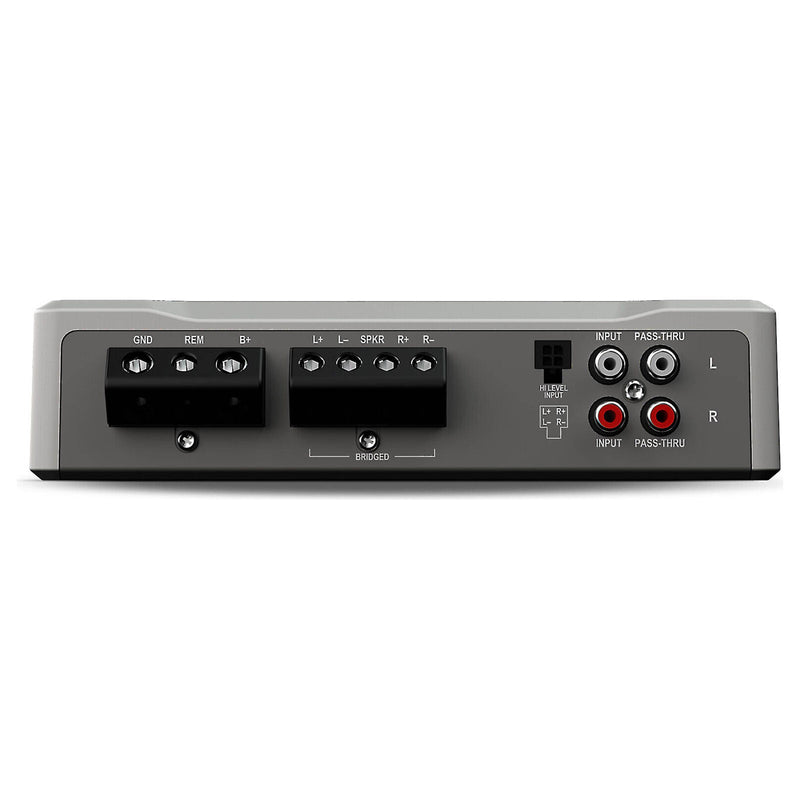

- Integrated Power and Speaker Terminals

- Balanced Differential Inputs eliminates noise picked up by signal cables

- RCA pass-thru outputs

- Integration with OEM and Aftermarket Radios

- "Auto-Sense" turn-on with remote out (high level in)

- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)

- Low Impedance Stability

- Proprietary testing using RATS (Rockford Automated Testing System)

- CEA-2006 Compliant & CE Compliant



Specifications:

Number of Channels: 2

Total Power(Sum of Rated Power): 200 Watts

Bridgeable: Yes

Frequency Response: 20 Hz - 20 kHz

Circuit Topology Class: Class D

Tone Controls: No

Remote Controls: No

Power Wire Gauge: 4 AWG

Power Input Connector: Compression Terminal Block

Speaker Wire Gauge: 8 AWG

Speaker Output Connector: Compression Terminal Block

Cooling: Convection

Operating Voltage: 9 - 16 VDC

Recommended Fuse(not included): 30 A

Max. Current Draw (13.8V Sinewave): 18 A



Rated Power(RMS Continuous Power):

50 Watts x 2 @ 4

100 Watts x 2 @ 2

200 Watts x 1 @ 4 Bridged/Mono



Dynamic Power(PVC/PowerCube):

60 Watts x 2 @ 4

107 Watts x 2 @ 2

215 Watts x 1 @ 4 Bridged/Mono



Input Sensitivity:

Low-Level: 150 mV - 4 V

High-Level: 450 mV - 12 V



Total Harmonic Distortion (THD+Noise):

4: Less Than 1.0%

2: Less Than 1.0%



Signal Input:

Low-Level: 2 RCA

High-Level: 4-Pin Molex



Signal Output:

Low-Level: 2 RCA

(Pass-Thru active with RCA or Hi-Level input)



Crossover Controls:

High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth

Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth

All-Pass: Yes



Visual Indicators:

Power/Protect

C.L.E.A.N. In

C.L.E.A.N. Out



Dimensions (HxWxD): 1.9" x 6.8"x 8.1"
