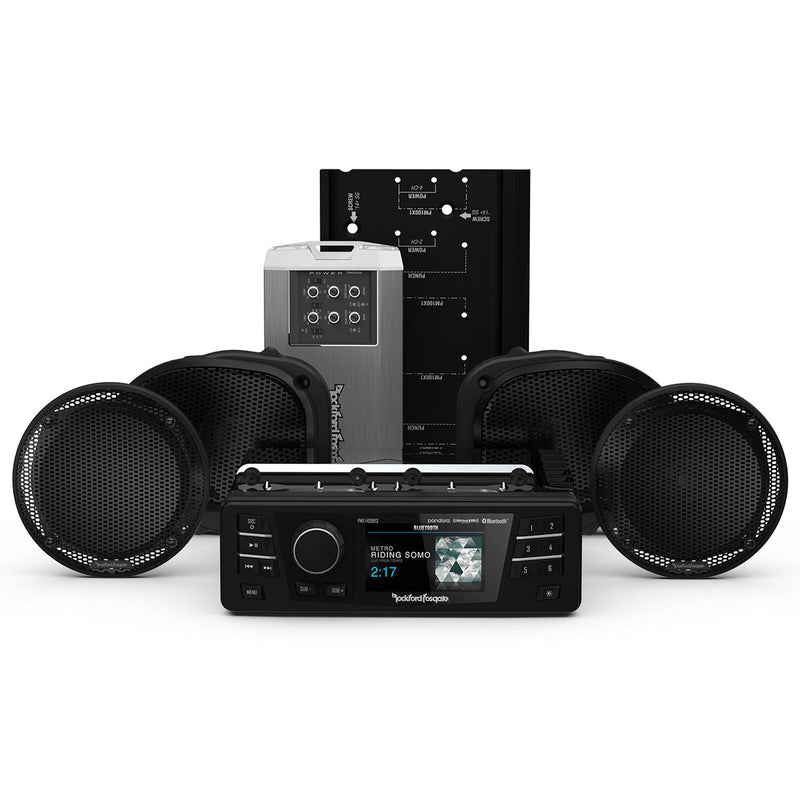

Rockford Fosgate HD9813RGU-STAGE2 Harley Davidson Road Glide Full Audio Kit
This 4-speaker, 400-watt high-performance audio system is designed for select 1998-2013 Harley-Davidson motorcycles. The replacement digital media receiver provides total control over your music by featuring Bluetooth wireless streaming, USB and AUX inputs, along with Pandora and an AM/FM digital tuner that is SiriusXM Ready. The 400-watt amplifier features 2-channels for the 6.5" fairing and 2-channels for the 5.25" TourPak speakers that are frequency-response tuned to overcome wind, exhaust, and road noise up to 75 MPH. The amplifier installation kit includes an external heat sink, mounting brackets, speaker, and power wiring with all necessary hardware.
This Listing Includes:
(1) PMX-HD9813 Source Unit
(2) TMS6RG Speakers
(2) 1998-2013 Road Glide Grilles
(2) TMS5 Speakers
(2) 1998-2013 TourPak Grilles
(1) TM400X4ad Amplifier
(1) RFK-HD9813 Amp Mounting Kit
(1) Wiring Harness Kit
(1) Hardware Pack

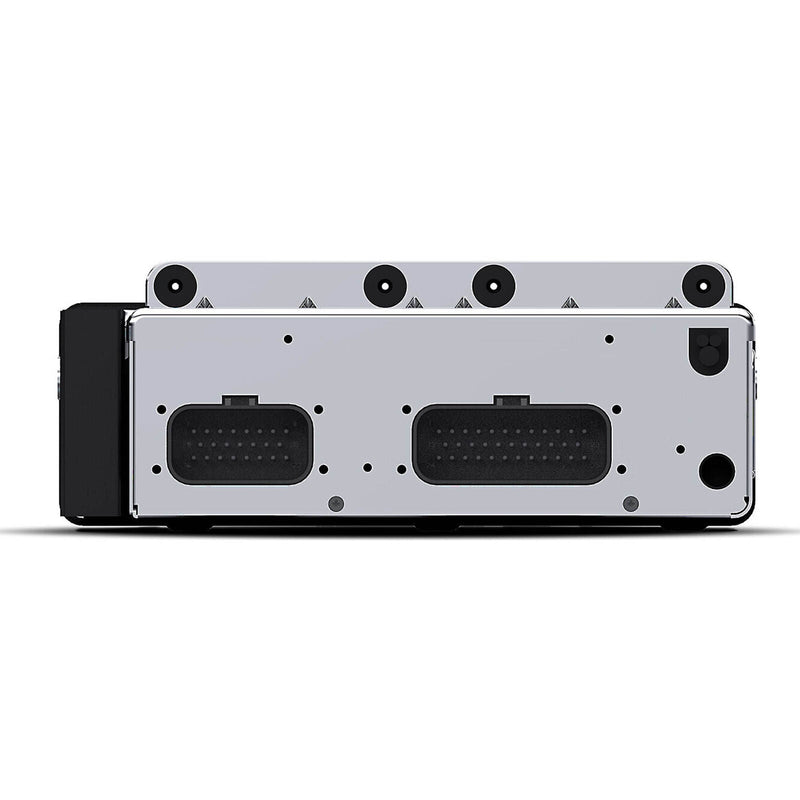

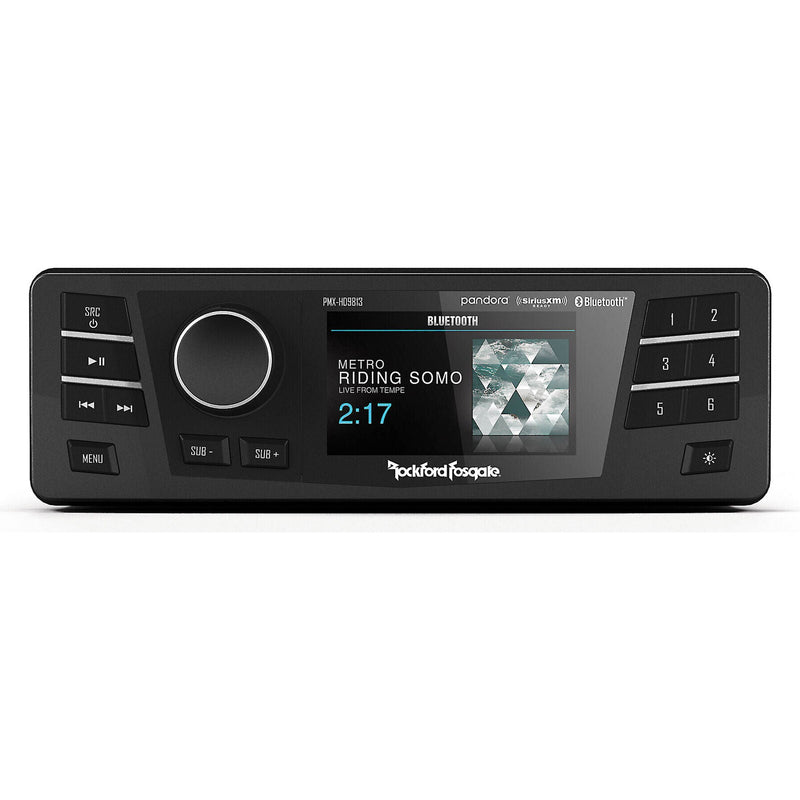

PMX-HD9813 Features:
- 1998-2013 Harley-Davidson direct replacement Media Receiver
- A2DP and AVRCP Bluetooth Wireless Streaming
- Pandora Internet Radio Control
- SiriusXM Ready (requires SiriusXM SXV300 tuner)
- Digital AM / FM Tuner
- USB Input with 1.5A USB Charging
- AUX Input
- 3" Full-Color TFT Display with Day/Night Mode
- Retains Factory Handle Bar Audio Controls
- Voltage gauge with Low voltage Warning
- 7-Band Graphic EQ + PEQ
- Plug and Play Installation with OEM electrical connectors
- Independent Subwoofer Level Control
- Compatible with PMX-BTUR Remote control
- Multi Region Radio Frequencies
- Selectable HP/LP/AP Crossover with Selectable 12/24 dB/Octave Slope
- Software updatable via USB
PMX-HD9813 Dimensions:
Faceplate: 2.7" x 8.4" x 0.7" (HxWxD)
Chassis: 2.5" x 8.2" x 7.5" (HxWxD)

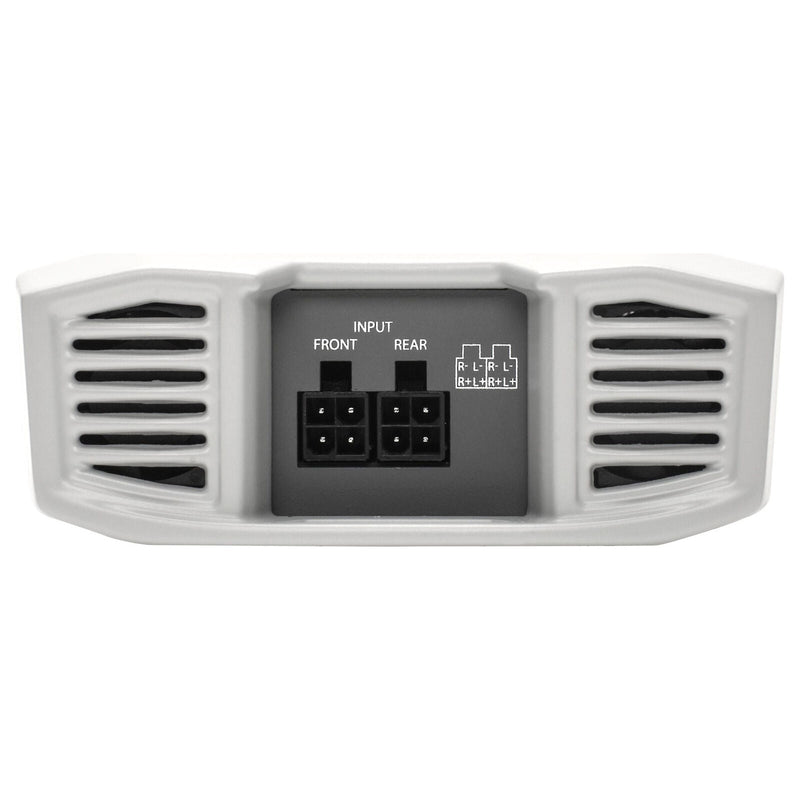

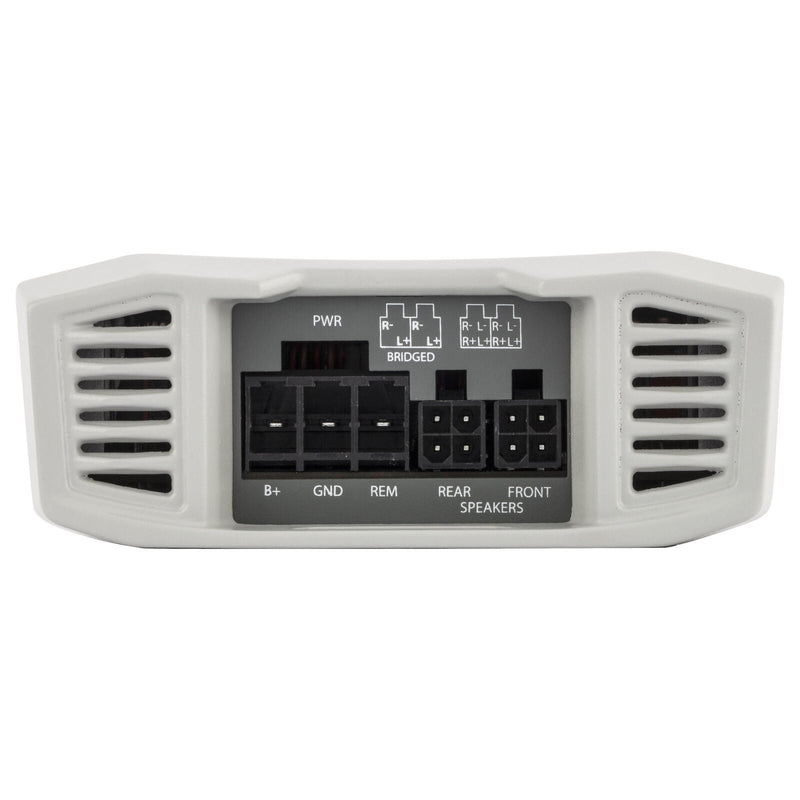

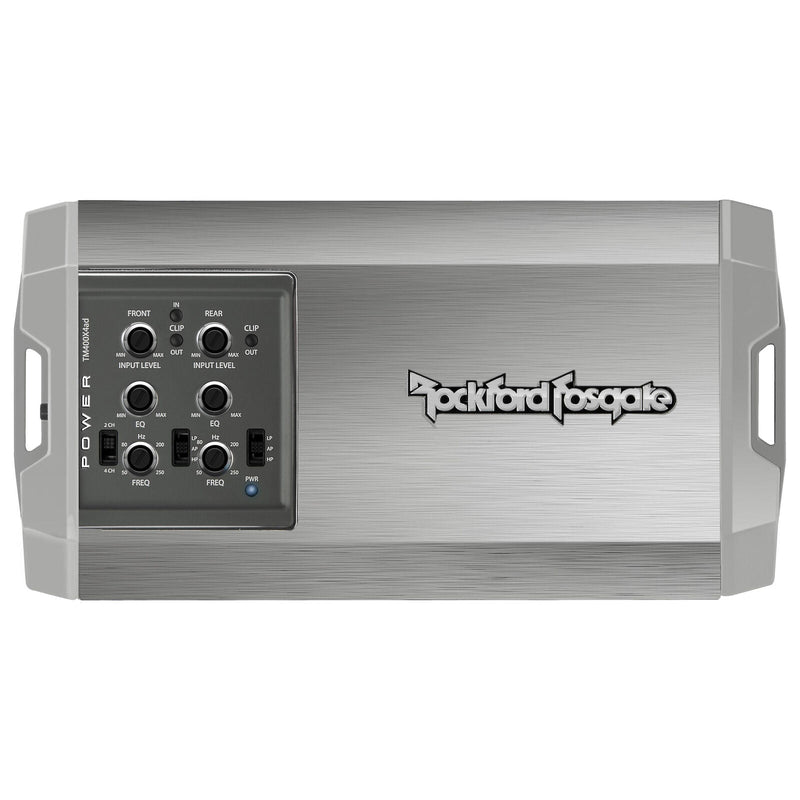

TM400X4ad Features:
- Rockford Fosgate proprietary Class AD technology
- 4/2 Ohm muti-impedance Constant Power
- Differential inputs with high-level auto turn-on feature
- 8 AWG power/ground connector w/ upgraded RCA connectors
- Remote-Out feature when using high-level inputs
- 2/4 channel input switch
- 4 Ohm bridged capable
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Top mounted controls
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks
- Discrete surface mount technology
- Marine grade two-part epoxy coating on circuit boards
TM400X4ad Specifications:
Number of Channels: 4
Total Power(Sum of Rated Power): 400 Watts
Rated Power (RMS Continuous Power):
- 100 Watts x 4 @ 4-Ohm
- 100 Watts x 4 @ 2-Ohm
- 200 Watts x 2 @ 4-Ohm Bridged
Dynamic Power(PVC/PowerCube):
- 128 Watts x 4 @ 4-Ohm
- 152 Watts x 4 @ 2-Ohm
- 290 Watts x 2 @ 4-Ohm Bridged

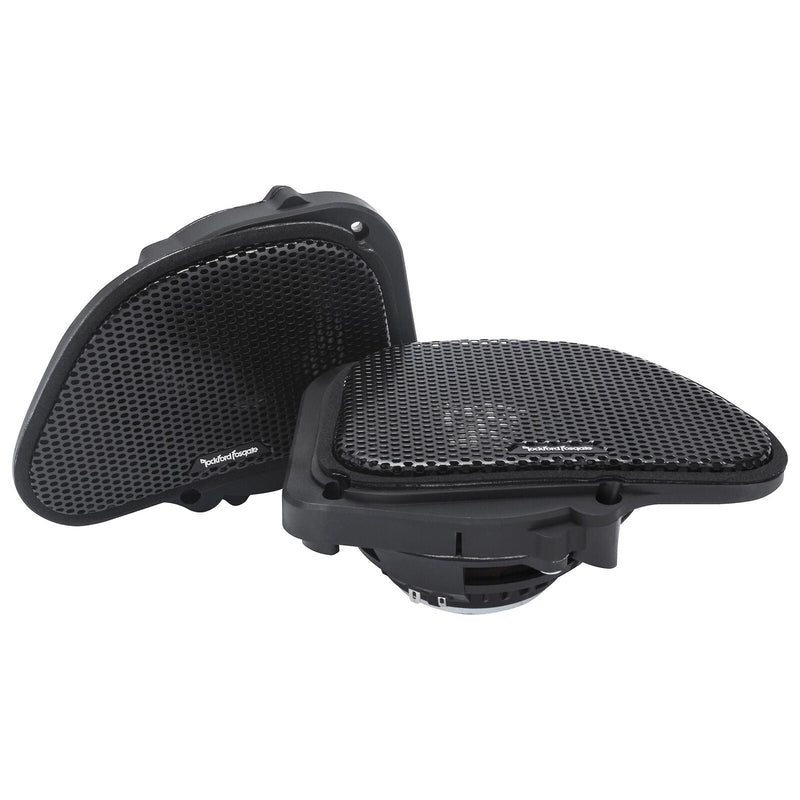

TMS6RG Specifications:
Speaker Type: 2-Way Coax
Midrange Size(Nominal Diameter): 6.5"
Frequency Response (Hz): 56 Hz - 20 kHz
Nominal Impedance (Ohms): 4-Ohm
Power Handling (MAX): 150 Watts MAX
Power Handling (RMS): 75 Watts RMS
Sensitivity(dB @ 2.83V/1M): 94 dB
Sensitivity(dB @ 1W/1M): 91 dB
TMS6RG Dimensions:
Mounting Diameter: 5.0"
Mounting Depth: 2.1"

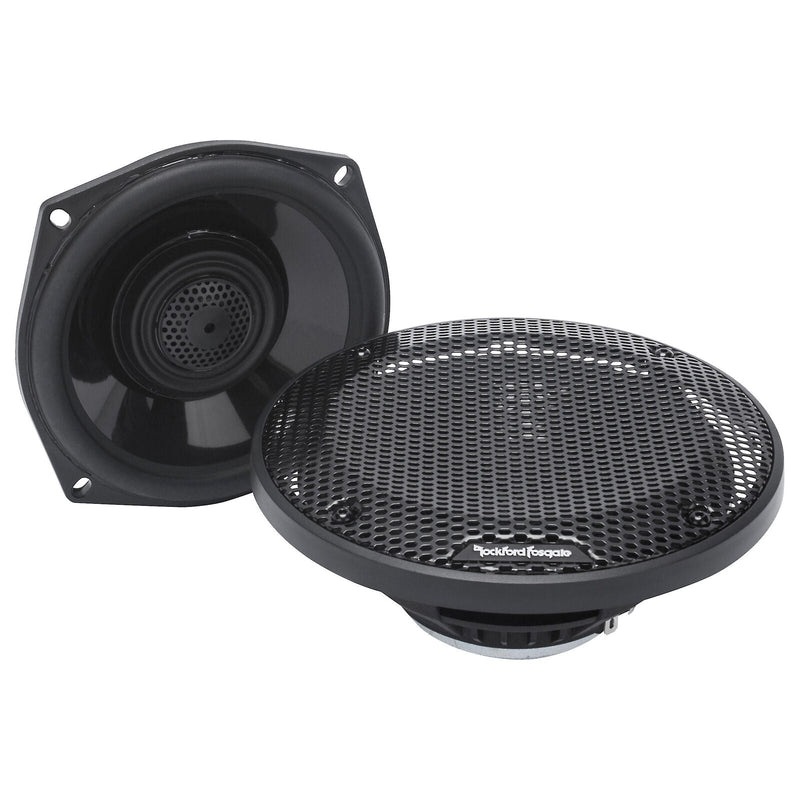

TMS5 Specifications:
Speaker Type: 2-Way Coax
Midrange Size(Nominal Diameter): 5.25"
Frequency Response (Hz): 64 Hz - 20 kHz
Nominal Impedance (Ohms): 4-Ohm
Power Handling (MAX): 130 Watts MAX
Power Handling (RMS): 65 Watts RMS
Sensitivity(dB @ 2.83V/1M): 94 dB
Sensitivity(dB @ 1W/1M): 91 dB
TMS5 Dimensions:
Mounting Diameter: 4.6"
Mounting Depth: 2.0"

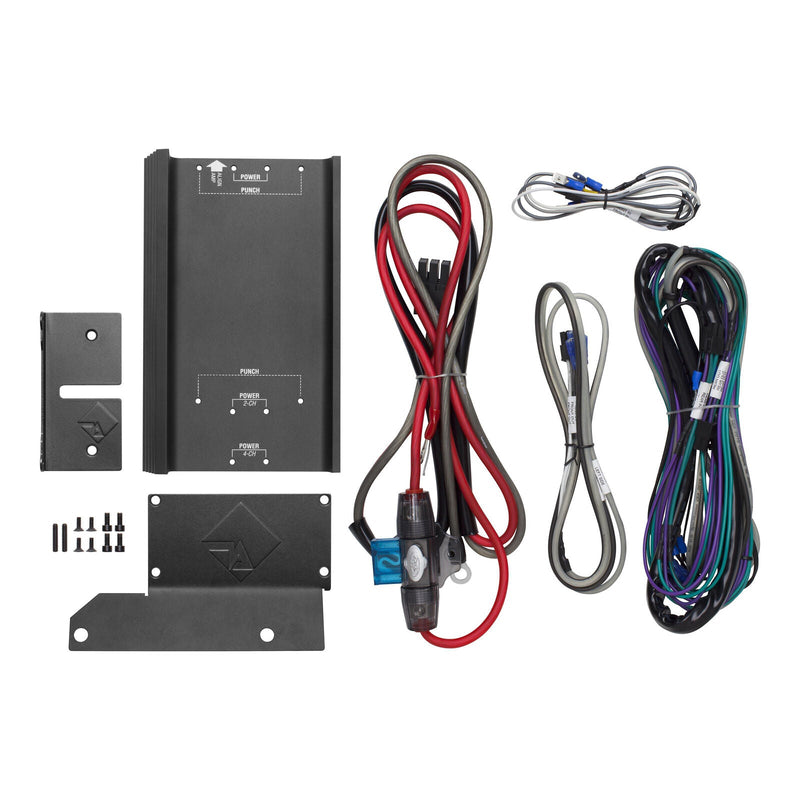

RFK-HD9813 Features:
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Plug and Play design for easy installation
- Designed for use with 1998-Current Harley-Davidson Motorcycles
- Designed for use with Power Marine TM400X4ad model amplifier
- Includes mounting brackets for Bat Wing and Shark Nose fairings
- Includes amp output Y-adaptors for lower fairing and/or TourPak speakers
- Includes rear speaker output harness for connection of rear speakers
RFK-HD9813 Specifications:
Battery PWR/GND Gauge: 8 AWG
Amplifier PWR/GND Gauge: 8 AWG
Speaker Wire Gauge: 16 AWG
Speaker Wire Gauge: 16 AWG
Fuse Size: 60 Amp
Fuse Type: MAXI
