- - Rockford Fosgate proprietary Class AD technology
- - Class bd Technology
- - Differential inputs with high level auto turn-on feature
- - AP remote out feature when using high level inputs
- - 4/2 Ohm Multi-Impedance Constant Power

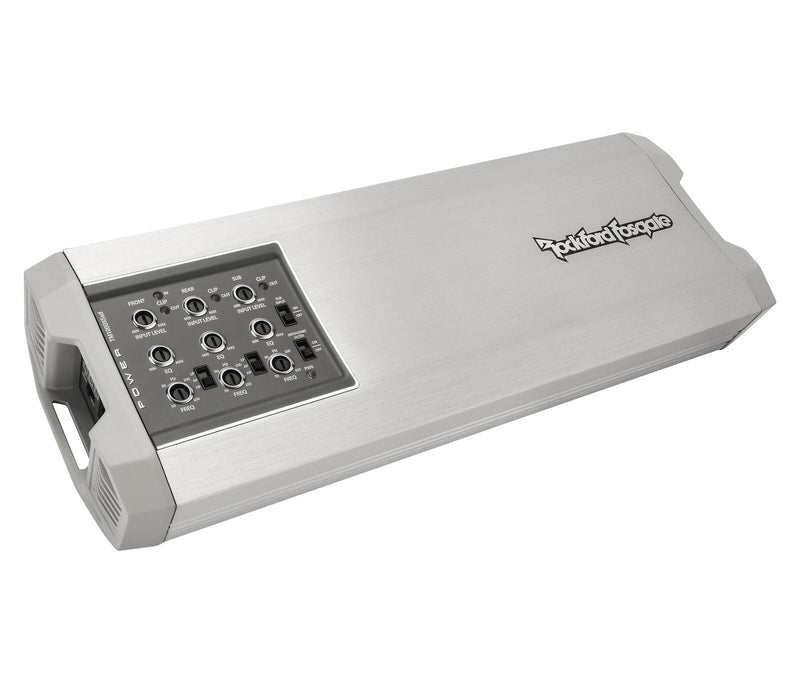

Rockford Fosgate 5 Channel 1000 Watt Class AD Power Marine Amplifier TM1000X5ad
The Power Marine TM1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs
This Listing Includes:
(1) Amplifier
Features:
- Rockford Fosgate proprietary Class AD technology
- Class bd Technology
- Differential inputs with high level auto turn-on feature
- AP remote out feature when using high level inputs
- 4/2 Ohm Multi-Impedance Constant Power
- C.L.E.A.N. input/output clip detection and indicator LEDs

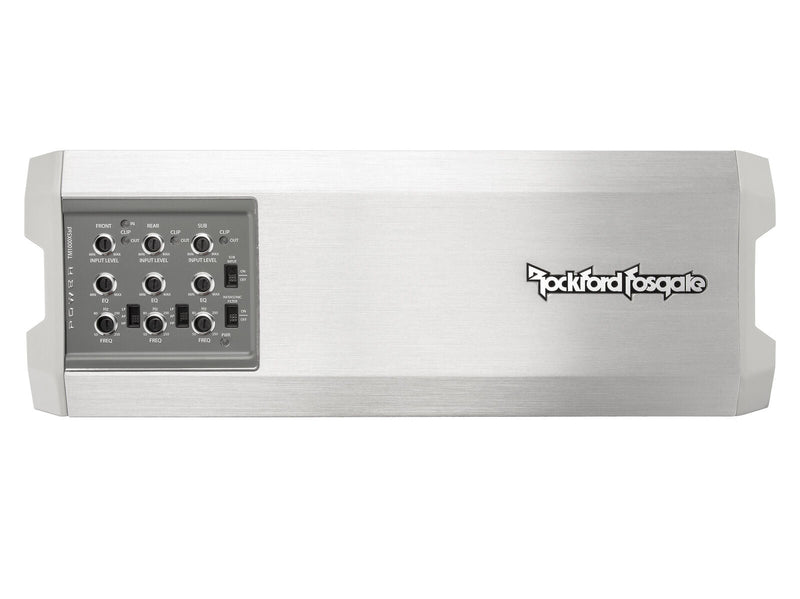

- Top mounted controls
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks
- All other Rockford protection schemes
- CEA-2006 and CE Compliant
- Discrete surface mount technology
- Marine grade two part epoxy coating on circuit boards
Specifications:
Number of Channels: 5
Total Power: 1000 Watts
Bridgeable: Yes
Frequency Response: 20Hz - 20kHz
Input Sensitivity: 150 mV to 12 V
Circuit Topology Class: Class AD + Class BD (Sub)
Efficiency (average): More Than 85%
Optional PLC2 provides Punch Level Control (Not Included)

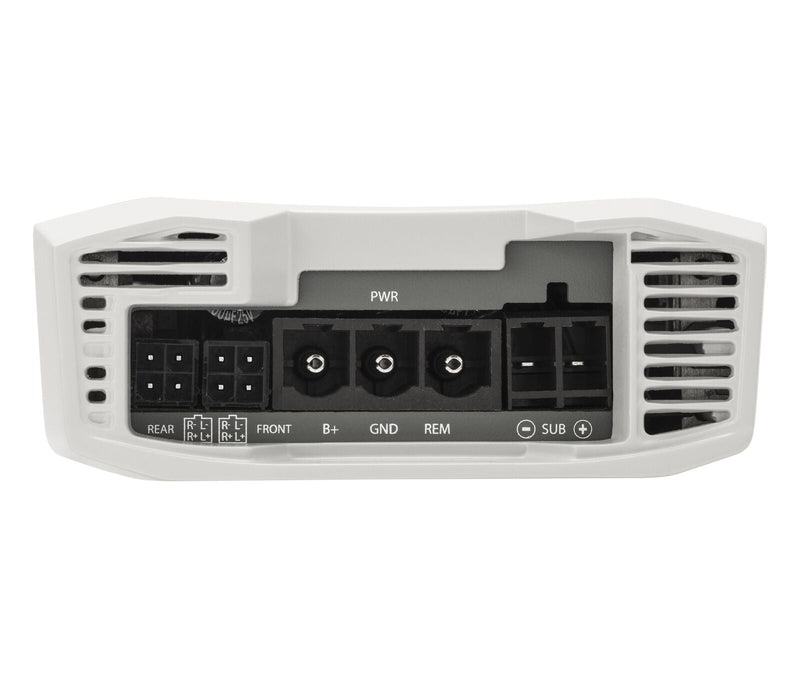

Power Wire Gauge: 4 AWG
Power Input Connector: Detachable Compression Terminal
Rated Power
- 100 Watts x 4 + 400 Watts x 1 @ 4
- 100 Watts x 4 + 600 Watts x 1 @ 2
- N/A + 600 Watts x 1 @ 1
- 200 Watts x 2 @ 4 Bridged + N/A
Dynamic Power
- 138 Watts x 4 + 487 Watts x 1 @ 4
- 118 Watts x 4 + 748 Watts x 1 @ 2
- N/A + 663 Watts x 1 @ 1
- 225 Watts x 2 @ 4 Bridged + N/A

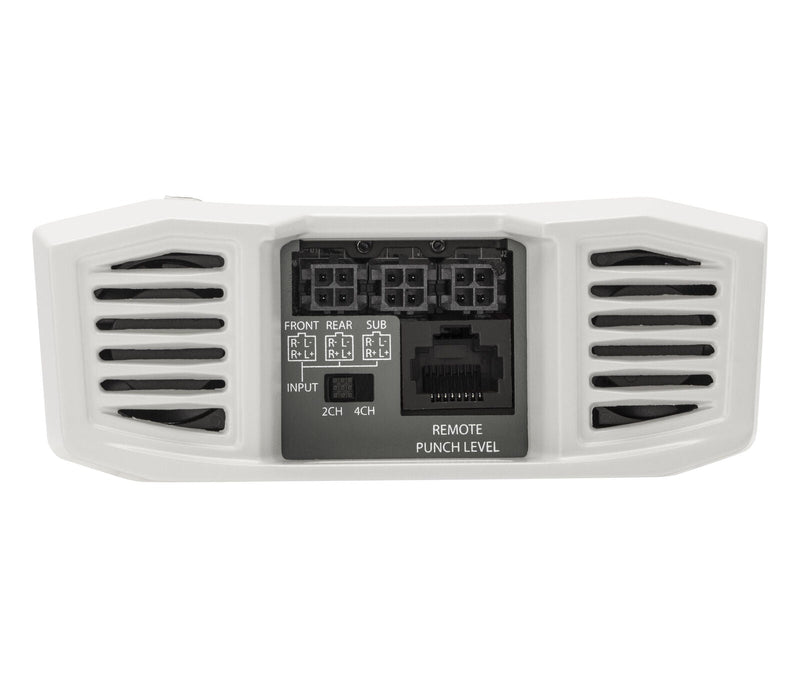

Signal Input
- Front High/Low Input: 4-Pin harness
- Rear High/Low Input: 4-Pin harness
- Input Switch: 2CH/4CH
Tone Controls
- Front/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode)
- Front/Rear Bass: 0 to +18 dB @ 45Hz (LP mode)
- Sub: 0 to +18 dB @ 45Hz
Crossover Controls
- High-Pass: 50Hz - 250Hz @ 12dB/Octave
- Low-Pass: 50Hz - 250Hz @ 12dB/Octave
- Subwoofer: 50Hz - 250Hz @ 12dB/Octave
- Infrasonic: 28Hz @ 12dB/Octave
- Butterworth Alignment on all filters
Visual Indicators
- Power: Blue LED
- Protect: Red LED
- Input Clip: Red LED3
- Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
- 1BLUE: Less Than or Equal to 0.5% THD
- 2VIOLET: 1% THD
- 3RED: 10%+ THD
Speaker Wire Gauge
- Front/Rear: 16 AWG
- Sub: 10 AWG
Speaker Output Connector
- Front: 4-Pin Harness
- Rear: 4-Pin Harness
- Sub: Detachable Compression Terminal
