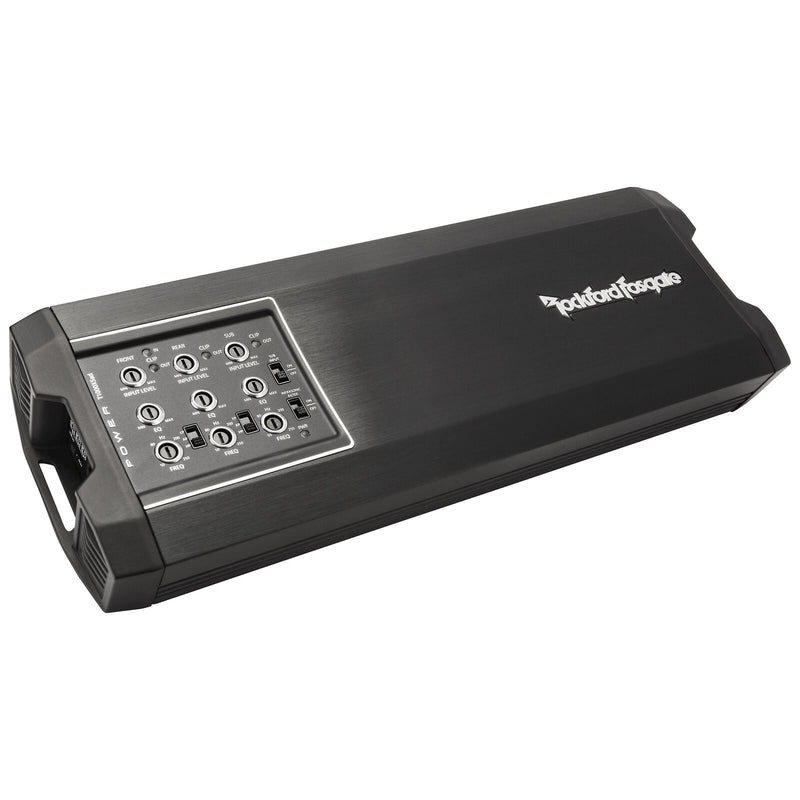

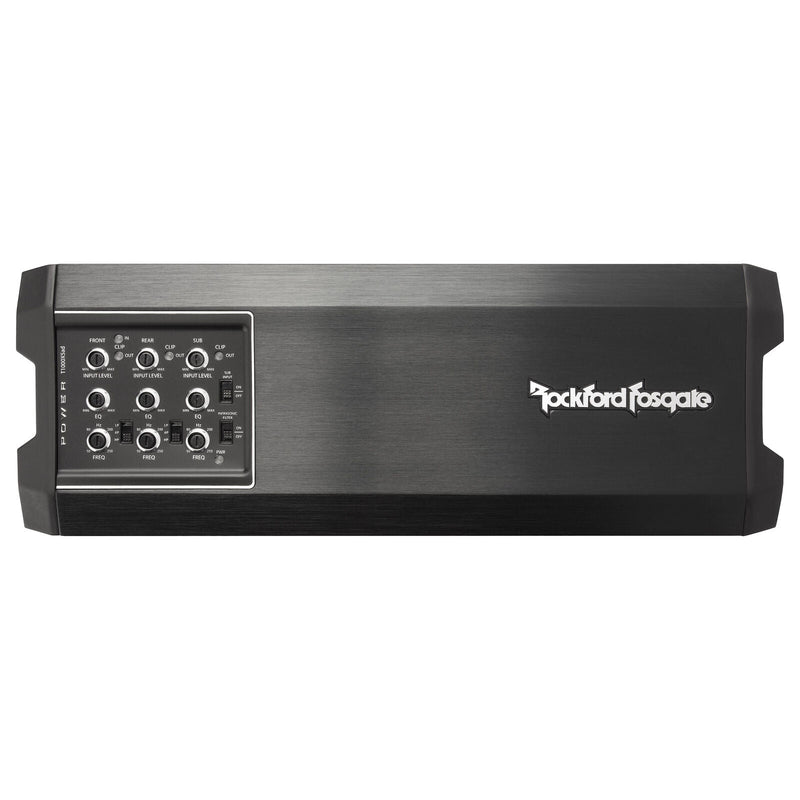

Rockford Fosgate 5-Channel 1000W 2-Ohm Class-AD Amplifier T1000X5AD + Install Kit

Rockford Fosgate 5-Channel 1000W Class-AD Amplifier T1000X5AD + Install Kit

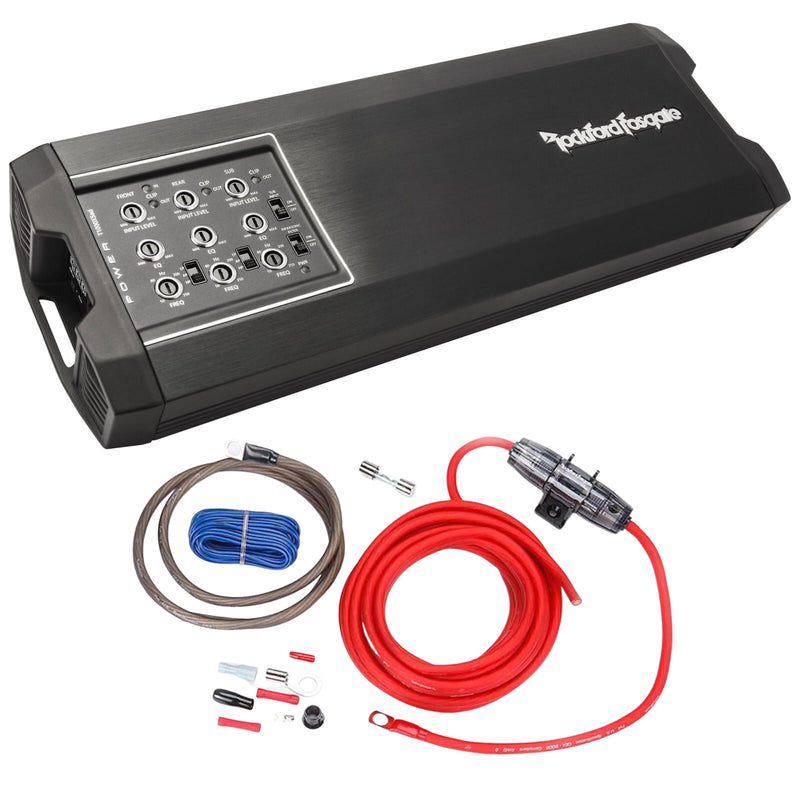

This Listing Includes:

• (1) Rockford Fosgate 5 Channel Amplifier T1000X5AD
• (1) Rockford Fosgate RFK4 Wire Kit

Get a free one-year extended warranty on this select Rockford Fosgate Amplifier when purchased as an Amplifier Installation Kit bundle.

The T1000X5ad Element Ready multi-channel amplifier is a 1000-watt RMS unit built on our proprietary Class ad platform designed to deliver unprecedented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel.

Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs.

Features:

• Class BD
• Rockford Fosgate proprietary Class AD technology
• Differential inputs with high level auto turn-on feature
• 4/2 Ohm muti-impedance Constant Power
• Remote-Out feature when using high level inputs
• 2013 PLC2 remote ready (Not Included)
• C.L.E.A.N. input/output clip detection and indicator LEDs

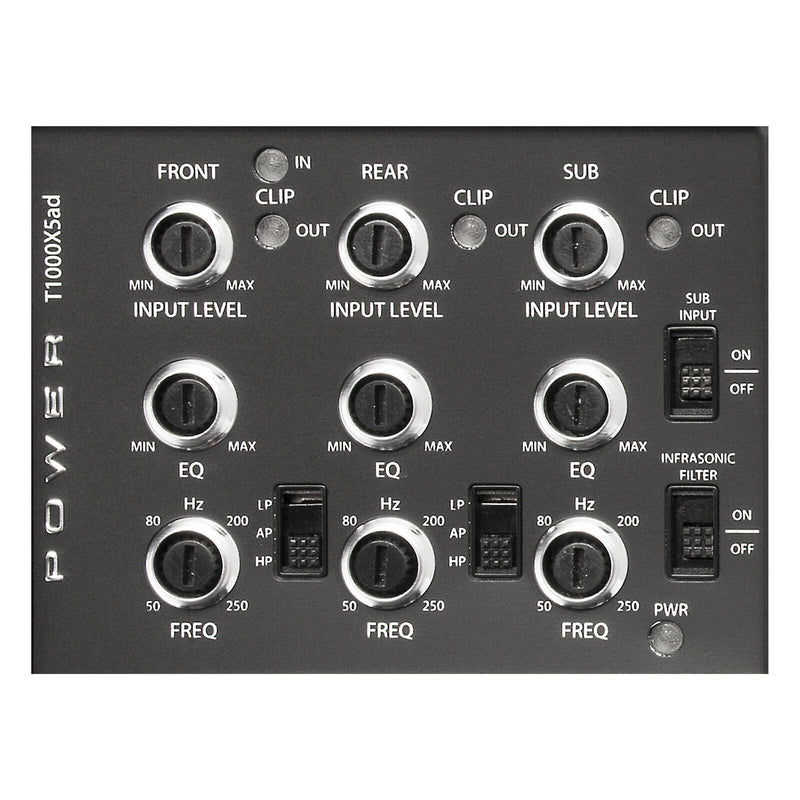

• Top mounted controls
• Dual fan cooled
• Real time thermal sensing with Rollback technology
• Dual extruded heat sinks
• All other normal Rockford protection schemes
• CEA-2006 and CE compliant
• Discrete surface mount technology

Specifications:

• Number of Channels: 5
• Total Power: 1000 Watts
• Frequency Response: 20Hz - 20kHz
• Input Sensitivity: 150 mV to 12 V
• Circuit Topology Class: Class AD + Class BD (Sub)
• Efficiency (average): More than 85%
• Power Wire Gauge: 4 AWG
• Power Input Connector: Detachable Compression Terminal
• Cooling: Dual Fan Cooled
• Recommended Fuse(not included): 100 A

Rated Power:

• 100 Watts x 4 + 400 Watts x 1 @ 4
• 100 Watts x 4 + 600 Watts x 1 @ 2
• N/A + 600 Watts x 1 @ 1
• 200 Watts x 2 @ 4 Bridged + N/A

Dynamic Power:

• 138 Watts x 4 + 487 Watts x 1 @ 4
• 118 Watts x 4 + 748 Watts x 1 @ 2
• N/A + 663 Watts x 1 @ 1
• 225 Watts x 2 @ 4 Bridged + N/A
• Bridgeable: Yes
• Front Terminals: Left (+) Right (-)
• Rear Terminals: Left (+) Right (-)

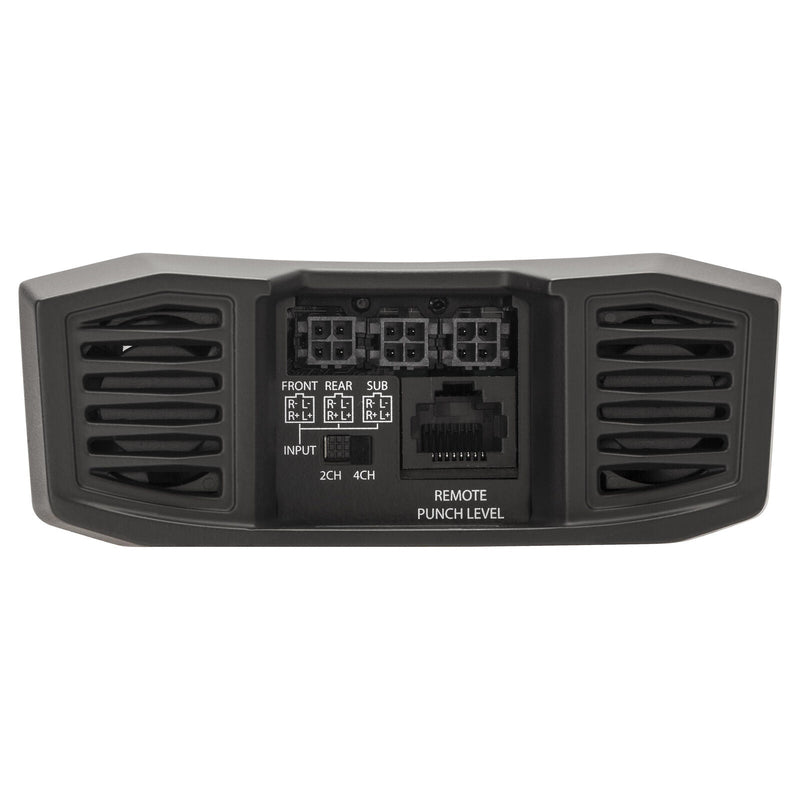

Signal Input:

• Front High/Low Input: 4-Pin harness
• Rear High/Low Input: 4-Pin harness
• Sub High/Low Input: 4-Pin harness
• Input Switch: 2CH/4CH
• (2CH: sub signal derived from Front Left input)

Tone Controls:

• Front/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode)
• Front/Rear: 0 to +18 dB @ 45Hz (LP mode)
• Sub: 0 to +18 dB @ 45 Hz

Crossover Controls:

• High-Pass: 50Hz - 250Hz @ 12dB/Octave
• Low-Pass: 50Hz - 250Hz @ 12dB/Octave
• Subwoofer: 50Hz - 250Hz @ 12dB/Octave
• Infrasonic: 28Hz @ 12dB/Octave
• Butterworth Alignment on all filters

Visual Indicators:

• Power: Blue LED
• Protect: Red LED
• Input Clip: Red LED3
• Output Clip: Blue/Violet/Red LED1,2,3

LED Color Legend:

• 1BLUE:  Less Than 0.5% THD
• 2VIOLET: 1% THD
• 3RED: 10%+ THD

Speaker Wire Gauge:

• Front/Rear: 16 AWG
• Sub: 10 AWG

Speaker Output Connector:

• Front: 4-Pin Harness
• Rear: 4-Pin Harness
• Sub: Detachable Compression Terminal

Dimensions:

• Width: 4.3" / 10.8cm
• Length: 12" / 30.5cm
• Height: 1.6" / 4.1cm
