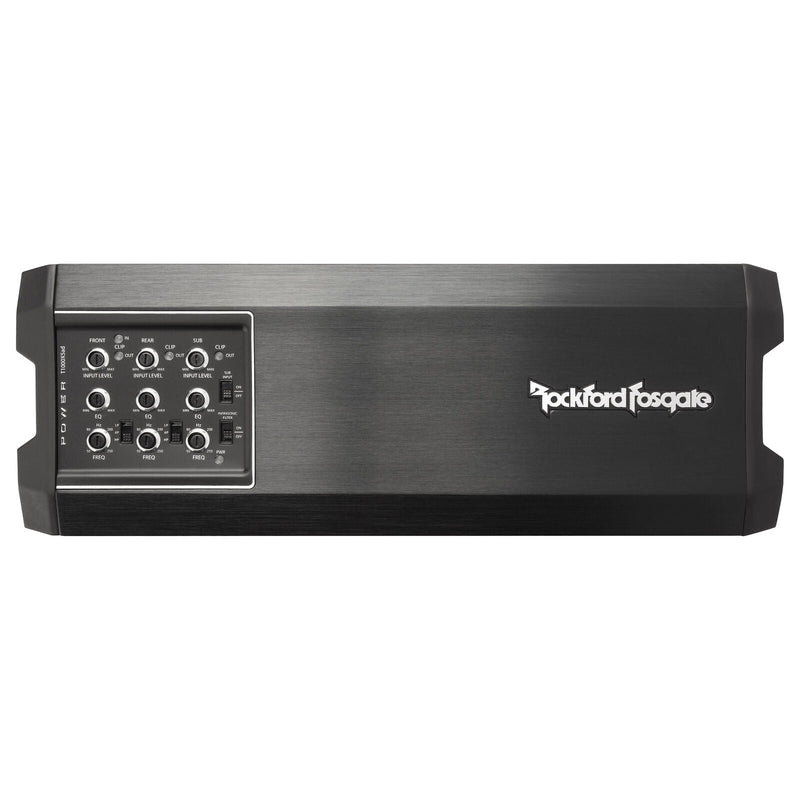

Rockford Fosgate 5 Channel 1000 Watt Class AD Amplifier T1000X5AD
The T1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecedented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel.

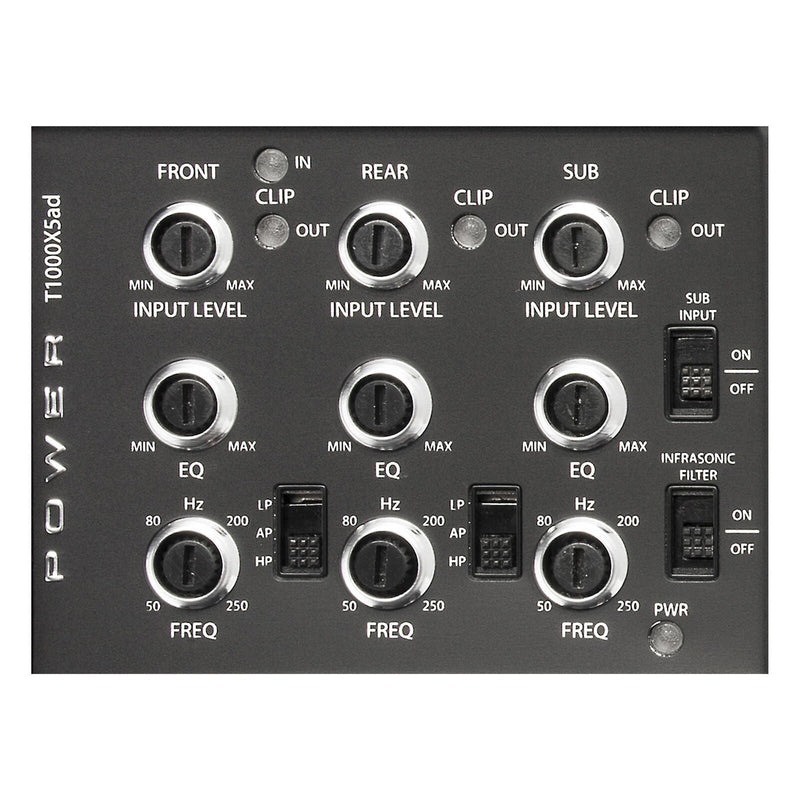

Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs.
Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. The Amplifier is also compatible with our PLC2 level remote control allowing remote output level control of the sub channel.
This Listing Includes:
(1) Rockford Fosgate 5 Channel Amplifier T1000X5AD
(3) 4-Pin Stereo RCA Cables
(2) 4-Pin Harnesswith Attached Wire
(1) Allen Wrench
- Class BD
- Rockford Fosgate proprietary Class AD technology
- Differential inputs with high level auto turn-on feature
- 4/2 Ohm muti-impedance Constant Power
- Remote-Out feature when using high level inputs
- 2013 PLC2 remote ready (Not Included)
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Top mounted controls
- Dual fan cooled
- Real time thermal sensing with Rollback technology
- Dual extruded heat sinks
- All other normal Rockford protection schemes
- CEA-2006 and CE compliant
- Discrete surface mount technology
Number of Channels: 5
Total Power: 1000 Watts
Frequency Response: 20Hz - 20kHz
Input Sensitivity: 150 mV to 12 V
Circuit Topology Class: Class AD + Class BD (Sub)
Efficiency (average): More than 85%
Power Wire Gauge: 4 AWG

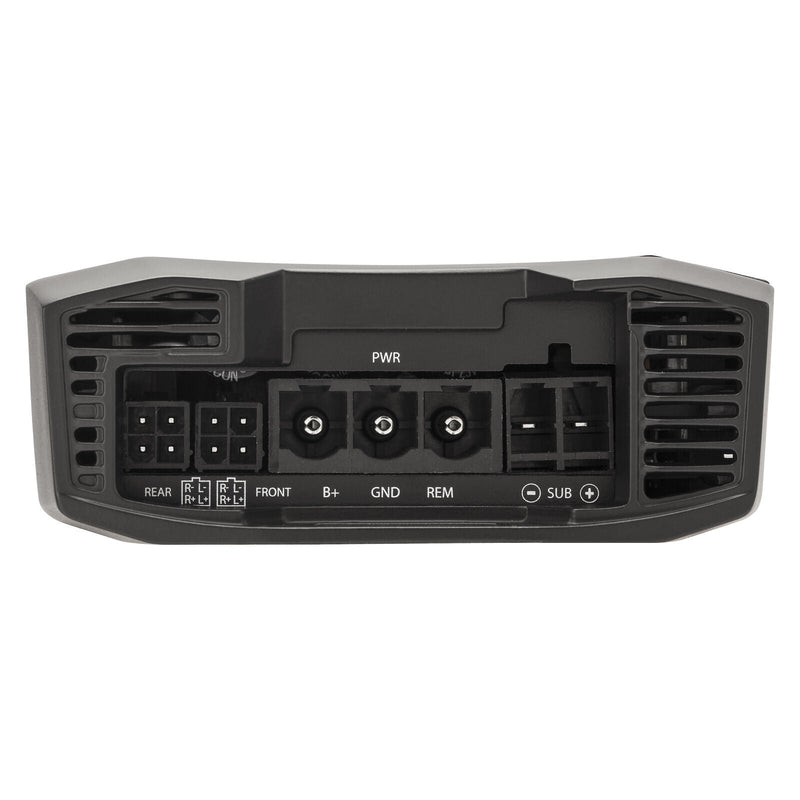

Power Input Connector: Detachable Compression Terminal
Cooling: Dual Fan Cooled
Recommended Fuse(not included): 100 A
100 Watts x 4 + 400 Watts x 1 @ 4
100 Watts x 4 + 600 Watts x 1 @ 2
N/A + 600 Watts x 1 @ 1
200 Watts x 2 @ 4 Bridged + N/A
138 Watts x 4 + 487 Watts x 1 @ 4
118 Watts x 4 + 748 Watts x 1 @ 2
N/A + 663 Watts x 1 @ 1
225 Watts x 2 @ 4 Bridged + N/A
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
Total Harmonic Distortion (THD+Noise):
4 Ch 4-Ohm: Less than 1.0%
4 Ch 2-Ohm: Less than 1.0%
Sub 4-Ohm Less than1.0%
Sub 2-Ohm Less than 1.0%
Sub 1-Ohm Less than 1.0%

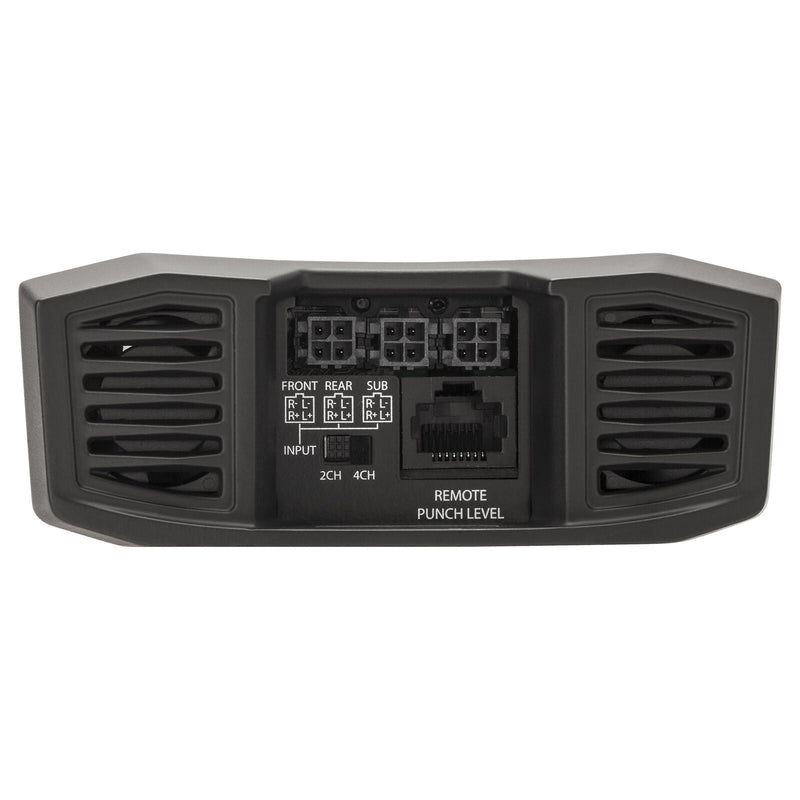

Front High/Low Input: 4-Pin harness
Rear High/Low Input: 4-Pin harness
Sub High/Low Input: 4-Pin harness
Input Switch: 2CH/4CH
(2CH: sub signal derived from Front Left input)
Front/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode)
Front/Rear: 0 to +18 dB @ 45Hz (LP mode)
Sub: 0 to +18 dB @ 45 Hz
High-Pass: 50Hz - 250Hz @ 12dB/Octave
Low-Pass: 50Hz - 250Hz @ 12dB/Octave
Subwoofer: 50Hz - 250Hz @ 12dB/Octave
Infrasonic: 28Hz @ 12dB/Octave
Butterworth Alignment on all filters
Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: Less Than 0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Speaker Wire Gauge:
Front/Rear: 16 AWG
Sub: 10 AWG
Speaker Output Connector:
Front: 4-Pin Harness
Rear: 4-Pin Harness
Sub: Detachable Compression Terminal
Dimensions (H x W x D):
1.6 x 4.3 x 12 (in.)
4.1 x 10.8 x 30.5 (cm)
