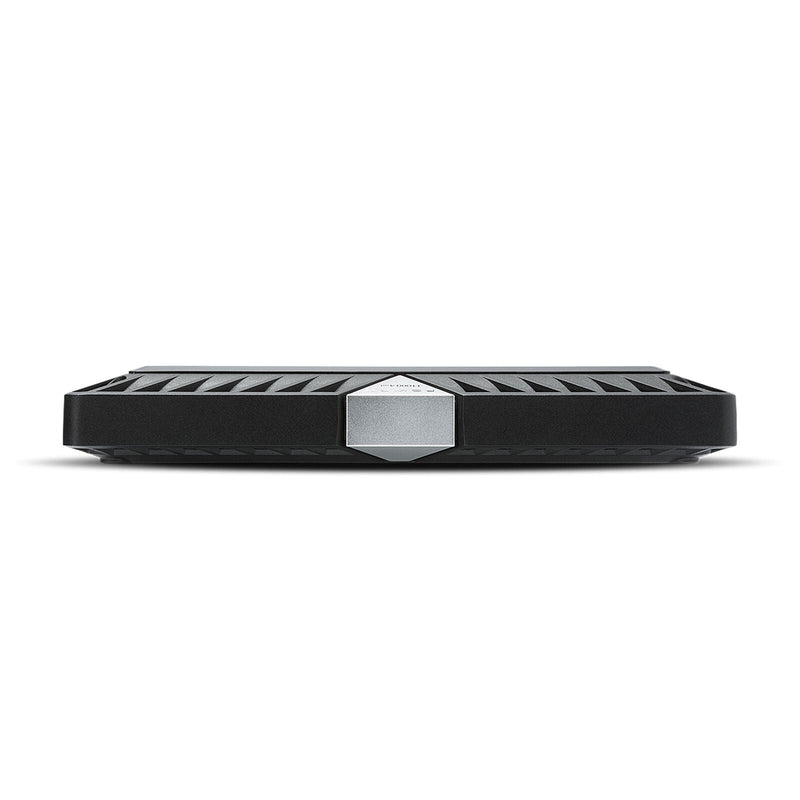

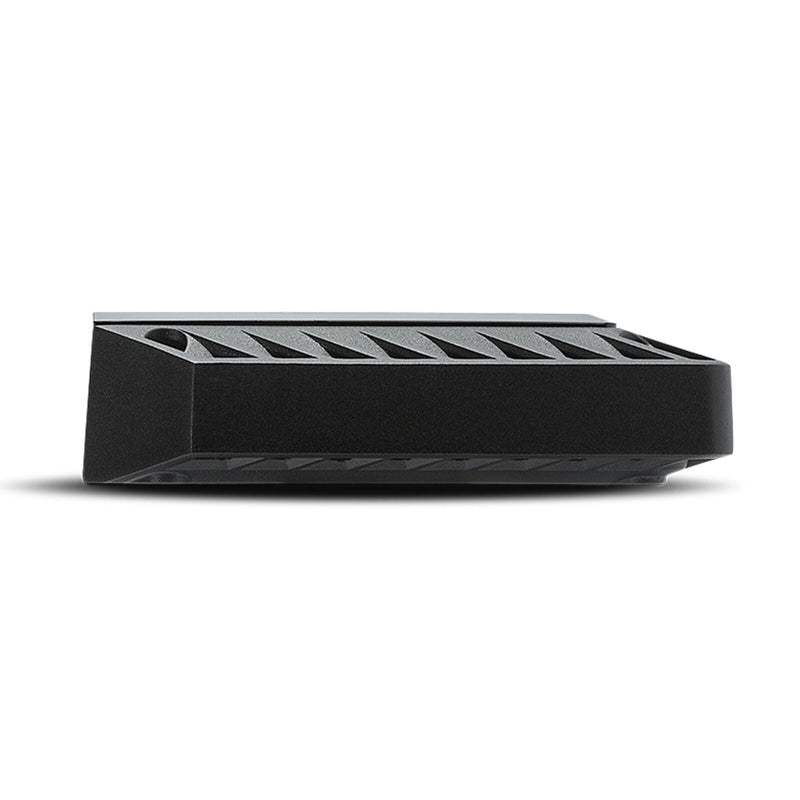

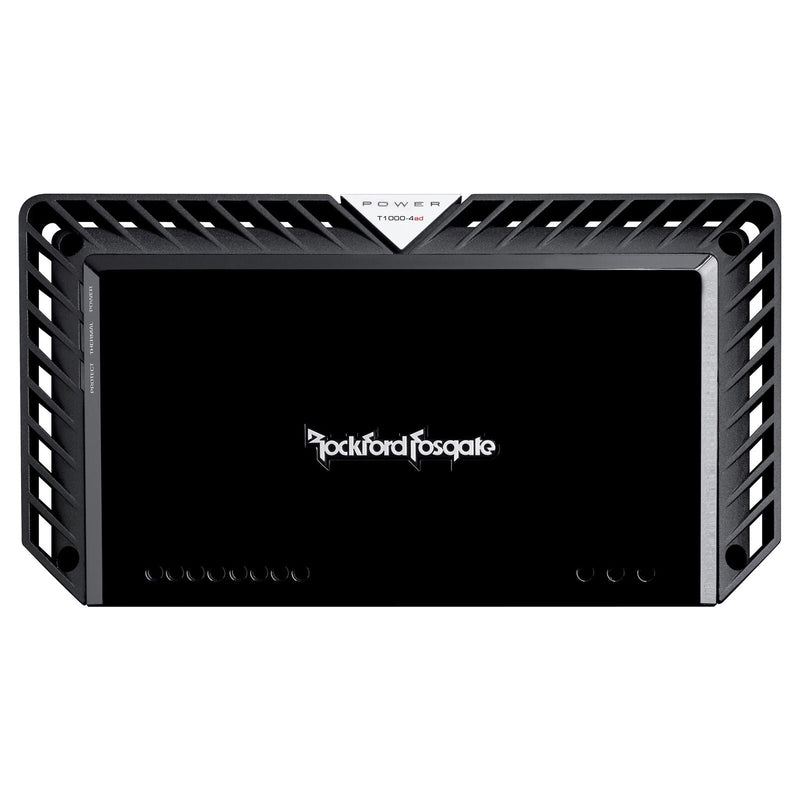

Rockford Fosgate 4 Channel 1000W Full Range Class AD Amplifier + Install Kit

SKU RF-T1000-4AD-AK
Sold out
Original price $3,119.99
Original price $3,119.99 - Original price $3,119.99
Original price $3,119.99
Current price $999.99
$999.99 - $999.99
Current price $999.99

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3% *Must purchase 2 items to qualify
  • Spend $500, Save 5% *Must purchase 3 items to qualify
  • Spend $1000, Save 7% *Must purchase 4 items to qualify

*Does not apply to: AudioControl, Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

  • Get a free one-year extended warranty on this select Rockford Fosgate Amplifier when purchased as an Amplifier Installation Kit bundle.
  • Dynamic Thermal Management cooling system
  • variable high- and low-pass filters (50-500 Hz, 24 dB/octave)
  • variable bass/treble boost (0-18 dB at 45 Hz, 0-12 dB at 12k Hz)
  • 4-gauge power and ground leads and a 150-amp fuse recommended — wiring and hardware included with this listing


Rockford Fosgate 4 Channel Amplifier 1000W Full Range Class AD Constant Power


Get a free one-year extended warranty on this select Rockford Fosgate Amplifier when purchased as an Amplifier Installation Kit bundle.


The T1000-4ad combines sound quality characteristics of Class-A designs with the efficiency of a Class-D in one remarkable package. Superior sound quality is possible through the implementation of dynamic switching frequency control. The addition of Constant Power circuitry produces optimized output at a range of impedances. Rockford Fosgate created Class-bd for brute power to run low-frequency subwoofers, and now Class-ad offers high fidelity in a full-range configuration.

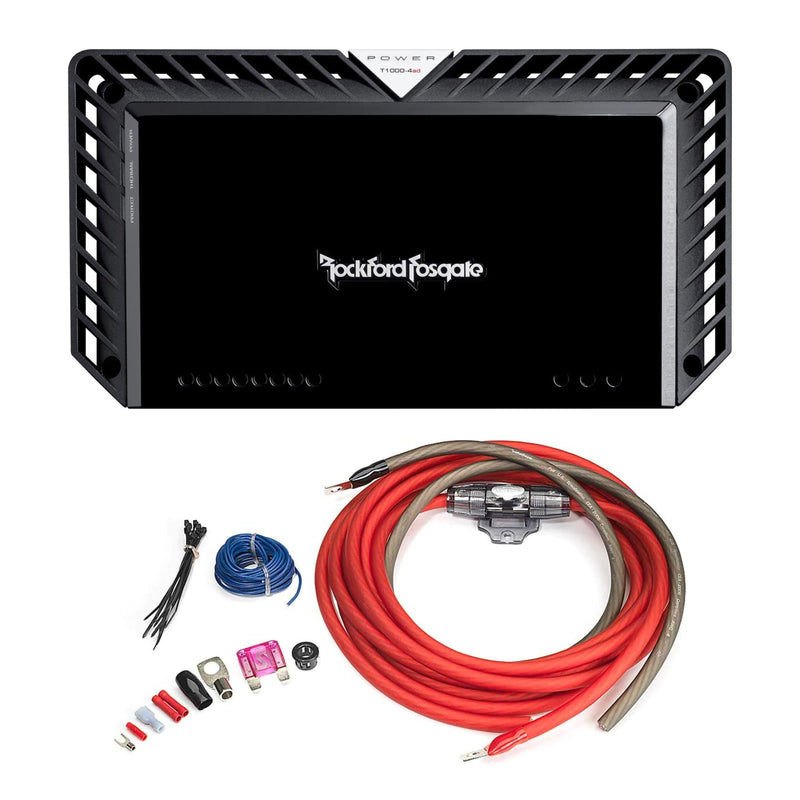

This Listing Includes:

(1) 4-Channel Amplifier

(4) 1-1/2" Self-tapping screws

(1) Manual


(1) Rockford Fosgate RFK4 Wire Kit

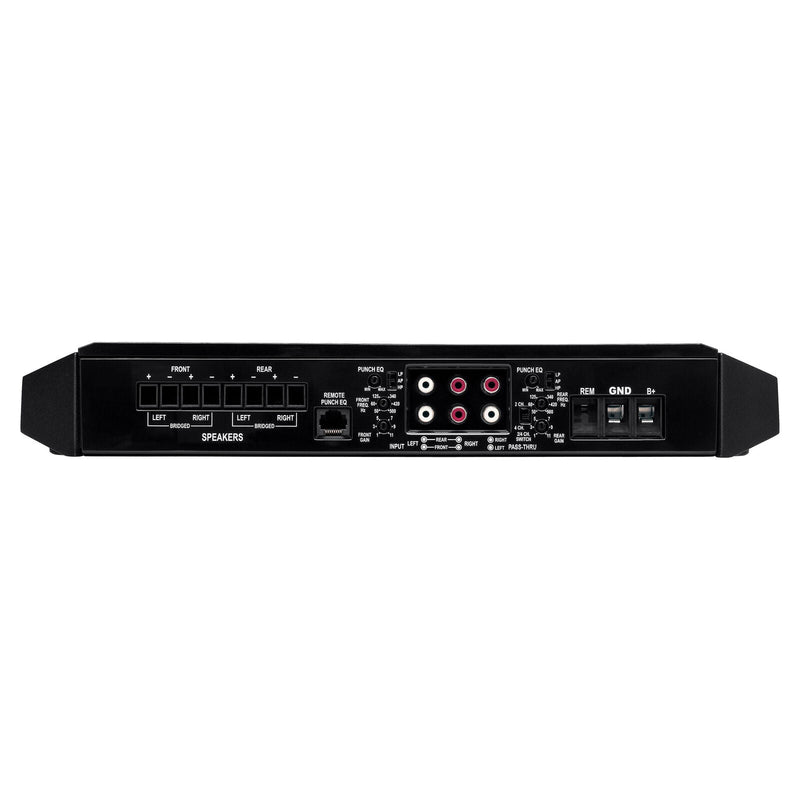

Features:

- 2/4 channel input switch

- 24dB/octave crossover

- 4 Gauge power/ground connectors

- Audiophile grade speaker connections

- MOSFET power supply

- MOSFET output stage

- RCA pass-thru outputs



Specifications:

Number of Channels: 4

Total Power(Sum of Rated Power): 1000 Watts RMS

Bridgeable: Yes

Frequency Response: 20Hz to 20kHz +/-1dB

Input Sensitivity: 150 mV to 5 V

Circuit Topology Class: Class AD

Signal Output: 1 RCA pair

Power Wire Gauge: 4 AWG

Power Input Connector: Block

Speaker Wire Gauge: 8 AWG to 16 AWG

Speaker Output Connector: Block

Cooling: Convection

Operating Voltage: 9 - 16 VDC

Recommended Fuse(not included): 150 A

Average Current Draw (13.8V Music): 60 A

Max. Current Draw (13.8V Sinewave): 120 A

Suggested Alternator: 75 A



Rated Power(RMS Continuous Power):

250 Watts x 4 @ 4-Ohm

250 Watts x 4 @ 2-Ohm

250 Watts x 4 @ 1-Ohm

500 Watts x 2 @ 4-Ohm Bridged

500 Watts x 2 @ 2-Ohm Bridged



Dynamic Power(PVC/PowerCube):

270 Watts x 4 @ 4-Ohm 0 Res

327 Watts x 4 @ 2-Ohm 0 Res

365 Watts x 4 @ 1-Ohm 0 Res

619 Watts x 2 @ 4-Ohm Bridged

654 Watts x 2 @ 2-Ohm Bridged



Efficiency (average):

84.1% @ 4-Ohm

81.6% @ 2-Ohm

81% @ 1-Ohm



Total Harmonic Distortion (THD+Noise):

4-Ohm: Less than 1.0%

2-Ohm: Less than 1.0%



Signal Input:

Front Channels: 1 RCA pair

Rear Channels: 1 RCA pair

Input Switch: 2CH / 4CH



Tone Controls:

Front Channels:

Treble: 0dB to +12dB @ 12kHz

Bass: 0dB to +18dB @ 45Hz



Rear Channels:

Treble: 0dB to +12dB @ 12kHz

Bass: 0dB to +18dB @ 45Hz

Function depends upon crossover setting (LP/AP/HP)



Crossover Controls:

Front Channels:

High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth

Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth



Rear Channels:

High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth

Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth



Visual Indicators:

Power (Blue LED)

Thermal (Red LED)

Protect (Yellow LED)



Dimensions (H x W x D): 2.14 x 8.14 x 14.91 (in)
