Rockford 12" 1600 Watt Dual Voice Coil 4 Ohm Infinite Baffle Marine Subwoofer

Rockford Fosgate SKU: RF-M2D4-12I


Shipping calculated at checkout

Only 10 left!

Rockford 12" 1600 Watt Dual Voice Coil 4 Ohm Infinite Baffle Marine Subwoofer

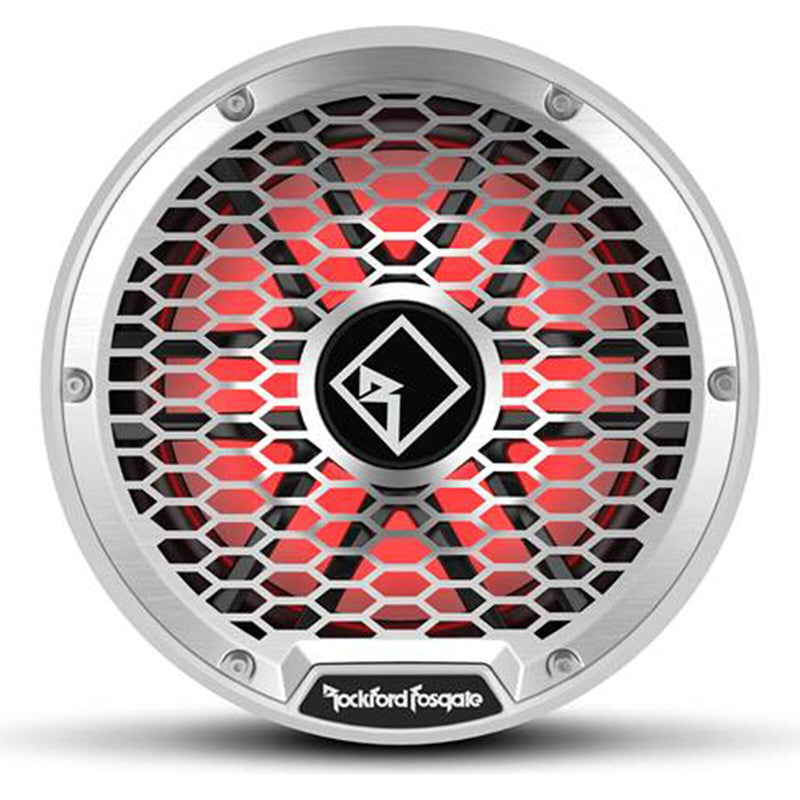

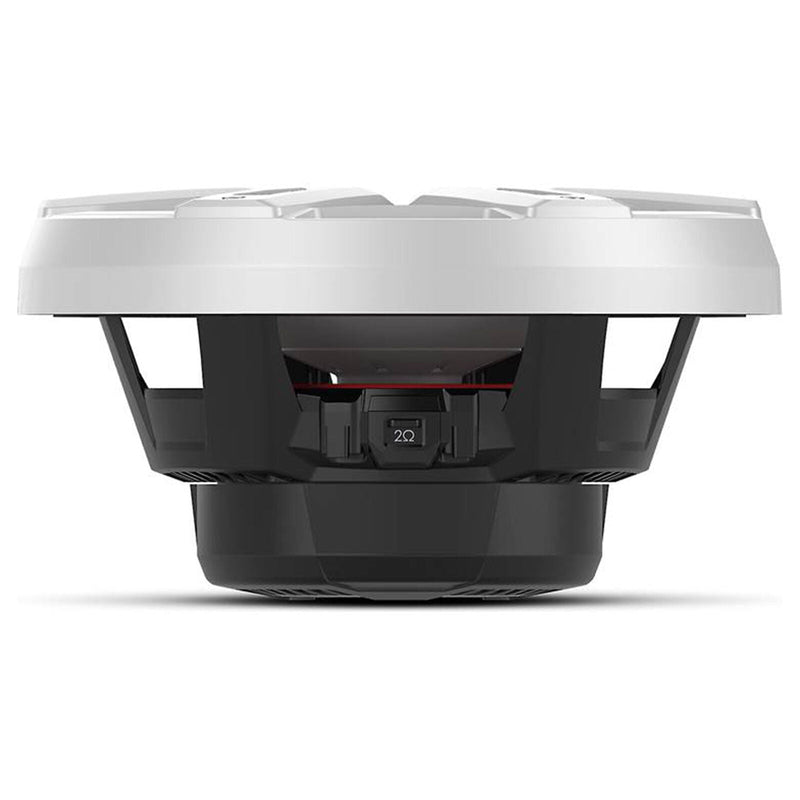

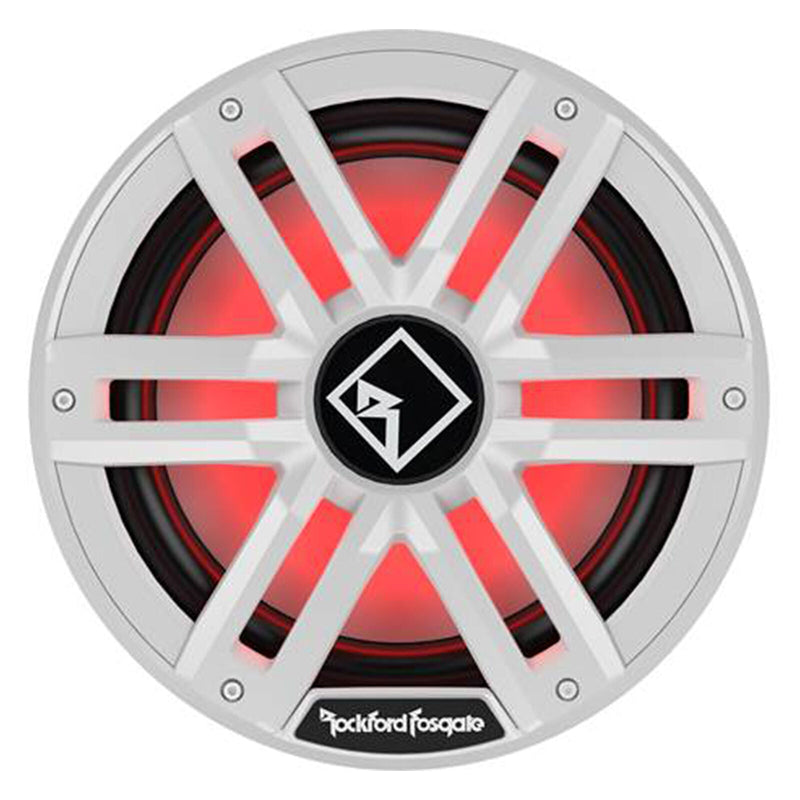

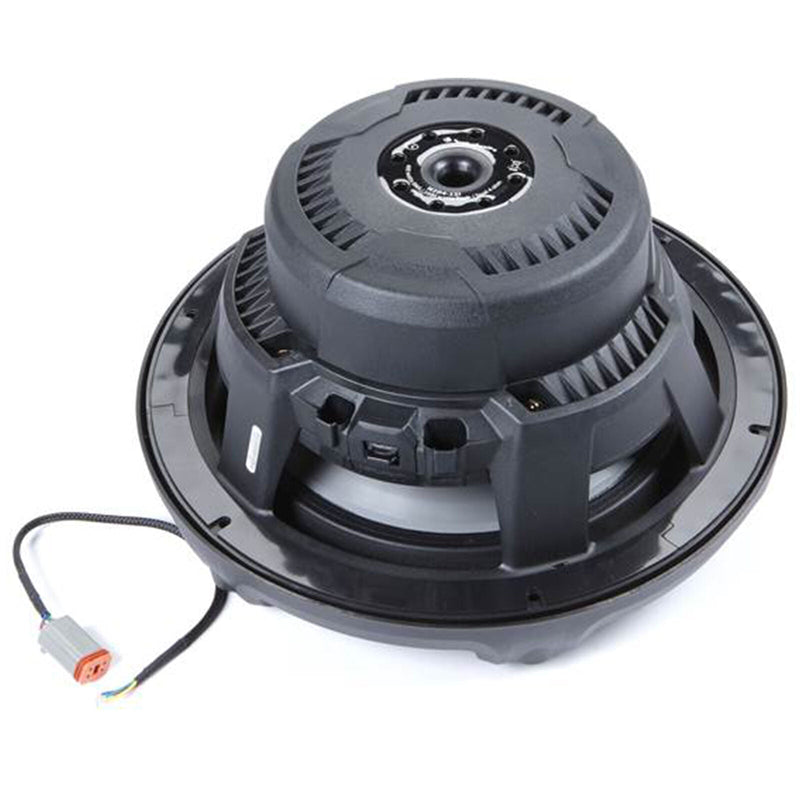

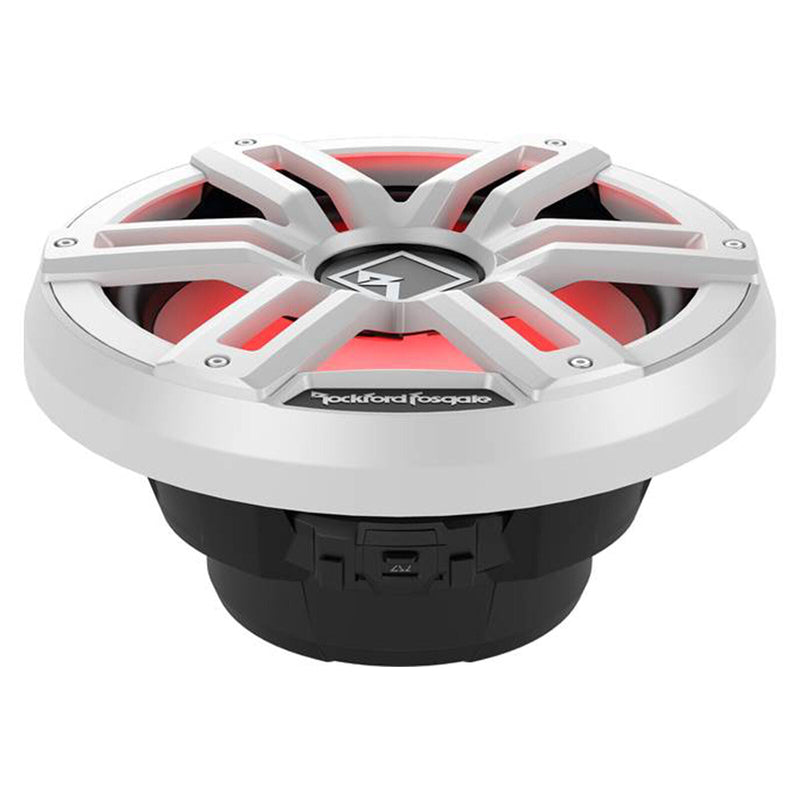

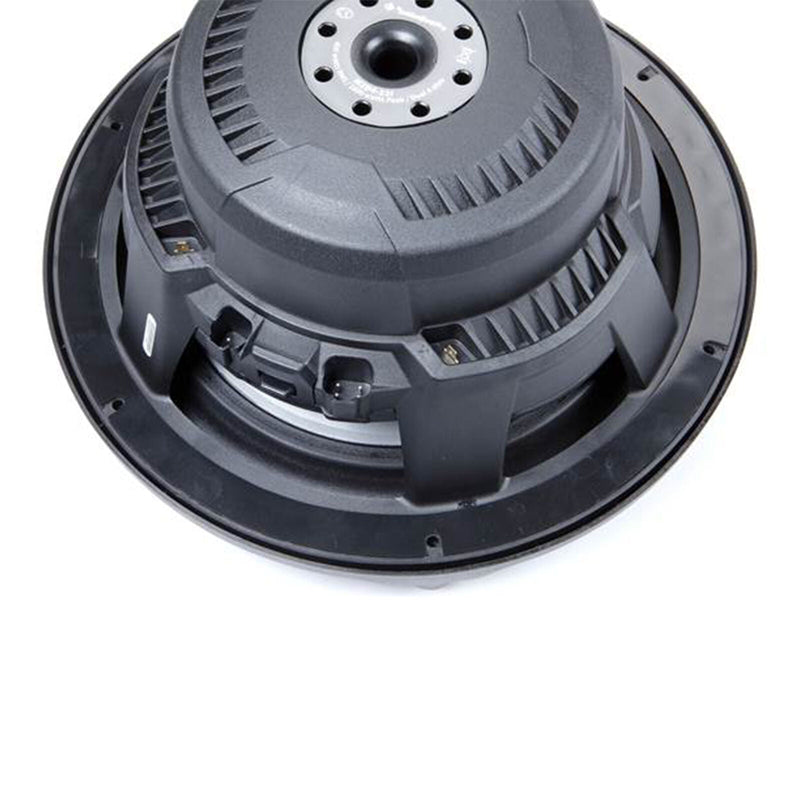

This Rockford M2D4-12I 12" DVC 4-Ohm infinite baffle subwoofer delivers loud, clear, accurate bass, and handles up to an Earth shaking 1600 Watts!. It provides a customized look by using either the stainless-steel grille or the white "sport" grille insert. The subwoofers have the ability to connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IP67 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch.

(1) Rockford Fosgate 12" Marine Subwoofer
(1) Stainless steel grille
(1) Sport grille (White)
(1) Grille frame (White)

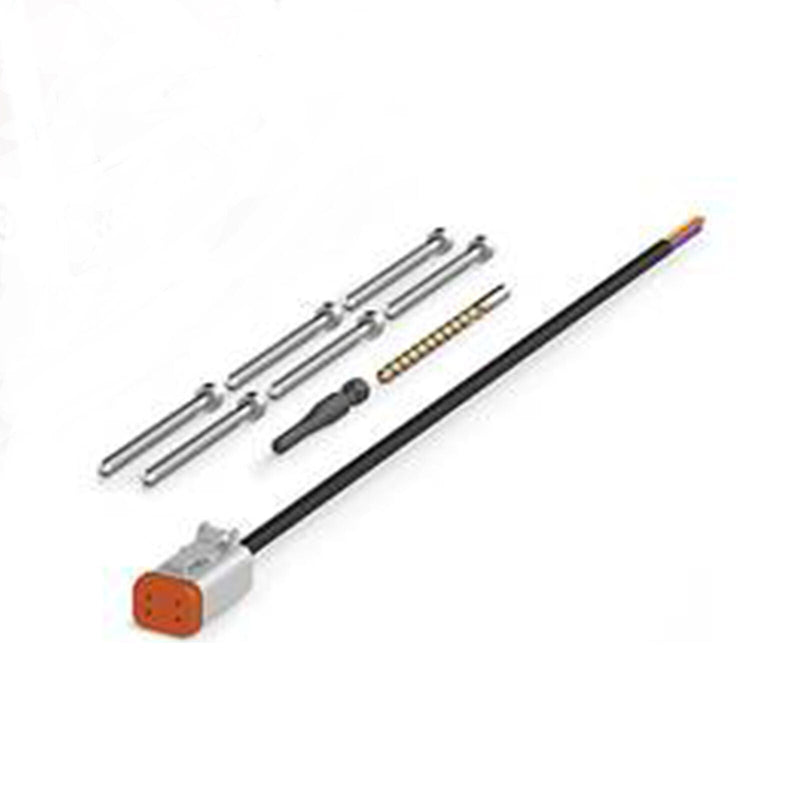

(1) 11" LED power harnesses with 4-pin Deutsch connector on one end
(6) 3" Stainless steel Allen head screws
(1) 4mm Allen head bit
(1) 4.5mm Drill bit (for fiberglass enclosures only)
(1) Owners Manual

-IP67 Certification & Element Ready™ design

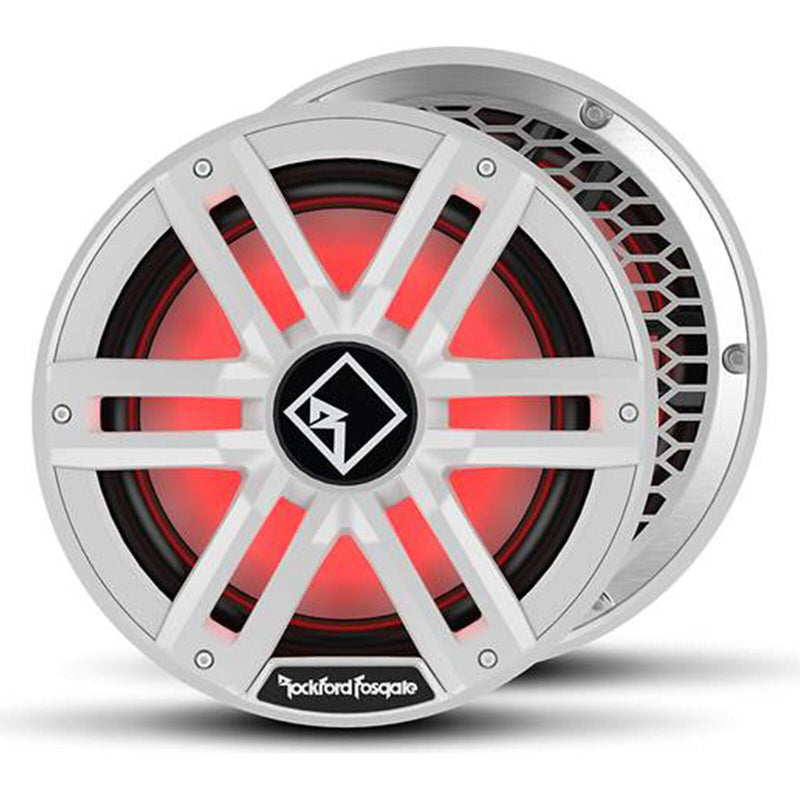

-Removable grille included with interchangeable stainless-steel mesh or "sport" inserts
-Designed for infinite baffle (free-air) installations
-Waterproof connectors make wiring easy
-Integrated Color Optix RGB LED lighting included (requires separate PMX-RGB lighting controller-see link below)

Nominal Impedance: 2-Ohm or 8-Ohm Switchable
Power Handling: 400 Watts RMS, 1600 Watts Peak
Voice Coil Type: Dual Voice Coil
Voice Coil Diameter: 1.95" (49.53 mm)
Magnet Weight: 61.09 oz. (1.7 Kg)
Frequency Response: 20 Hz - 750 Hz
Speaker Connector: 2-pin Deutsch™ and 1/8" Spade

Fs: 38 Hz
Re: 6.5 Ohms
Le: 3.43 mH
Sd: 539 cm2
Qms: 5.27
Qes: 1.14
Qts: 0.94
Vas: 64.2
SPL: 88 (dB @ 1w/1m)
SPL: 90 (dB @ 2.8v)
Xmax: 15 mm
Woofer Displacement: 0.121 (3.43 Liters)

Cutout Diameter: 11" (279.4 mm)
Mounting Depth: 5.13" (130.4 mm)

Shipping Weight: 14.26 Lbs. (6.47 Kg)
