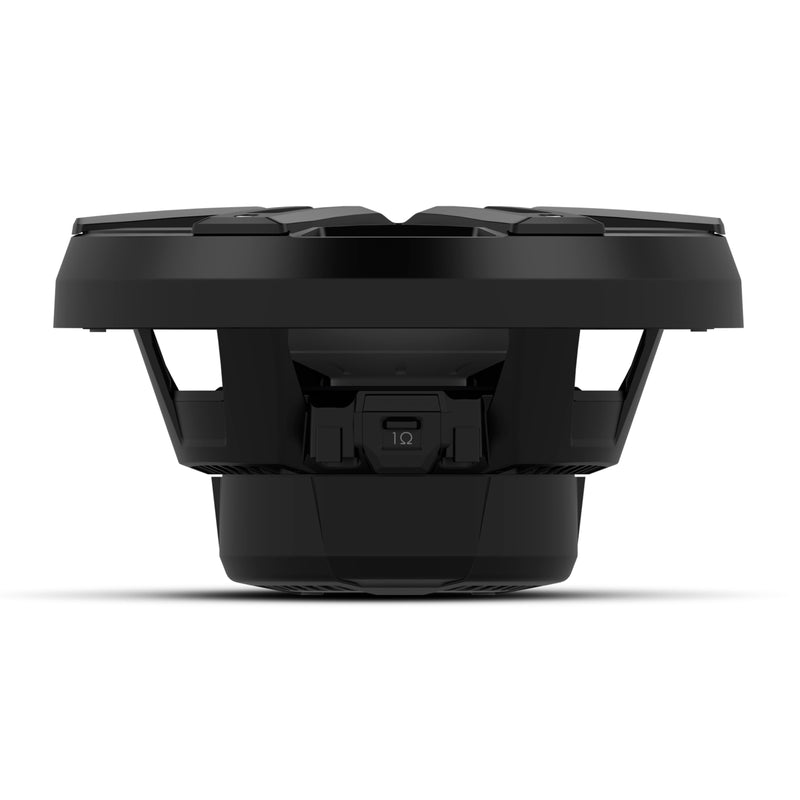

Rockford 10" Color Optix 2 Ohm DVC 1600W Peak Infinite Baffle Marine Subwoofer

• The M2D2-10IB Color Optix 10” DVC 2-Ohm infinite baffle marine subwoofer delivers loud, clear, accurate bass, and lights the way for your journey!
• The M2D2-10IB marine subwoofer has a power handling of 400 Watts RMS / 1600 Watts Peak and connects with the Rockford Fosgate Color Optix Controller and RF Connect App (PMX-RGB sold separately), allowing you to customize your own color patterns
• To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch to make changing impedance between 1 and 4 ohms as easy as flipping a switch
• The Element Ready design and IP67 certification makes them truly purpose-built for marine applications where protection from damaging UV rays and water spray is essential
• Famous Rockford Fosgate build quality with a full 2-year warranty when purchased from an authorized Rockford Fosgate reseller

Rockford 10" Color Optix 2 Ohm DVC 1600W Peak Infinite Baffle Marine Subwoofer

This listing includes:

• (1) 10" M2 Dual Voice Coil Color Optix Marine Subwoofer

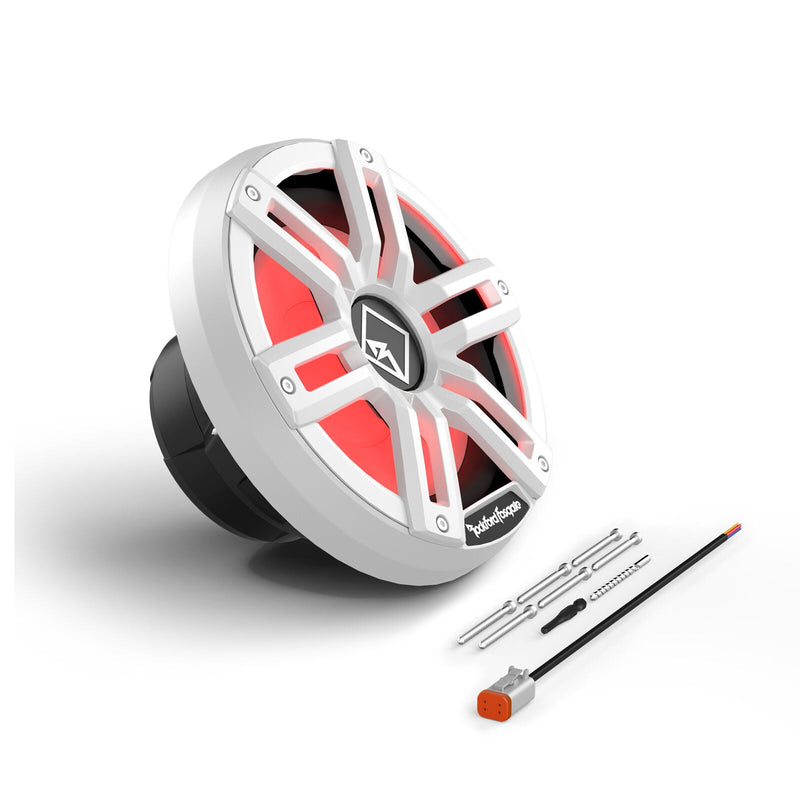

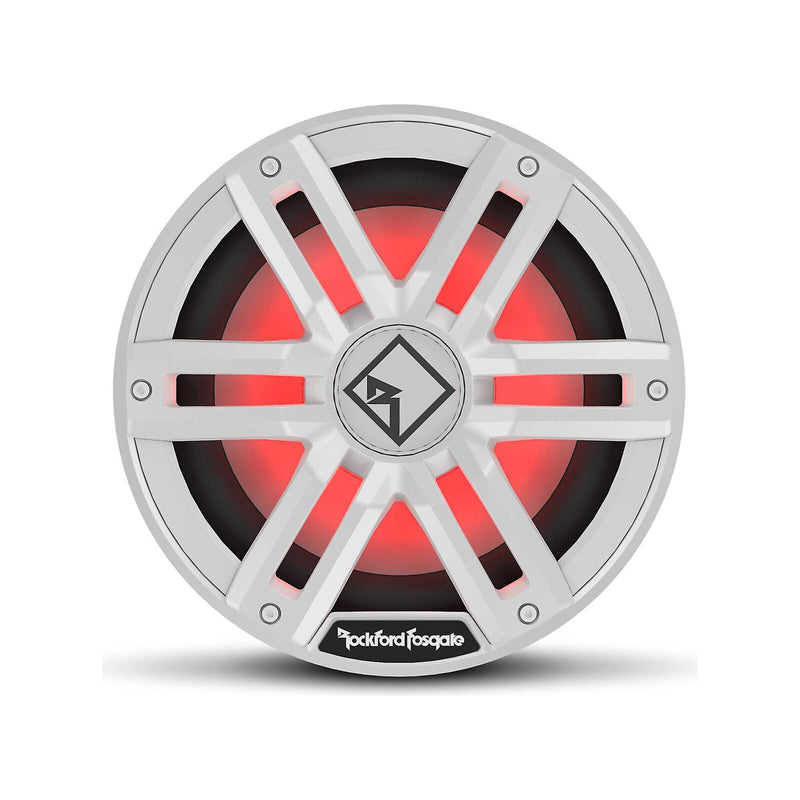

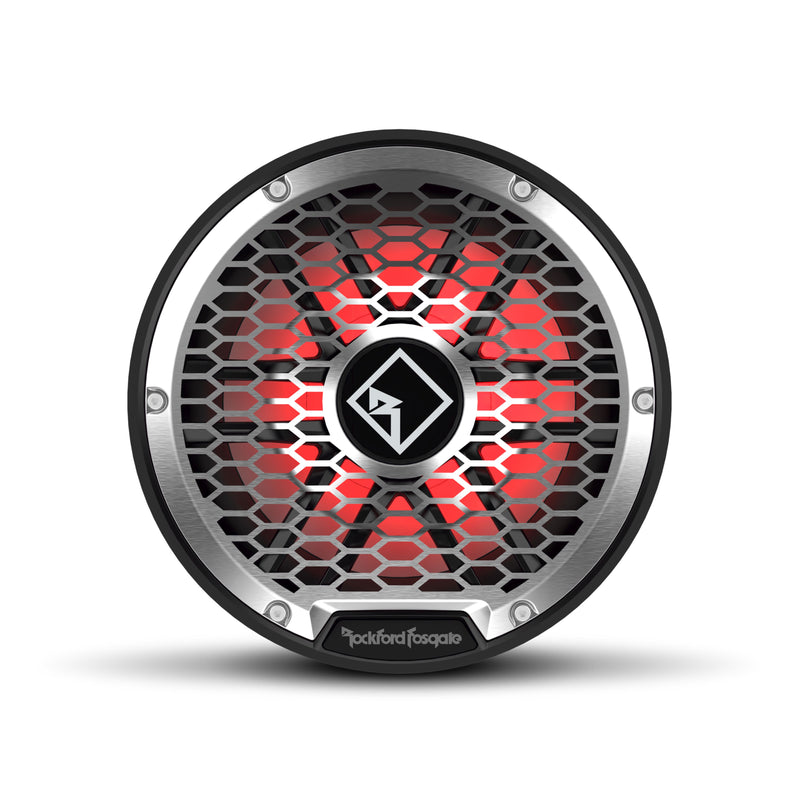

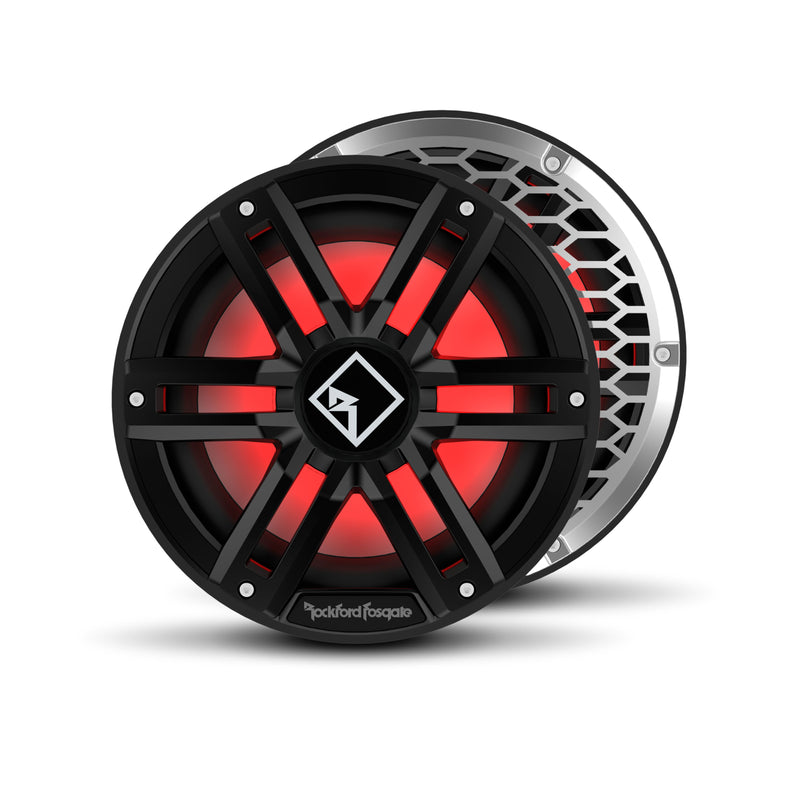

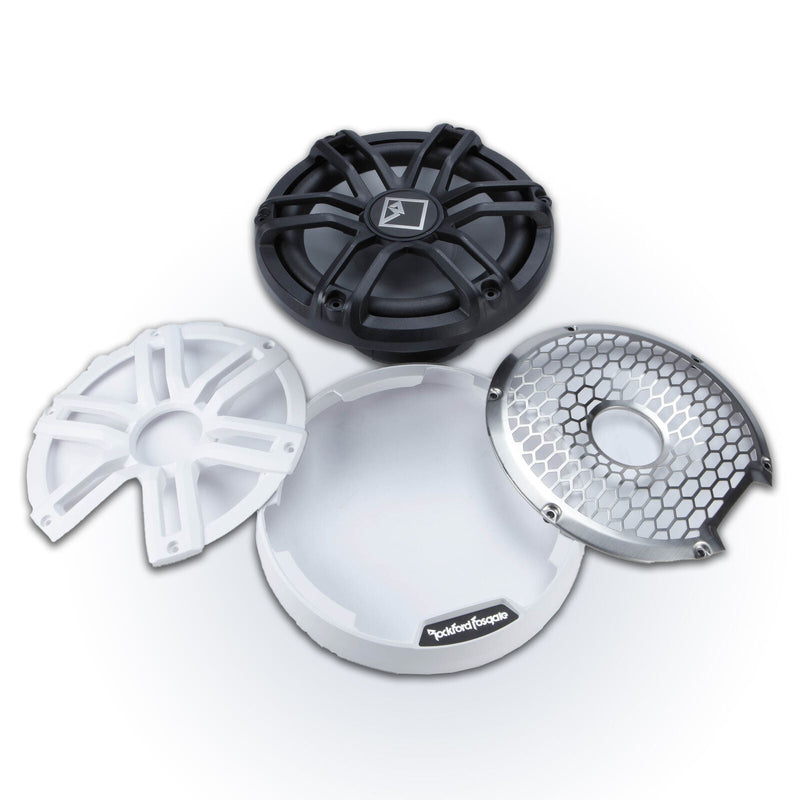

The M2D2-10IB Color Optix 10 DVC 2-Ohm infinite baffle subwoofers deliver loud, clear, accurate bass, and light the way for your journey! M2 provides a customized look by using either the stainless-steel grille or the white sport grille insert. The subwoofers connect with the Rockford Fosgate Color Optix Controller and RF Connect App, allowing you to customise your own color patterns. The Element Ready design and IPX6 certification make them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential. This subwoofer is optimised for Infinite Baffle installations, where an enclosure is not required.

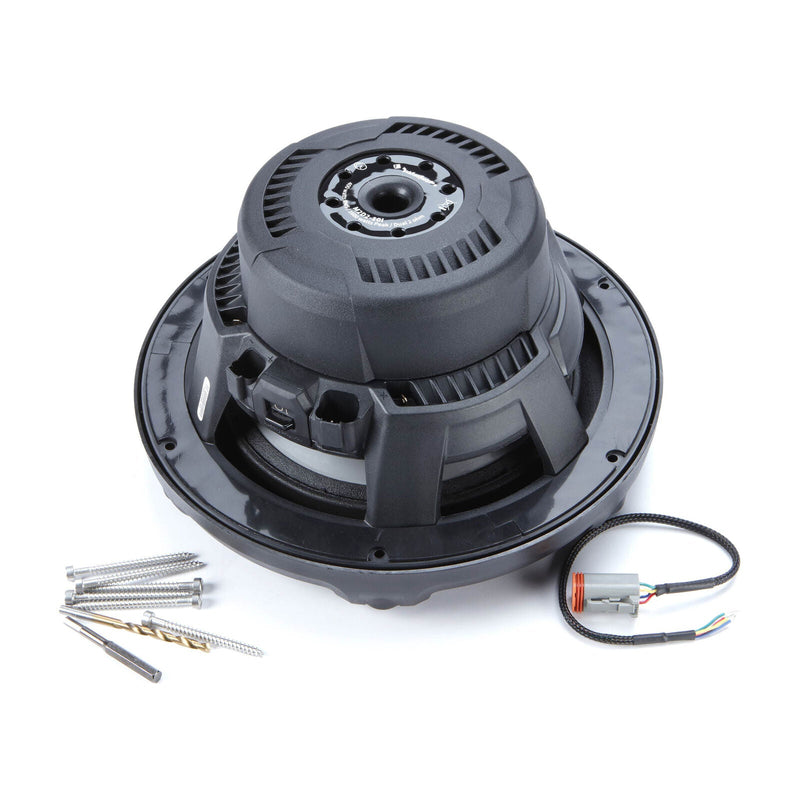

The M2 series of Element Ready subwoofers is designed to pair with the Rockford Fosgate Color Optix Controller and RF Connect App through its Deutsch and Amphenol connectors integrated into the basket. This, combined with their IP67 certification, makes these speakers Element Ready and truly purpose-built for marine applications. To complement the plug-and-play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch to make changing impedance between 1 and 4 ohms as easy as flipping a switch. A mounting baffle is required to isolate any interaction between the front and rear wavelengths to prevent cancellation.

Features:

• 2" (50mm) High Temp Kapton Woofer Voice Coil Former


• Ultra-high temperature PA66 with 30% glass fill, injection-moulded frame with UV inhibitors


• Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals


• Gold-plated marine-grade brass terminals provide a corrosion-resistant connection


• Vented motor design with water-repelling nano-coated mesh screen

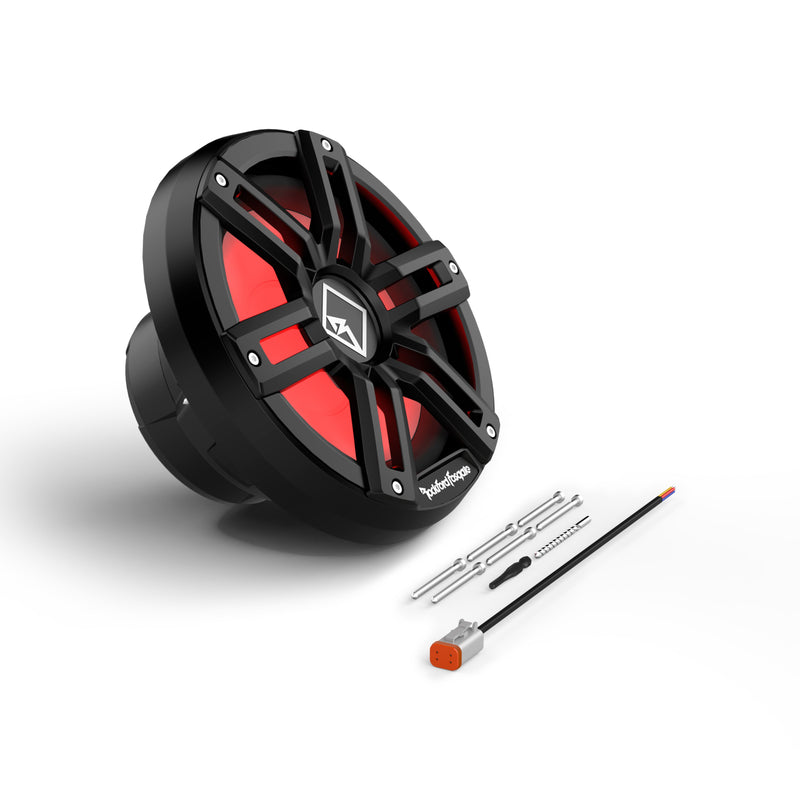

• Integrated Deutsch/Amphenol connectors make wiring connections simple and error-proof


• 100% UV Stable Centrex plastic grill


• Fully insulated silicone tinsel leads


• Injection moulded UV-stable foam surround


• Linear Aramid-Polyester Composite Spider


• VAST vertical attach surround technique increases effective radiating cone area up to 25%


• Injection molded mineral filled polypropylene cone body with UV inhibitors


• Co-molded surround and mineral-filled polypropylene cone body

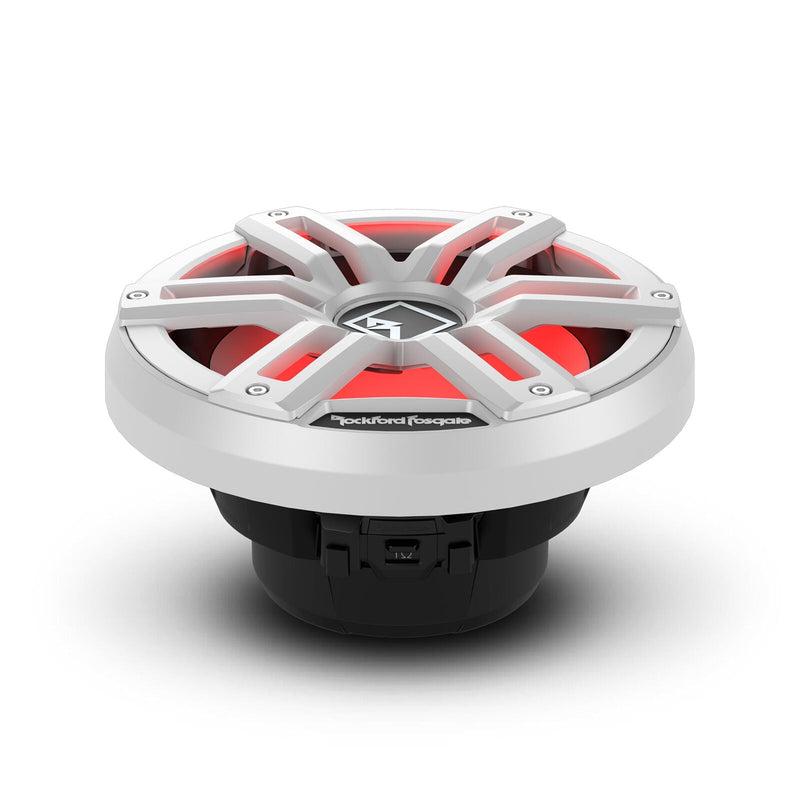

• Optically clear UV-stable RGB Lighting Encapsulation


• Ultra-bright, wide-angle RGB LEDs provide rich, reliable illumination

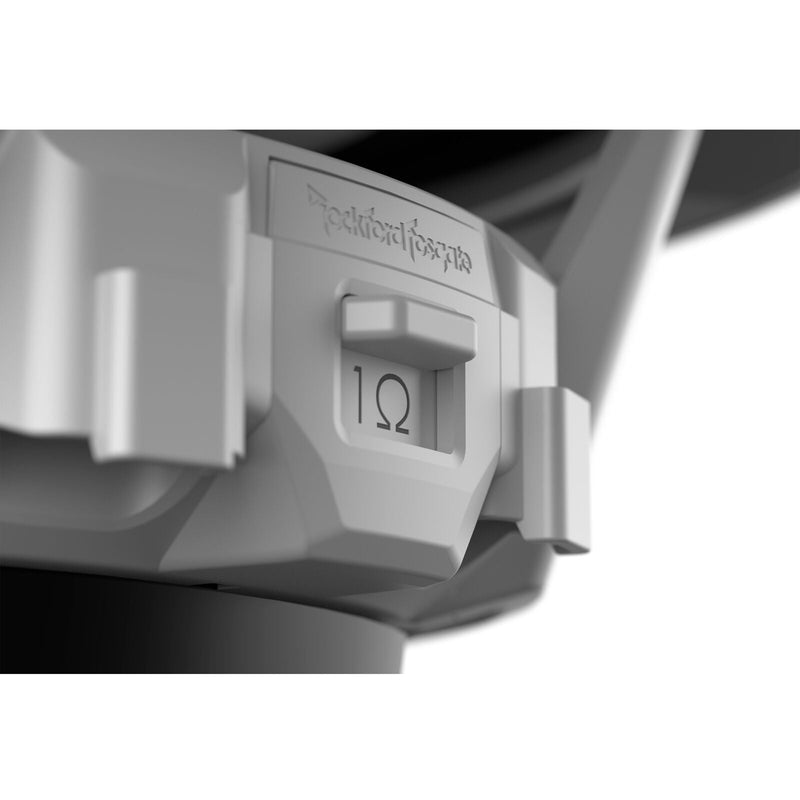

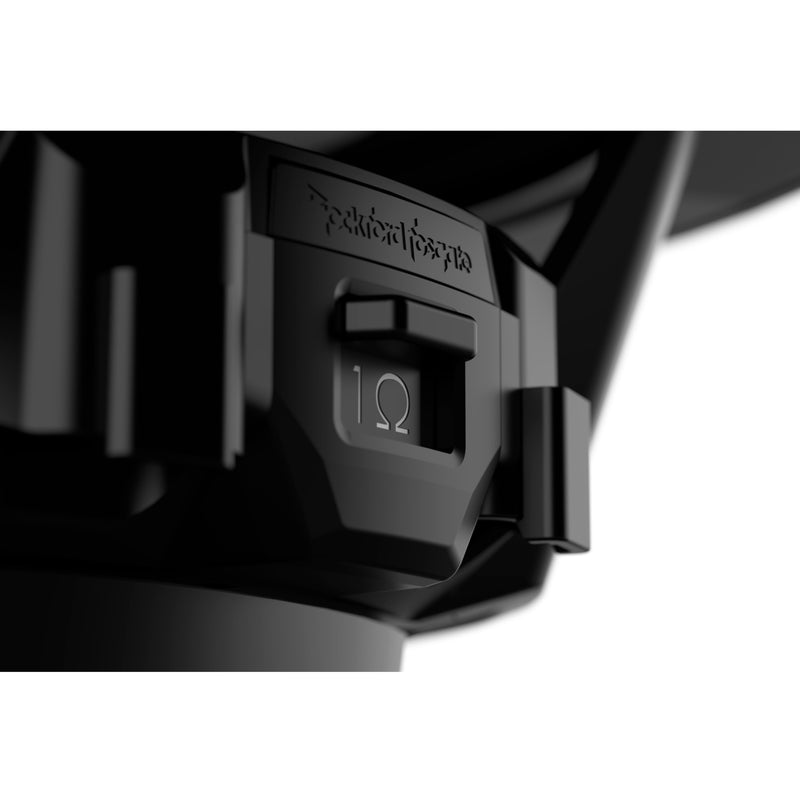

• VERSA impedance switch quickly allows series or parallel configuration without additional wiring


• Optimized for infinite baffle applications when an enclosure is not an option


• 2-Year Warranty

Specifications:

• Size: 10"


• Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable


• Power Handling (Watts RMS): 400 Watts RMS, 1600 Watts PEAK


• Voice Coil Diameter: 2.0" (50.8 mm)


• Magnet Weight (oz): 55.02 oz. (1.56 Kg)


• Voice Coil Type: Dual Voice Coil


• Frequency Response: 20 Hz - 750 Hz


• Fs (Hz): 43


• Re (Ohms): 3.3


• Le (mH): 1.17


• Sd (cm2): 363


• Qms: 5.69


• Qes: 0.86


• Qts: 0.74


• Vas: 30.5


• SPL (dB @ 1w/1m): 90.3


• Xmax (mm): 11.0


• Woofer Displacement: 0.06 cu. ft. (1.74 Liters)


• Speaker Connector: Deutsch


• Cutout Diameter: 8.87" (225.3 mm)


• Mounting Depth: 4.44" (112.7 mm)


• Shipping Weight: 13.8 Lbs. (6.26 Kg)
