- Complete Bass Package: Includes 3500W RMS RAGEXL 12" Subwoofer, Tru Spec Elite S12 XXL Enclosure, and RAGE-4800 5000W Monoblock Amplifier for ultimate SPL performance.
- Extreme Power Handling: RAGEXL subwoofer delivers up to 10,000W peak with deep, resonant lows, while the RAGE-4800 amp provides up to 4800W RMS at 1-ohm.
- Precision-Engineered Enclosure: Tru Spec Elite S12 XXL features triple and quad baffle design tuned at 32 Hz for maximum output and tight, controlled bass.
- Flexible, High-Performance Setup: Dual 2-Ohm subwoofer voice coils and full-range Class D amplifier with adjustable crossovers allow custom wiring and tuning for sealed, ported, or bandpass enclosures.
- Built to Last: Rugged construction, advanced materials, and built-in amplifier protection ensure reliable, competition-ready performance for SPL or high-powered daily builds.
RAGEXL 12" D2 3500W RMS Subwoofer + S12ELITE Enclosure + 4800W Mono Amp B2 Audio

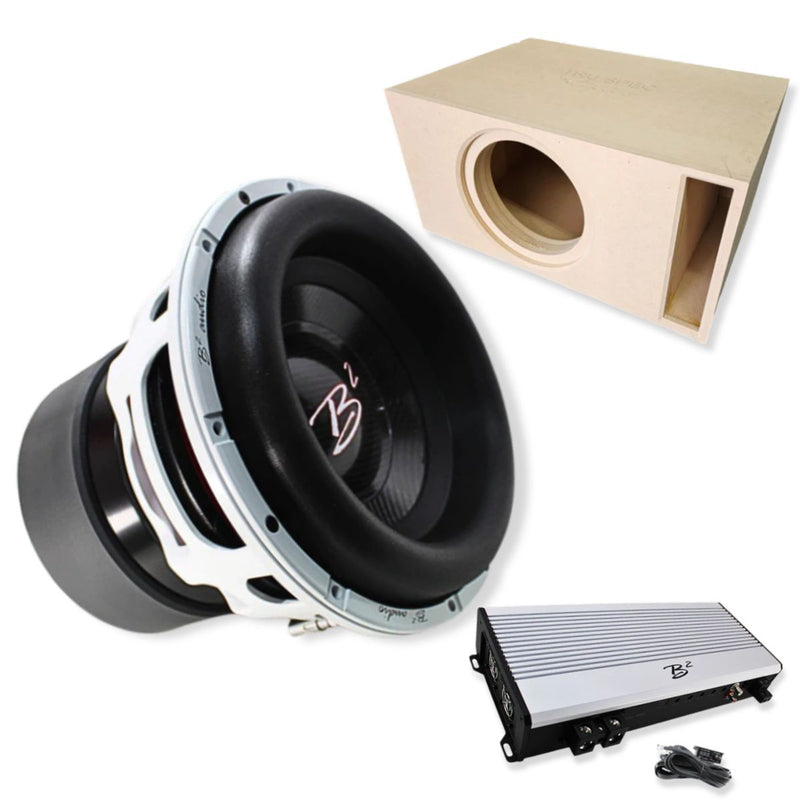

This Listing Includes:

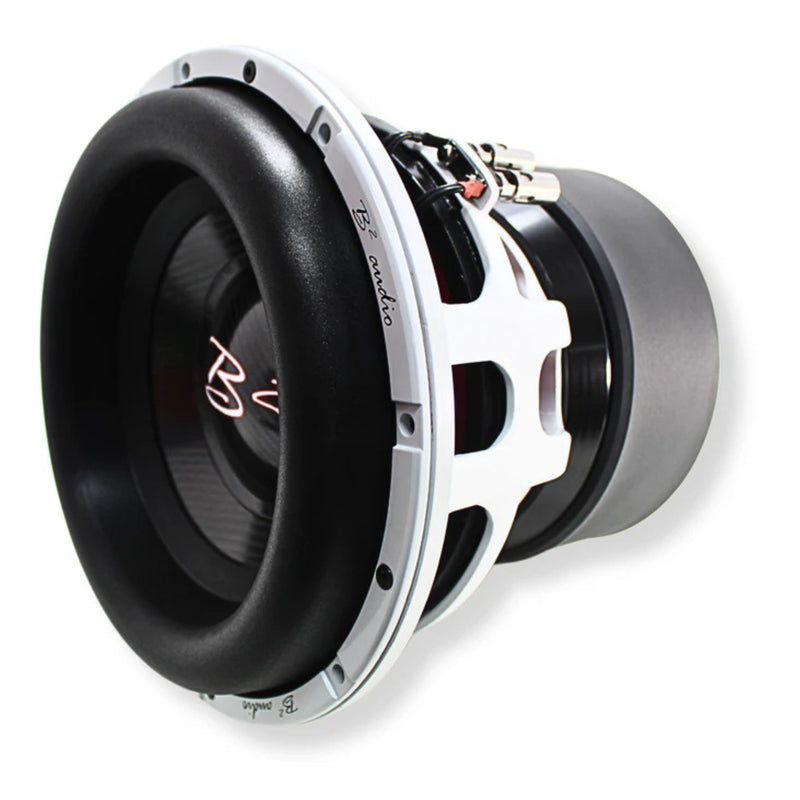

- (1) B2-RAGEXL-12-D2-V2 3500 Watt RMS Subwoofer Dual 2-Ohm
- (1) B2-RAGE-4800 1-Ohm Class D Full Bridge Monoblock Amplifier
- (1) GP-S12ELITEXXL-B2 Tru Spec Enclosure
Please note that these items will ship separately.
Experience unmatched bass performance with this powerhouse combo. The Tru Spec Elite 12" XXL enclosure features precision-engineered triple and quad baffle construction tuned at 32 Hz for optimized output. The RAGEXL 12" subwoofer delivers a massive 3500W RMS of deep, resonant lows, while the RAGE-4800 amplifier provides thunderous power with up to 5000W RMS output. Together, this trio brings earth-shaking bass, precise response, and reliable performance for serious SPL or high-performance car audio builds.

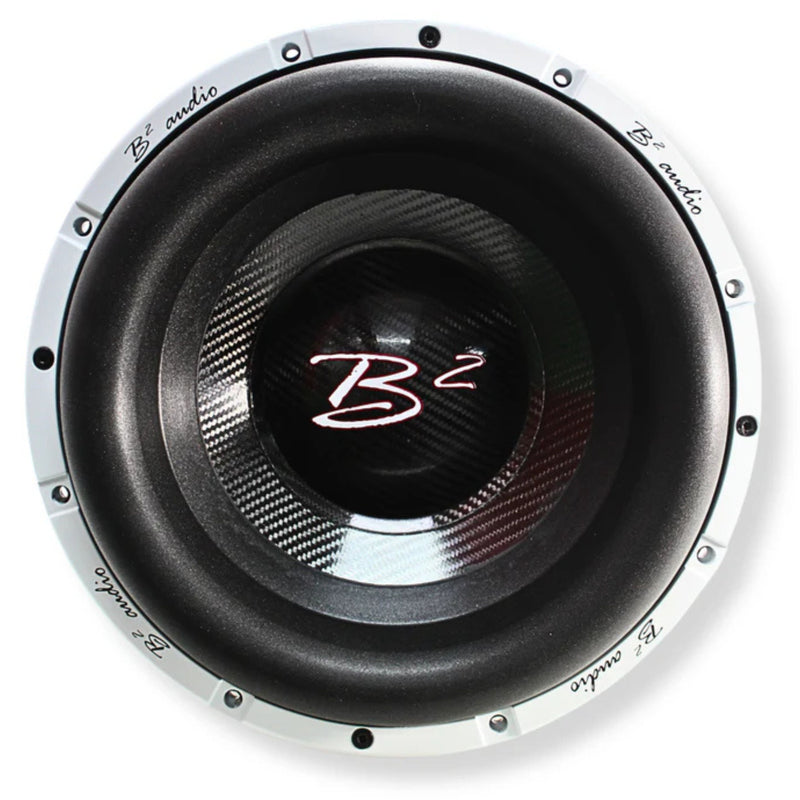

Subwoofer Specifications:
- RMS Power Handling: 3500 Watts
- Peak Dynamic Power: 10,000 Watts

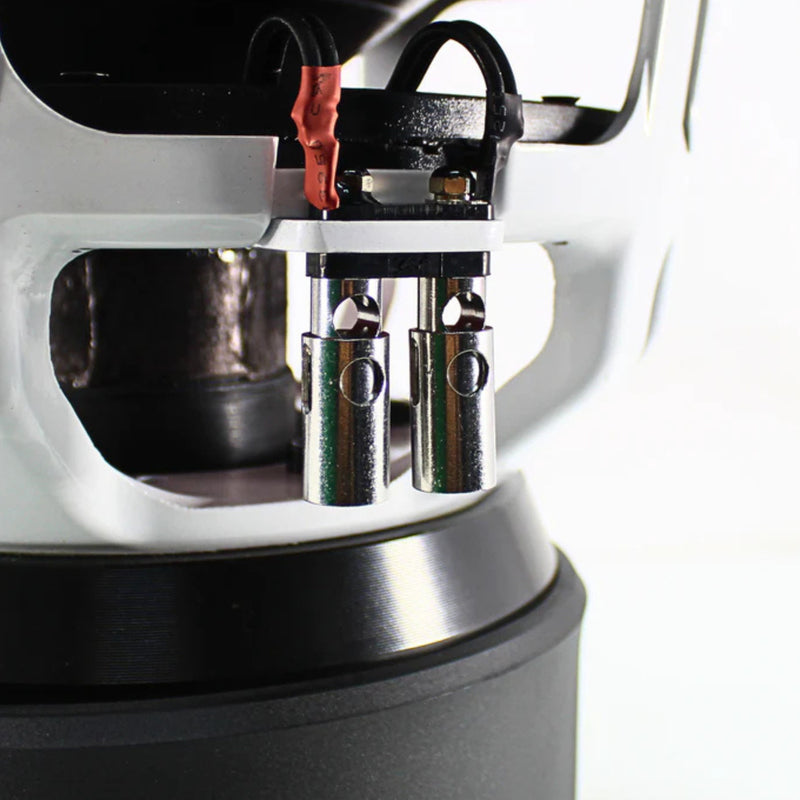

- Push Terminal Wire Gauge: 4 Ga
- Nominal Impedance: Dual 2 Ohm
- Voice Coil Diameter: 3"
- Frequency Response: 10 Hz ~ 500 Hz
- Sensitivity: 88.6 dB
- Magnet Weight: 880 Oz
- Displacement Volume: 8.9 L / .314 cu ft
Thiele & Small Parameters
- Free Air Resonance (Fs): 28 Hz
- Resistance (Re): 2 Ohm
- Mechanical Factor (Qms): 5.38
- Electrical Factor (Qes): 0.54
- Total Factor (Qts): 0.49
- Equivalent Volume (Vas): 23.7 L
- Compliance (Cms): 80 um/N
- BL Factor (BL): 131.5 BL^2/RE
- Moving Mass (Mms): 403.9 g
- Excursion Max (Xmax): 23 mm
Measurements:
- Overall Diameter: 12.25" / 311 mm
- Mounting Diameter: 11.10 / 282 mm
- Bolt Pattern Diameter: 11.57" / 294 mm
- Overall Depth: 12.12" / 308 mm
- Mounting Depth: 10.12" / 257 mm

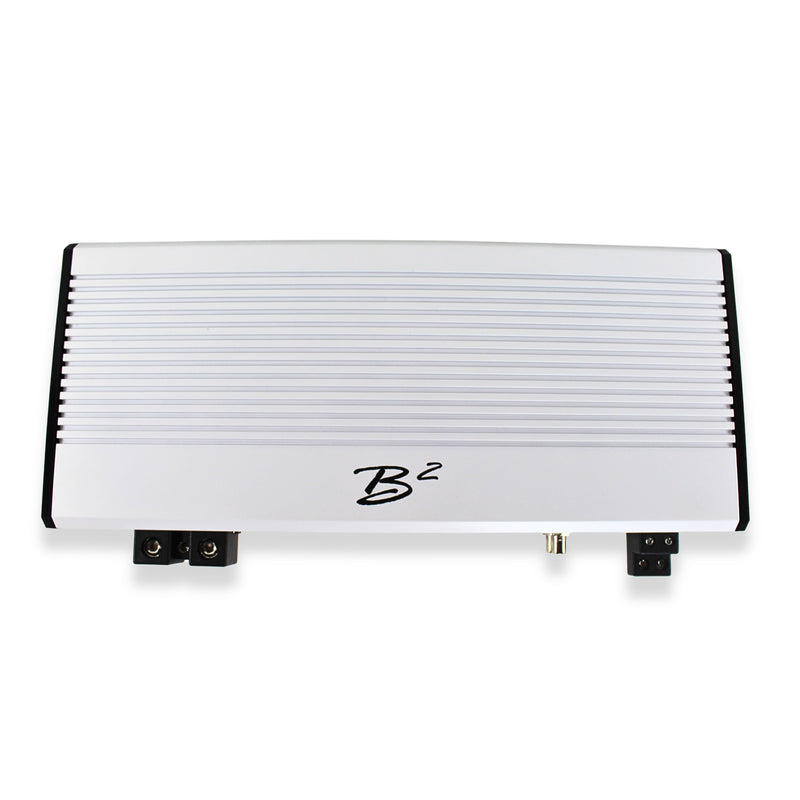

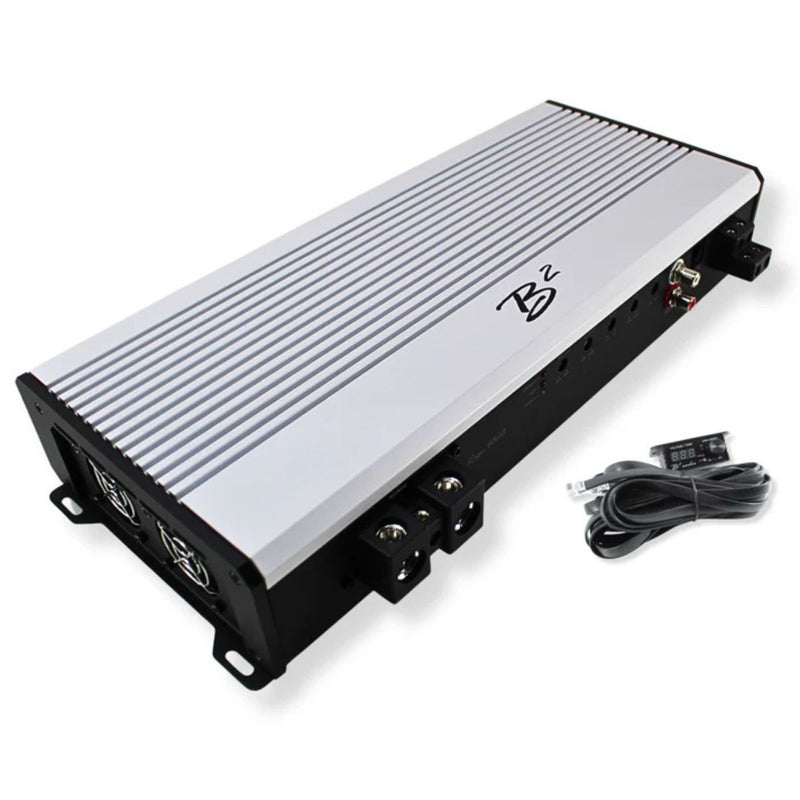

Amplifier Specifications:
- RMS Power @ 4 ohm: 1650W -1800W
- RMS Power @ 2 ohm: 3000W - 3250W
- RMS Power @ 1 ohm: 4800W - 5000W
- Frequency Response: 10 Hz – 20 kHz
- Signal-to-Noise Ratio: >90 dB
- Input Sensitivity: 0.2 – 6 V
- Power Terminal Gauge: 0 GA
- Fuse Rating: 400A
- Bass Level Control: 30–80 Hz
- Crossover Circuit:
Low Pass: 50 Hz – 20 kHz
High Pass: 10 Hz – 2 kHz
Subsonic: 10 Hz – 2 kHz
Amplifier Measurements:
- Overall Length: 15.5 inches
- Overall Width: 7.25 inches
- Overall Height: 2.5 inches
- Overall Weight: 9.90 pounds

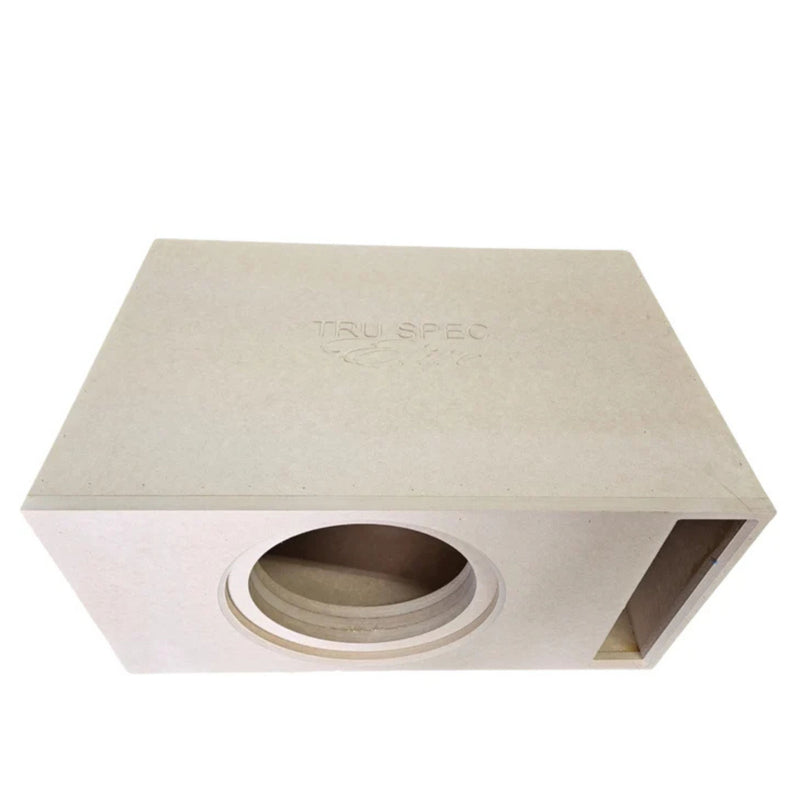

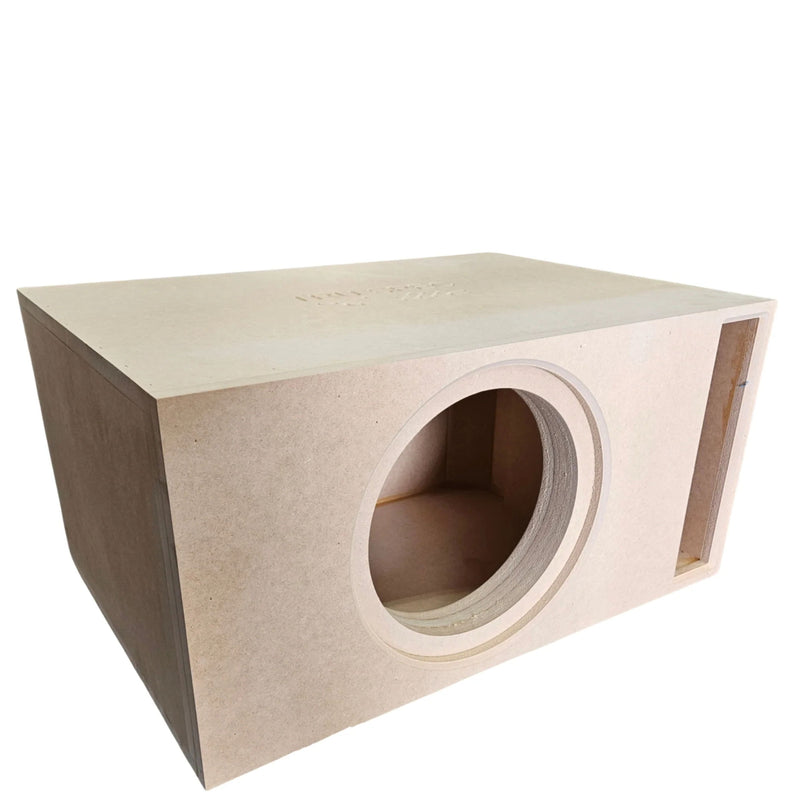

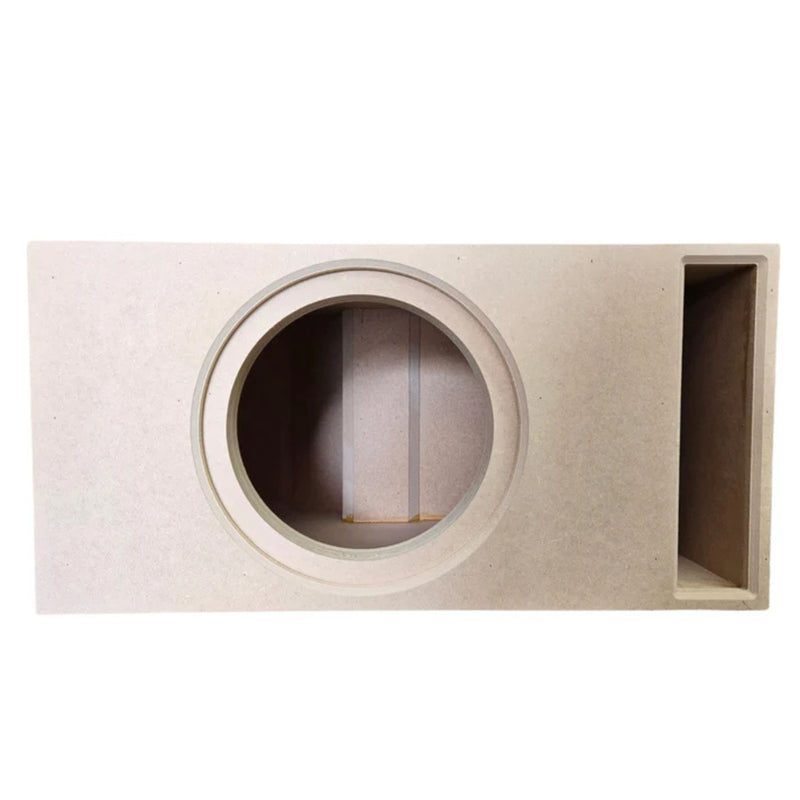

Enclosure Specifications:
- Material: MDF
- Cutout: 11.20"
- Box External Dimensions
- Width x Height x Depth (30.00" x 15.00" x 21.21")
- Material Thickness: 0.75"
- Net Internal Volume: 2.50 ft3
- Tuning Frequency: 32 Hz
- Port Area: 40.00 inch2
