Quad Bank / 24 Yinlong LTO Cell Lug Bus Bars w/ BMS 5S-8S 10A Balancer

• 24 Yinlong LTO Cell Lug Bus Bars – High-performance aluminum bus bars for energy applications
• Includes – Stainless steel cell nuts, bolts, and balancer bolts for easy assembly
• 10A Capacitance Active Balancer – Ensures efficient voltage balancing for 5S-8S setups
• Operating Temperature – -10°C to 60°C for reliable performance

 24 Yinlong LTO Cell Lug Bus Bars w/ BMS 5S-8S 10A Balancer

This Listing Includes:

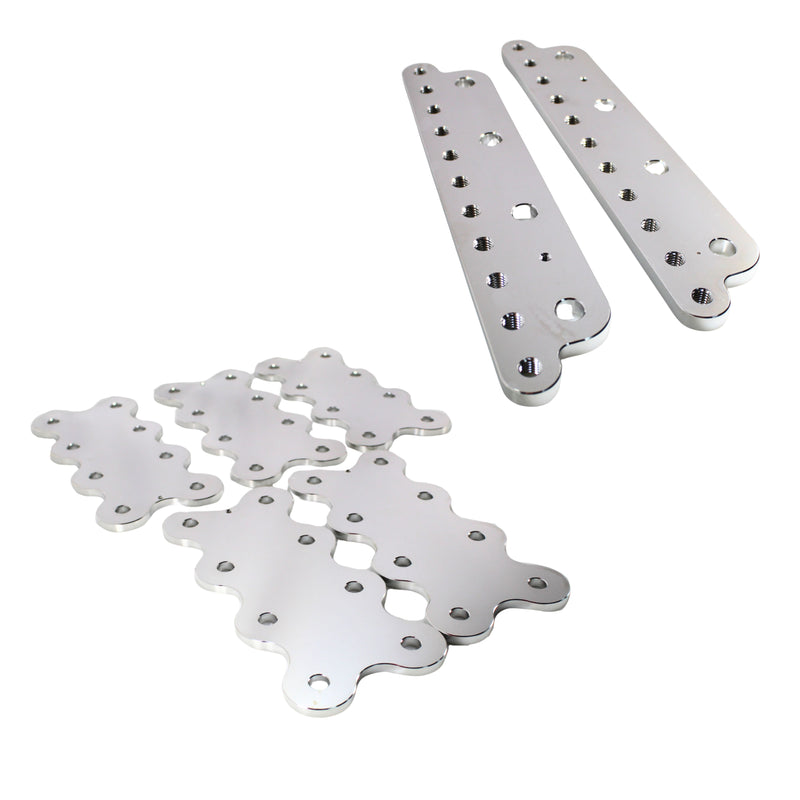

• (1) 24 Battery Cell Lug Style Aluminum Bus Bar Set

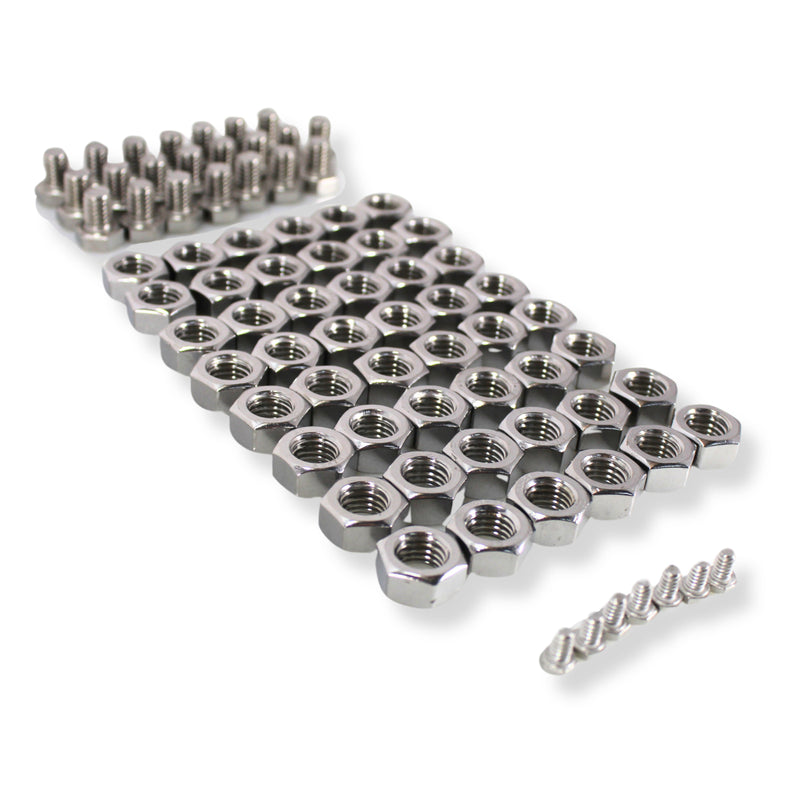

• (1) Set of Stainless Steel Hardware (cell nuts, bolts, balancer bolts)

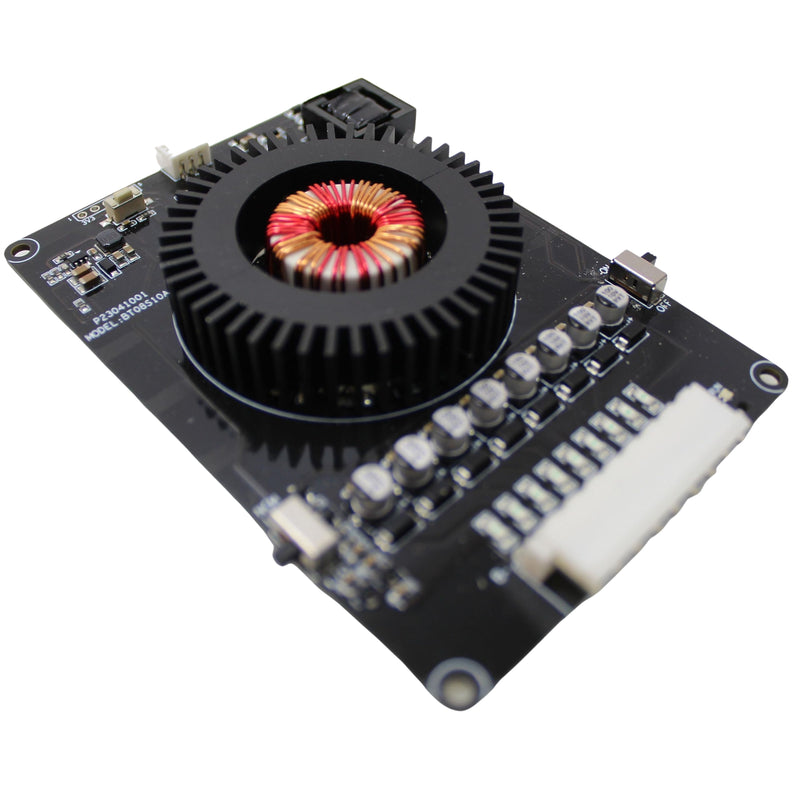

• (1) 10 Amp Capacitance Active Balancer

The 24 Yinlong LTO Cell Lug Bus Bars are designed for high-performance energy applications, offering superior conductivity and durability. Made from 6061 aluminum, these bus bars provide optimized power transfer for Yinlong 35Ah, 40Ah, and 45Ah lithium cells. The included 10A capacitance active balancer ensures efficient voltage balancing across 5S-8S battery configurations, improving battery performance and lifespan.

BMS 5S-8S 10A Balancer Features:

• Compatible with 5S-8S battery setups


• Maximum balance current: 10A


• Battery compatibility: NCM / LFP / LTO


• Operating voltage range: 1.8V - 4.5V


• Voltage balancing accuracy: 5mV (typical)


• Sleep protection voltage: NCM/LFP: 2.7V | LTO: 1.8V


• Standby current: 7mA


• Operating temperature range: -10 C to 60 C


• Dimensions: 4.37" x 3.11" x 0.67"

24 Yinlong LTO Cell Lug Bus Bars Features:

• Durable Construction - Made from high-quality 6061 aluminum for superior strength and conductivity


• Optimized for Yinlong Cells - Compatible with Yinlong 35Ah, 40Ah, and 45Ah lithium cells


• Complete Hardware Included - Comes with stainless steel cell nuts, bolts, and balancer bolts for a hassle-free assembly


• High Current Flow - Designed for extreme power applications, ensuring excellent energy transfer


• Convenient Design - Quad bank bussing accepts 11 lugs on each end for flexible and secure connections
