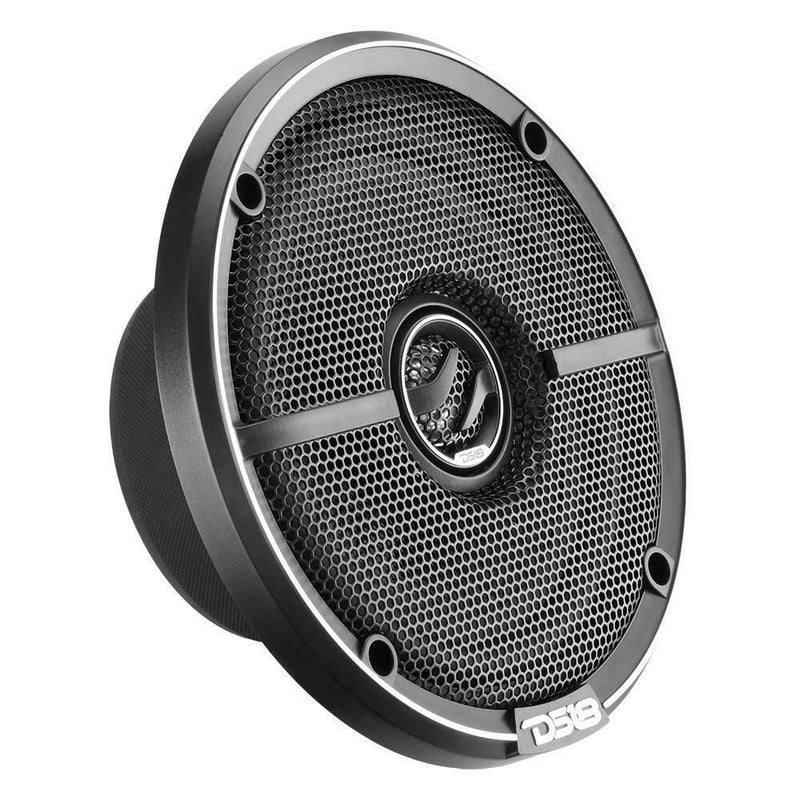

Pair of DS18 ZXI ELITE 6.5" 80W RMS 4-Ohm 2-Way Coaxial Speakers

Pair of DS18 ZXI ELITE 6.5" 80W RMS 4-Ohm 2-Way Coaxial Speakers

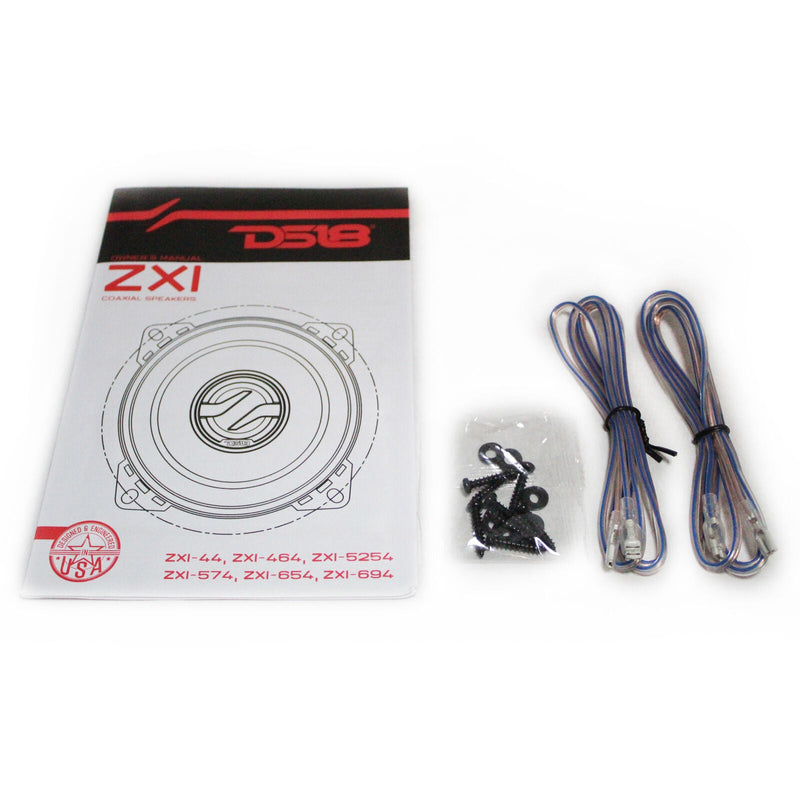

This Listing Includes:

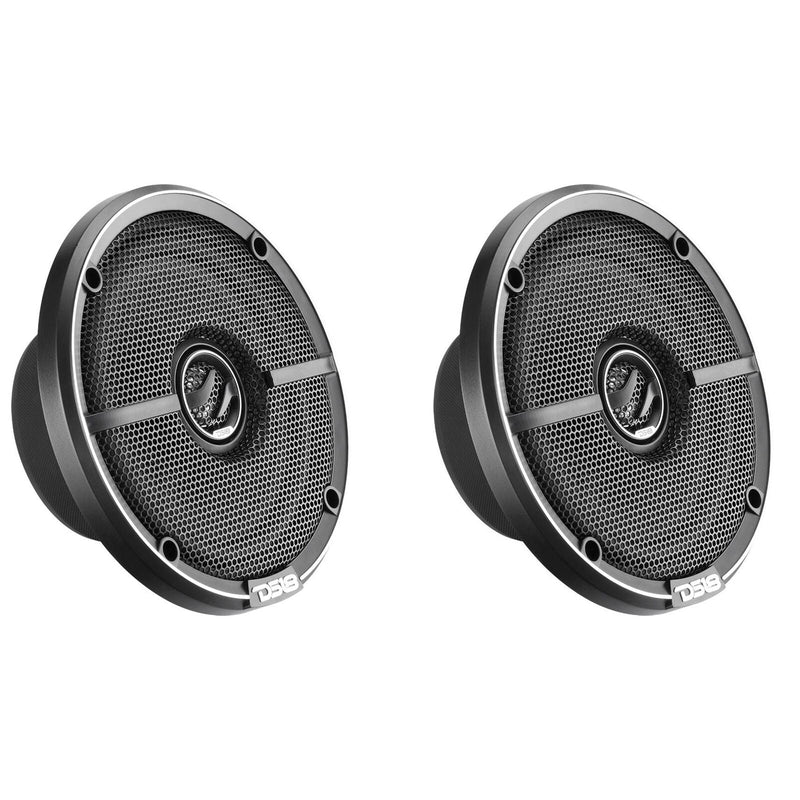

• (2)  DS-18 6.5'' Coaxial Speakers ZXI-654
• (8) Screws
• (8) Washers
• (2) Speaker wires
• (1) Instruction Manual

Description:

Elevate your audio experience with the DS18 ZXI ELITE 6.5" Coaxial Speakers – where powerful sound meets sleek design. These 80W RMS, 4-ohm coaxial speakers deliver crisp highs and rich lows, making them a stellar choice for any car audio system. Designed for audiophiles who demand both performance and style, the DS18 ZXI ELITE series ensures clear, immersive sound that transforms every drive into a concert. With a sophisticated 2-way design, these speakers excel in providing balanced audio, handling high volumes without distortion.

Download Owner's Manual

Specifications:

• Nominal Diameter: 6.5"
• Nominal Impedance: 4 ohm
• RMS Power Handling: 80 Watts
• MAX Power Handling: 240 Watts
• Sensitivity (1w/1m): 89dB
• Frequency Response: 40Hz-20KHz
• Recommended HI Pass Crossover: 60Hz
• Speaker Type: 2-Way

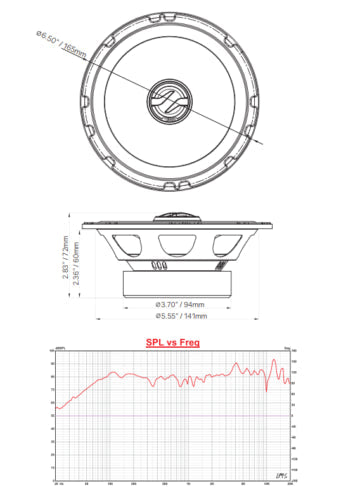

Measurements:

• Overall Diameter: 6.50" / 165mm
• Overall Depth: 2.83" / 72mm
• Front Mount Baffle Cutout: 5.55" / 141mm
• Mounting Depth: 2.36" / 60mm
• Motor Diameter: 3.70" / 94mm

Motor:

• Voice Coil Diameter: 1" / 25.5mm
• Voice Coil Former Material: KSV
• Winding Material: EISV
• Cone Material: Glass fiber
• Surround Material: Rubber
• Basket Material: Steel
• Magnet Material: Barium Ferrite
• Magnet Weight: 14.46 oz / 410g

Tweeter:

• Nominal Diameter: 1" (25.4mm)
• Voice Coil Diameter: 0.8"(20.4mm)
• Voice Coil Former Material: KSV
• Winding Material: EISVM
• Diaphragm Material: PEI
• Magnet Material: Neodymium
• Magnet Weight: 0.3 oz / 8.5g
• Equivalent Volume: 10.84L
• Excursion (one way): 2.7mm
• Free Air Resonance: 64Hz
• Mechanical Factor: 9.44
• Electrical Factor: 0.79
• Total Factor: 0.73
• Mechanical Mass: 13.72g
• Mechanical Compliance: 444mm/N
• BL Factor: 5.1
• Voice Coil Inductance: 228mH
• Cone Area: 131cm2
• DC Resistance: 3.5 ohm
• Mechanical Mass w/o air: 12g
