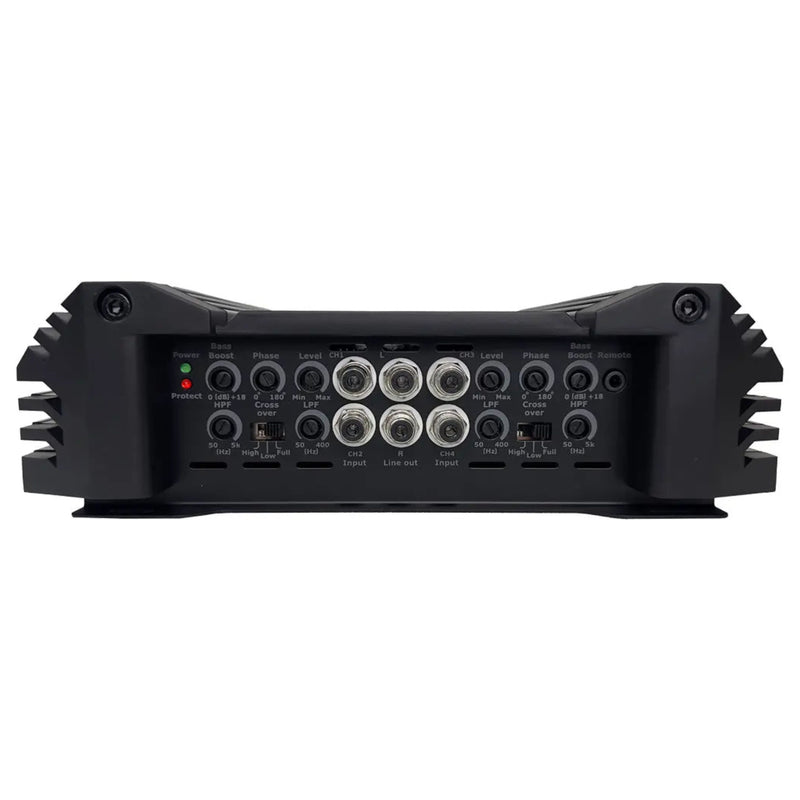

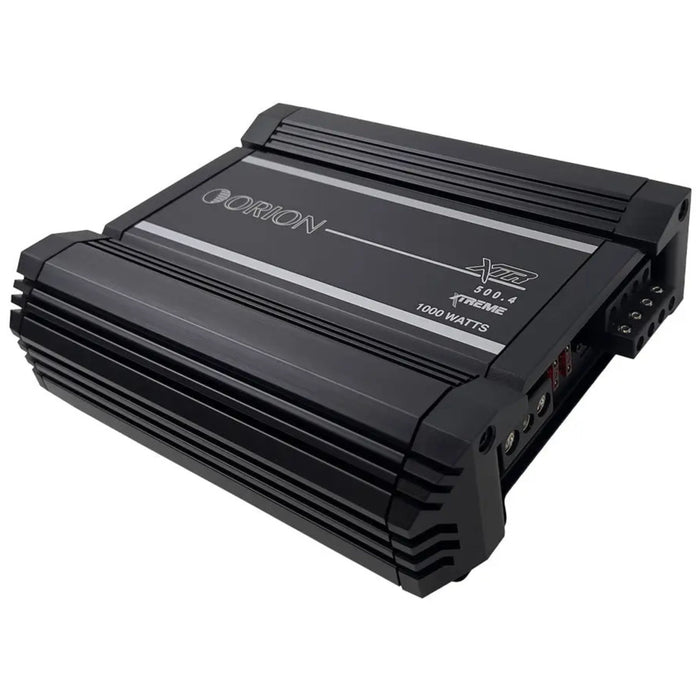

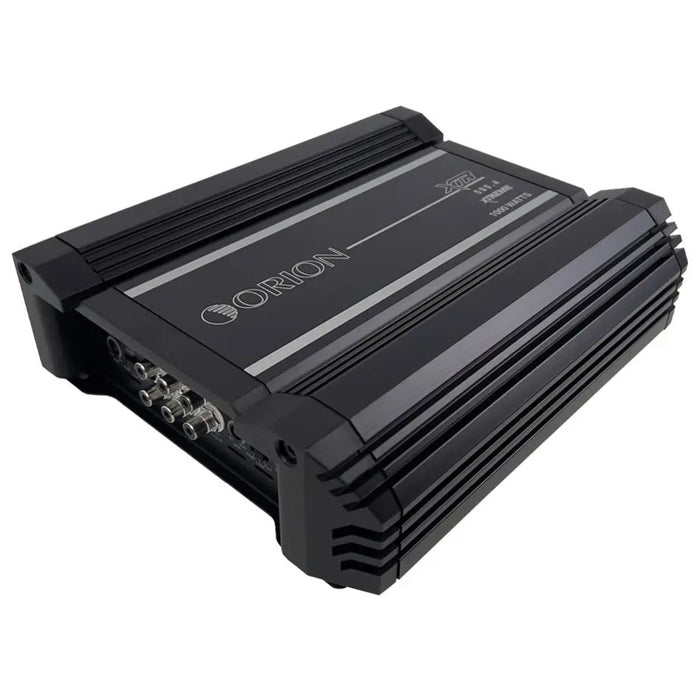

Orion 4-Channel 500w RMS XTR Series Class A/B Amplifier - XTR500.4

• Balanced Audio Power: 500 Watts RMS delivers clear, precise sound for an immersive audio experience.
• Class AB Amplification: Combines efficiency and accuracy, ensuring dynamic and versatile sound reproduction.
• Customizable Sound Control: Adjustable built-in crossovers and bass boost for fine-tuned audio output.
• Efficient MOSFET Power Supply: Provides consistent, reliable power delivery and optimized performance.
• Enhanced Connectivity: Includes remote gain controller, high-current power terminals, and electronic crossover network for seamless integration.

Orion 4-Channel 500w RMS XTR Series Class A/B Amplifier - XTR500.4

This Listing Includes:

• (1) Orion 4-Channel 500 Watts RMS Class A/B XTR Series Amplifier

Class AB Amplification - Experience the dynamic blend of efficiency and precision with Class AB amplification for versatile and accurate sound reproduction.

500 Watts RMS - Immerse yourself in a world of balanced audio excellence with 500 Watts RMS, delivering adaptable and clear sound performance.

Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.

Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.

Compact and Efficient Design - The amplifier's compact design offers versatile installation options without compromising performance.

Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

Key Features

• All MOSFET Power Supply & Output Stage


• Heavy Gauge / High Current Custom Power and Speaker Terminals


• 12dB Octave Low-Pass Filter

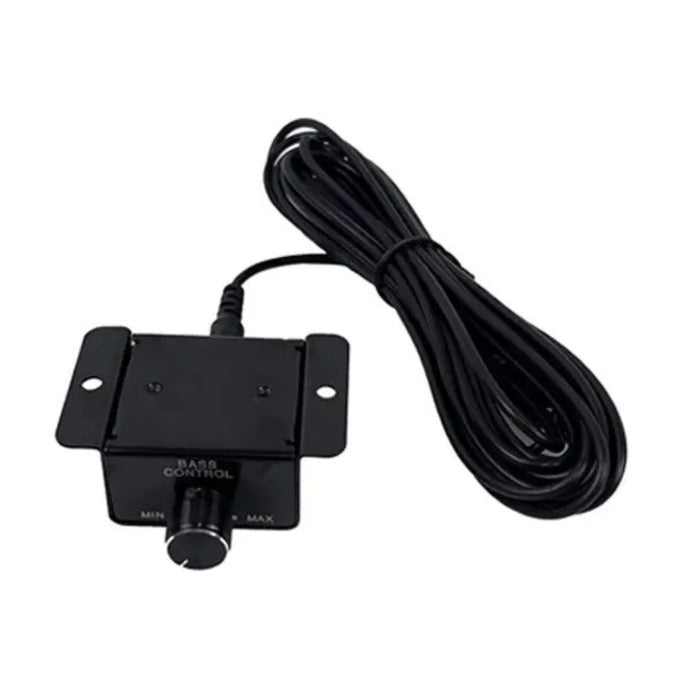

• Remote Gain Controller Included


• Electronic Crossover Network


• Bass Boost Circuit


• Power and Protection LED Indicators


• Soft Turn-on/Turn-off Turn-On Delay


• Fault and Protection Monitoring


• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Ratings

• RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 90W


• RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 125W


• RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 250W

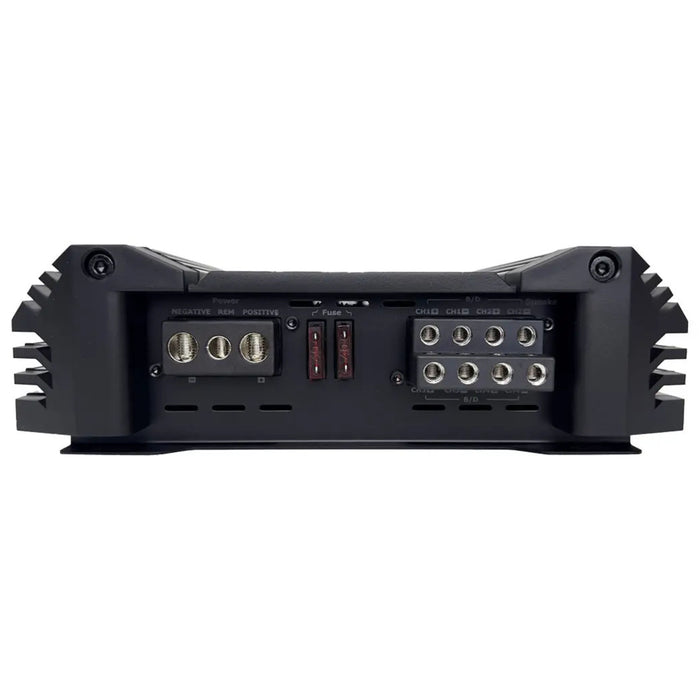

Power Terminal Management

• Positive Terminals: 1 x 4 AWG.


• Negative Terminals: 1 x 4 AWG.


• Remote Turn-ON Signal: 10 AWG.


• Speaker Output Terminals: 10 AWG.

Specifications

• Frequency Response: 20Hz - 35kHz


• Linear Bandwidth 20Hz to 65kHz +/- 3 dB


• High Pass Crossover Continuously variable (50-5kHz)


• Low Pass Crossover Continuously variable (50-400Hz)


• Supply Voltage: 9 - 16V


• Amplifier Efficiency: >60%


• Damping Factor: 100dB


• Signal to Noise Ratio: >95dB


• T.H.D. & Noise: 0.5%


• Phase Shift: 0 - 180


• Bass Boost: 0-18dB Variable


• Variable Input Level Control: 0.2V - 6.0V


• Fuses: 80A recommended (2 x 40A ATC Fuses)


• Dimensions (L x W x H): 10.24" x 9.25" x 2.75" (260x235x70mm)
