- Marine-Ready Power: 6-channel Class D amp rated IP55 for water, UV, and corrosion protection.
- Strong Output: 150W RMS per channel at 4 ohm, 230W at 2 ohm, or 440W x 3 bridged.
- Precision Control: Adjustable HPF/LPF/FULL crossovers (40Hz–2kHz) and 12dB bass boost.
- Built for Durability: Coated 4-layer PCB, stainless hardware, and aluminum chassis.
- Smart Protection: Thermal, overload, DC output, and clipping safeguards with LED indicators.

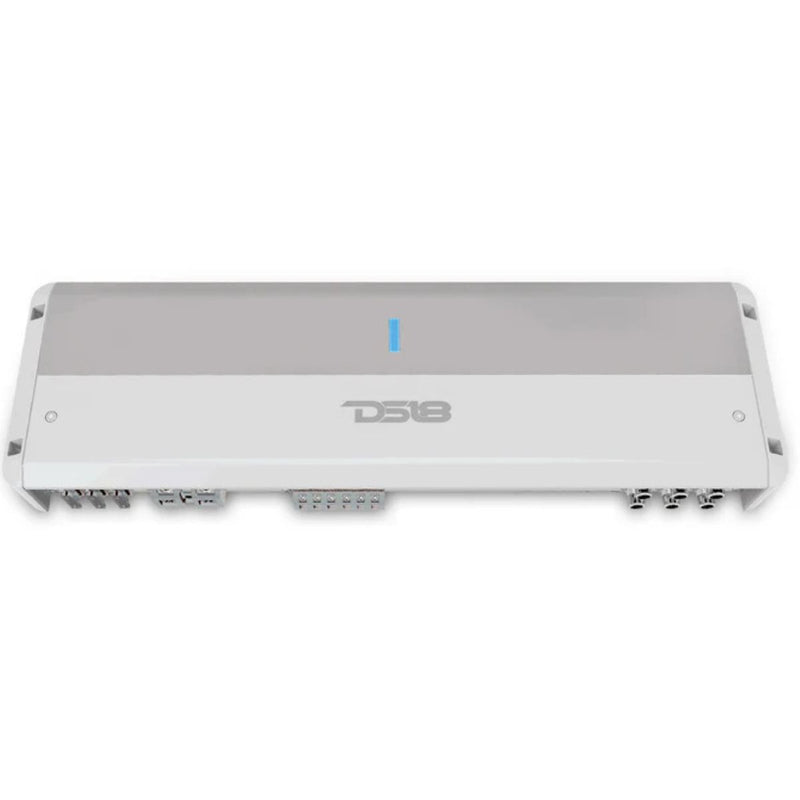

DS18 6x230w RMS at 2 Ohm 6-Channel Marine & Powersports Amplifier Class D NXL-M6
Items Included Are:
- (1) DS18 NXL-M6 6-Channel Marine Amplifier
- (1) Set of Stainless Mounting Screws
- (1) User Manual
Bring serious sound to the water, trails, or open road with the DS18 NXL-M6 Marine and Powersports Amplifier. Built tough with IP55 water resistance, UV protection, and corrosion-resistant hardware, this Class D amp delivers clean, efficient power across six channels — perfect for powering full-range marine or ATV speaker systems.
Each channel pushes 150W RMS at 4 ohms and 230W RMS at 2 ohms, or can be bridged to deliver 3 x 440W RMS at 4 ohms for subwoofer setups. With adjustable high-pass, low-pass, and full-range crossovers plus a variable bass boost up to 12dB, you get complete control over your sound.
The NXL-M6 features a coated 4-layer PCB, Tiffany-style RCA inputs, and high-quality potentiometers for precision tuning and reliability. It’s protected from short circuit, thermal, overload, DC output, voltage spikes, and clipping — ensuring consistent performance in any environment.
Designed for compact installation, the NXL-M6 includes direct-insert power and speaker terminals, marine-grade mounting hardware, and LED status indicators for Power, Protect, and Clip.
Features
- 6-Channel Class D Marine and Powersports Amplifier
- 150W RMS x 6 @ 4 Ohm / 230W RMS x 6 @ 2 Ohm / 440W RMS x 3 Bridged @ 4 Ohm
- IP55 Water Resistant, UV-Protected, Corrosion-Resistant Build
- Selectable HPF / LPF / Full Crossover, 40Hz–2kHz Adjustable
- Thermal, Overload, Short Circuit, and Clipping Protection
Specifications:
- Amplifier Class: Digital (Class D)
- Amplifier Type: Stereo Full Range
- Number of Channels: 6 Channels
- RMS Power @ 4 Ohm: 6 x 150W
- RMS Power @ 2 Ohm: 6 x 230W
- RMS Power @ 4 Ohm Bridge: 3 x 440W
- Frequency Response: 20Hz – 20kHz
- Signal to Noise Ratio: >90dB
- Efficiency @ 4 Ohm: >97%
- Channel Separation: >55dB
- Total Harmonic Distortion (THD): <0.15%
- Low Level Input Range: 0.2V – 6V
- High Level Input: Yes (up to 5V)
- Selectable Crossover: HPF / LPF / FULL
- Crossover Range: 40Hz – 2kHz
- Bass Boost: 0 – 12dB @ 45Hz 5Hz
- Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
- LED Indicators: Power / Protect / Clip
- Fuse Size: 150A (3 x 50A)
- Power Input Terminal Size: 4 Gauge
- Protection: Thermal, Overload, DC, Short Circuit, Voltage, Clipping
- Water Resistance: IP55 Rated
- PCB Design: 4-Layer Coated Board
- RCA Type: Tiffany Style
- Input Selector: 2CH / 6CH
- Body Finish: Gray and White / Aluminum + ABS
- Mounting Hardware: Stainless Steel Screws
- Remote Level Control: No
- Gross Unit Weight: 2.2kg
Dimensions:
- Overall Length: 15" (385mm)
- Overall Width: 4.5" (116mm)
- Overall Height: 1.7" (43mm)
- Heatsink Length: 14" (360mm)
