Mechman S-Series 88 - 95 GM Truck 240 Amp Polished Finish Alternator 8165240P

SKU MM-8165240P
Save 20% Save 20%
Original price $586.25
Original price $586.25 - Original price $586.25
Original price $586.25
Current price $469.00
$469.00 - $469.00
Current price $469.00
Snap Logo Lease for as low as $/week Learn More

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3%
  • Spend $500, Save 5%
  • Spend $1000, Save 10%
  • Spend $1500, Save 11%
  • Spend $2500, Save 12%
  • Spend $5000, Save 15%

*Does not apply to: AudioControl, Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

This is a Sample Product Title
Was $200.00 Now $100.00
  • Made for 1988 - 1995 GM Truck
  • Amperage Output: 240 Amps
  • Voltage Compatibility: 12
  • Serpentine Style Pulley Included
  • Internal Regulator Included


Mechman S-Series 88 - 95 GM Truck 240 Amp Polished Finish Alternator 8165240P


This listing includes:

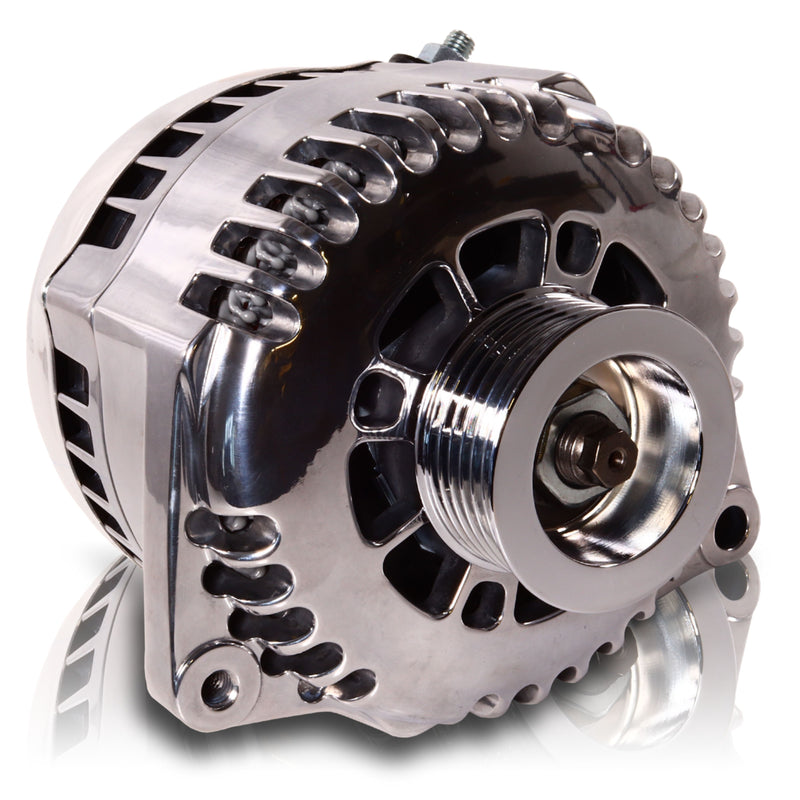

(1) S-Series 88 - 95 GM Truck 240 Amp Polished Finish Alternator


The S series of 6 phase alternators offers incredible low RPM output in a compact and durable package. Highly efficient, these units use less horsepower than conventional 3 phase alternators. 12 diodes, twin  rectifier plates and outstanding airflow ensure much better durability  than standard Delco CS130 based alternators, even in severe conditions.

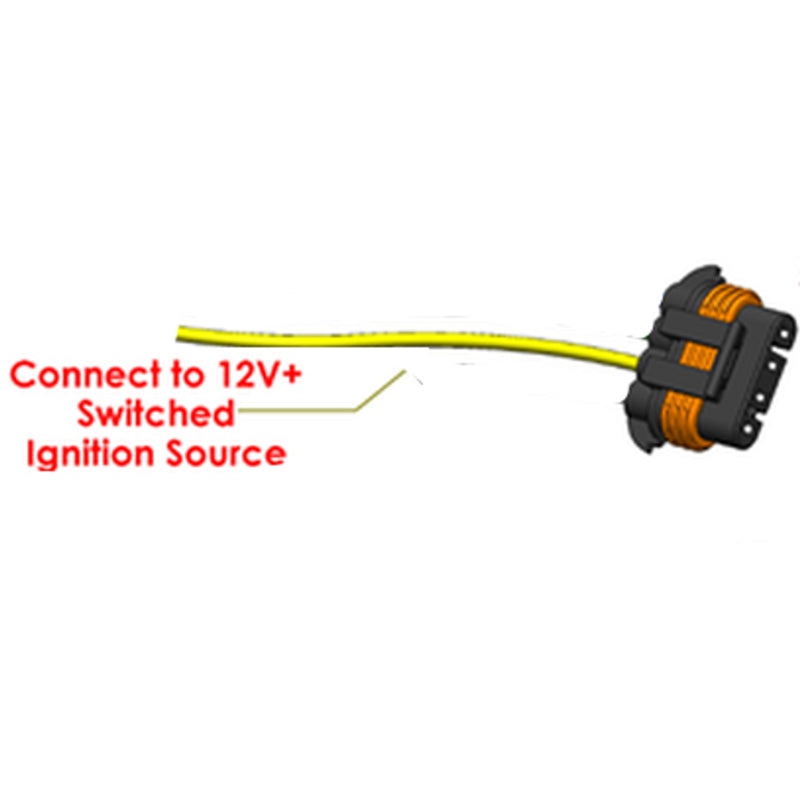

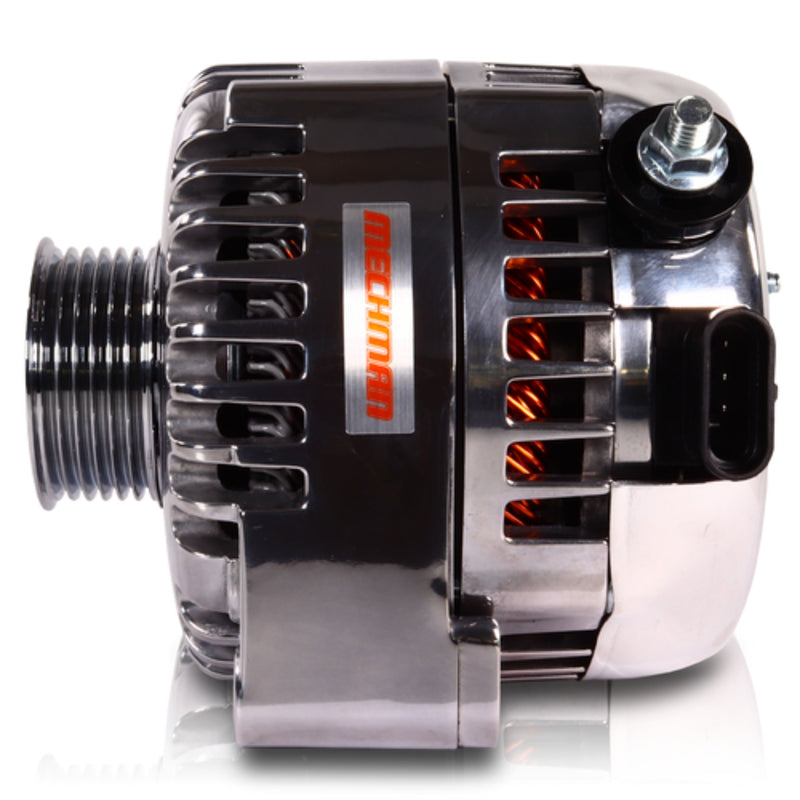

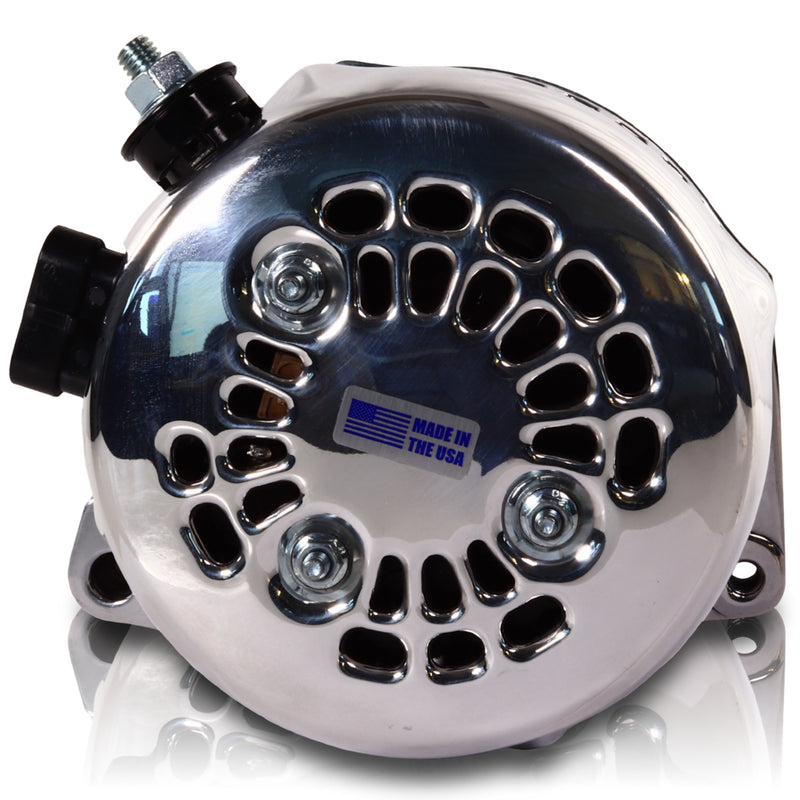

This custom designed housing directly replaces standard CS130 "left mount" alternators as used on 1987-1995 Chevy C1500 Pickups and some aftermarket accessory drives. A side output stud and seamless rear cover with a side output plug allow for better clearance from the back of the alternator to the front of the engine and a smooth appearance. A single wire on the provided pigtail gets connected to any ignition switched 12V+ source to turn the alternator on and off with the ignition switch. Simply run a properly sized positive and ground cable from the alternator to the terminals of the battery and the alternator will work perfectly, regardless of what kind of wiring harness you have. Because of their compact size and standard GM mounting ears, these alternators  also work well in many aftermarket or custom bracket installations.


Specifications:



  • Made for 1988 - 1995 GM Truck

  • Amperage Output: 240 Amps

  • Voltage Compatibility: 12

  • Serpentine Style Pulley Included

  • Internal Regulator Included
