- HIGH OUTPUT: Mechman S-Series 320 amp alternator for compatible Acura and Honda applications, built for high-output charging systems.
- VEHICLE FITMENT: Fits 2010-2013 Acura MDX 3.7L, 2009-2012 Acura RL 3.7L, 2009-2014 Acura TL 3.5L or 3.7L, 2008-2013 Honda Odyssey 3.5L, 2009-2015 Honda Pilot 3.5L, and 2009-2014 Honda Ridgeline 3.5L.
- 6-PHASE DESIGN: Efficient 6-phase alternator design uses less horsepower per kW produced than a conventional 3-phase alternator.
- HEAVY-DUTY CONSTRUCTION: Built with 12 diodes, twin full-copper rectifier plates, and strong airflow for dependable performance in demanding electrical systems.
- PULLEY AND BELT NOTE: Includes a smaller 1.75-inch alternator pulley and requires a slightly shorter drive belt for correct belt tension.
- FITMENT AND IDLE NOTICE: Confirm year, make, model, engine, and application before ordering. Mechman notes that this 320 amp version may have low or no voltage output at idle in some applications.

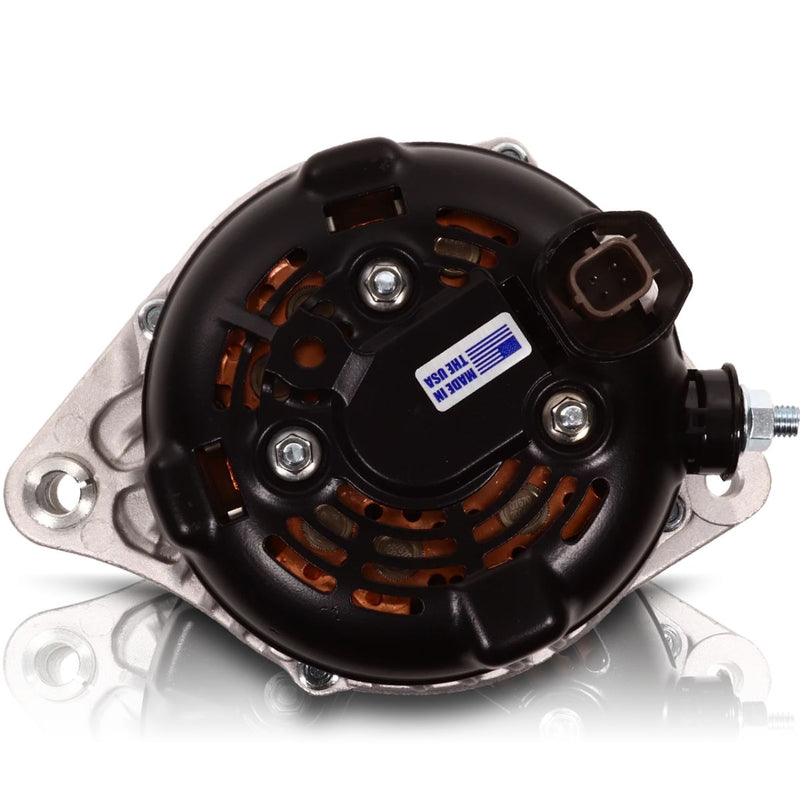

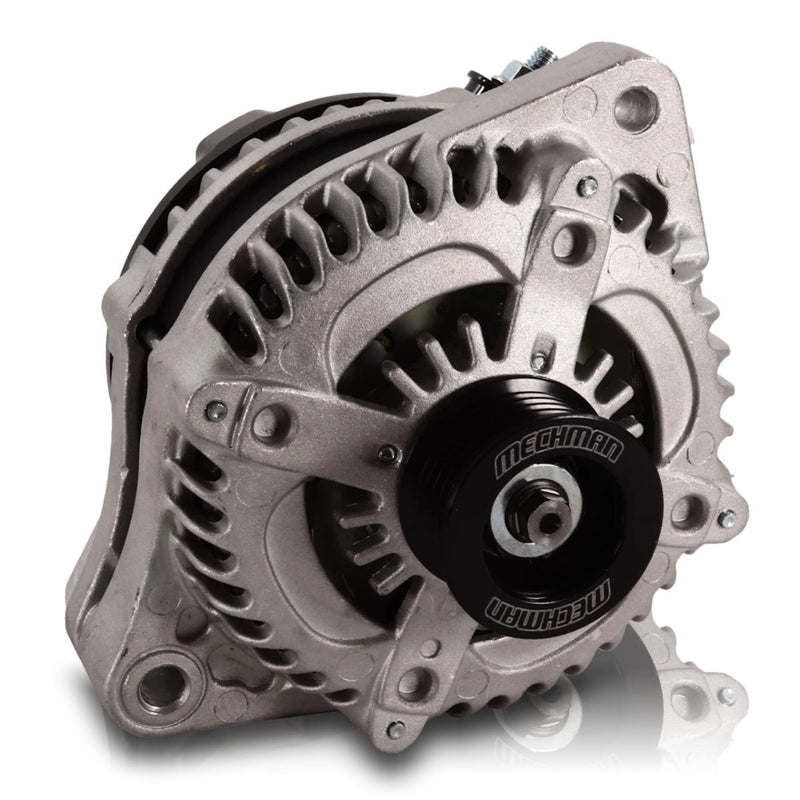

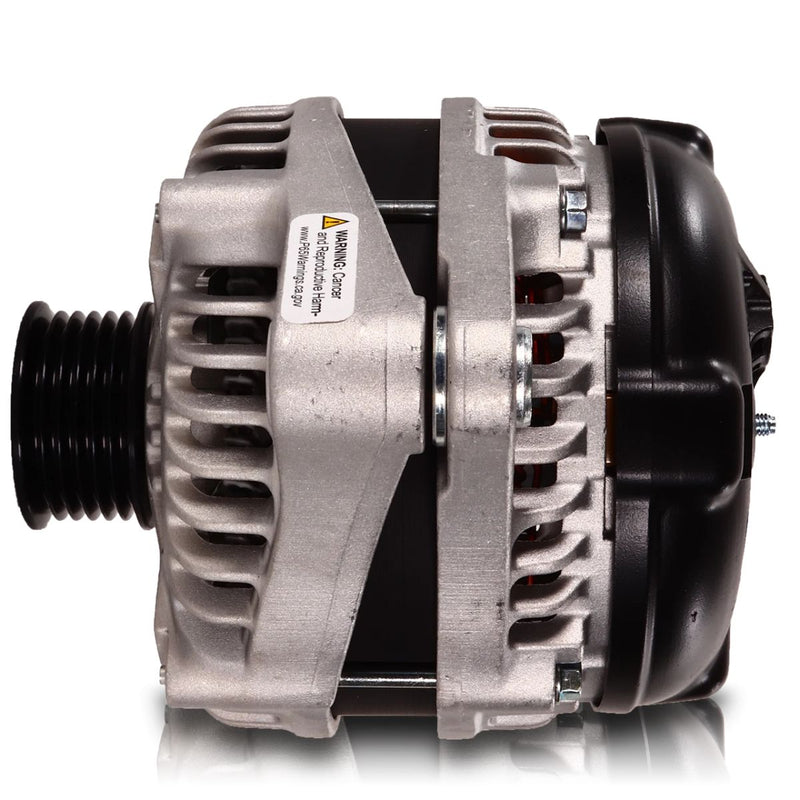

Mechman S-Series 320 Amp Alternator For 2009-2014 Acura/Honda 11391320
This Listing Includes:
- (1) Mechman S-Series Alternator 11391320
The Mechman S-Series 320 Amp Alternator delivers serious charging output in a compact, durable 6-phase design for compatible Acura and Honda applications. Built with 12 diodes, twin full-copper rectifier plates, and strong airflow, it is designed for high-output electrical systems that need more charging capacity.
Mechman states that its 6-phase S-Series alternators use less horsepower per kW produced than conventional 3-phase alternators. This 320 amp version produces more maximum output than the 240 amp option, but the correct choice depends on the vehicle and how it idles.
Features
- 320 amp Mechman S-Series alternator
- 6-phase high-output design
- Uses less horsepower per kW produced than conventional 3-phase alternators
- 12-diode design
- Twin full-copper rectifier plates
- Designed with strong airflow for long service life
- Smaller 1.75-inch alternator pulley
- Requires a slightly shorter drive belt for proper belt tension
- Standard finish only, no color options offered
Specifications:
- Brand: Mechman Alternators
- Model: S-Series
- Part Number: 11391320
- Output: 320 Amps
- Application: Compatible Acura and Honda applications
- Alternator Design: 6-Phase
- Diode Count: 12
- Rectifier Plates: Twin Full-Copper
- Pulley Diameter: 1.75 Inches
- Drive Belt Requirement: Slightly shorter belt required
- Manufacturer-Listed Weight: 17 lbs
- Finish: Standard finish only
VEHICLE FITMENT:
- 2010-2013 Acura MDX 3.7L
- 2009-2012 Acura RL 3.7L
- 2009-2014 Acura TL 3.5L or 3.7L
- 2008-2013 Honda Odyssey 3.5L
- 2009-2015 Honda Pilot 3.5L
- 2009-2014 Honda Ridgeline 3.5L
Important Fitment and Idle Note:
This unit uses a smaller 1.75-inch alternator pulley and requires a slightly shorter drive belt for proper belt tension. Mechman notes that, in some applications, the 320 amp version can cause low or no voltage output at idle. Vehicles with a stock or low 400-600 RPM idle may be better suited to Mechman's 240 amp version. Confirm your exact year, make, model, engine, and application before ordering.
Standard Finish Only:
This Big Jeff Audio listing is for the standard-finish alternator only. Manufacturer color options shown on Mechman's website are not available through this listing.
